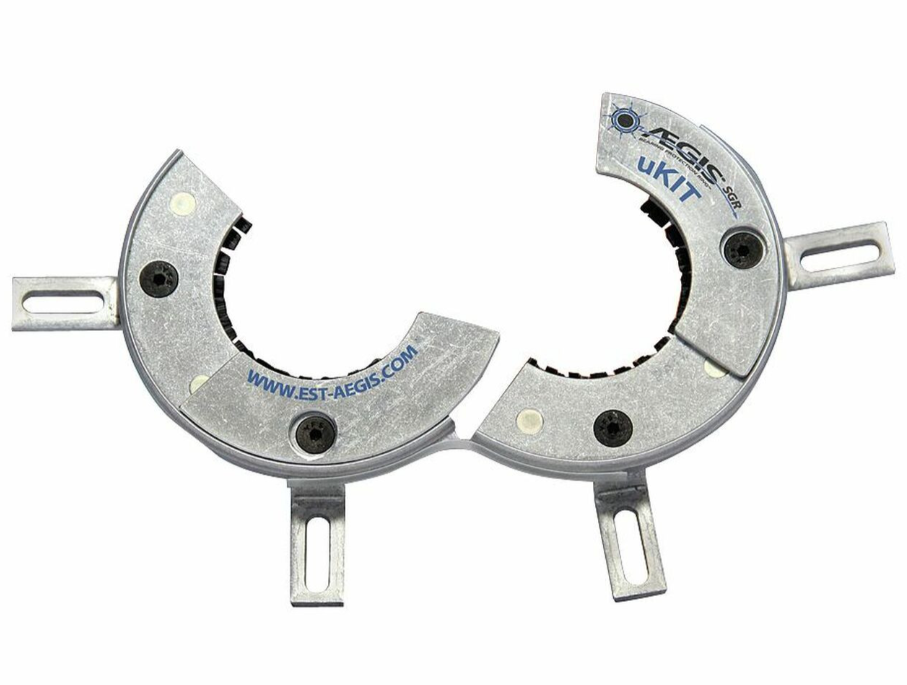

The AEGIS SGR-1.125-UKIT-1A4 Bearing Protection Split Ring is a premium grounding solution designed to protect motor bearings from electrical discharge damage caused by variable frequency drives (VFDs). Engineered for 1-1/8" (1.125") shaft diameter motors with 182T and 184T frames, this split-ring model allows for quick, non-invasive installation without removing couplings or disassembling the motor. It provides effective shaft grounding to prevent fluting, pitting, and bearing failure, ensuring smooth, efficient, and long-lasting motor performance. Key Features Split-ring design enables easy field installation without motor disassembly Protects bearings from electrical discharge and extends motor life Fits 1-1/8" (1.125") shaft motors in 182T and 184T frame sizes Ideal for VFD-driven applications in industrial and commercial environments Maintenance-free operation with long service life Durable aluminum housing with conductive microfiber technology Includes universal installation kit with hardware and conductive grease Specifications Part Number: SGR-1.125-UKIT-1A4 Brand: AEGIS Type: Bearing Protection Split Ring Shaft Diameter: 1-1/8" (1.125") Motor Frame: 182T, 184T Material: Aluminum housing with conductive microfibers Application: Shaft grounding for motors powered by variable frequency drives (VFDs) Installation: Split design allows easy retrofit installation Compatible Models: Suitable for 1-1/8" shaft motors (182T, 184T frame) from Baldor, Marathon, Leeson, WEG, Siemens, and ABB ? and more. Why Choose This Item Choose the AEGIS SGR-1.125-UKIT-1A4 for fast installation, proven bearing protection, and superior performance. Its split design provides exceptional convenience for retrofitting motors in the field while delivering the same reliable grounding technology trusted by industry leaders to extend motor and bearing life.
