Kipp Swivel Hoist Ring (3990 lbs load, and similar items

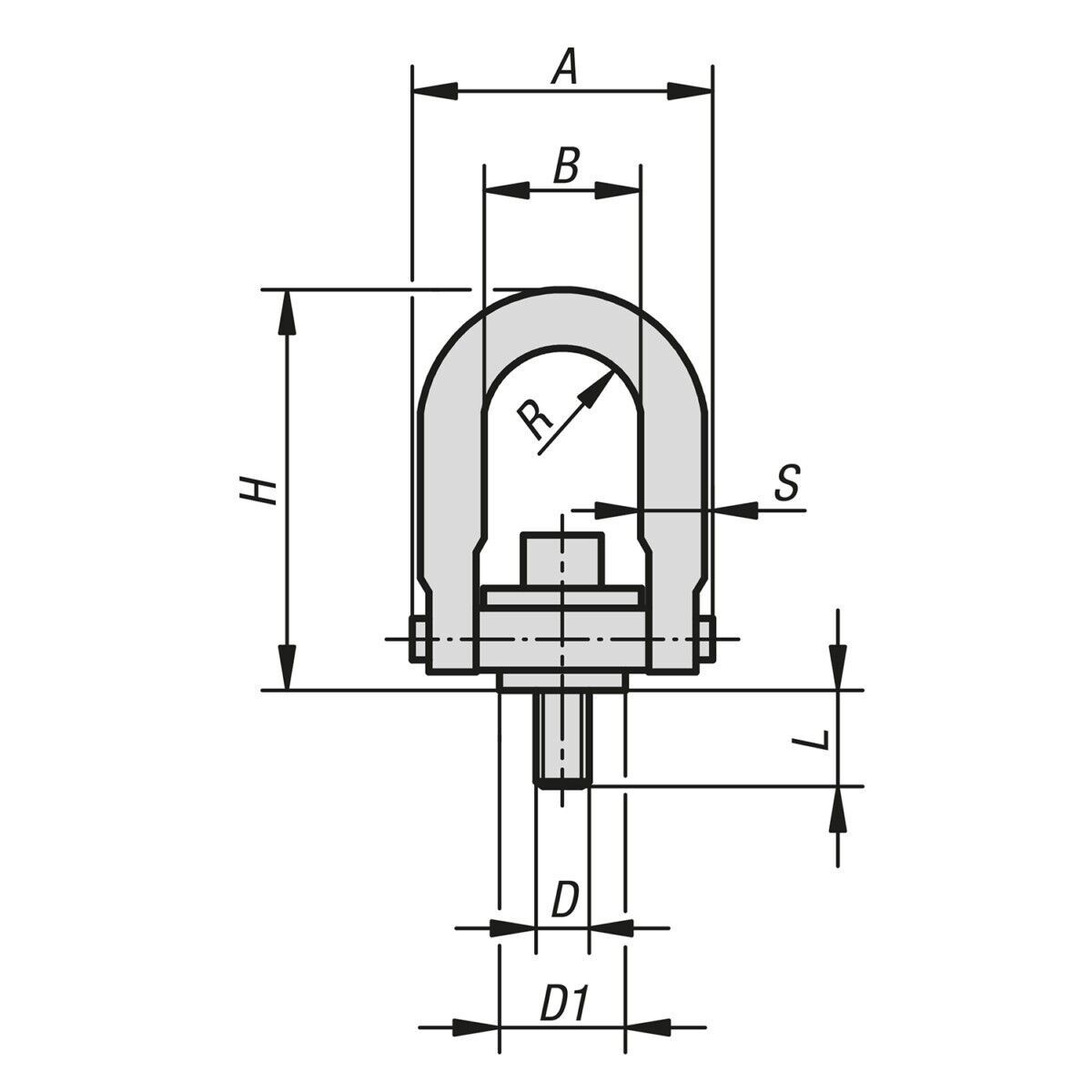

Features: Do not use spacer washers between the bushing flange and support beam. 360 Swivel 180 Pivot Allows for flexible load positioning in lifting applications. High load capacity for heavy-duty lifting with robust materials. Made from high-strength alloy steel with a corrosion-resistant finish. Features a threaded bolt for attachment to lifting points. Every hoist ring is subject to load testing and subsequent visual inspection The Kipp Swivel Hoist Ring (3990 lbs load, 5/8"-11 thread) is built for secure and adaptable lifting in industrial settings. Constructed from high-strength alloy steel with a black oxidized finish. A threaded bolt provides a reliable connection to lifting points, eliminating the need for spacer washers between the bushing flange and support beam. Designed with a swivel eye bolt mechanism, this lifting ring offers 360 rotation and 180 pivoting for easy load positioning. With a maximum load capacity of 1810 kg and a tightening torque of 81.4 Nm, each unit undergoes rigorous load testing and visual inspection. The Kipp Swivel Hoist Ring is a dependable choice for lifting applications in industrial and construction environments. Specifications: A (Width): 89.4 D (Pin diameter): 5/8-11 H (Height): 121.4 KG (Max. load capacity kg): 1810 M (Tightening torque Nm): 81.4 B: 46 Body material: QT steel Body surface finish: Black oxidized D1: 38.1 Designation: Hoist Ring PL Stainless steel: FALSE R: 22.4 S: 19 Type: Standard Version 1: Standard
