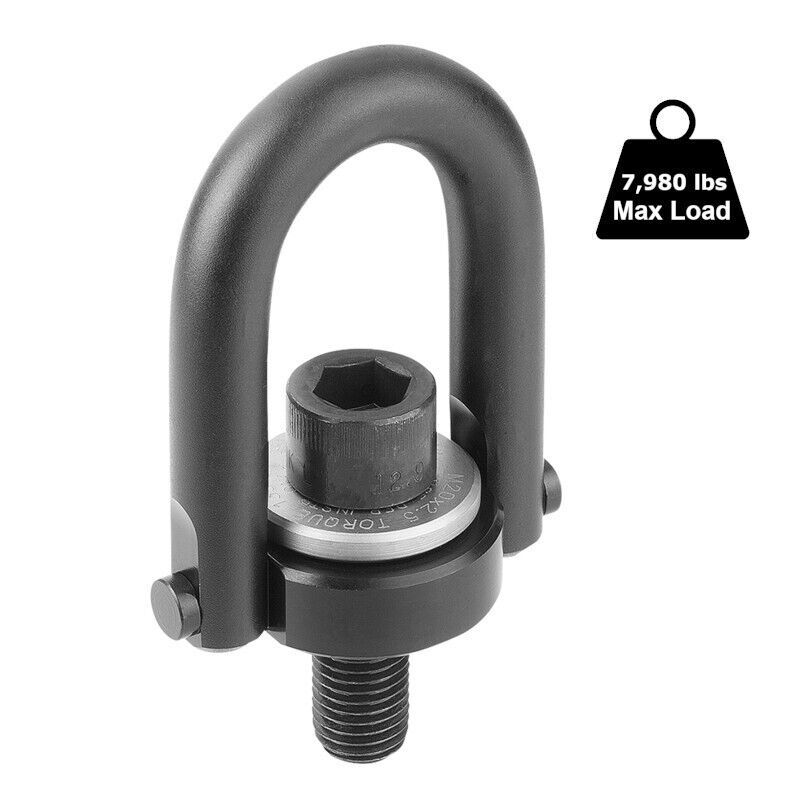

Kipp Swivel Hoist Ring (7980 lbs load, and similar items

Features: Do not use spacer washers between the bushing flange and support beam. 360 Swivel 180 Pivot Allows for flexible load positioning in lifting applications. High load capacity for heavy-duty lifting with robust materials. Made from high-strength alloy steel with a corrosion-resistant finish. Features a threaded bolt for attachment to lifting points. Every hoist ring is subject to load testing and subsequent visual inspection The Kipp Swivel Hoist Ring (7980 lbs load, 7/8"-9 thread) is built for secure and versatile lifting in industrial environments. Constructed from high-strength alloy steel with a black oxidized finish, it offers durability and corrosion resistance. Its threaded bolt ensures a firm connection to lifting points while eliminating the need for spacer washers between the bushing flange and support beam. Equipped with a swivel eye bolt mechanism, this lifting ring allows for 360 rotation and 180 pivoting, providing precise load positioning. With a maximum load capacity of 3620 kg and a tightening torque of 217 Nm, it meets the demands of heavy-duty lifting. Every unit undergoes rigorous load testing and visual inspection to ensure safety and performance. The QT steel body enhances stability, making it suitable for industrial and construction applications. The Kipp Swivel Hoist Ring delivers strength, flexibility, and reliability, making it an essential component for safe and efficient lifting operations in demanding environments. Specifications: A (Width): 130.6 D (Pin diameter): 7/8-9 H (Height): 165.6 KG (Max. load capacity kg): 3620 M (Tightening torque Nm): 217 B: 70 Body material: QT steel Body surface finish: Black oxidized D1: 58.7 Designation: Hoist Ring PL Stainless steel: FALSE R: 35.6 S: 25.4 Type: Standard Version 1: Standard
