AR500 Portable Cyclone Texas Star Reactive and 47 similar items

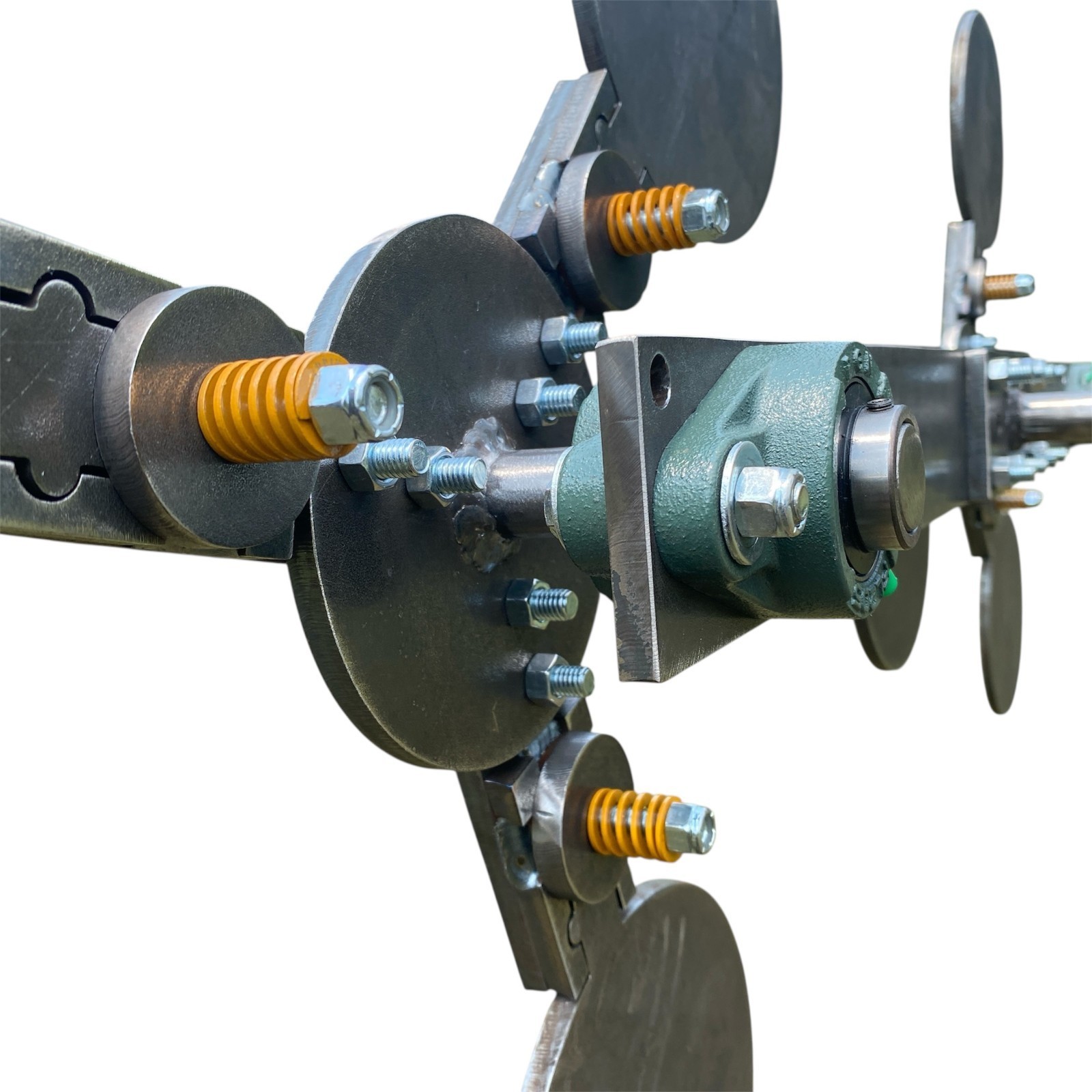

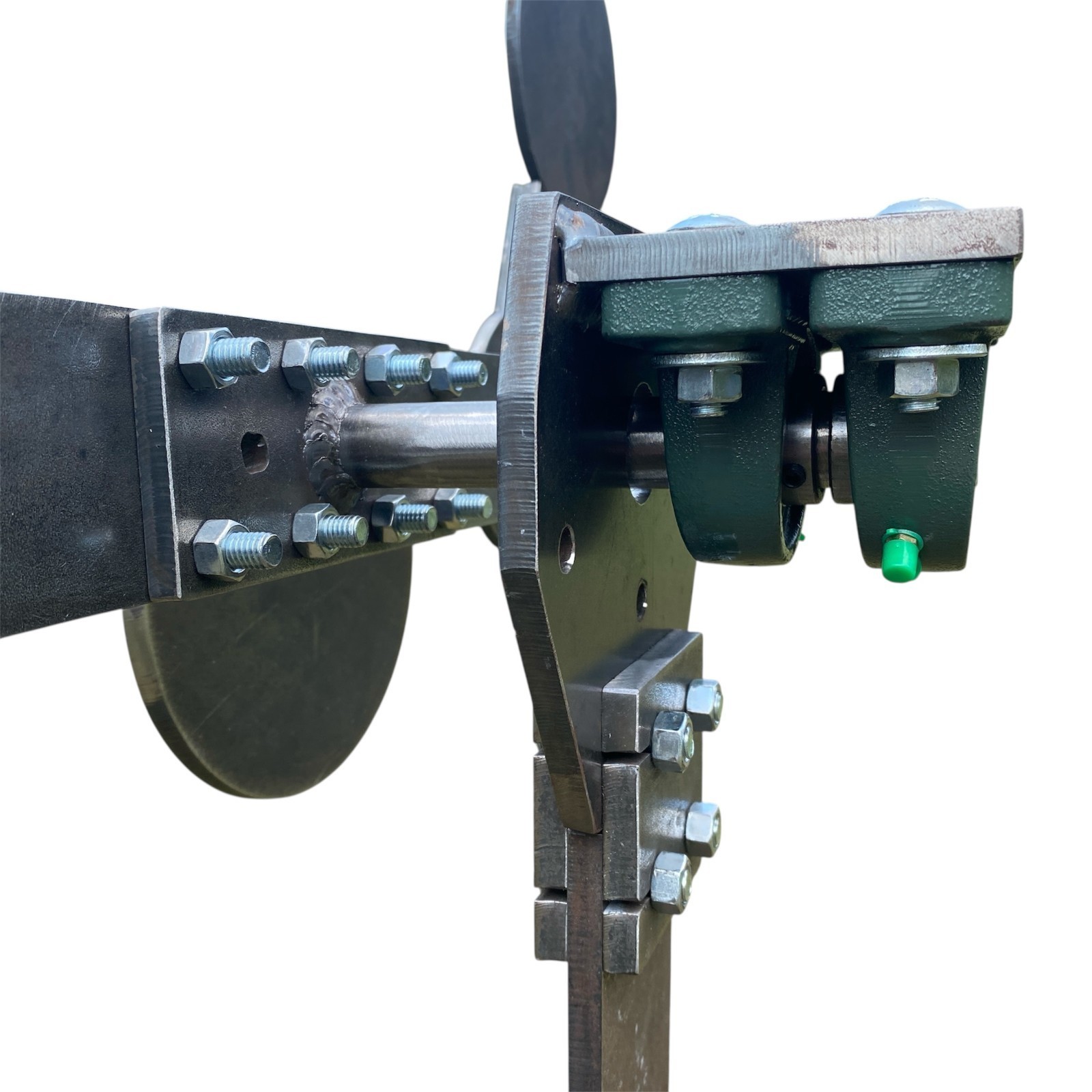

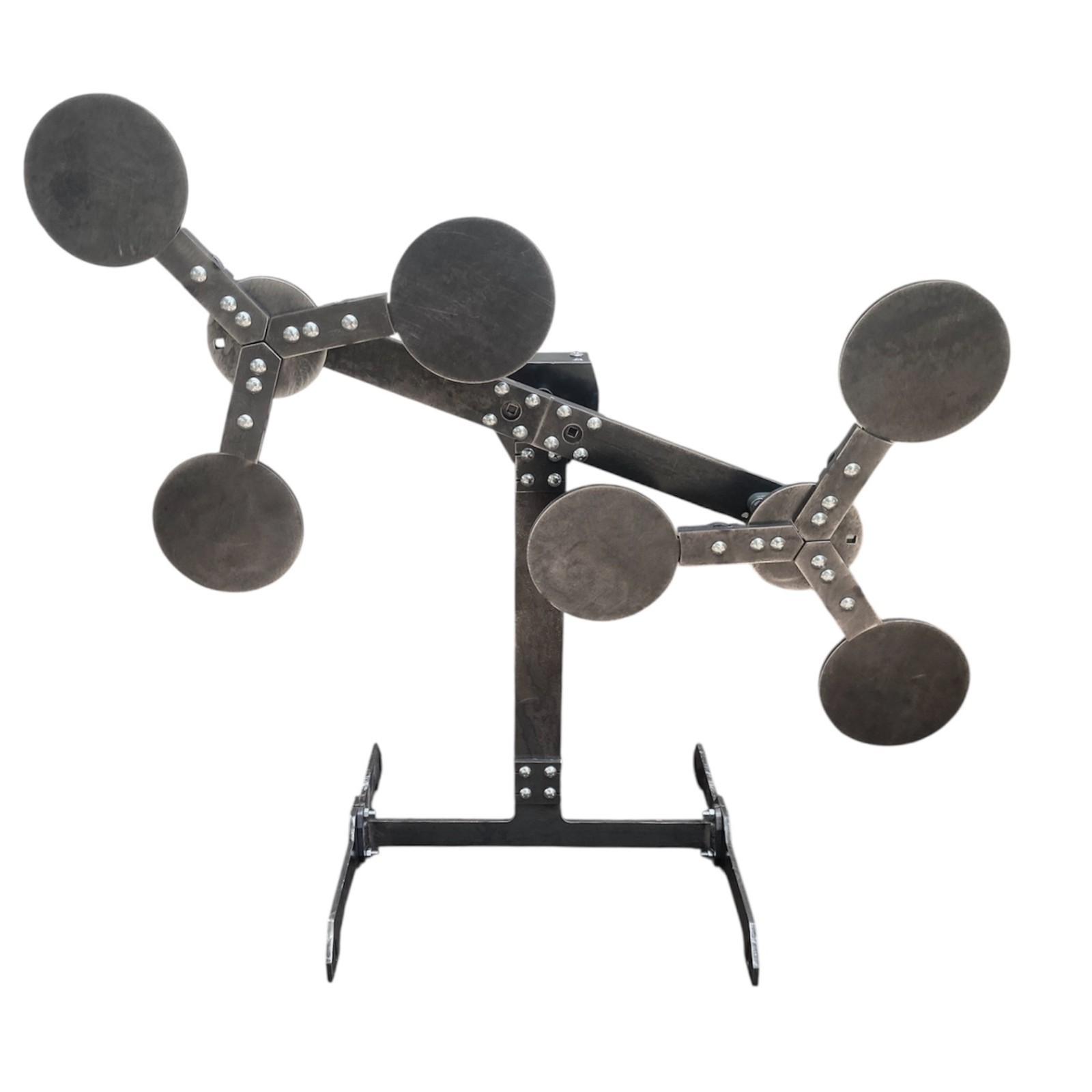

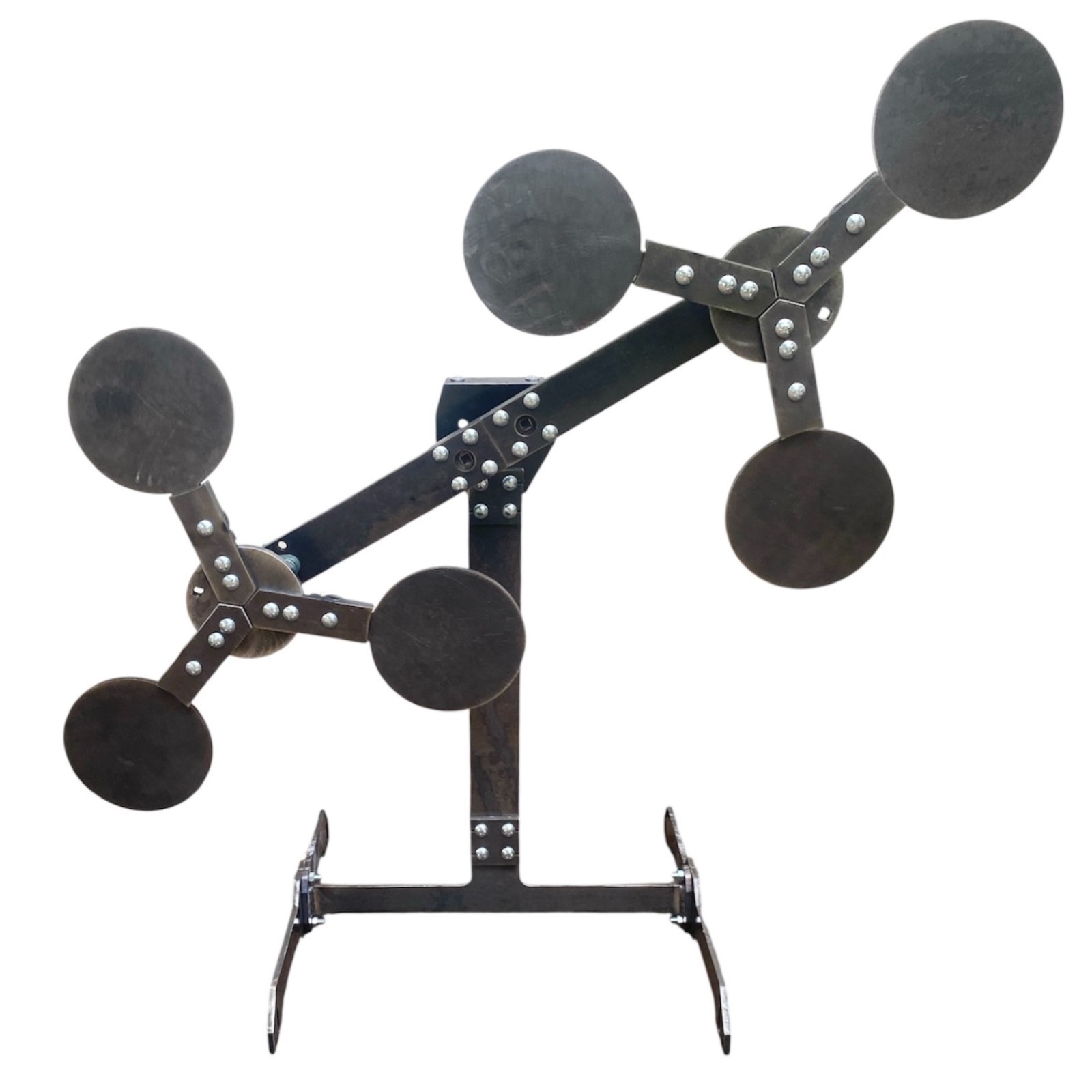

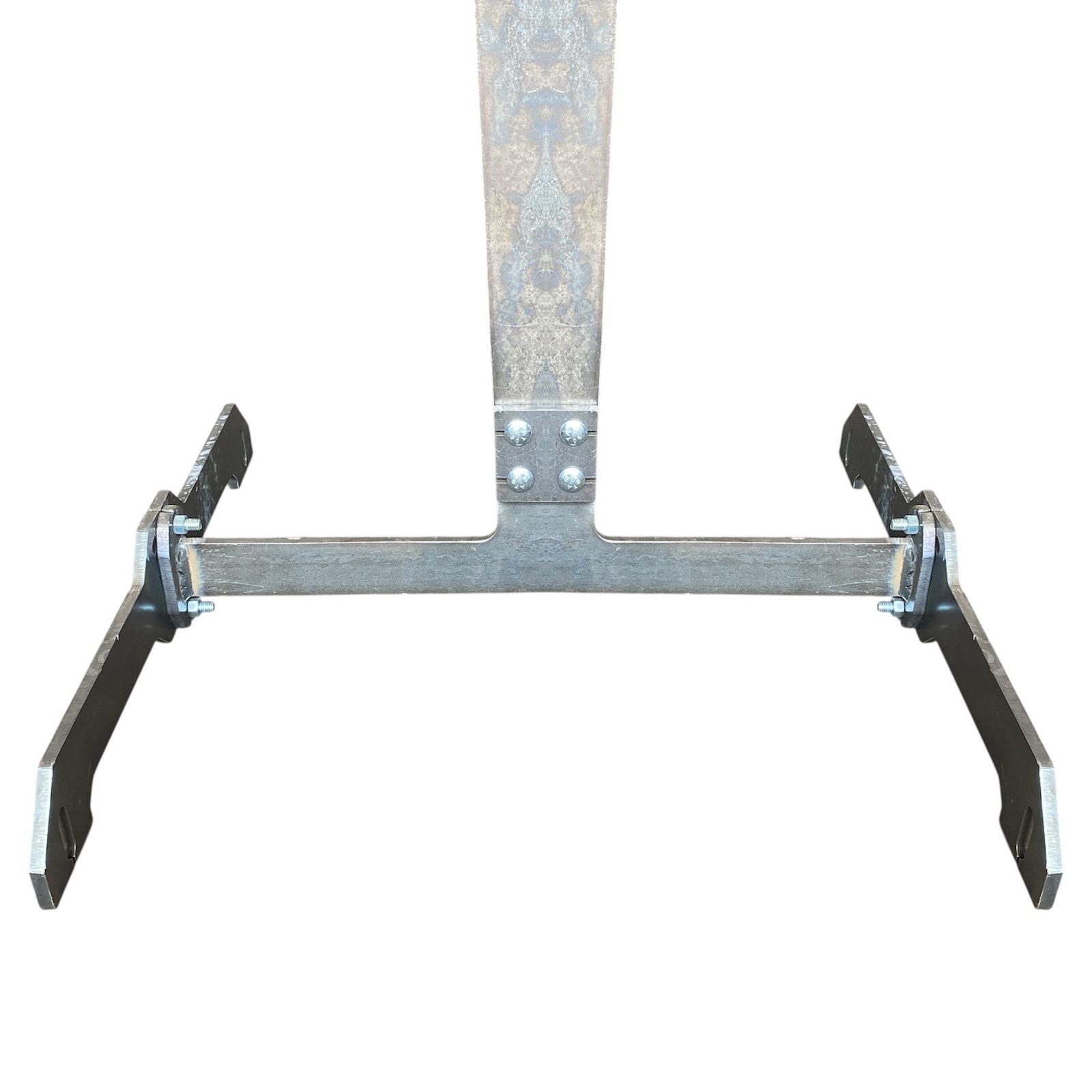

Visit our for the Best Prices and Widest Selection This 60" Tall x 58" Wide 3/8" AR500 ?No Weld? Double Cyclone Texas Star type target manufactured by Magnum Target will be shipped in 3 UPS packages and weighs 115 lbs / 52 kg. All pictured parts come finished and unpainted. Assembly Instructions are included in packaging. They're also listed below in the description. Check out our version with 6" Paddles! https://www.ebay.com/itm/267358005432 Parts 6 - 3/8" AR500 8" Cyclone / Texas Star / Plate Rack Paddles 6 - 3/8" AR500 6.5" Long Star Arms w/ Pre-Assembled Spring Retainers 2 - 3/8" AR500 17" Long Main Mounting Beams w/ Pre-Assembled Bearings and 6" Hubs each w/ a Rotation Stop Bolt 1 - Pre-Assembled Center Hub Assembly w/ Rotation Stop Bolt (Vertical or Horizontal) 4 - 3/8" AR500 3" Square Connector Brackets 1 - 3/8" AR500 3"x21" Vertical Hub Support Plate 1 - 3/8" AR500 T-Shaped Base w/ Welded Side Brackets 2 - 3/8" A36 0-20 Degree Base Legs 32 - 3/8" x 1.5" Carriage Bolts for Stand Arm Assemblies 32 - 3/8" Hex Nuts for Stand Arm Assemblies This product has been fully assembled and function tested prior to shipment. This portable, simple, and sturdy bolt-together design takes just a few minutes to assemble and weighs 100lbs total. A large, flat surface is not required but is highly recommended for assembly. By using one, two, or all three included Rotation Stop Bolts, you're able to customize the target to fit your prefered application! Once at the range, our 24? stand legs work great on uneven ground. These 3/8in. AR500 steel targets are great for most pistol and rifle rounds, including 9mm, 45ACP, .223, 30-06 308 as well as most other high powered rifle calibers. Reversible steel target face doubles the life of the shooting target. Steel shooting targets are precision cut with a CNC plasma cutter and submersion water cooled during the cutting process to maintain the integrity of the shooting targets, ensuring the longest life. Assembly Instructions The T-Shaped Base comes pre-welded with mounting brackets on either side for the 24? Base Legs. The Legs will be mounted using (4) included 3/8" bolts and nuts. We recommend is to be slightly pitched back away from the shooter due to frontal weight. This angle can be easily changed after full assembly by slightly loosening the nuts. (2) 3? Square Connector Brackets will surround and connect the 3?x21? Vertical Hub Support to the Base using (4) included 3/8" bolts and nuts. (2) 3? Square Connector Brackets will surround and connect the Hub Assembly to the top of the 3?x21? Vertical Hub Support using (4) included 3/8" bolts and nuts. The 17" Long Main Mounting Beams will mount to the front of the Hub Assembly using (8) included 3/8" Carriage bolts and nuts. Beams and hub can be aligned easiest when positioned vertically. The (2) outside 6" hub assemblies come pre-aligned and assembled. The (6) 6.5" Star Arms w/ Pre-Assembled Spring Retainers will mount to the front of them using (12) included 3/8" bolts and nuts. If the Rotation Stop Bolt is desired, align the main beams horizontally or vertically, insert the bolt from the front and tighten down the nut on the back of the bearing protector plate. The same can be done with the outside 6" hubs. Ensure all nuts and bearing set screws are securely fastened. Lastly, insert the paddles and you're ready for the range! Warnings Shooter and spectators must always wear proper eye and hearing protection. Recommended minimum distances from steel targets to shooter are 15 yards for pistols and 100 yards for HP rifles. These steel shooting targets are not designed for use with shotgun slugs, steelshot, BBs, armor-piercing, steel-core, or other hardened ammunition. Do not use a steel target that has been deformed or damaged. Disclaimer Buyer assumes all responsibility for the use and misuse of the purchased steel targets.
