Danfoss 83007233 H1 Variable Displacement and 13 similar items

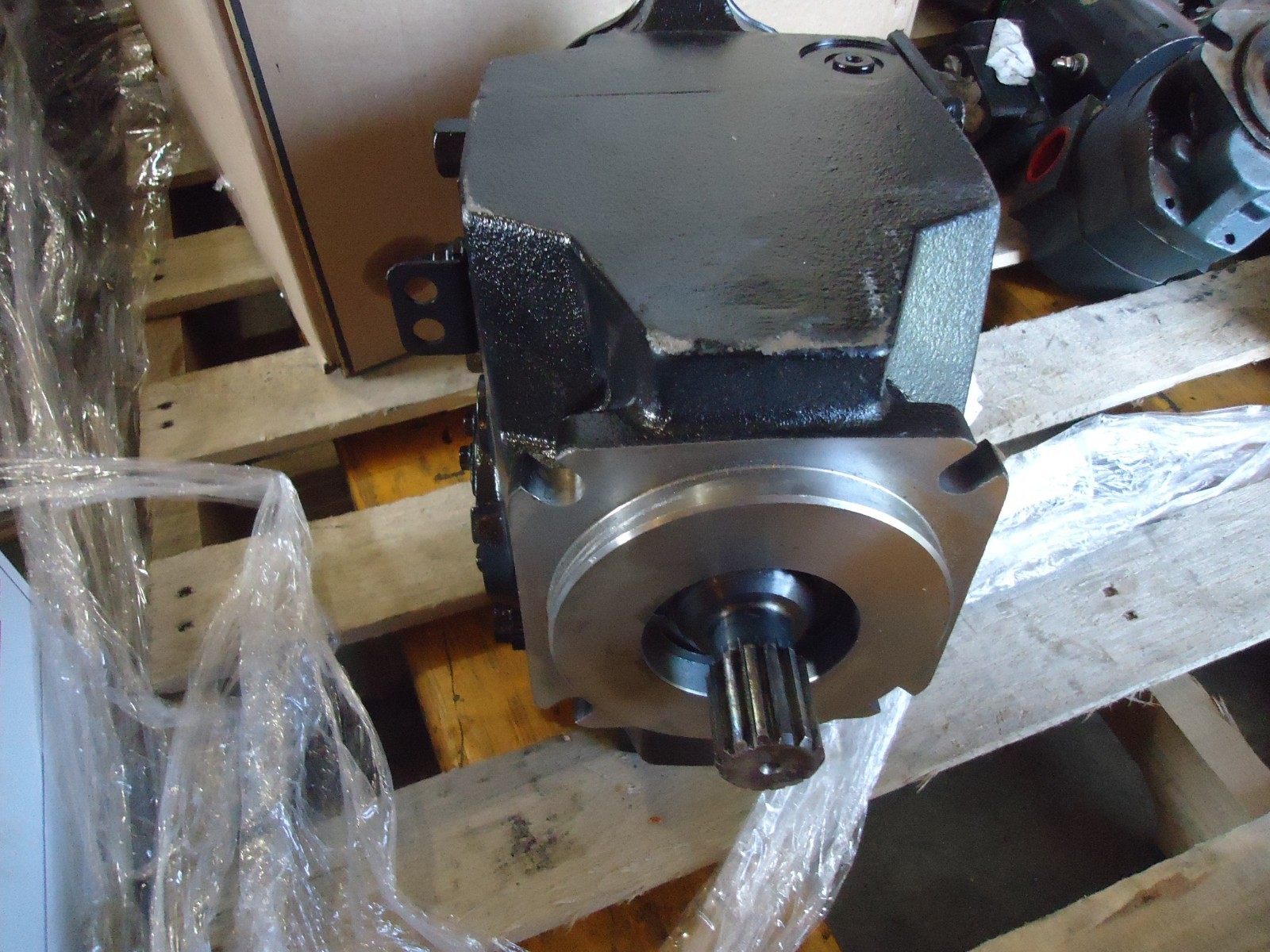

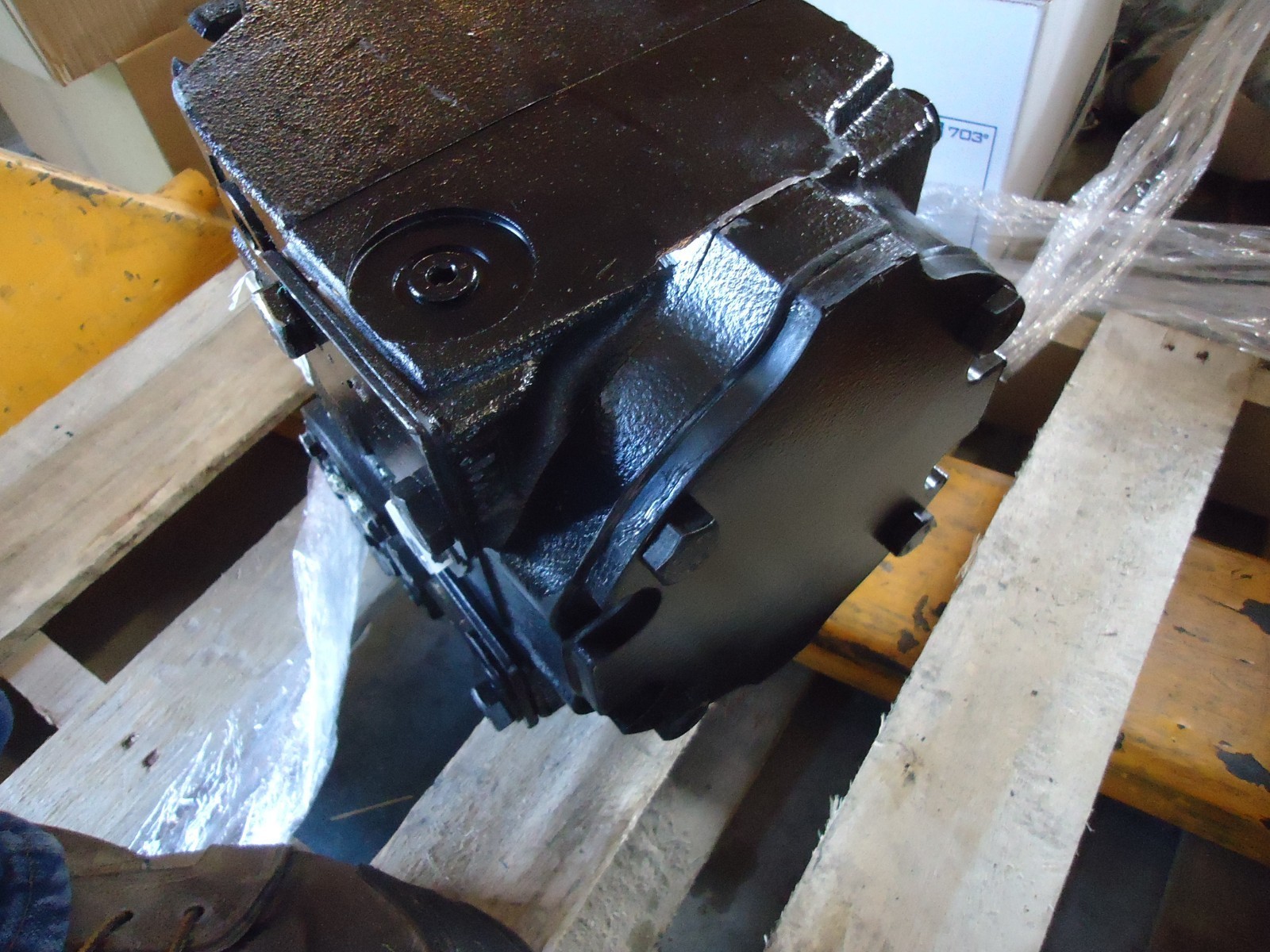

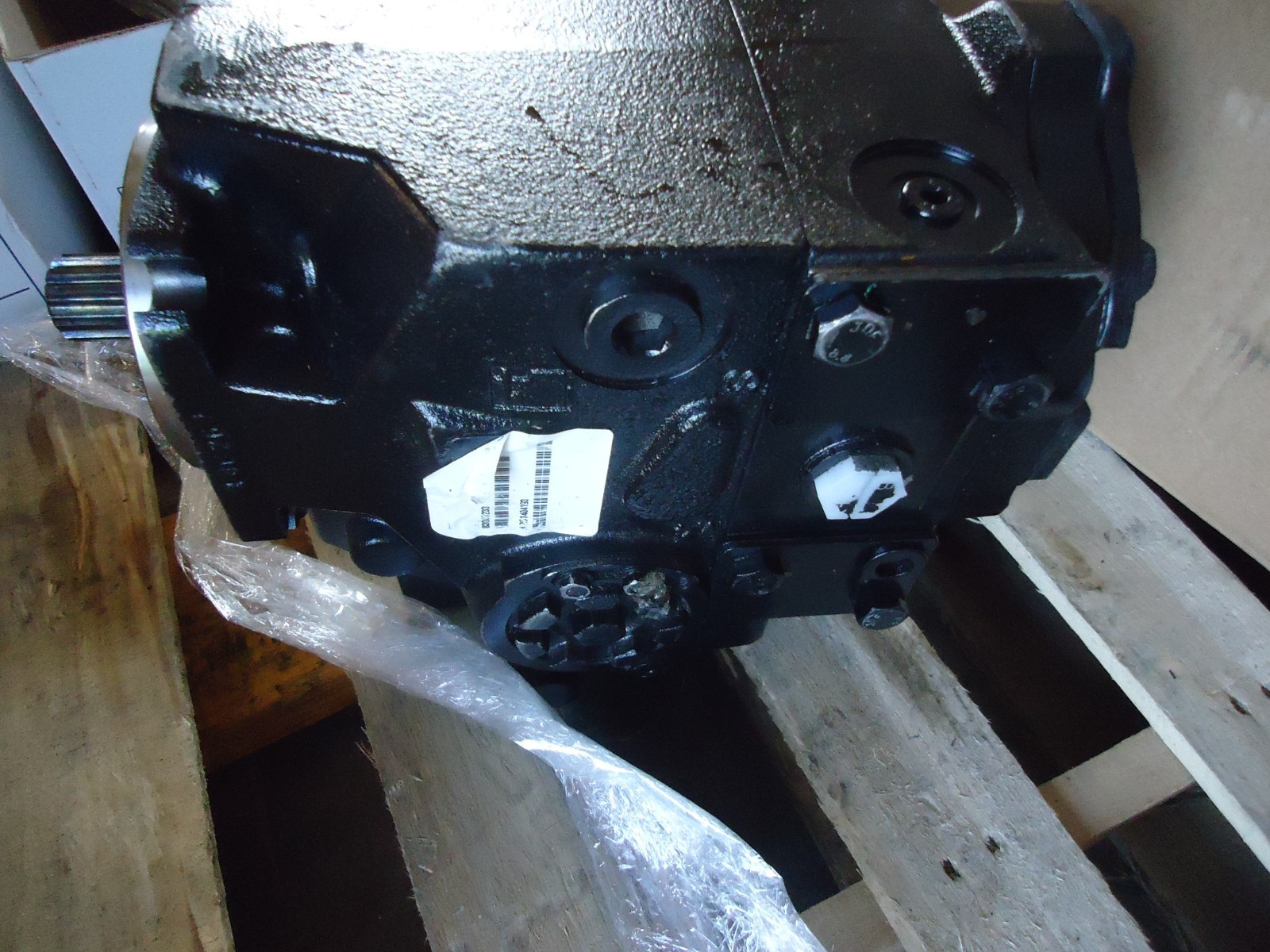

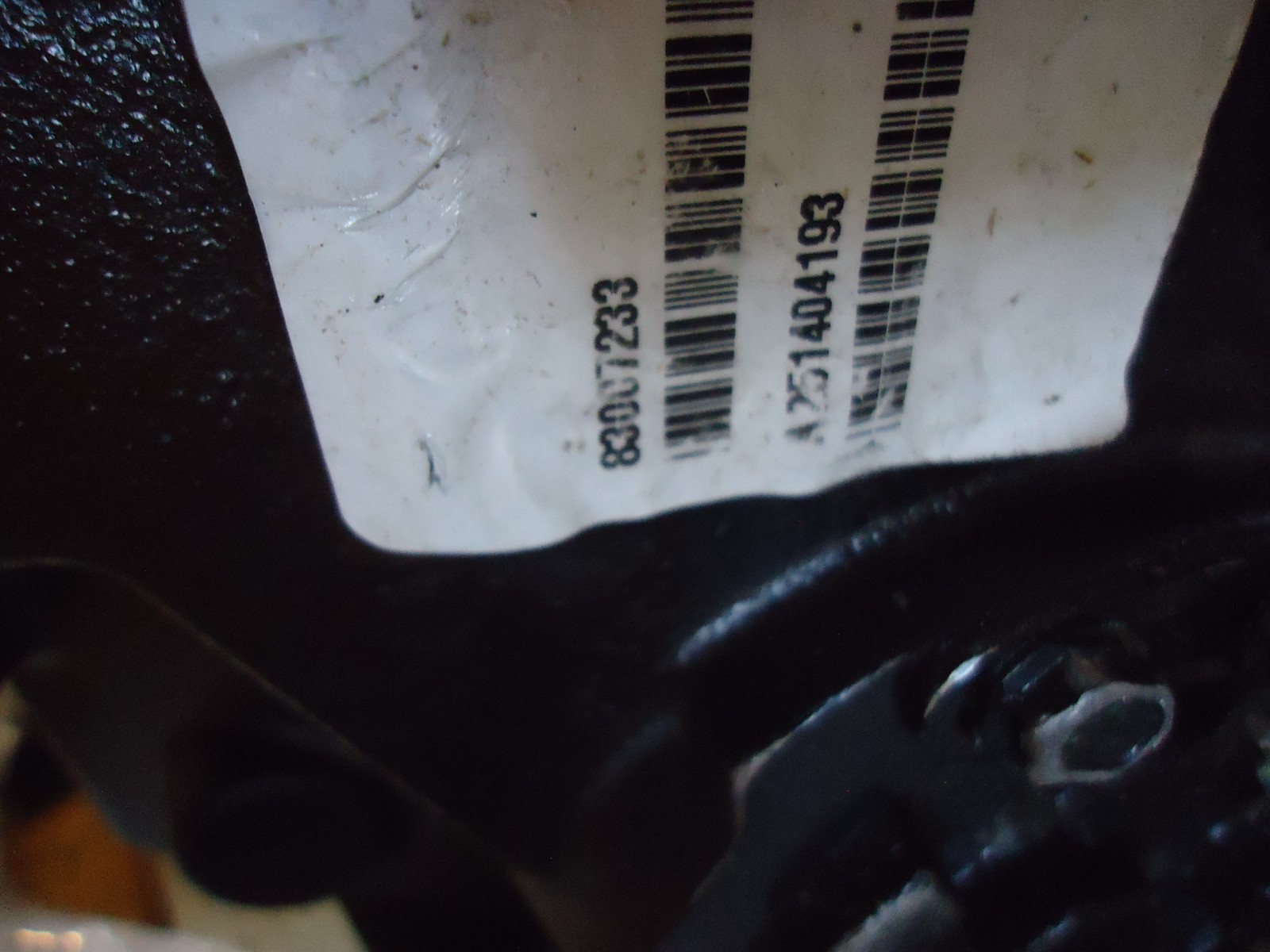

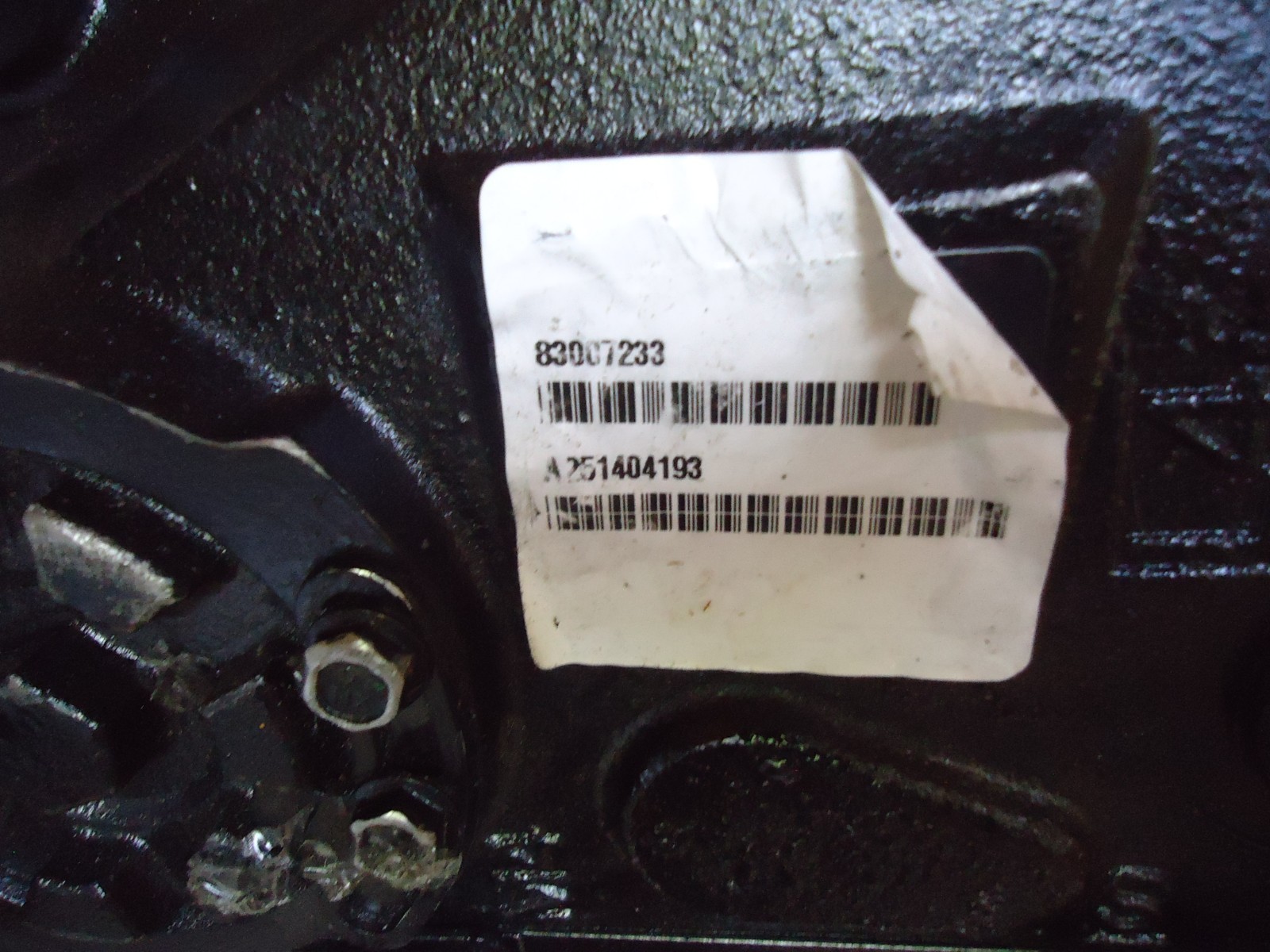

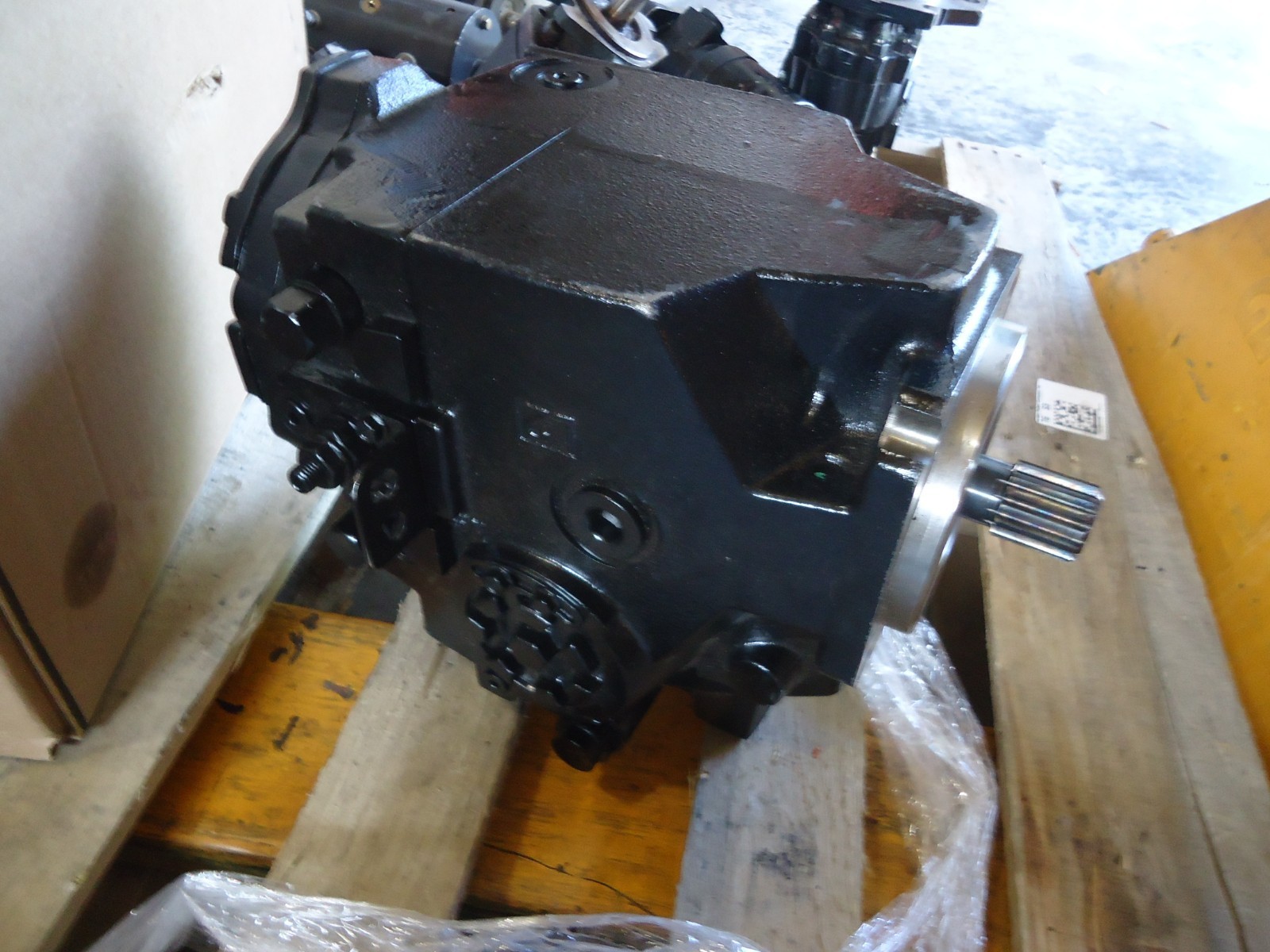

Danfoss 83007233 H1 Variable Displacement Pump PUMP-VAR-DISPL CW H1PV078 Product specifications Characteristic Value Description Series H1 H1 - Series Product type P Variable pump Frame Size 078 78cc/rev max/variable displacement Rotation R Right hand - clockwise Product version B Product version B Configuration of ports A ANSI O-ring boss port configuration Control A2 Electrical displacement control, 12V Deutsch DT04-2P connector Orifices C2 P = none, A+B = 1.3mm, TA+TB = none Displacement limitation N No limiters electrical displacement control/forward neutral reverse control Endcap type D6 Twin port, code 62 metric 4 bolt flange, suction filter Mounting flange H SAE C 4 bolt flange Input shaft G1 14 tooth, 12/24 Auxiliary pad H6 14 tooth, C pad Protection type side A L Pressure limiter, high pressure relief valve High pressure setting side A 40 400 bar Protection type side B L High pressure relief valve + pressure limiter High pressure setting side B 40 400 bar Charge pump C 17cc/rev Filtration L Suction filtration Charge relief pressure setting 24 24 bar charge pressure relief valve Special hardware features PN Electrical displacement control/forward neutral reverse control/ manual displacement control valve plate, without handle Paint and nametag NNN Black paint, Danfoss tag A Settings NNN Default, no special settings
