Furman CN-20MP 20A Remote Duplex EVS Smart and similar items

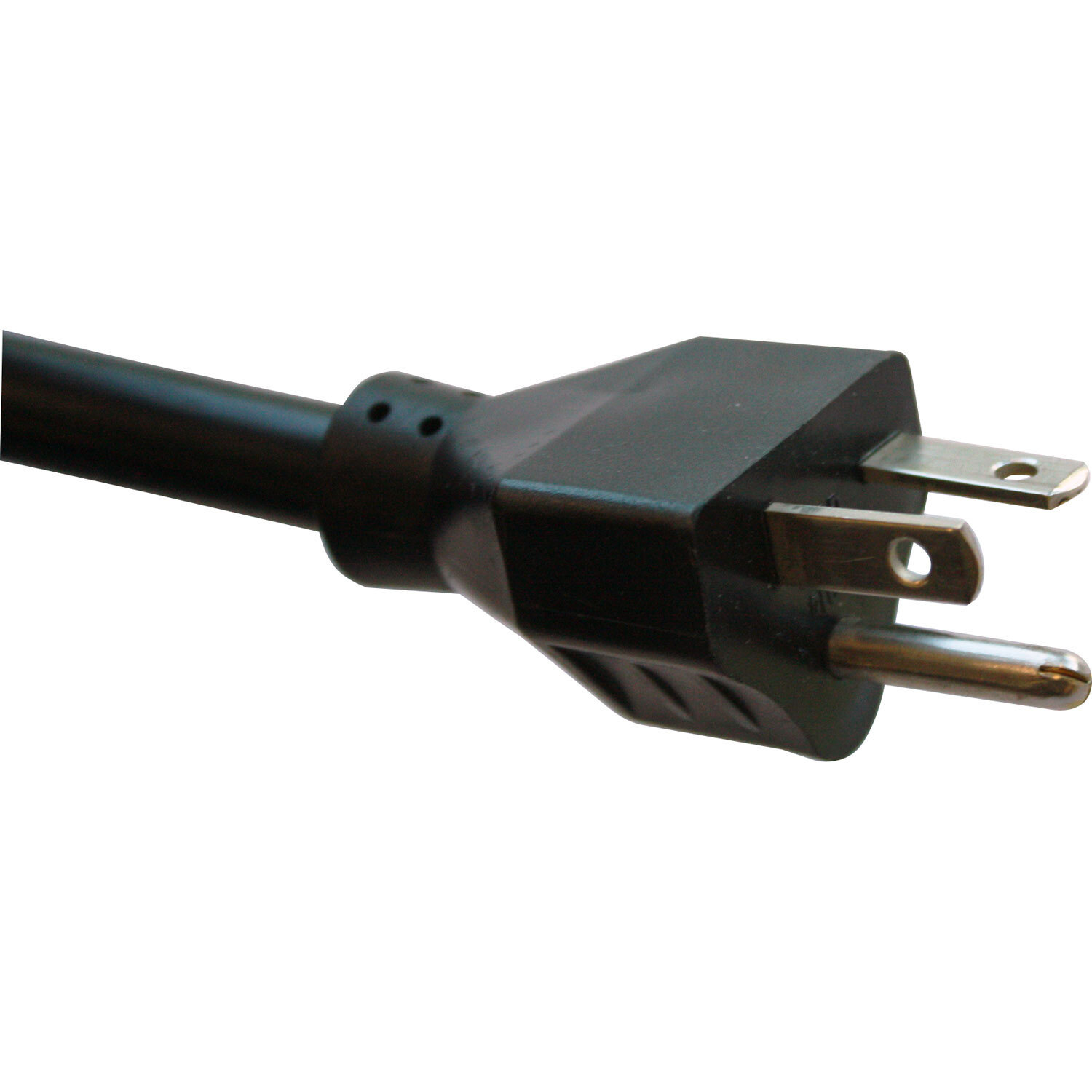

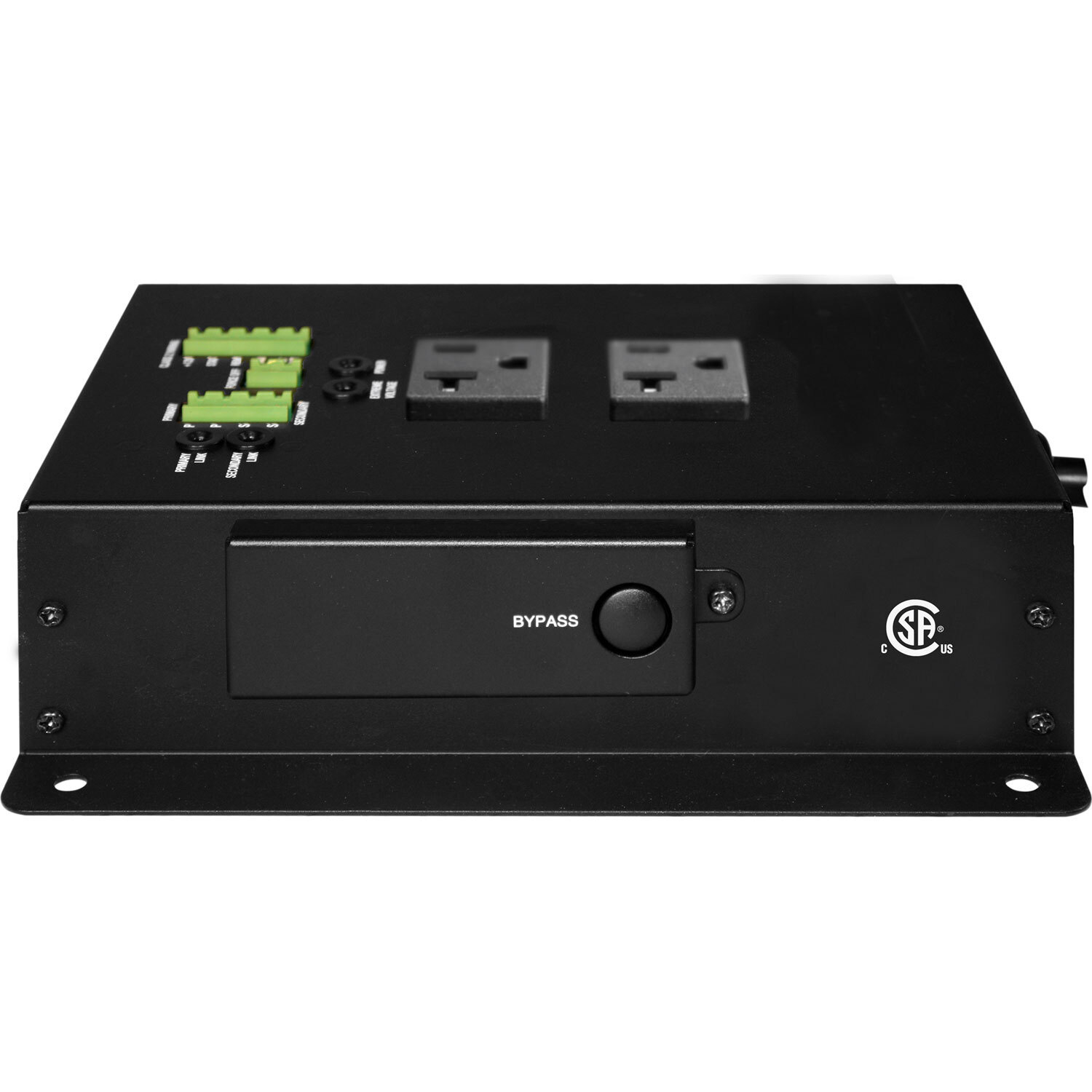

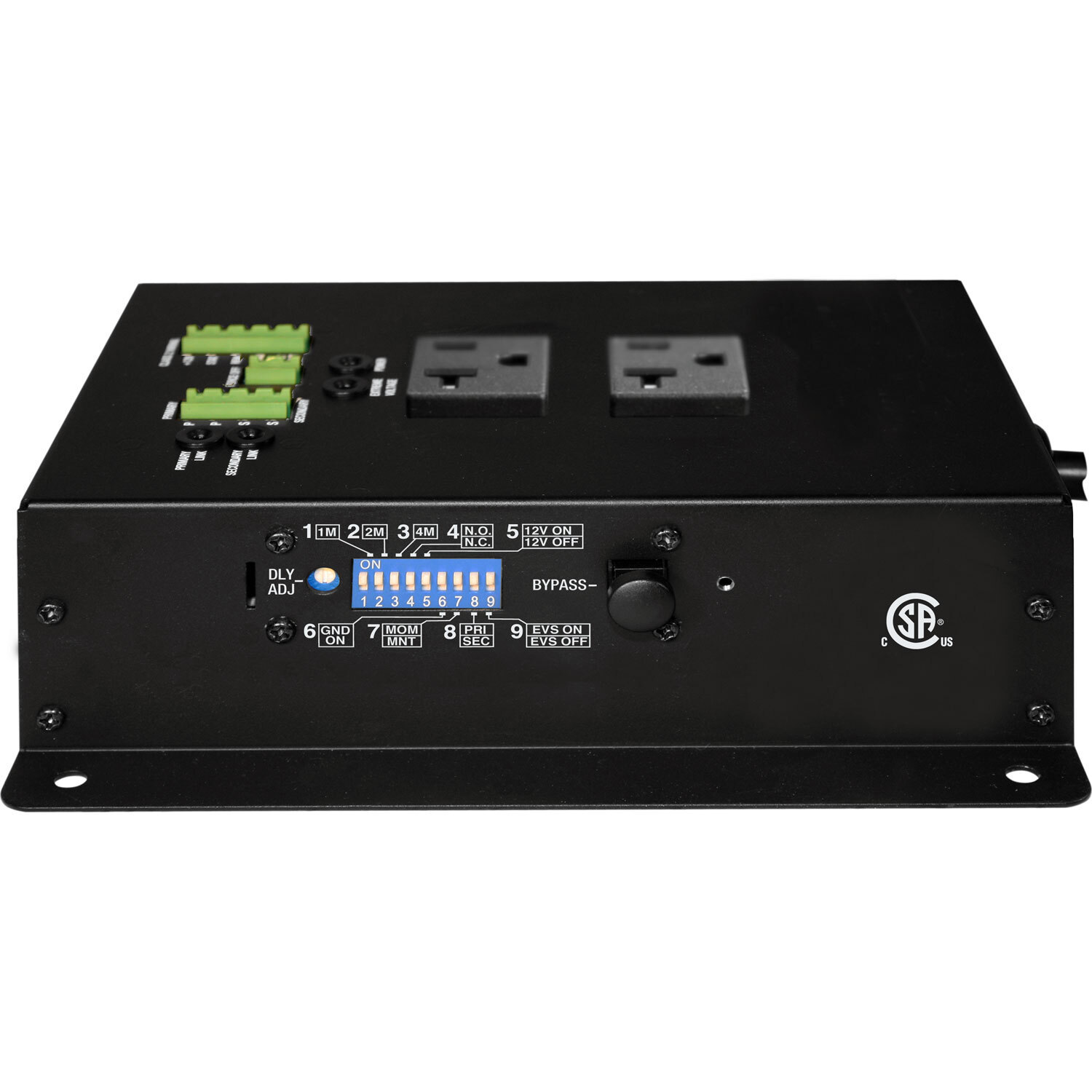

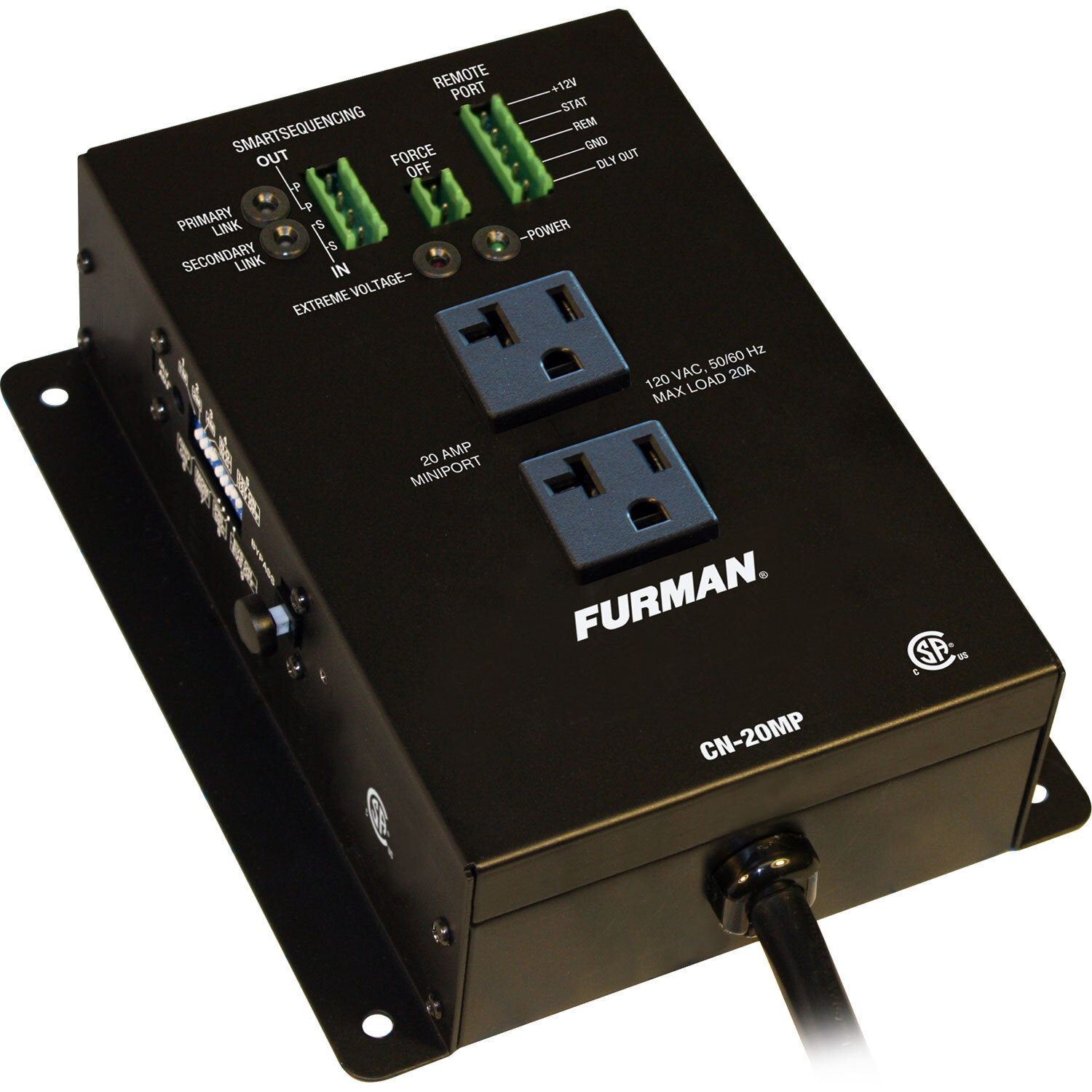

Furman CN-20MP 20A Remote Duplex EVS Smart Sequencing 10 Ft Cord 20 Amp Output Ships Free! Delivering SmartSequencing outside of the equipment rack, with remote relay. Furman?s Contractor Series MiniPorts extend the benefits of SmartSequencing to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. Units may be daisy-chained and fully controlled via a Furman SmartSequencer, legacy Furman sequencer, third-party sequencers, via the Internet (with BB-RS232 adaptor and SmartSequencer), and/or control and automation systems. DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches. Sequencing of duplex initiated remotely by standard analog triggering (remote terminal) or data link (SmartSequencing from CN-1800S or CN-2400S). The CN-20MP can shut itself off automatically when triggered by a fire alarm. 15 Year Limited Warranty Specifications: AC Voltage Input Range 90-139VAC, 50/60Hz Maximum AC Current Rating 20 Amps (No Breaker) AC Cord 3/12AWG, 10 feet, black, fixed, NEMA 5-20P plug AC Receptacles 2 NEMA 5-20R?s (1 duplex) AC Undervoltage Protection EVS, 77VAC+/-3VAC AC Overvoltage Protection EVS, 140VAC+/-5VAC AC Overvoltage Reset Modes Enabled and disabled (configurable via DIP Switch #9) Operating Temperature Range 5C (40F) to 40C (105F) degrees Humidity Range 90% rH (Relative Humidity) Circuit Breaker No Breaker Front panel diagnostic indicators (LED) Power, Extreme Voltage, Primary Link, Secondary Link Side Panel DIP Switch Features (with security cover) 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off GND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual Side Panel Potentiometer allows fine tune delay adjustments Remote Terminal +5-30VDC In, 12VDC (12mA) Out SmartSequencing Phoenix-type 4-Pin Connector, Screw Terminals, Primary Secondary Links (Current Loop ? 1000? nominal) Remote Terminal Phoenix-type 5-Pin Connector With Screw Terminals; +12V, STAT, REM, GND, DLY_OUT (Class 1 Wiring) Force Off Phoenix-type 2-Pin Connector With Screw Terminals, FORCE OFF (Class 1 Wiring) RS-232 Compatible Yes, indirectly, when connected via SmartSequencing to a Furman Smart Sequencer with an RS-232 port IP Accessibility Optional IP control via Telnet, HTTP, or BlueBOLT when used in conjunction with SmartSequencing Voltmeter Available with SmartSequencing Ethernet option, 2VAC accuracy Ammeter Available with SmartSequencing Ethernet option, 1A accuracy Power Consumption (No Load) 10 Watts Safety Agency CSA, RoHS Compliant Features: SmartSequencing? ? SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key. Voltage Protection ? Extreme Voltage Shutdown (EVS) safeguards from catastrophic under-voltage (under 80V sustained) or over-voltage (over 145V sustained) conditions. The EVS feature can be selectively enabled or disabled according to the preference of the user. BlueBOLT Compatible ? IP Control (Telnet or cloud-based BlueBOLT) via SmartSequencing (when connected to CN-1800S/CN-2400S with BB-RS232 Adaptor). Diagnostic Lights ? Diagnostic lights provide valuable system information including power quality. 20 Amp Output Current ? 20 amp maximum current capacity. DIP Switch Customization ? DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches. ---------------------------------------------------------------------------------------------------------------- Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping --Items are well packed and shipped USPS, UPS or Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped. Processing Times do vary Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs. Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches, scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees accessories or your return may be subject to a return handling charge. Refunds are for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service/restocking fee. This item is now used and it would be unfair to resell to another customer as new. The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, computers, vacuum tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes polishing cloths, software/sound ware, books, CDs, DVD's, vinyl records, and videos.
