Allen & Heath AH-DX012 12 XLR Output Analog and similar items

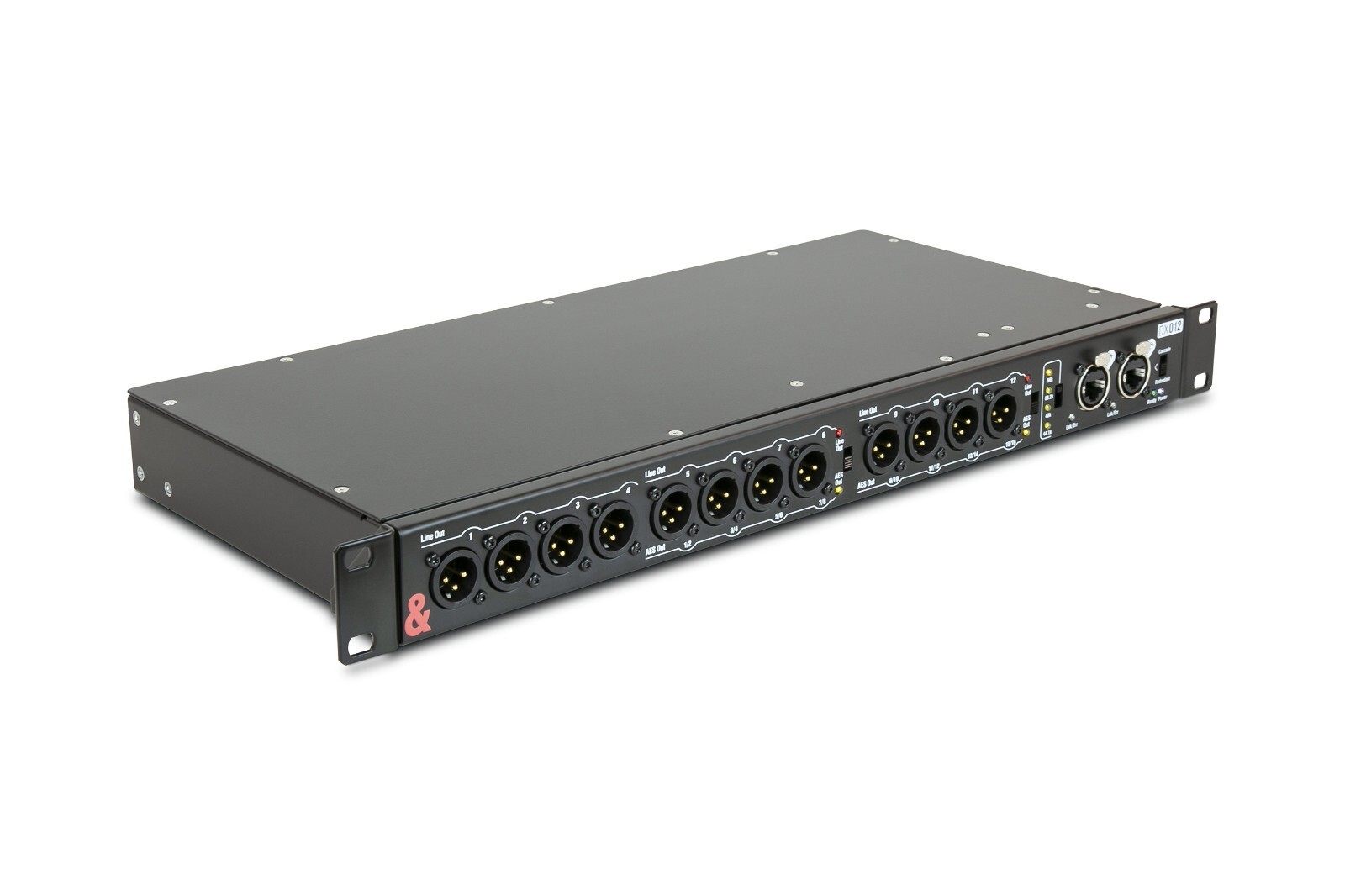

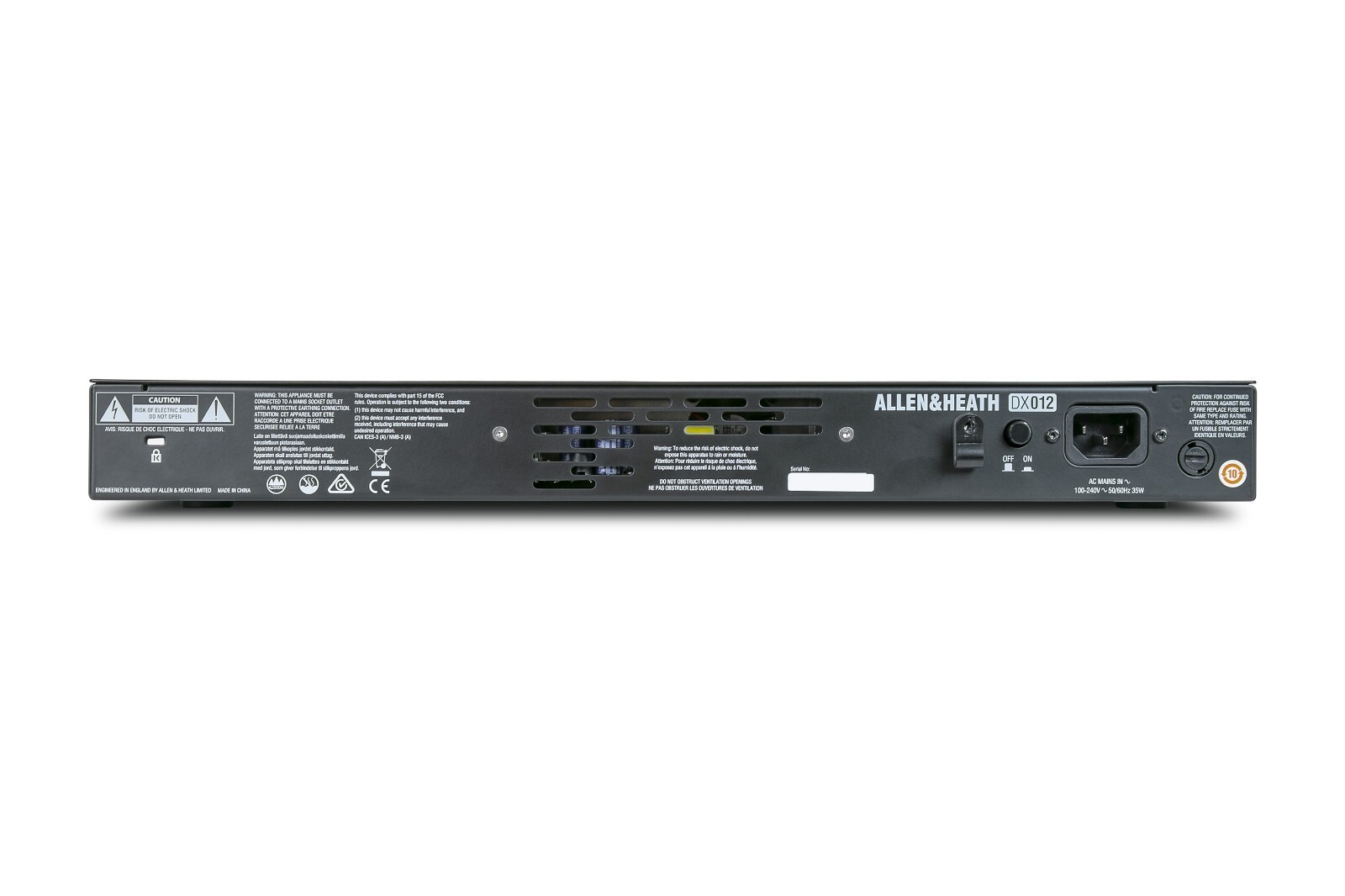

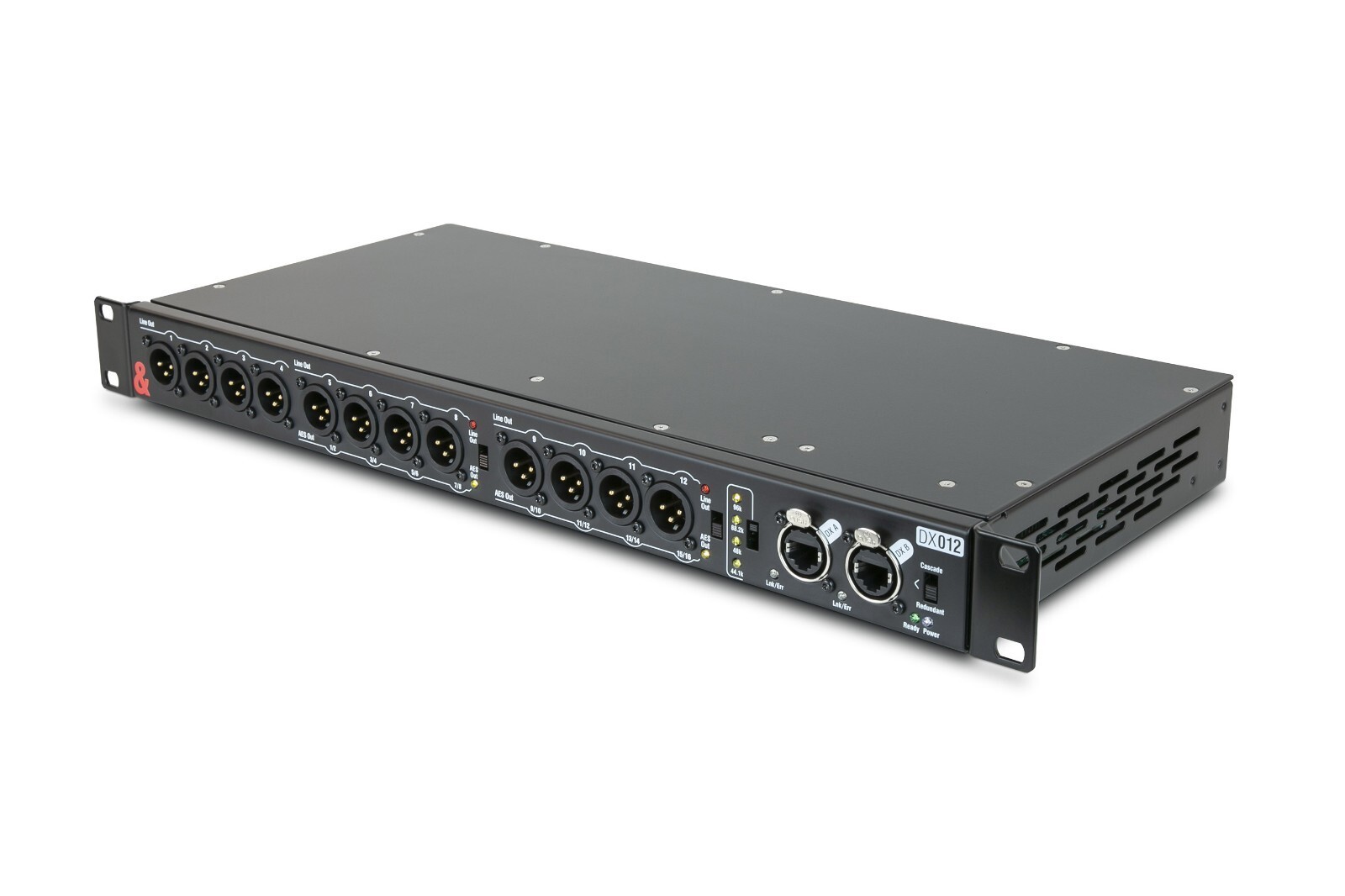

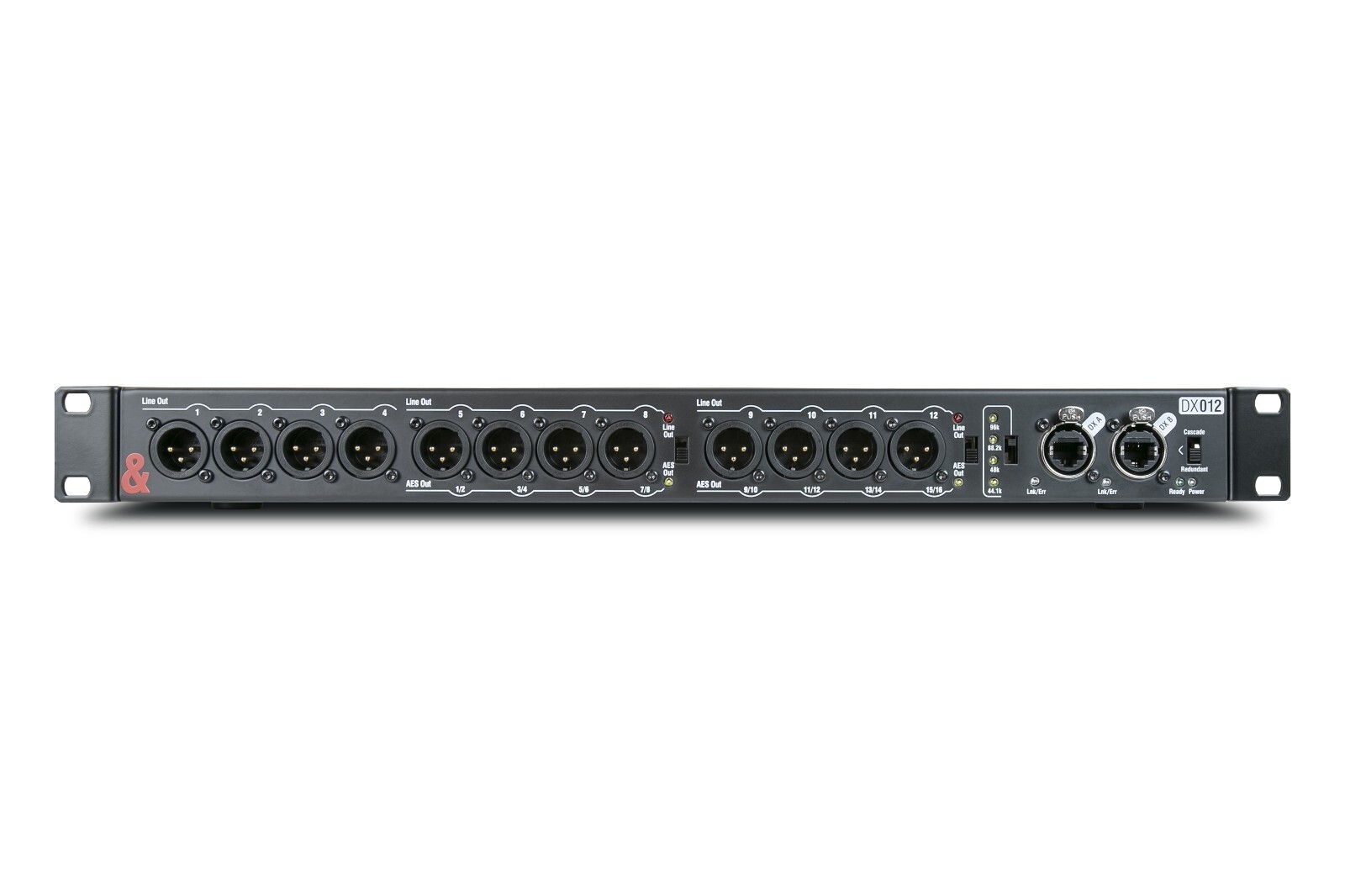

Allen Heath AH-DX012 12 XLR Output Analog AES Portable DX Audio Expander Need to get more out of your system? DX012 provides remote output expansion for SQ, Avantis and dLive mixers, and for the AHM-64 audio matrix processor. Perfect for feeding IEM systems and amplifier racks, DX012 offers both analogue and AES digital output options in a compact 1U form factor. Each DX012 provides 12 XLR outputs, configurable as: 12 analogue line outputs 8 analogue line outputs + 4 stereo AES outputs 4 analogue line outputs + 8 stereo AES outputs The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, AHM-64 mattrix processor, Avantis mixer, SQ mixer or upstream DX expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O. Features: Compatible with SQ, Avantis and dLive systems 12 XLR Outputs: 1-4 Analogue Line Out 5-8 Analogue Line out or AES Digital out (switchable) 9-12 Analogue Line out or AES Digital out (switchable) AES outputs globally switchable between: 44.1kHz 48kHz 88.2kHz 96kHz Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port Redundant DX connection to compatible hardware Multiple DX012 can be added to a system: Up to 16 DX012 units can be added to a SQ system Up to 16 DX012 units can be added to an Avantis system Up to 46 DX012 units can be added to a dLive S Class system Up to 22 DX012 units can be added to a dLive C Class system Up to 8 DX012 units can be added to an AHM-64 system Rack-mounted (1u) or shelf/floor operation Plug and Play ? no IP addressing required Compatible with CAT5e (or higher) cables of up to 100m Locking EtherCon ports Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping -Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - International Sales Clearance items, Custom Builds, Road Cases, DT12 items, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, turntable cartridges, fog fluid
