BSS BLU805 Network Signal Processor w/ BLU and similar items

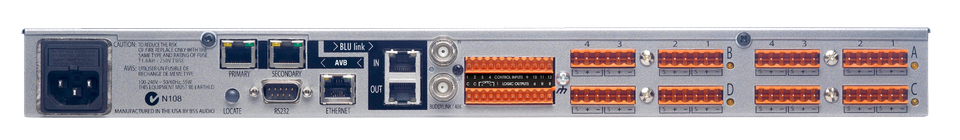

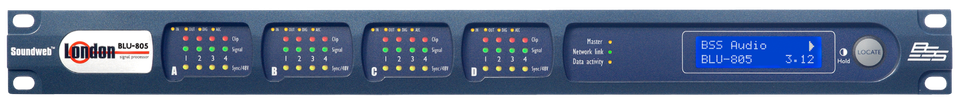

BSS BLU805 Network Signal Processor w/ BLU link and AVB for Digital Audio System Ships Free! The Soundweb London BLU-805 offers configurable I/O, configurable signal processing, Ethernet AVB audio and a high bandwidth, fault tolerant digital audio bus. The BLU-805 has open architecture which is fully configurable through HiQnet? Audio Architect. A rich palette of processing and logic objects and a ?drag and drop? method of configuration provide a simple and familiar design environment. This processor features Ethernet AVB audio with primary and secondary ports for fault tolerance, with control through a separate Ethernet port. The BLU-805 also features a low latency, fault tolerant digital audio bus of 256 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber optic media converters can be used to increase the distance between devices to over 40km. Four card slots facilitate many different device I/O configurations. Each slot can accommodate any of six available I/O cards, including the Analog Input Card, Analog Output Card, Digital Input Card, Digital Output Card, AEC Input Card, and Telephone Hybrid Card. Each card supports four channels. Analog Input Cards provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel. Digital Input Cards and Digital Output Cards process AES/EBU and/or S/PDIF audio and offer a variety of clocking and syncing options. AEC Input Cards and Telephone Hybrid Cards facilitate specialized processing and interfacing primarily for teleconferencing applications. (Further information about the I/O cards can be found on dedicated datasheets) Phantom Power, Sync, Signal Present and Clip information per channel is easily accessible, without the requirement for a PC, from clear front panel LED indication. Device-specific information such as Device Name, Device Type, Firmware Version Number, Time, IP Address and Subnet Mask is available from the front panel display. A bi-directional locate function allows devices to be identified both from and within HiQnet Audio Architect. 12 Control Inputs and 6 Logic Outputs allow the BLU-805 to be integrated with GPIO compatible devices. The Soundweb London Interface Kit, comprehensive documentation which details how Soundweb London systems can be integrated with third party control systems, is included within the installation of HiQnet Audio Architect. The BLU-805 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution Features Four Input / Output Card Slots Configurable Inputs / Outputs Analog Inputs (with Phantom Power per Channel) Analog Outputs Digital Inputs (AES/EBU and S/PDIF) Digital Outputs (AES/EBU and S/PDIF) AEC Inputs (with Phantom Power per Channel) Telephone Hybrid Card Configurable Signal Processing Rich Palette of Processing and Logic Objects Ethernet AVB Audio 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus Clear Front Panel LED Indication Informative Front Panel Display Bi-Directional Locate Functionality 12 Control Inputs and 6 Logic Outputs for GPIO Integration Soundweb London Interface Kit for Third Party Control System Integration (Documentation) HiQnet Device Configuration, Control and Monitoring from HiQnet Audio Architect Specifications Chassis: 19" (single rack space) Custom I/O (card based): yes Analog Inputs: up to 16 Digital Inputs: up to 16 AEC Inputs: up to 16 Analog Outputs: up to 16 Digital Outputs: up to 16 Telephone Connection: up to 4 Max Inputs/Outputs: 16 Config: Software LCD Display: yes Logic Processing: yes RS-232: yes GPIO: yes Signal Processing (MHz): 800 Cobranet: no Dante: no AVB: yes SWL Digital Audio Bus: 256 ---------------------------------------------------------------------------------------------------------------- Echotone Music LLC is an experienced long time E-commerce Audio Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications. Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped. Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs. Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches, scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees accessories or your return may be subject to a return handling charge. Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos. Happy customers, that's music to our ears!
