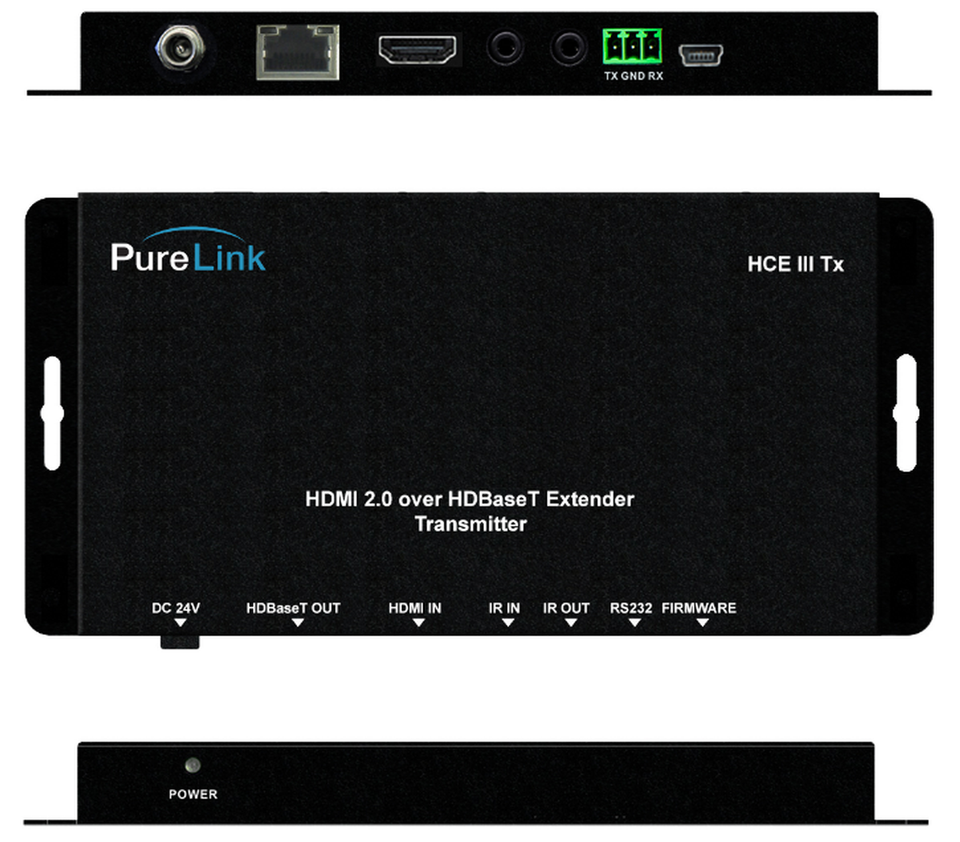

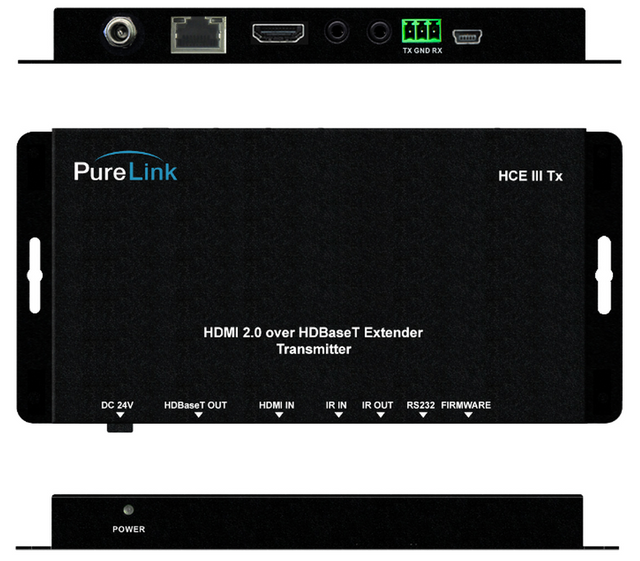

PureLink HCE III TX/RX 4K HDR over HDBaseT Extension System wControl and Bi-Directional PoE The HCE III Tx/Rx is a premium HDMI 2.0 HDBaseT? extension system for Ultra HD/4K and HDR formats. The HCE III Tx/Rx supports 4K@60Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps with HDCP 2.2 compliance. The HCE III Tx/Rx HDBaseT? extension system offers full HDMI 2.0 compliance supporting HDR (High Dynamic Range) and 4K@60Hz with 4:4:4 chroma sampling. Featuring PureLink's proprietary Pr?cis codec, a light compression technology, the HCE III can transport Ultra HD/4K, multi-channel audio, and High Dynamic Range (10 bits support) content over a single CATx cable. The HCE III provides HDMI extension up to 130 feet (40 meters) at Ultra HD/4K and up to 230 ft. (70 meters) at 1080p over category cable with embedded multi-channel audio, CEC pass-through, bi-directional RS-232 and IR control, and PoE ? all with zero loss and zero noise. The HCE III Tx/Rx also supports Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LCPM (up to 192 kHz). Additionally, the low profile "slim box" enclosure design make the HCE III ideal for limited space installation environments, such as behind flat panel displays and video walls. Features Resolutions up to 4K@60Hz (4:4:4) HDR (High Dynamic Range) formats HDCP 2.2 compliant Extends HDMI up to 130 ft. (40m) at Ultra HD/4K and up to 230 ft. (70m) at 1080p Precis codec ? visually lossless signal transmission High bandwidth support ? up to 18 Gbps BT.2020 color pallet Bi-drectional PoC Bi-directional RS232 IR extension CEC pass-through Performance Supported Distance: up to 130 ft. (40m) at Ultra HD/4K and up to 230 ft. (70m) at 1080p Supported Resolutions: Ultra HD/4K up to 4096 x 2160 @50/60Hz (RGB 4:4:4, YCbCr 4:4:4, 4:2:2, 4:2:0) Compliance: HDMI 2.0, HDCP 2.2 Data Transfer Rate: 18 Gbps RS-232: (1) RS-232 [3-pin phoenix] IR Extension: (1) x IR input [3.5mm stereo mini-jack]; 1 x IR output [3.5mm stereo mini-jack] Power Consumption: 24W (max) Input Power Requirements: AC100 ? 240V 50/60Hz Power Supply: DC 24V/1A (US/EU standard, CE/FCC/UL certified) Operating Temperature: 32 ~ 117 F (0 to 47 C) Storage Temperature: - 4 ~ 140 F (-20 to 60 C) Relative Humidity: 0 ~ 90% non-condensing Enclosure Product Dimensions: 7.2'' x 3.5'' x 0.7'' (183 x 88 x 18mm) Product Weight: 1.0 lbs (0.45 kg) Product Dimensions: 12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm) Product Weight: 7.7 lbs (3.5 kg)
