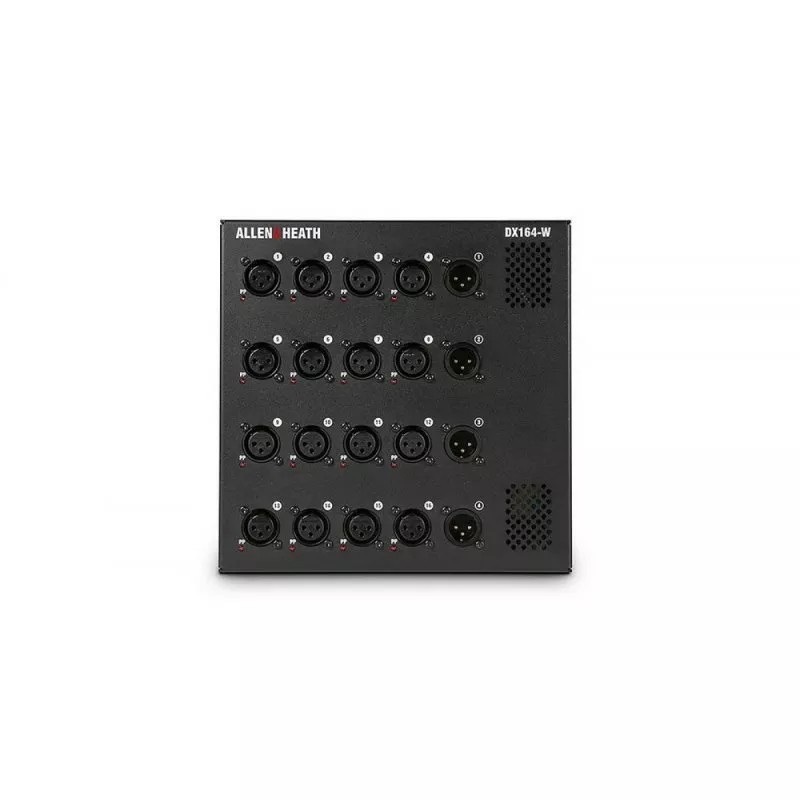

Allen Heath AH-DX164-W 16x4 Mic Preamps Wall Mount DX Expander Audio Processor The DX164-W is a wall mountable expander that adds remote I/O to a dLive, Avantis or SQ mixer, or to the AHM-64 audio matrix processor. Each DX164-W features 16 mic preamps with independent Phantom Power LED indicators, plus 4 XLR line outs. The Expander?s design allows for wall mount operation or, alternatively, installation in a stage ?Dip Trap? making it perfect for fixed installations. With dLive Up to 6 DX164-W units can be connected to a standard dLive system ? 4 via the MixRack and 2 via the Surface ? allowing up to 96 remote inputs and 24 remote outputs in addition to those provided by the MixRack and Surface. Up to 46 units can be added to a dLive system via a DX Link card or DX Hub (808 analogue inputs, 224 analogue outputs). The DX164-W connects via a single Cat5e cable (Ethernet based Layer 2) to the dLive Surface, MixRack, DX Hub or upstream DX164-W / DX168 via a secure etherCON port. A second locking etherCON port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX164-W or DX168 for additional remote I/O. With AHM-64 Two units can be daisy chained and connected directly to an AHM-64 SLink port. Up to 8 DX164-W units can be added to an AHM-64 system via a DX Hub and freely patched to the 64 input channels. With Avantis Two units can be daisy chained and connected directly to an Avantis SLink port. Up to 16 DX164-W units can be added to an Avantis system via DX Link card and/or DX Hubs. With SQ Two units can be daisy chained and connected directly to an SQ SLink port, with the optional SLink card for SQ enabling more connections. For a more distributed system, a DX Hub can handle up to 8 DX164-W or DX168 units in any combination, which can be freely patched to the SQ?s 48 input channels. Features: Designed for Wall Mount or Dip Trap installation 16 balanced Mic Preamps on XLR Phantom Power LED per Input 4 balanced XLR Line Outs Locking EtherCon ports Daisy chain or redundant audio connection Can fit in a standard NEMA box (custom brackets required) Compatible with ACE Backstage 174SLBK stage pocket system 3 power supply options: 100-230V AC powered on IEC or screw terminal blocks, as well as 12V DC power DC power can be used as redundant power supply 96kHz converters Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping --Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
