Audix DN4 4 Channel Dante AES67 Integrated and similar items

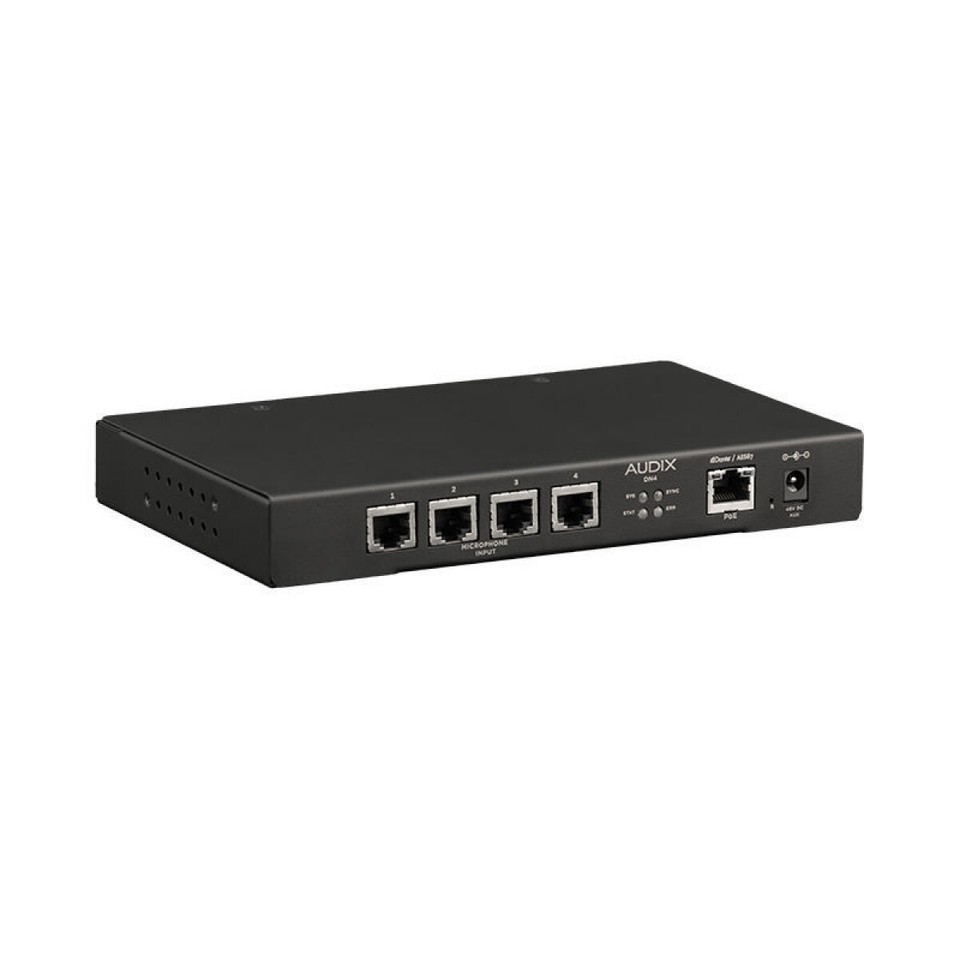

Audix DN4 4 Channel Dante AES67 Integrated Microphone System Audio Interface Ships Free! ENHANCED ONRAMP FOR DANTE | AES67 The DN4 is a 4-channel, analog-microphone-to-Dante (or AES67) interface featuring selectable pre-amp gain, low- and high-pass filters, and LED logic control. The DN4 microphone interface is a key part of the Audix Dante | AES67 Integrated Microphone System, the fast, trouble-free way to stream Audix audio performance through Ethernet networks. High-quality audio and all microphone functions ? including on-off contact closure and LED status indicators ? are available through a single CAT5 ? CAT7 cable with RJ45 connections at both interface and microphone. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost. The DN4 features four inputs for Audix RJ45-equipped, single-element microphones and two 5V logic outputs per port, with source/sink capability for LEDs that are controlled by network-connected DSPs and one logic input per port for buttons. Low-pass and high-pass filter settings are available on each audio channel, as are eight selectable gain levels, with all settings configurable via software. Designed, assembled, and tested by Audix in the USA. AUDIO FEATURES Compatible with all Audix RJ45-equipped, single-element, analog microphones High-fidelity 24-bit, 48kHz audio Balanced audio inputs with RFI filtering 48V phantom power output Each channel has eight selectable pre-amp gain levels, as well as low- and high-pass filters All channels controlled independently Flash memory prevents loss of settings in the event of power loss DANTE FEATURES Supports AES67 audio streams Dante Domain Manager (DDM) ready Dynamic or static IP address Evaluated to the requirement of UL2043 and is suitable for use in above-ceiling applications POWER FEATURES Operates on PoE from any IEEE 802.3af compliant equipment Specifications Mic Input: Balanced, RFI filtered Mic Input Connector: Shielded 8P8C, RJ45 Phantom Power: 48VDC, 14 mA / port (short circuit protected) Max Input (0 dB gain): -14 dBu, 155 mV Input Impedance (balanced): 1.15 k? Frequency Response: 15 Hz ? 22 kHz, +0, -3 dB THD+N (1 kHz, 0 dB gain): 0.003 % CMMR (typ.): 50 dB EIN (typ., unweighted): -120 dBu SNR (typ., unweighted): -96 dB Channel Crosstalk (1 kHz): -80 dB Dante? / AES67 Channels: 4 Dante? Chipset: UXT-01-004 Sample Rate: 48 kHz Word Width: 24-bit Logic Inputs Per Port: 1 per single-element microphone port Logic Outputs Per Port: 2 Low-pass Options: Off, 5 kHz, 7 kHz, 10 kHz High-pass Options: 15 Hz, 238 Hz Gain Options: 0 dB, +8 dB, +12 dB, +15 dB,+18 dB, +24 dB, 30 dB, +36 dB Power External DC Jack PoE (IEEE 802.3af): +48VDC, 125 mA CLASS 2 (3.84 ? 6.49 W) Height: 28 mm (1.11 in) Width: 202 mm (7.95 in) Depth: 125 mm (4.92 in) Weight: 0.64kg (1.41 lbs) Temperature: 10-50 C (50-122 F) Compliance: FCC Part NN (USA) CE marked (Europe) RoHS WEEE Directive What's in the Box 1x DN4 microphone interface 1x Mounting brackets (pair MNTDN), with attachment screws 1x 1.56 mm / 0.063 inch seismic and fire cable restraint ---------------------------------------------------------------------------------------------------------------- Echotone Music LLC is an experienced long time E-commerce Audio Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications. Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped. Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs. Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches, scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees accessories or your return may be subject to a return handling charge. Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos. Happy customers, that's music to our ears!
