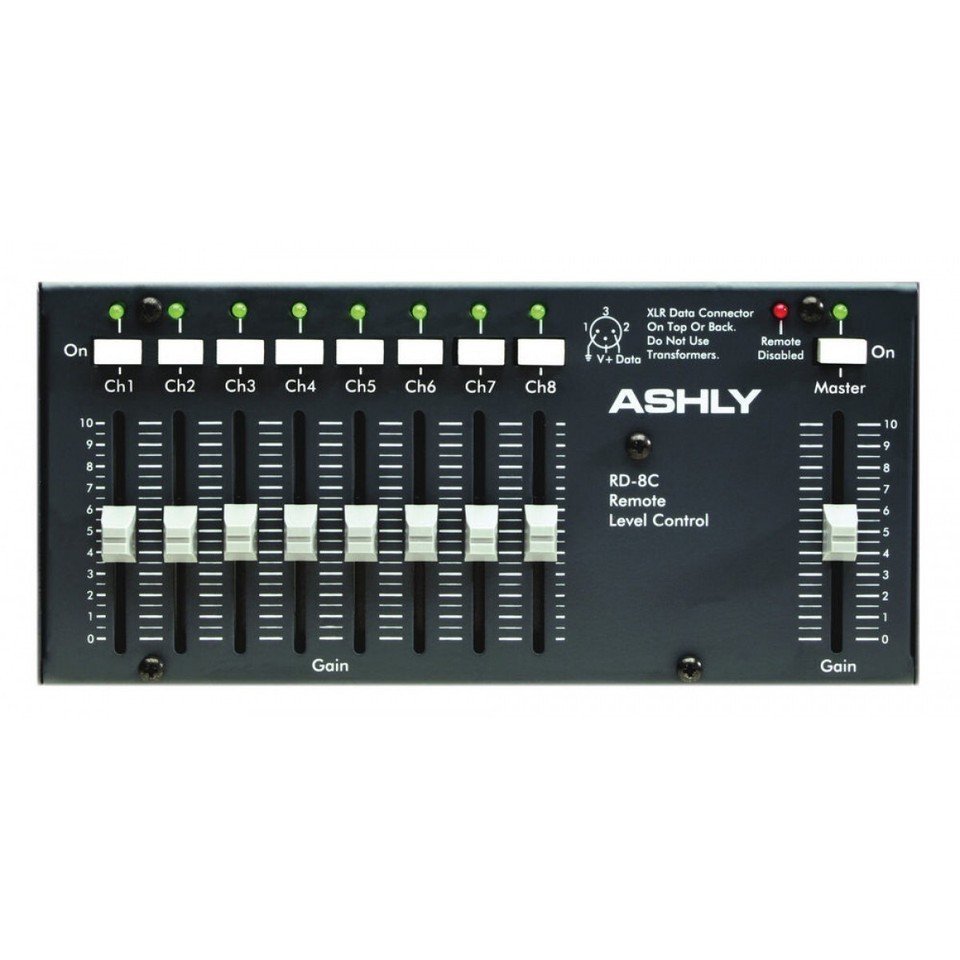

Ashly RD-8C 8 Channel Programmable Remote Fader Controllers DSP Matrix Mixer The RD-8C are eight channel programmable remote fader controllers for Ashly networkable products that have a remote Data connection. Products include the ne24.24M, ne8800/4800/4400 processors, Pema amplifiers, *NE multichannel amplifiers, and *nXe and nXp amplifiers. The RD-8C is a desktop model using an XLR data connector. A master gain fader controls all eight channels, and a switch with LED enables each fader. Use Ashly Proteane software to configure faders for DSP control. Software Basics: In the main Proteane software control window, a properly connected RD/RW-8C will appear underneath its host device in the Ashly Network device tree. An online device is green, while an offline or disconnected device is red. Ashly devices and remotes can be dragged onto the software project canvas to simulate physical rack and room installation groups. Editing each device can be done from either the network device tree or the canvas by double-clicking on it. Re-scanning for devices does not automatically remove canvas items which may have been installed at one time but are no longer available, they must be manually deleted by Right Click - Delete , or by using Project - Clear Tab Page . The project canvas is used to visually represent a fixed physical sound system installation, and can display all Ashly processors, amplifiers, and remotes used in that system. Lines, rectangles, text, and image files can also be added to create a custom virtual control screen along with the NE products and individual control objects. To see all available canvas tools, right click anywhere over open canvas. Checking Design Mode allows placed objects to be moved around, while unchecking Design Mode locks objects in place. Programming: Faders can be assigned in Proteane software to control user-defined DSP gain points on the host device. To configure a fader, first place a Gain - Remote Gain function in the host device?s DSP signal path, then open that function and assign the RD8C fader number(s) you want to use to control that gain point. Multiple faders can control the same gain point, and one fader can control multiple gain points. Total attenuation for one gain point having multiple faders assigned to it it is cumulative. The RD/RW-8C can also be configured to control a DSP output matrix mixer. Open the DSP mixer function, check the box labeled Assign RD8C Remote Mixer , and each fader will now attenuate it?s corresponding numbered channel in that mixer. Be sure that mixer inputs are routed properly and enabled. Note that the software allows for a fader to be used for both a DSP gain point and the DSP output mixer at the same time. *Note: On nXe amplifiers or NE multi-channel amplifiers that do not have DSP installed, RD/RW-8C faders automatically function as direct remote output attenuators on corresponding channels. No RD/RW-8C software interface or attenuation read-back is available on amplifiers without DSP. Specifications: RD-8C Fader Range: +10dB to -75dB Connections: XLR Male Max Data Cable Length: 1000 ft (305m) (with #24 gauge twisted pair) Power Requirements: phantom powered Unit Weight: 1.4 lbs (0.63kg) Shipping Weight: 2 lbs (1kg) Dimensions: 7.3?(185mm)L 3.4(87)H 1.6(41)D Environmental: 40-120 deg. F (non-condensing): (4-49 deg, C) Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping --Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
