JBL CBT 1000E-WH Extension for CBT1000 Line and similar items

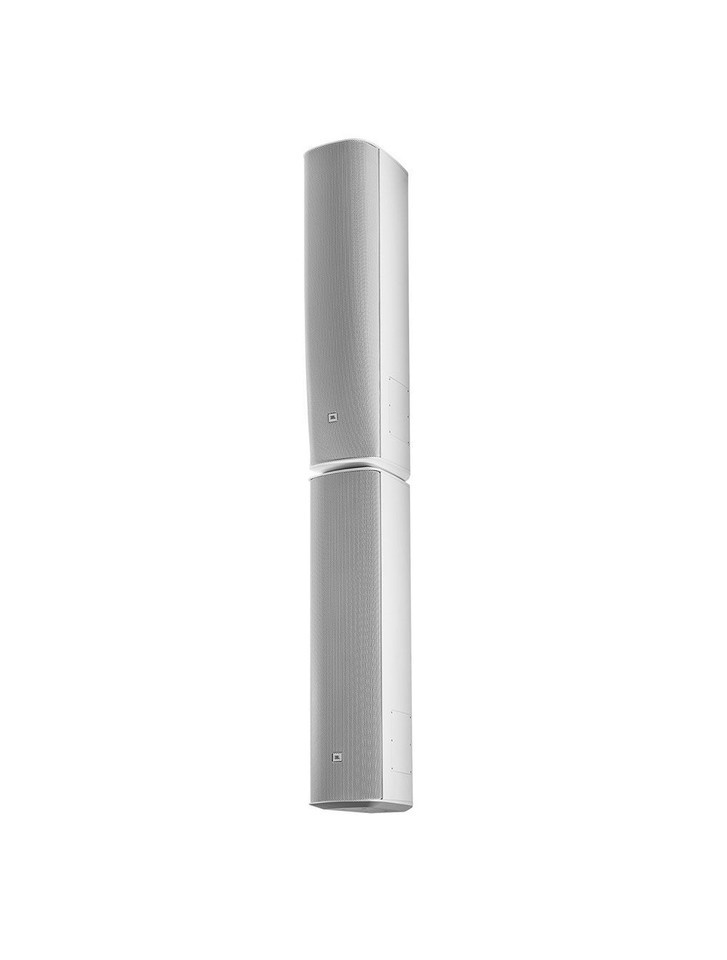

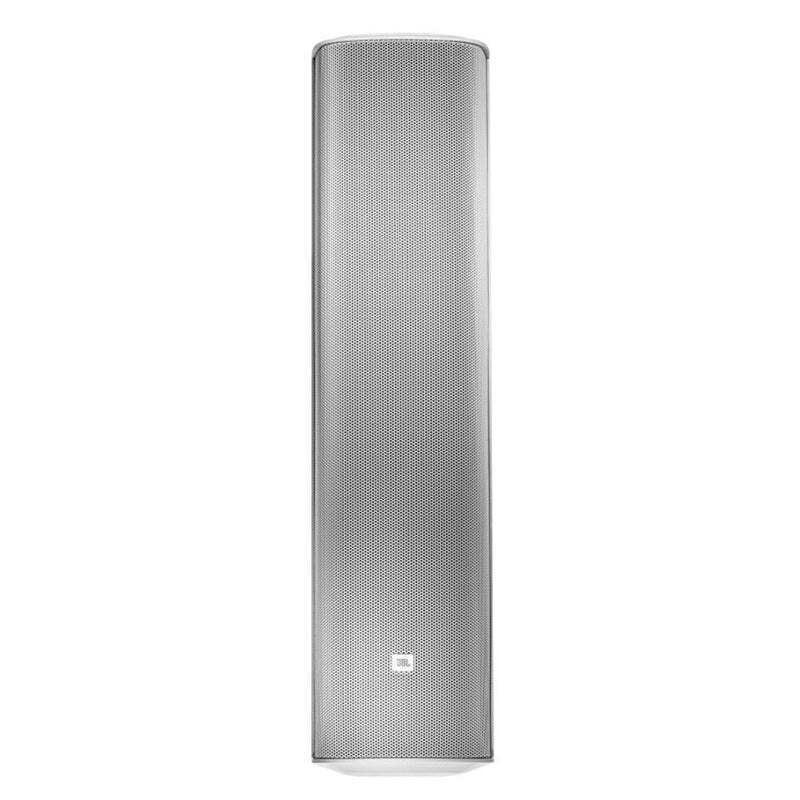

JBL CBT 1000E-WH Extension for CBT1000 Line Array Passive Column Loudspeaker When connected to a CBT1000 line array column speaker, the CBT1000E Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology?, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers. Features: Components: Six (6) 165 mm (6.5 in) high-excursion LF drivers (CBT1000E) 1500 Watt power handling (CBT1000E) Built-in purpose-designed crossover network, for combining with CBT1000 (CBT1000E) Coupler plate included (CBT1000E) Extended pattern control Components: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E) 3000 watt power handling (CBT1000+1000E) Patent-pending Constant Beamwidth Technology ? provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing. Vertical pattern coverage is individually adjustable through a range of four (4) ?Pattern Up? angles and four (4) ?Pattern Down? coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing (CBT1000) Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room (CBT1000) Single-speaker system room coverage at high SPL, with little over-splash and strong bass response down to below 38 Hz (CBT1000+1000E) Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode (CBT1000) Swivel (pan)/tilt wall bracket and coupler plate included. Specifications: Drivers: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E) Frequency Range: (-10dB) 38 Hz - 20 kHz Coverage: Vertical (selectable via switch) Sensitivity: 102 dB (at highest sensitivity setting: ?Point? pattern up, ?Point? pattern down, ?Speech? voicing, in free space)95 dB (at lowest sensitivity setting: ?Medium? pattern up, ?Downfill? pattern down, ?Music? voicing in free space) Impedance: 4 ohms Power Rating: 3000 W (12000 W peak), 2 hrs2000 W (8000 W peak), 100 hrs Maximum SPL (1m): Highest directivity setting: (?Point? pattern up, ?Point? pattern down) with ?Speech? voicing: 131 dB continuous average pink noise 134 dB continuous program 137 dB Peak Highest directivity setting: (?Point? pattern up, ?Point? pattern down) with ?Music? voicing: 127 dB continuous average pink noise 130 dB continuous program 133 dB peak Lowest directivity setting: (?Medium? pattern up, ?Downfill? pattern down) with ?Speech? voicing: 128 dB continuous average pink noise 131 dB continuous program 134 dB peak Lowest directivity setting: (?Medium? pattern up, ?Downfill? pattern down) with ?Music? voicing: 124 Vertical Coverage Settings: Coverage is effective (frequency response similar) beyond the traditional -6 dB coverage angles. This is especially useful in compensating for differences in listening distances. Figures show both the -6 dB and -12 dB coverage angles (at 3 kHz). Angles are in reference to cabinet aiming axis. Pattern UP Settings: ?Point?: -6dB @ +7, -12 dB @ +12 ?Tight?: -6dB @ +9, -12 dB @ +15 ?Narrow?: -6dB @ +10, -12 dB @ +20 ?Medium?: -6dB @ +13, -12 dB @ +24 Pattern DOWN Settings: ?Point?: -6dB @ -7, -12 dB @ -12 Horizontal Coverage: Patent-pending Tapered Horizontal Waveguide continuously variable. Long-throw (top) section: 100 Middle section: 130 Short-throw (bottom) section: 160 Low Frequency Drivers: 12 pcs, 165 mm (6.5 in) drivers, neodymium, 50 mm (2 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance. High Frequency Drivers: 24 pcs, 25 mm (1 in) drivers, neodymium, encased magnet and coated diaphragm for moisture, UV, and salt resistance. Enclosure: Fiberglass reinforced ABS cabinet, powder coated 1050 aluminum grille Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. Exceeds Mil Spec 810 for humidity, temperature UV, ASTM G85 for acid-air/salt-spray (200 hrs). Color: Black (RAL9004) or White (-WH) (RAL9016) Insert Points: Coupler plate utilizes the bottom two rows of the top speaker and the top two rows of the bottom speaker, leaving available: 20 individual M8 inserts on back panel (20 mm deep) for use with swivel (pan)/tilt bracket(s), plus 4 individual M8 inserts on top and 4 on bottom of cabinet end-caps. Mounting: Included two-part swivel (pan)/tilt wall bracket provides continuously variable +/- 45 degree left-right swivel aiming (at no up/down tilt ? see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/- 5.25 degree tilt, in the following increments: 5.25, 5.0, 4.5, 4, 3.75, 3.5, 3.0, 2.75, 2.5, 2.0, 1.75, and 1.25. Twenty (20) available threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for legacy OmniMount and other compatible third?party brackets. Four (4) threaded mount points on the top end-cap and four (4) on the bottom end-cap. Threaded mounting points can be utilized for suspension. (Always use multiple mounting points.) Dimensions (H x W x D): 2040 mm x 250 mm x 345 mm (80.4 x 9.9 x 13.6 in) Net Weight: (cabinet): 47.2 kg (104 lbs) Included Accessories: Two-piece swivel (pan)/tilt wall bracket Coupler Plate Optional Accessories: MTC-PC2 terminal panel cover CBT1K-ACC1 Accessory kit includes: 2 pcs MTC-CBT-FM3 flush-mount brackets 1 pc MTC-CBT-OS3 offset bracket (for CBT 1000+1000E array ? works in conjunction with CBT 1000E?s included Coupler Plate for locating CBT 1000E extension cabinet above CBT 1000 instead of below it) MTC-CBT-SUS3 CBT Series suspension bracket kit (2 pcs included to provide top and bottom attachment points) Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping --Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
