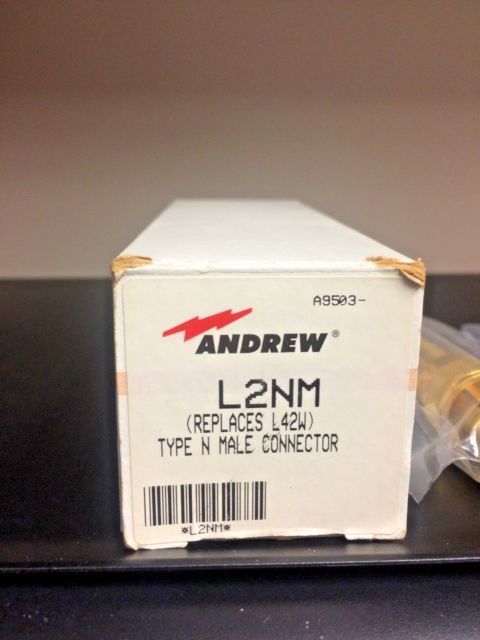

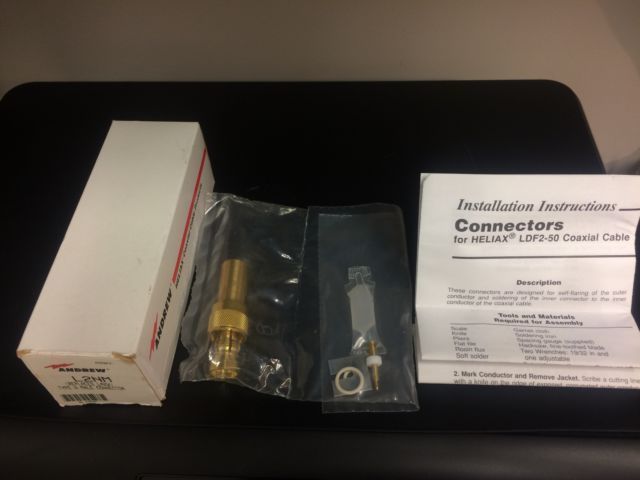

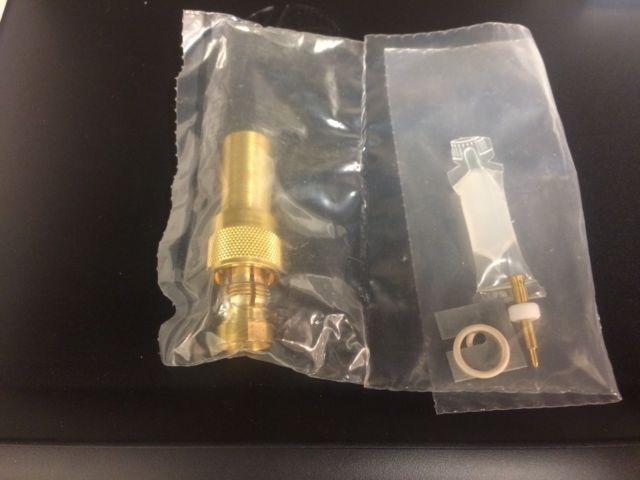

N-Male Connector Andrew L2NM For Coaxial and similar items

Product Specifications Product Classification Brand HELIAX Product Type Wireless and radiating connector General Specifications Interface N Male Body Style Straight Brand HELIAX Mounting Angle Straight Electrical Specifications Connector Impedance 50 ohm Operating Frequency Band 0 ? 6000MHz Cable Impedance 50 ohm 3rd Order IMD, typical -112 dBm @ 910 MHz 3rd Order IMD Test Method Two +43 dBm carriers RF Operating Voltage, maximum (vrms) 707.00V dc Test Voltage 2500V Outer Contact Resistance, maximum 0.25mOhm Inner Contact Resistance, maximum 1.00 mOhm Insulation Resistance, minimum 5000MOhm Average Power 0.7 kW @ 900 MHz Peak Power, maximum 10.00 kW Shielding Effectiveness -110dB Outline Drawing Click on image below to enlarge. Mechanical Specifications Outer Contact Attachment Method Self-flare Inner Contact Attachment Method solder Outer Contact Plating Copper alloy treatment Inner Contact Plating Copper alloy treatment Interface Durability 500 cycles Interface Durability Method IEC 61169-4:17 Connector Retention Tensile Force 670N | 151 lbf Connector Retention Torque 2.70 Nm | 1.99 ft lb Insertion Force 124.55 N | 28.00 lbf Insertion Force Method IEC 61169-16:9.3.5 Pressurizable No Coupling Nut Proof Torque 1.70 Nm | 1.25 ft lb Coupling Nut Proof Torque Method IEC 61169-16:9.3.11 Coupling Nut Retention Force N445.00 | 100.04 lbf Coupling Nut Retention Force Method IEC 61169-16:9.3.11 Dimensions Nominal Size 3/8in Diameter 17.55mm | 0.69in Length 57.57mm | 2.27in Weight 47.50g | 0.10lb Environmental Specifications Operating Temperature -55C to +85C (-67F to +185F) Storage Temperature -65C to +125C (-85F to +257F) Immersion Depth 1m Immersion Test Mating Matted Immersion Test Method IEC 60529:2001, IP68 Moisture Resistance Test Method IEC 60068-2-3 Mechanical Shock Test Method IEC 60068-2-27 Thermal Shock Test Method IEC 60068-2-14 Vibration Test Method IEC 60068-2-6 Corrosion Test Method IEC 60068-2-11 Standard Conditions Attenuation, Ambient Temperature 20C | 68F Average Power, Ambient Temperature 40C | 104F Average Power, Inner Conductor Temperature 100C | 212F . . Due to recent problems with mailing to the UK. All UK buyers should contact us before buying. Thank you . We are sorry for this problem not coming from us. Wireless and radiating connector RF Operating Voltage, maximum (vrms) Outer Contact Resistance, maximum Inner Contact Resistance, maximum Insulation Resistance, minimum Click on image below to enlarge. Outer Contact Attachment Method Inner Contact Attachment Method Connector Retention Tensile Force Coupling Nut Proof Torque Method Coupling Nut Retention Force Coupling Nut Retention Force Method Environmental Specifications -55C to +85C (-67F to +185F) -65C to +125C (-85F to +257F) Moisture Resistance Test Method Attenuation, Ambient Temperature Average Power, Ambient Temperature Average Power, Inner Conductor Temperature Due to recent problems with mailing to the UK. All UK buyers should contact us before buying. We are sorry for this problem not comin
