Commodore 64, Commodore 128, Vic 20, Plus 4, and similar items

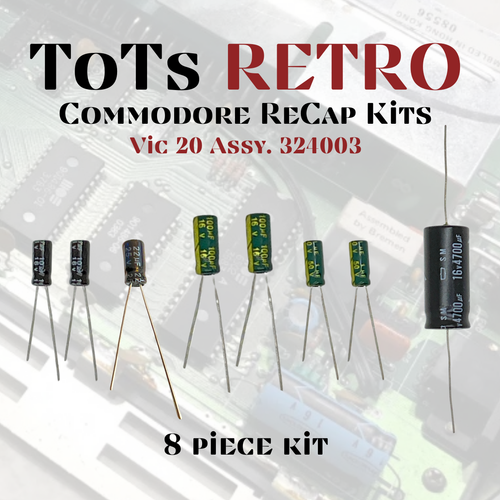

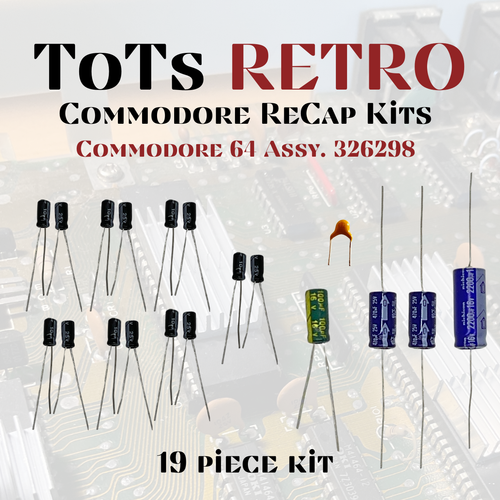

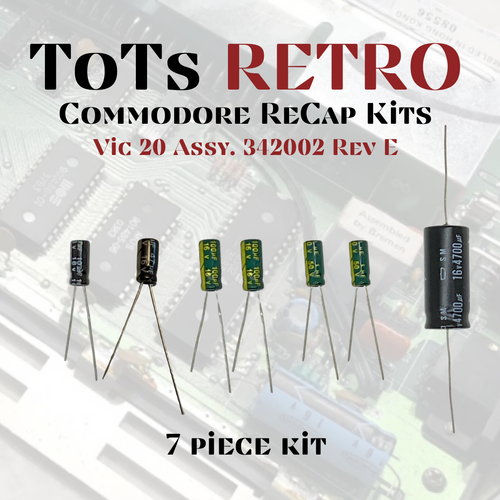

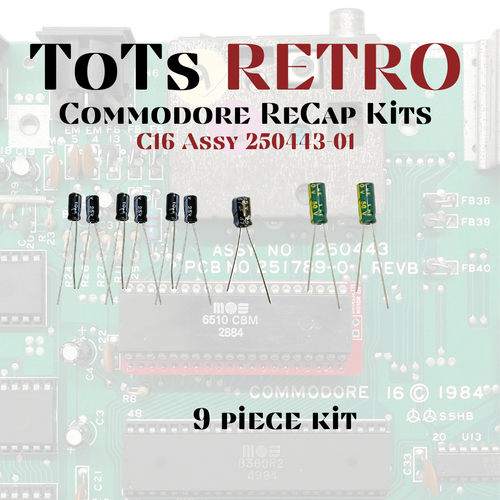

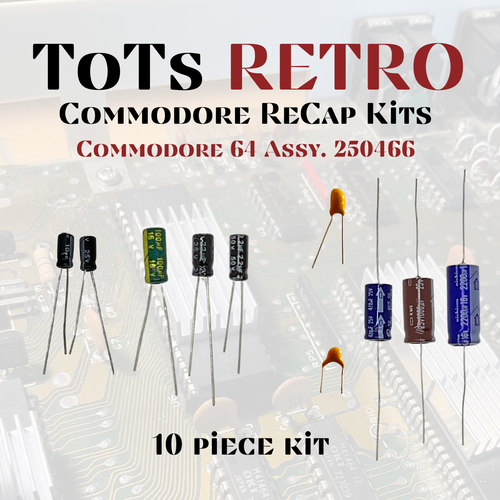

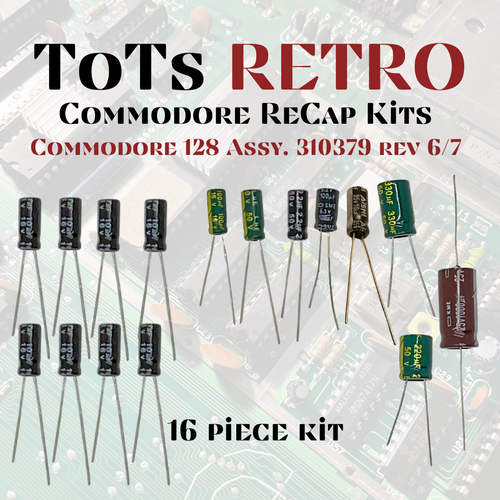

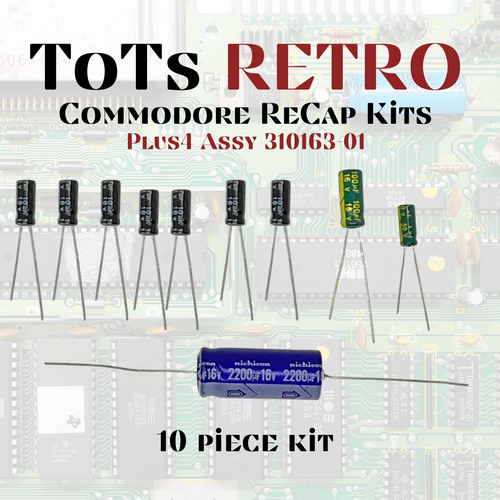

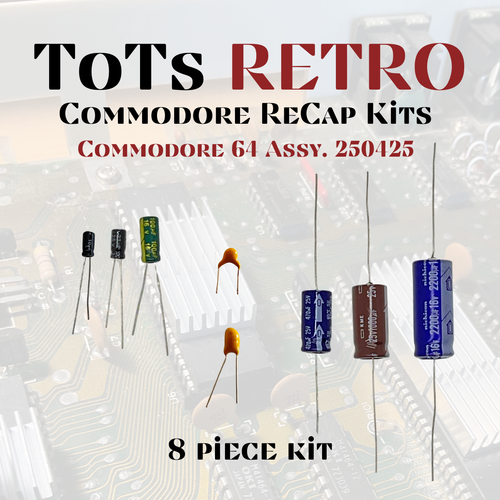

Commodore Computer Logic Board Re-Cap Upgrade Kits For use with many Commodore computers, such as Commodore 64,64c,128,128 DCR, Plus 4, C-16 Offered by: ToTs RETRO These kits includes the exact amount of Axial, Radial and Tantalum Capacitors necessary to recap your logic board. Each Kit Varies. You must provide your own tools and equipment to perform the task. I do not include soldering instructions or board instruction, some knowledge is required to perform this job, do some research before tackling the task. Make a map (take pictures) of the Caps that you remove, it's values and where they went. This will help you in remembering where they go. Take your time, do not force the caps off or on. Clean the mount pads. Be gentle to your Retro Commodore and let?s make it last another 30 years. RECAP KITs for COMMODORE All kit contains all necessary capacitors in order to RECAP your ASSY Commodore motherboard (C64/VIC20/C16/C128/Plus4) Each Capacitors goes thru testing personally by me, to make sure you receive the best. Some Capacitors will be upgraded, Mainly in voltage, this will not affect performance for example, since some capacitors are extremely rare to source like 1uF-16v these will be replaced with 1uF-50v, similar rare to source capacitors will be upgraded in the same manner. VIC20 Capacitors Assy 250403/251040 1x 1uF -50v - Radial 3x 10uF -16v - Radial (only 2 required for Assy 250403) 1x 47uF -16v -Radial (for Assy 251040) 1x 100uF x 16v - Radial 1x 2200uF -16v - Axial VIC20 Capacitors Assy 342002 Rev E 2x 1uF -50v - Radial 1x 10uF -16v - Radial 1x 47uF -16v -Radial 2x 100uF x 16v - Radial 1x 4700uF -16v - Axial VIC20 Capacitors Assy 324003 1x 1uF -50v - Radial 2x 10uF -16v - Radial 1x 22uF -16v -Radial 1x 100uF x 16v - Radial 1x 4700uF -16v - Axial PLUS4 CAPACITORS ASSY 310163-01 Cap - Value - Rating - Type C1 - 100uf - 16v - Radial C7 - 2200uf - 16v - Axial C8 - 10uf - 16v - Radial C17 - 10uf - 16v - Radial C18 - 10uf - 16v - Radial C20 - 10uf - 16v - Radial C22 - 10uF - 16v - Radial C23 - 1uf - 16v - Radial C27 - 10uf - 16v - Radial C30 - 10uf - 16v - Radial C16 CAPACITORS ASSY 250443-01 Cap - Value - Rating - Type C1 - 1uf - 25v - Radial C2 - 47uf - 25v - Radial C3 - 10uf - 25v - Radial C4 - 10uf - 25v - Radial C16 - 10uf - 25v - Radial C17 - 1uf - 16v - Radial C18 - 10uF - 25v - Radial C19 - 10uf - 25v - Radial C31 - 10uf - 25v - Radial C64 CAPACITORS ASSY 326298 Cap - Value - Rating - Type C8 - 10uf - 25v - Radial C12 - 10uf - 25v - Radial C13 - 10uf - 25v - Radial C14 - 10uf - 25v - Radial C15 - 10uf - 25v - Radial C17 - 10uf - 25v - Radial C19 - 2200uF - 16v - Axial C24 - 10uf - 25v - Radial C34 - 10uf - 25v - Radial C57 - 10uf - 25v - Radial C62 - 10uf - 25v - Radial C64 - 10uf - 25v - Radial C65 - 10uf - 25v - Radial C88 - 470uF - 25v - Axial C90 - 470uF - 25v - Axial C91 - 100uF - 16v - Radial C94 - 10uf - 25v - Radial C102 - 10uf - 25v - Radial C38 - 4.7nf - * - Ceramic * Replace the 51pf cap with a 4.7nf cap to restore soft-touch RESTORE key function. This is included. C64 CAPACITORS ASSY 250407 Cap - Value - Rating - Type C8 - 10uf - 25v - Radial C13 - 10uf - 25v - Radial C14 - 10uf - 25v - Radial C15 - 10uf - 25v - Radial C17 - 10uf - 25v - Radial C19 - 2200uF - 16v - Axial C24 - 10uf - 25v - Radial C34 - 10uf - 25v - Radial C57 - 10uf - 25v - Radial C62 - 10uf - 25v - Radial C65 - 10uf - 25v - Radial C88 - 1000uF - 25v - Axial C90 - 470uF - 25v - Axial C91 - 100uF - 16v - Radial C94 - 10uf - 25v - Radial C102 - 10uf - 25v - Radial C107 - 10uf - 25v - Radial (Inside VIC-II shielded area) C108 - 10uf - 25v - Radial (Inside VIC-II shielded area) C38 - 4.7nf - * - Ceramic * Replace the 51pf cap with a 4.7nf cap to restore soft-touch RESTORE key function. This is included. C64 CAPACITORS ASSY 250425 C13 - 10uf - 25v - Radial C15 - 4.7uF - 16V - Tantalum C19 - 2200uF - 16v - Axial C24 - 22uf - 25v - Radial C88 - 1000uF - 25v - Axial C90 - 470uF - 25v - Axial C91 - 100uF - 16v - Radial C38 - 4.7nf - * - Ceramic * Replace the 51pf cap with a 4.7nf cap to restore soft-touch RESTORE key function. This is included. C64 CAPACITORS ASSY 250466 Cap - Value - Rating - Type C13 - 10uF - 25V - Radial C19 - 2200uF - 16V - Axial C24 - 22uF - 25V - Radial C88 - 1000uF - 25V - Axial C90 - 470uF - 25V - Axial C91 - 100uF - 16V - Radial C200 - 2.2uF - 50V - Radial C210 - 10uF - 25V - Radial C38 - 4.7nf - * - Ceramic * Replace the 51pf cap with a 4.7nf cap to restore soft-touch RESTORE key function. This is included. C64 CAPACITORS ASSY 250469/252311 C36 - 47uf - 16v - Radial C43 - 220uF - 16v - Radial C44 - 2.2uf - 50v - Radial C58 - 100uF - 16v - Radial C59 - 4.7uF - 25v - Radial C63 - 1000uF - 25v - Axial C65 - 220uF - 25v - Radial C66 - 470uf - 25v - Radial C77 - 10uf - 25v - Radial C128 Capacitors Assy 310379 REV6 + REV7 and Assy 310381 Rev 7 Cap - Value - Rating - Type C61 - 10uf - 16v - Radial C62 - 10uf - 16v - Radial C63 - 10uf - 16v - Radial (for REV6) C63 - 100uf - 6.3v - Radial (for REV7) C69 - 10uf - 16v - Radial C80 - 2.2uf - 25v - Radial C85 - 10uf - 16v - Radial C88 - 10uF - 16v - Radial C91 - 1uf - 50v - Radial C92 - 10uf - 16v - Radial C101 - 10uf - 35v - Radial C104 - 220uf - 50v - Radial C105 - 330uf - 50v - Radial C106 - 1000uf - 25v - Axial C107 - 100uF - 16v - Radial C111 - 10uF - 16v - Radial C128 DCR Capacitors Assy 250477 Cap - Value - Rating - Type C35 - 4.7uf - 50v - Radial C61 - 10uf - 16v - Radial C63 - 100uf - 6.3v - Radial C64 - 100uf - 6.3v - Radial C69 - 10uf - 25v - Radial C85 - 10uf - 25v - Radial C88 - 1000uf - 25v - Radial C91 - 1uf - 50v - Radial C92 - 10uf - 25v - Radial C100 - 220uf - 16v - Radial C109 - 10uf - 25v - Radial C115 - 10uf - 25v - Radial C140 - 1uf - 50v - Radial - Non-Polar C141 - 1uf - 50v - Radial - Non-Polar If you have any questions, please do not hesitate to reach out. Listing and template services provided by inkFrog
