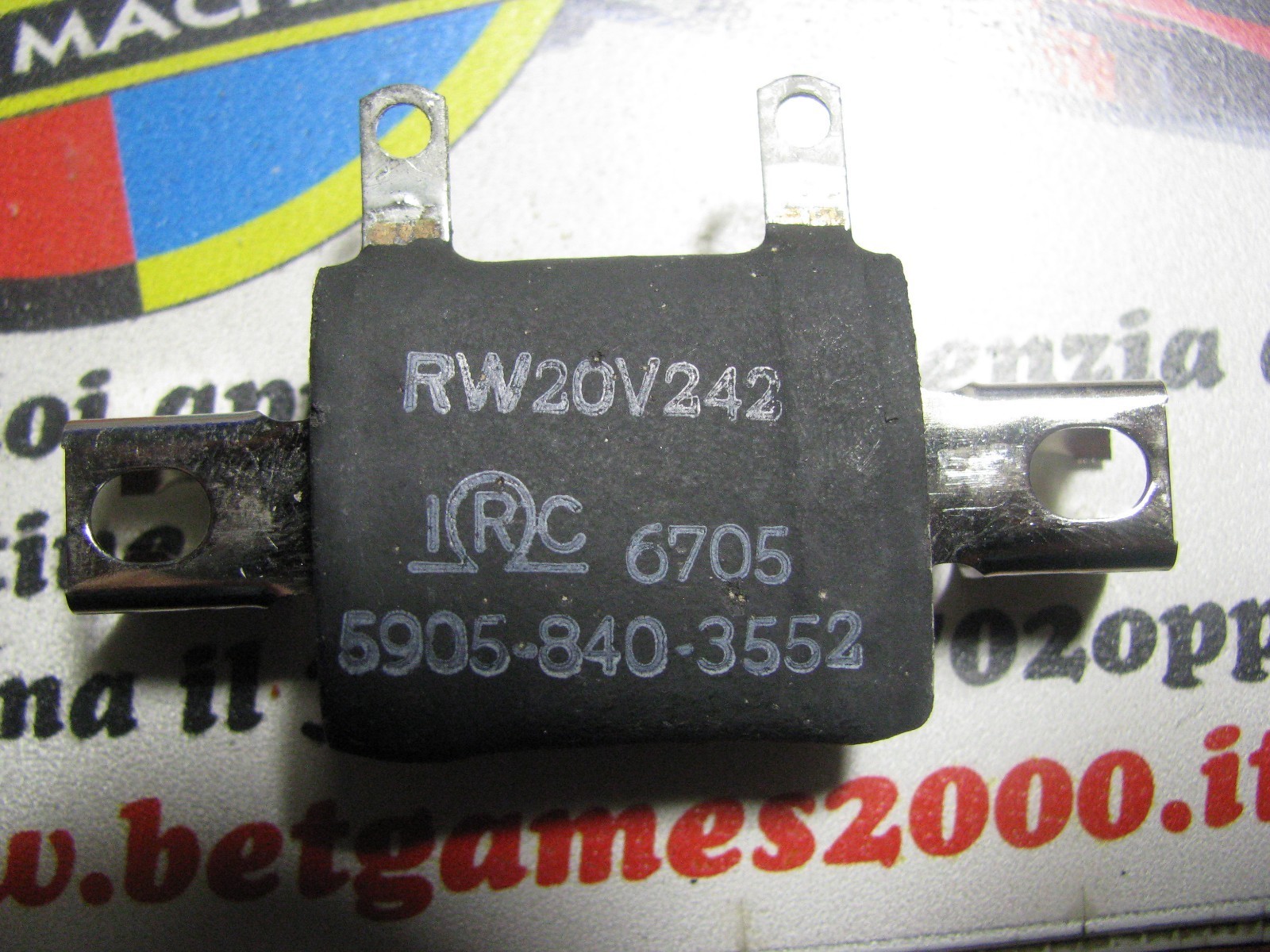

Military Specs RW20V242 Resistor, Fixed, and similar items

Parameter characteristics AAPE temperature resistance coefficient in PPM per DEG Celsius -260.0 / +260.0 AAPP III Electrical resistance 2,400 kilohms AAPQ resistance tolerance in percent -5,000 / + 5,000 Ambient temperature AAQF in DEG Celsius at full rated power 25.0 AAQG Ambient Temperature in DEG Celsius at Zero Percent Rated Power 350.0 AAQH Temp Temperature coefficient range in DEG Celsius -55.0 / + 350.0 Encapsulated AAQZ inclusion method AARB Terminal Type Label, Solder Terminal AARG Reliability Indicator Not Established ABJT Terminal Length 0.531 in nominal ADAQ Body Length 1.250 inches nominal ADAT Body width 1.187 inches nominal AEBY Distance between center lines of mounting facilities parallel to body length 2,000 nominal inches AEFB Power Dissipation Rating at Free Air 21,000 Watts Terminal width AFWW 0.265 in. nominal BYML Mounting Hole Size 0.196 Inches Nominal STYL Style Designator Terminals one edge . . Due to recent problems with mailing to the UK. All UK buyers should contact us before buying. Thank you . We are sorry for this problem not coming from us. AAPE temperature resistance coefficient in PPM per DEG Celsius -260.0 / +260.0 AAPP III Electrical resistance 2,400 kilohms AAPQ resistance tolerance in percent -5,000 / + 5,000 Ambient temperature AAQF in DEG Celsius at full rated power 25.0 AAQG Ambient Temperature in DEG Celsius at Zero Percent Rated Power 350.0 AAQH Temp Temperature coefficient range in DEG Celsius -55.0 / + 350.0 AARB Terminal Type Label, Solder Terminal AARG Reliability Indicator Not Established AEBY Distance between center lines of mounting facilities parallel to body length 2,000 nominal inches AEFB Power Dissipation Rating at Free Air 21,000 Watts BYML Mounting Hole Size 0.196 Inches Nominal Due to recent problems with mailing to the UK. All UK buyers should contact us before buying. We are sorry for this problem AAPE temperature resistance coefficient in PPM per DEG Celsius -260.0 / +260.0 AAPP III Electrical resistance 2,400 kilohms AAPQ resistance tolerance in percent -5,000 / + 5,000 Ambient temperature AAQF in DEG Celsius at full rated power 25.0 AAQG Ambient Temperature in DEG Celsius at Zero Percent Rated Power 350.0 AAQH Temp Temperature coefficient range in DEG Celsius -55.0 / + 350.0 AARB Terminal Type Label, Solder Terminal AARG Reliability Indicator Not Established AEBY Distance between center lines of mounting facilities parallel to body length 2,000 nominal inches AEFB Power Dissipation Rating at Free Air 21,000 Watts BYML Mounting Hole Size 0.196 Inches Nominal Due to recent problems with mailing to the UK. All UK buyers should contact us before buying. We are sorry for this problem
