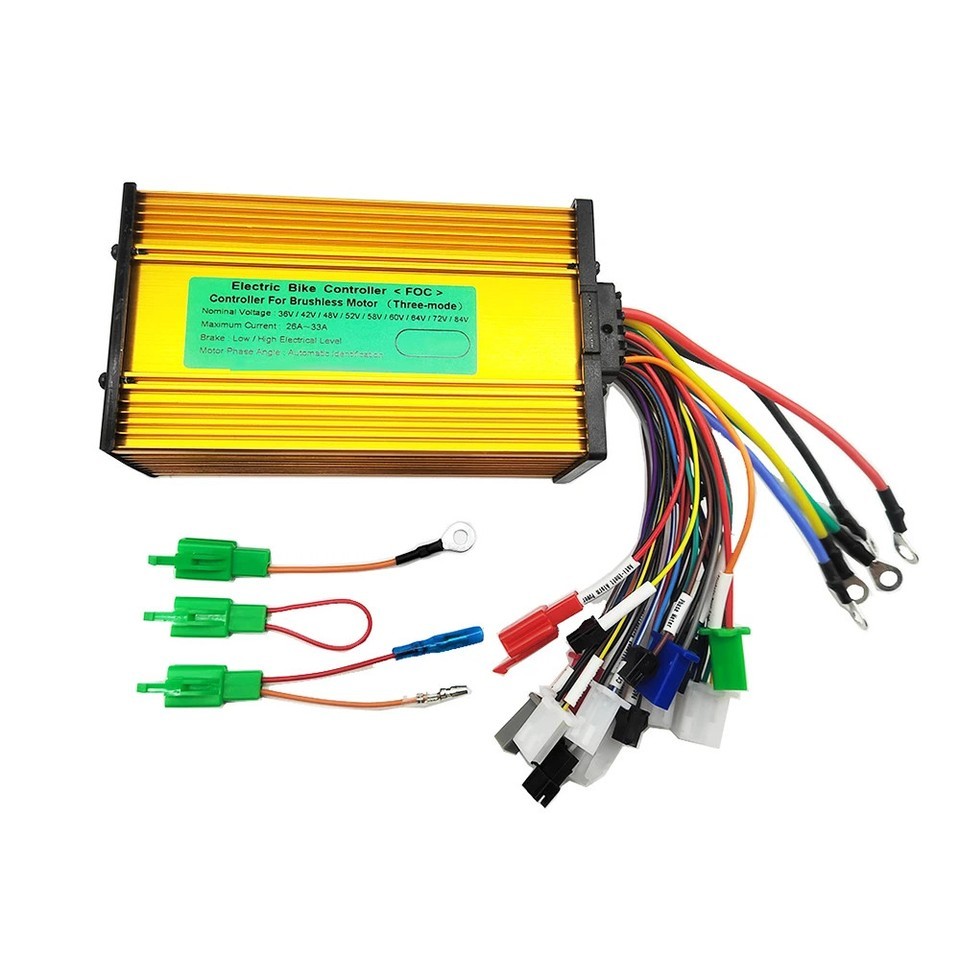

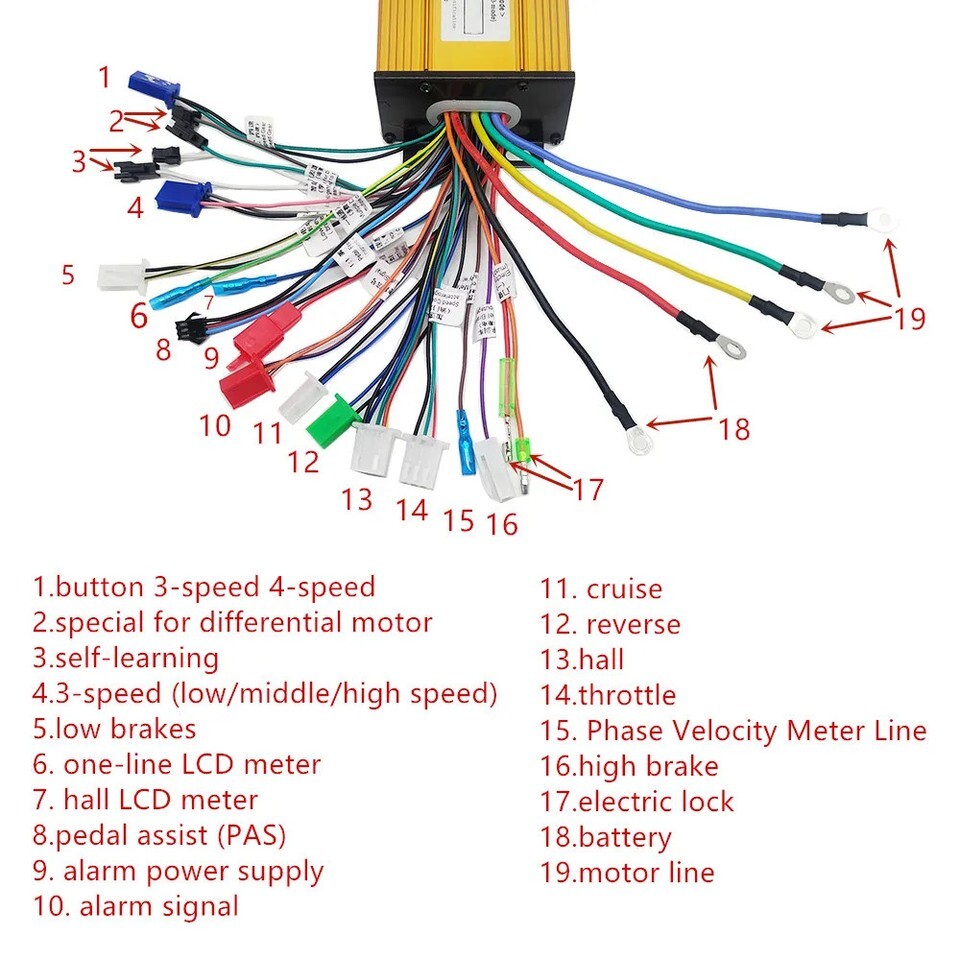

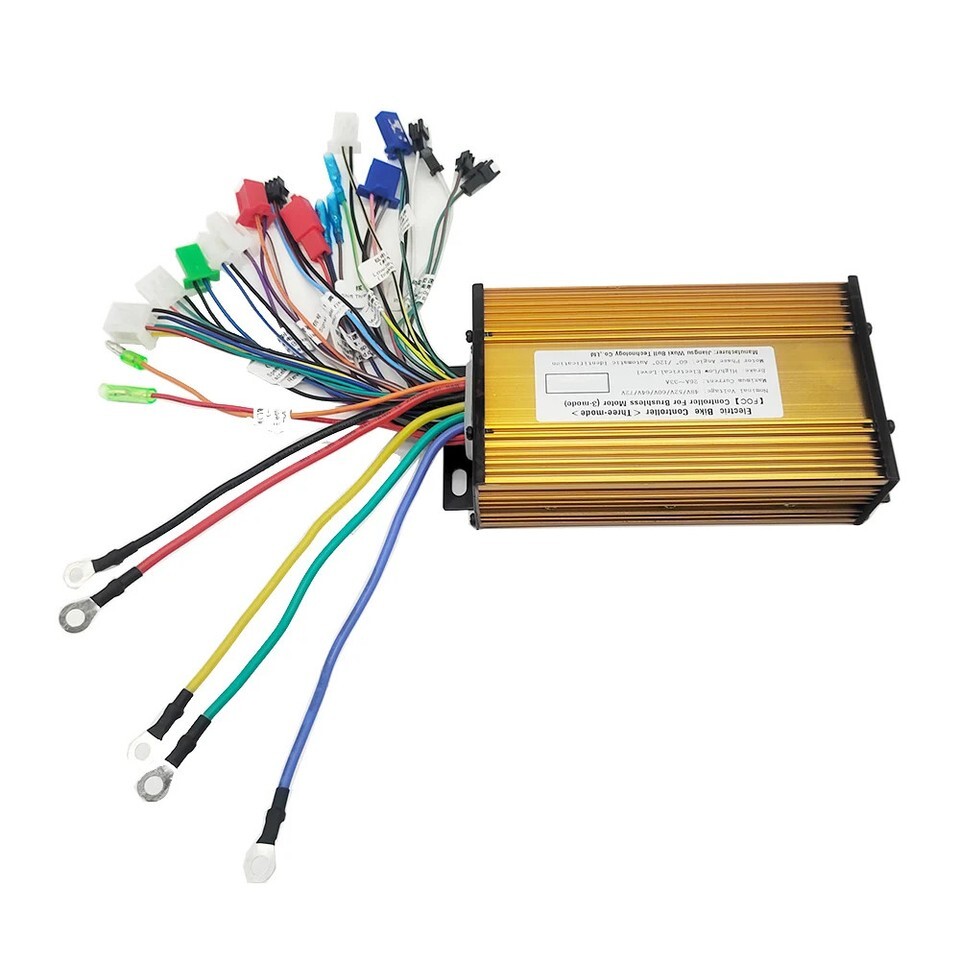

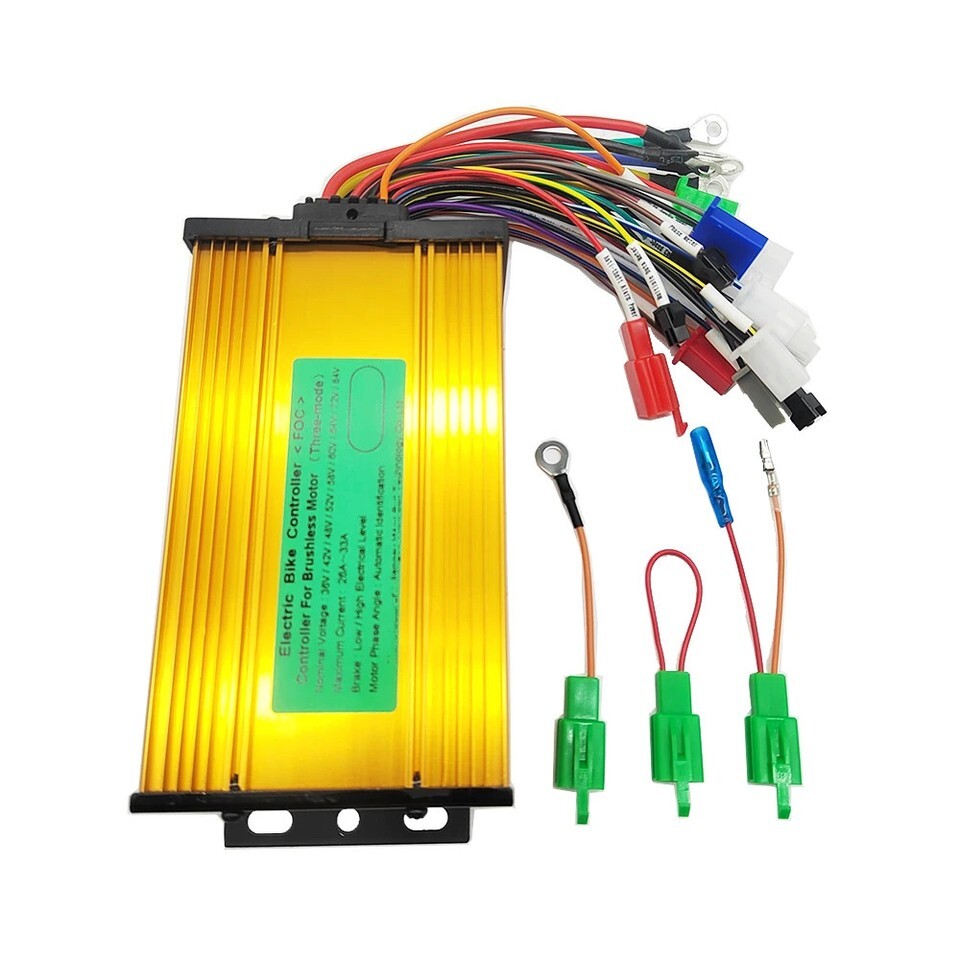

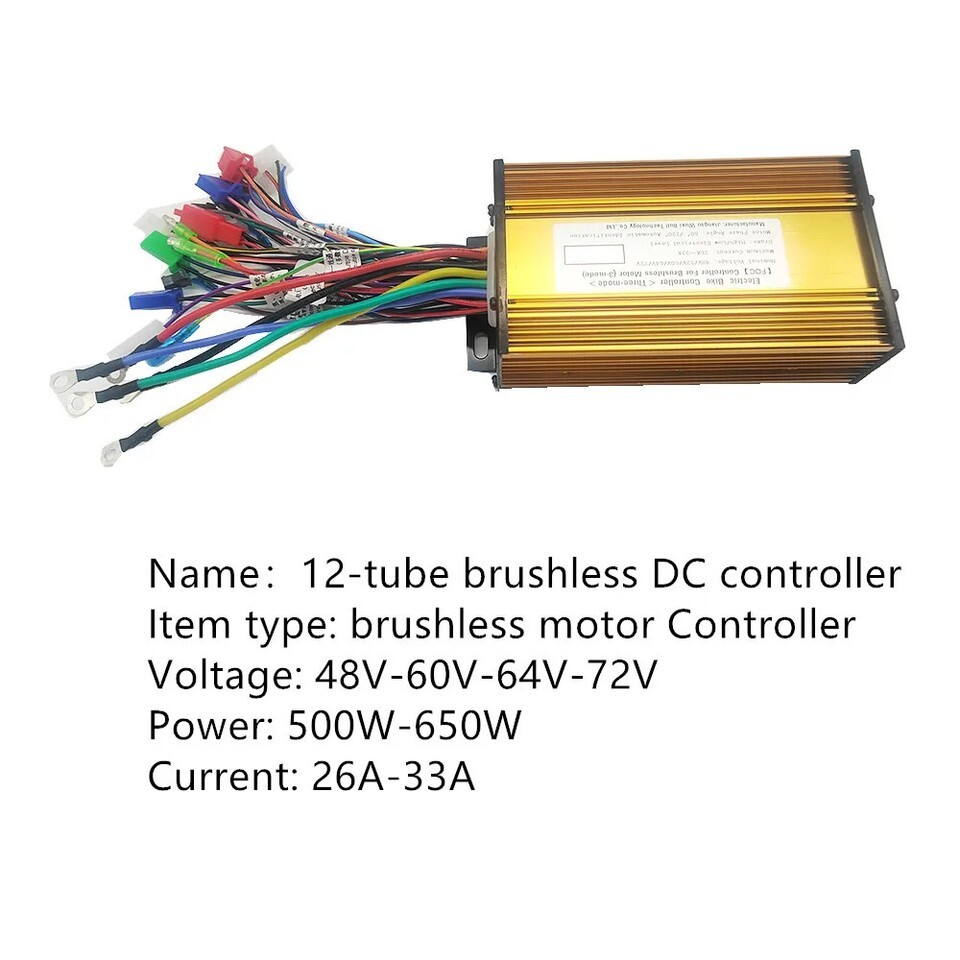

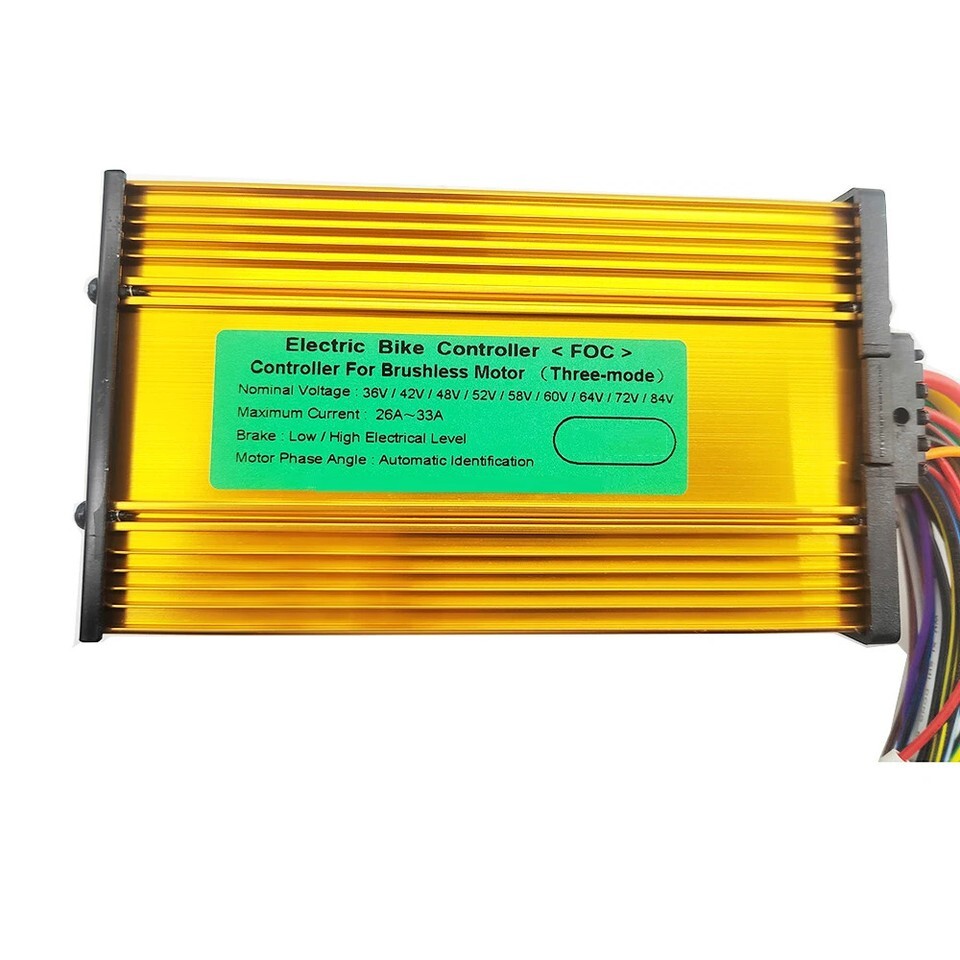

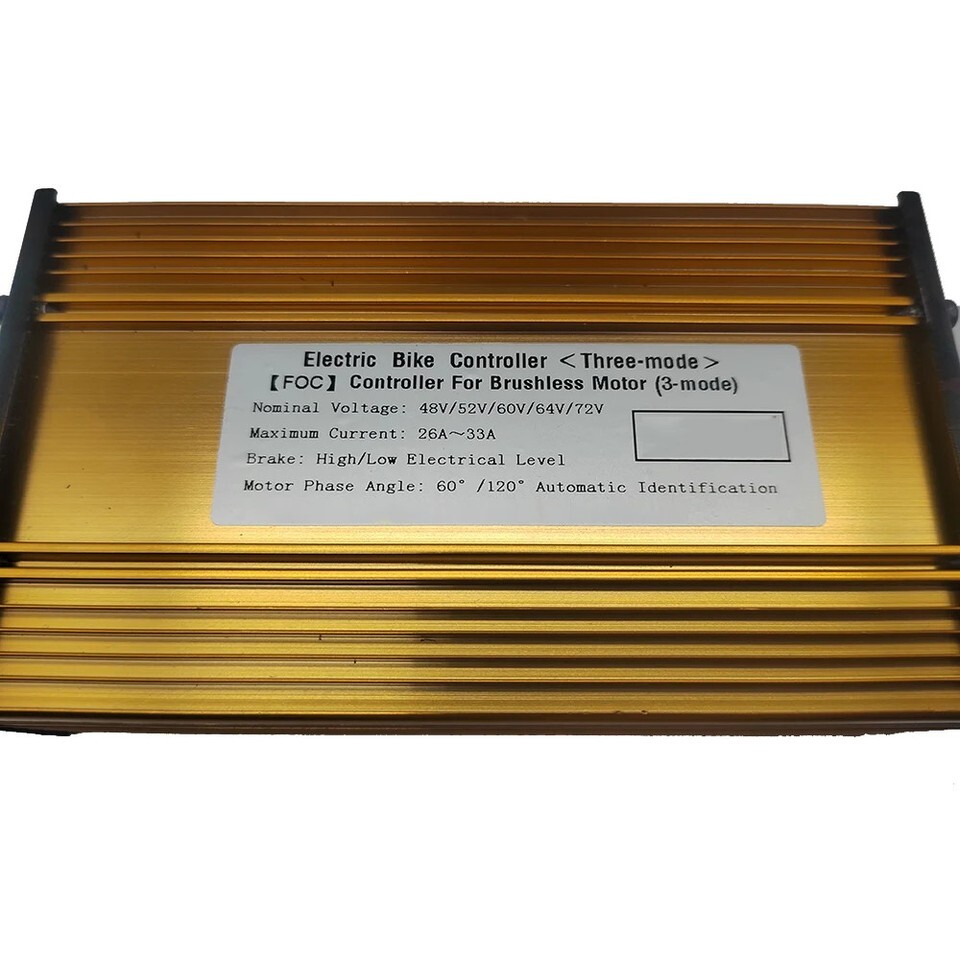

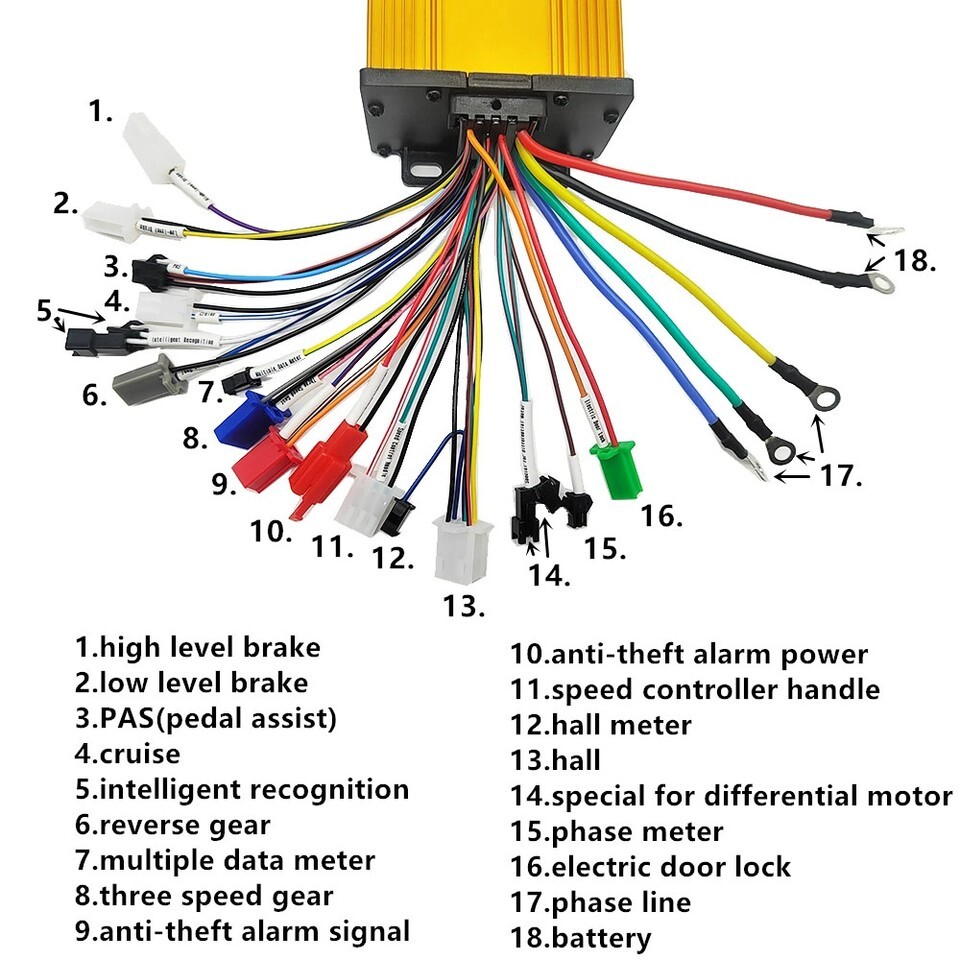

Intelligent brushless sine wave controller for electric bike/electric scooter/brushless motor if motor not have hall wire, not connect hall wires also can work Voltage: 36V/42V/48V/52V/60V/72V/84V universal Current: 26A-33A Transistor: 12 Phase angle: 60 /120 all can be used Rated power: 500W-800W-1000W all can work 1.high level brake 2.low level brake 3.PAS(pedal assist) 4.cruise 5.intelligent recognition?self-learnig line ) 6.reverse gear 7.multiple data meter 8.three speed gear 9.anti-theft alarm signal 10.anti-theft alarm power 11.speed controller handle?throttle) 12.hall meter 13.hall 14.special for differential motor 15.phase meter 16.electric door lock 17.phase line 18.battery how to connect ? 1.connect the phase line(color to color) 2. connect the battery line(red wire :battery + , black:battery-) 3. connect the controller throttle line?color to color) , connect electric door lock ?if your throttle not have electric door lock, controller electric door lock can be shorted) 4. connect the hall line(if motor without hall line, don't need connect) 5.docking the two self-learning lines, the wheel will forward or reverse. (1.if wheel forward ,Separate the self-learning line. 2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again, if wheel forward ,Separate the self-learning line.) 6.other functions can be connected as needed. 48V/52V/60V/64V/72V 26-33A 500-1000W 60/120 Phase Angle Universal Brushless Controller 1.button 3-speed 4-speed (generally not used) 2.special for differential motor (generally not used) 3.self-learning 4.3-speed (low/middle/high speed) 5.low brakes 6. one-line LCD meter 7. hall LCD meter 8.pedal assist (PAS) 9. alarm power supply 10. alarm signal 11. cruise 12. reverse 13.hall 14.throttle 15. Phase Velocity Meter Line 16.high brake 17.electric lock 18.battery 19.motor line How to connect controller? 1.connect the motor line (color to color) 2. connect the battery line(red:+ , black:-) 3. connect the controller throttle line, electric lock?if throttle not have electric lock,controller electric lock docking,if controller electric lock is 1 wire,can connect to battery + ) 4. connect the hall line(if motor without hall line, don't need connect) 5.docking the two self-learning lines, the wheel will forward or reverse. (1.if wheel forward ,Separate the self-learning line. 2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again,if wheel forward ,Separate the self-learning line.) 6.other functions can be connected as needed.
