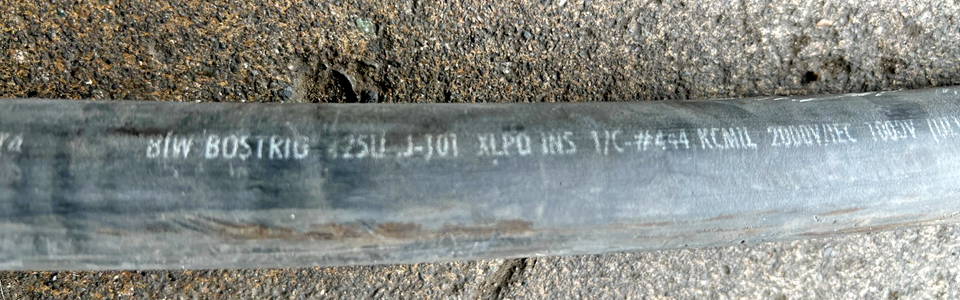

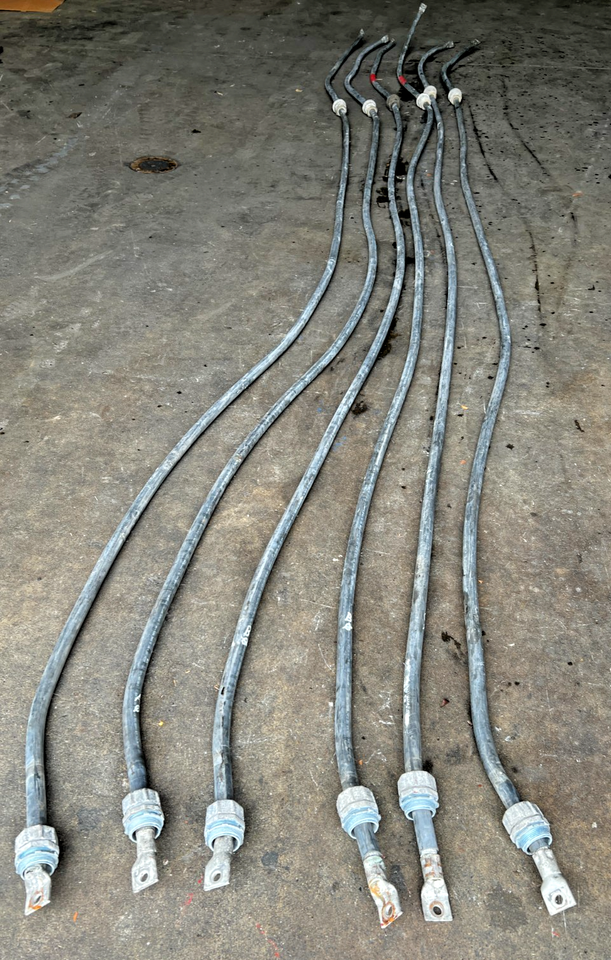

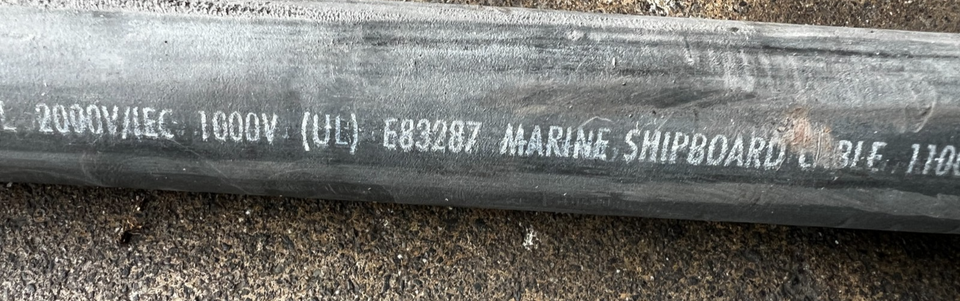

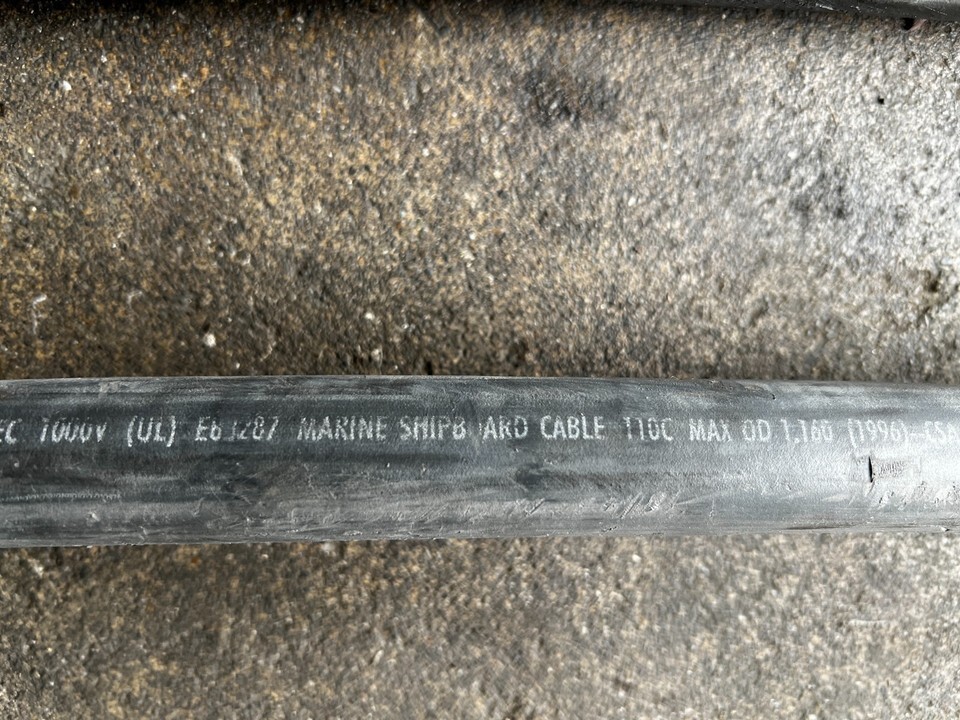

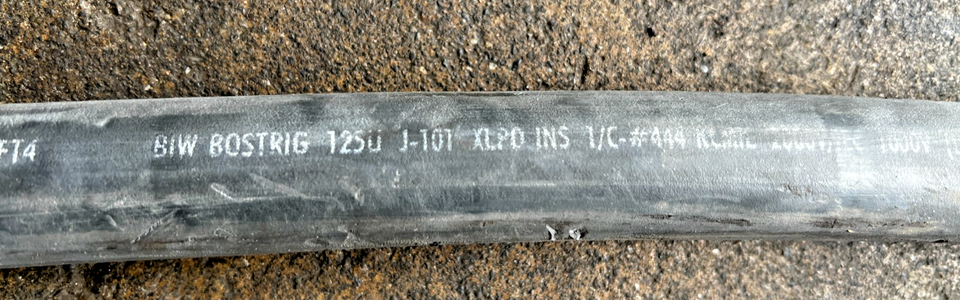

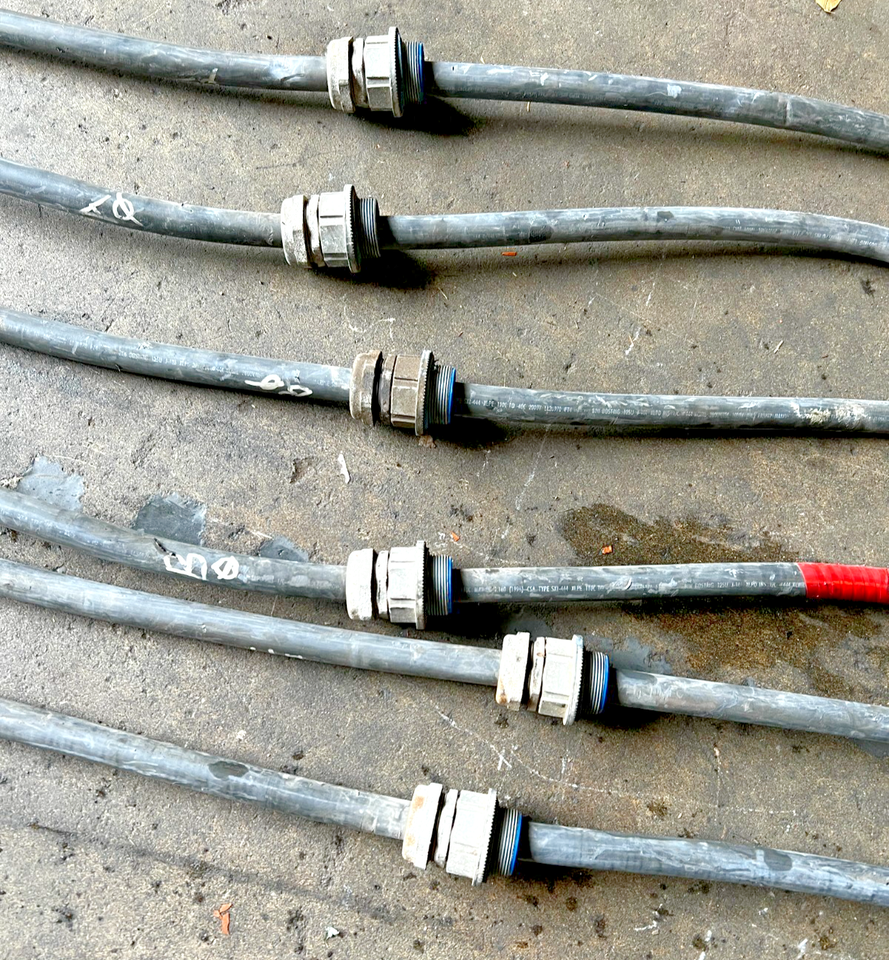

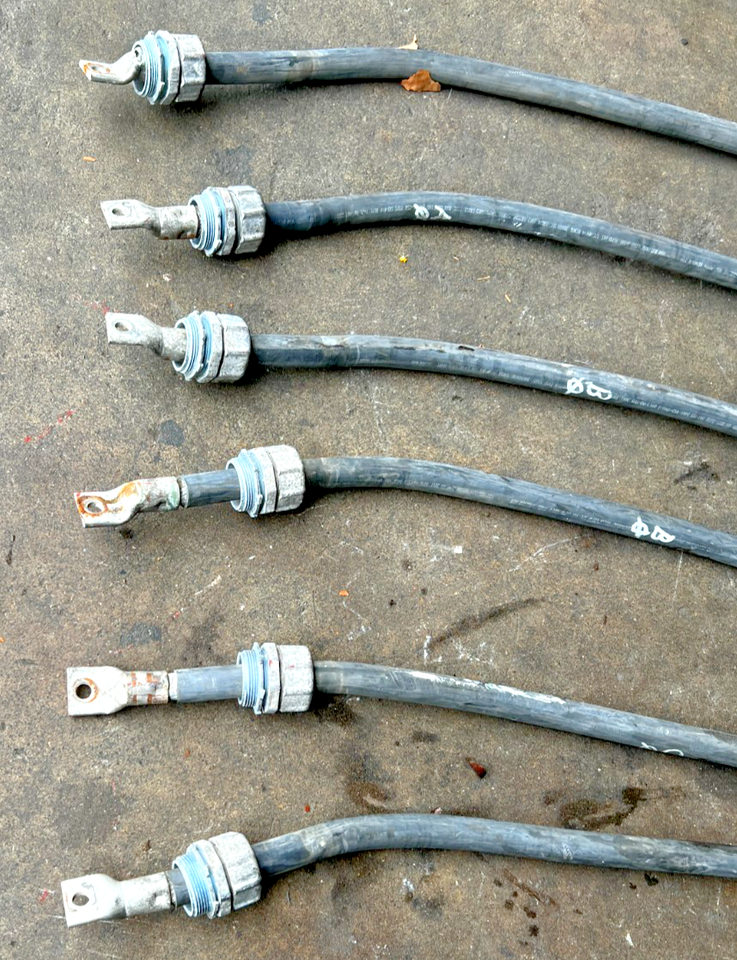

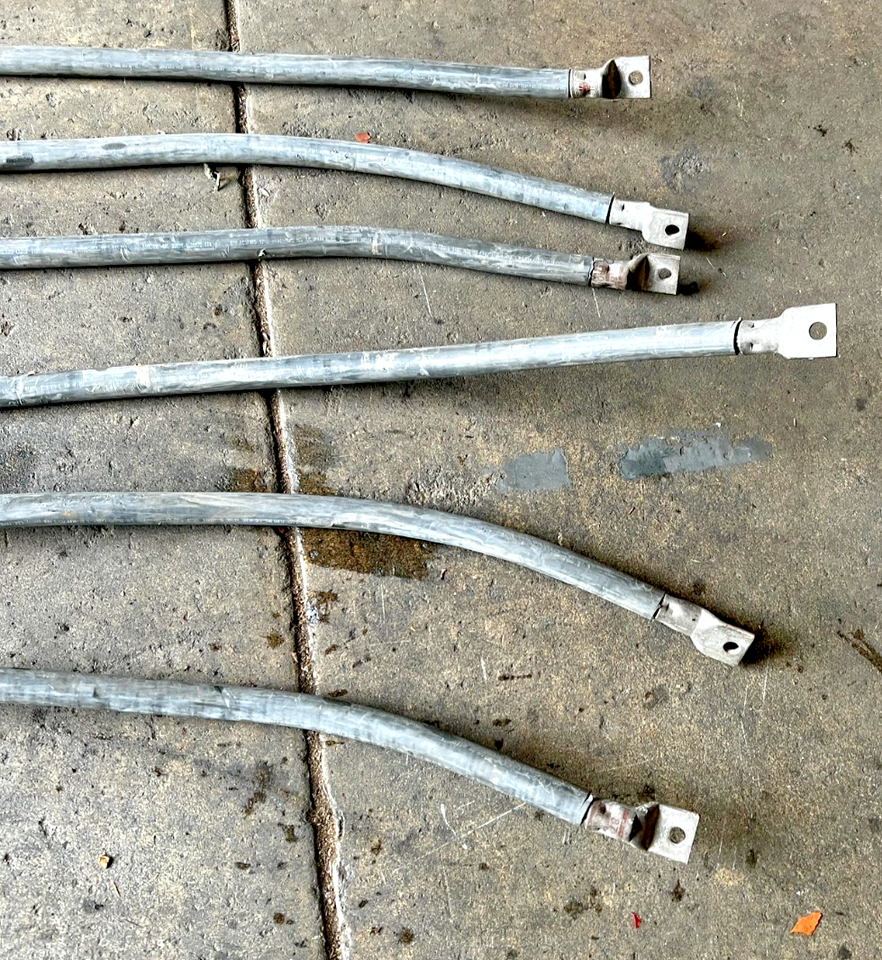

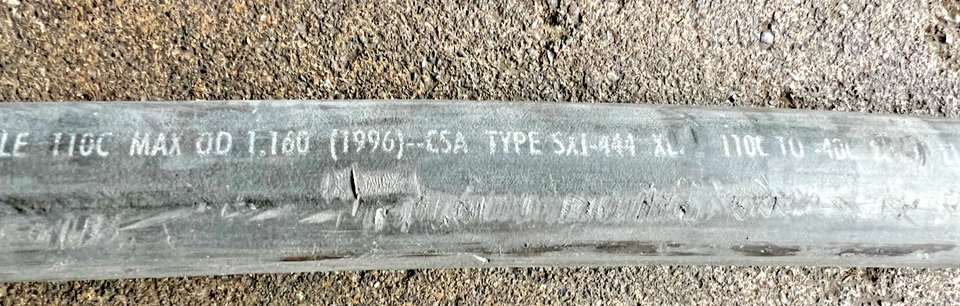

6 ea. BIW BOSTRIG Marine shipboard cable E83287 type SXL 444 id:967 17 ft ea. Lug fittings on each end of the cables Tin plated copper stranded wire about 32 lbs. per cable, about 192 lbs. total weight. The BIW Bostrig cable 125u J101 refers to a Bostrig Type P marine and offshore cable with a 125C insulation rating. Key specifications include a soft annealed stranded tinned copper conductor, Bostrig Type P cross-linked polyolefin (XLPO) insulation meeting IEEE 1580, a flame-retardant chlorinated polyethylene (CPE) jacket, and a braided bronze armor option. This type of cable is designed for harsh environments on offshore and land drilling rigs and marine vessels. Construction and materials Conductors: Soft annealed stranded tinned copper per ASTM B 33. Insulation: Bostrig Type P chemically cross-linked polyolefin (XLPO), rated for $125$C continuous operating temperature. Shield: Aluminum/polyester tape with drain wire for each twisted pair and the overall core. Jacket: Flame-retardant, thermosetting CPE, or optional Arctic Neoprene (Type N). Armor: Braided bronze, compliant with IEEE 1580. Sheath: Flame-retardant thermosetting CPE over the armor, or optional Arctic Neoprene. Ratings and certifications Voltage: Meets IEEE standards for $600$V and IEC standards for $0.6/1$kV. Ratings: Flame retardant per IEEE 1202 and IEC 60332-3, Category A. Meets UL 1277 and UL 1569 for Type TC-ER exposed runs. Certifications: Listed by ETL per IEEE 1580, UL 1309/CSA 245, and IEEE 45. BUY WITH CONFIDENCE - WE HAVE 100% POSITIVE FEED BACK ON OUR SALES. When requesting a shipping quote, in order to get you the best shipping quote possible I need to know if the location for delivery is: commercial with forklift and loading dock, residential and you need liftgate service or do you want to pick up at the closest freight terminal Please let me know Thanks
