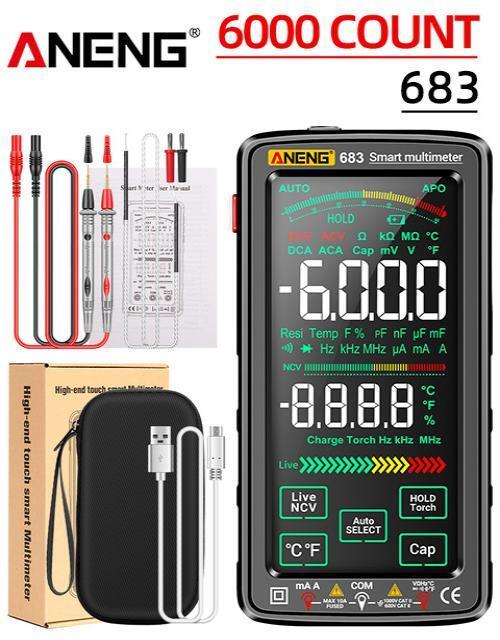

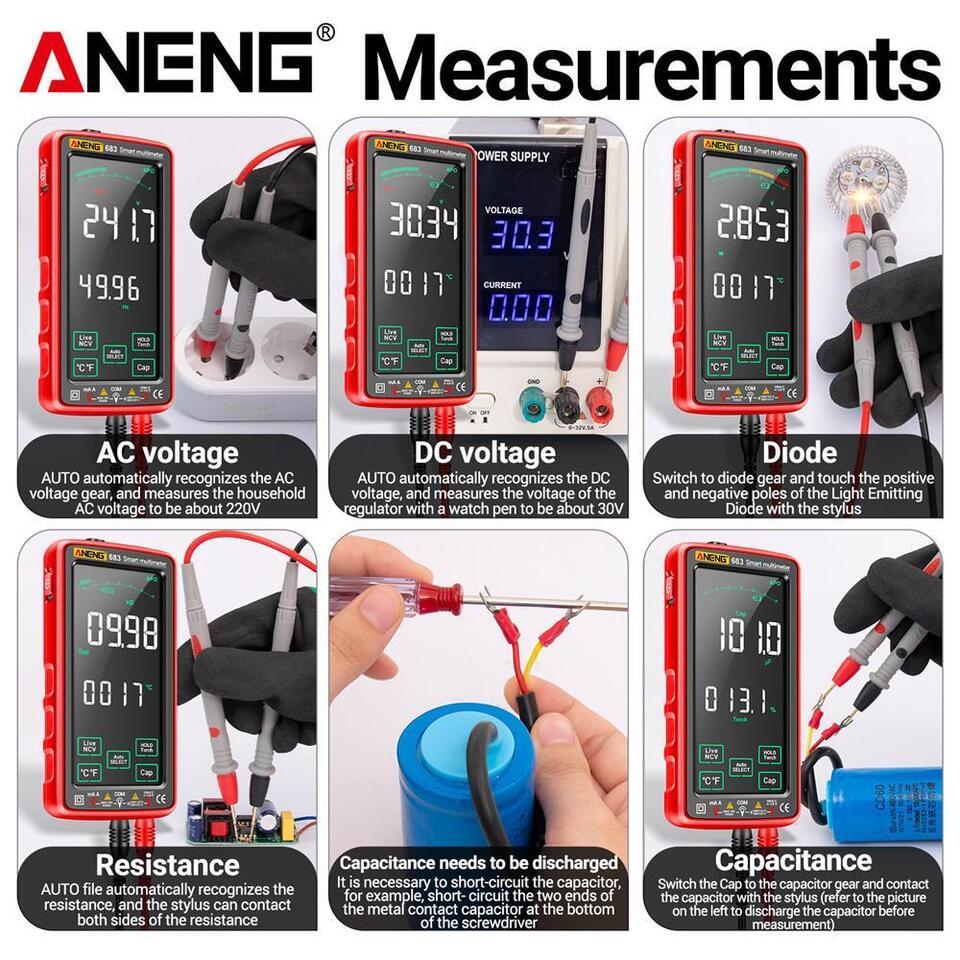

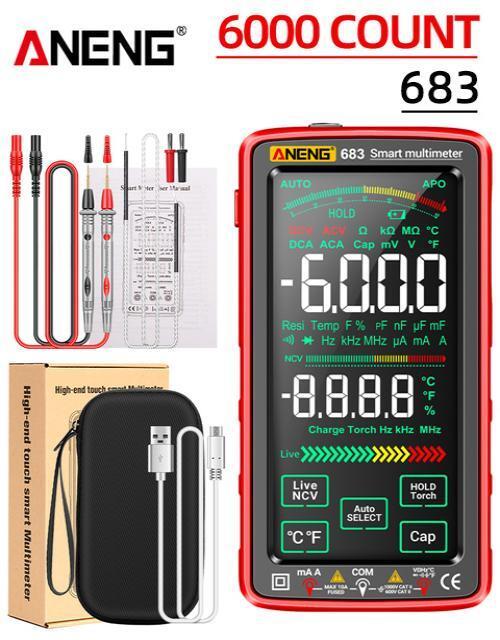

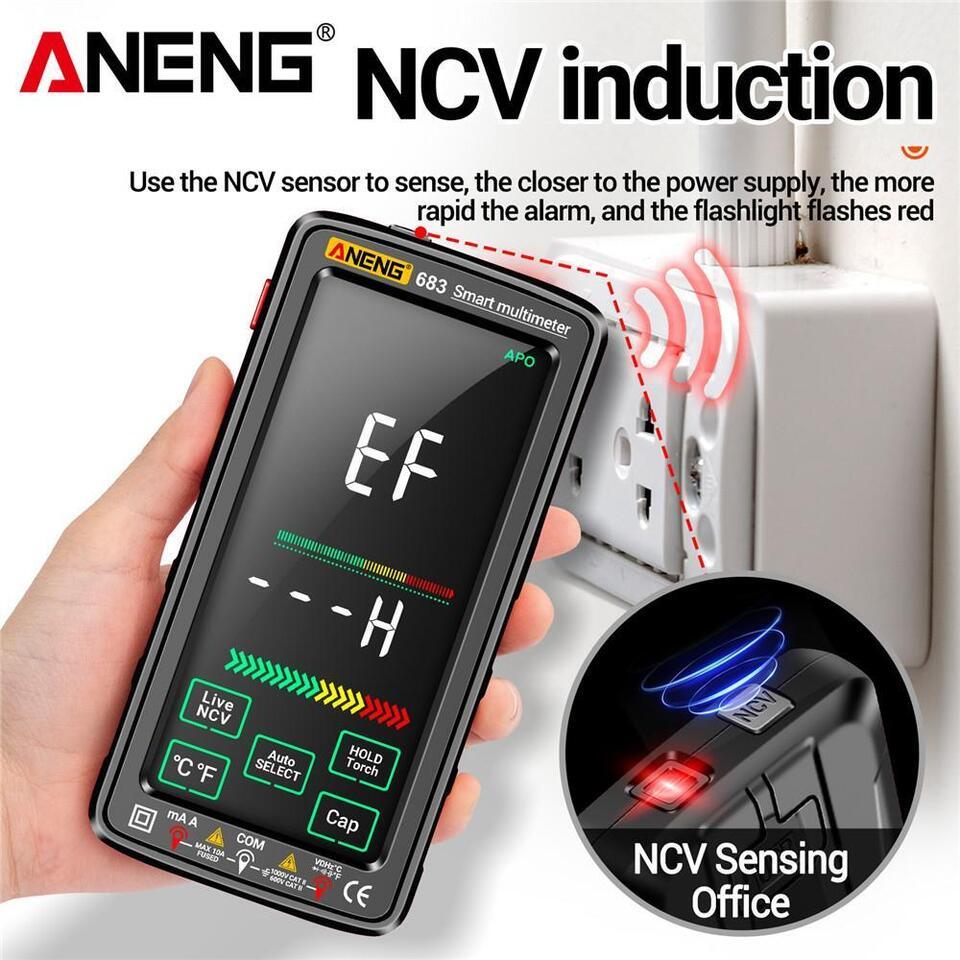

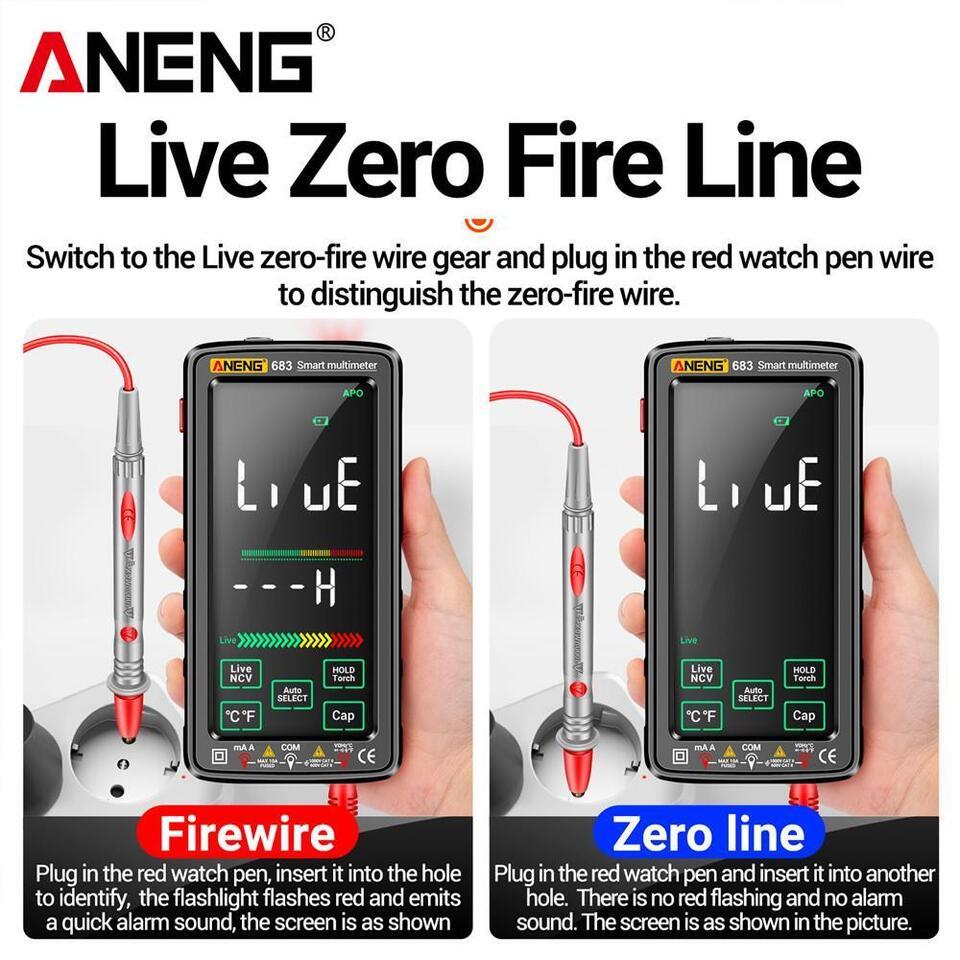

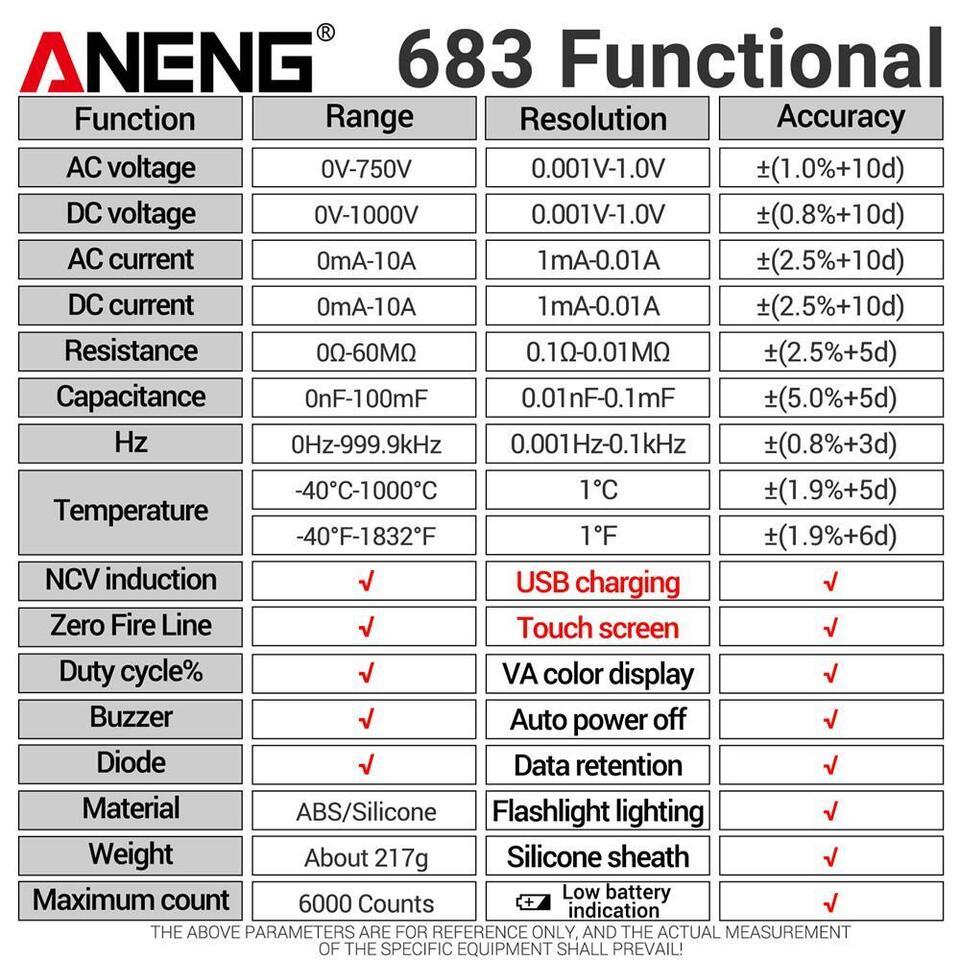

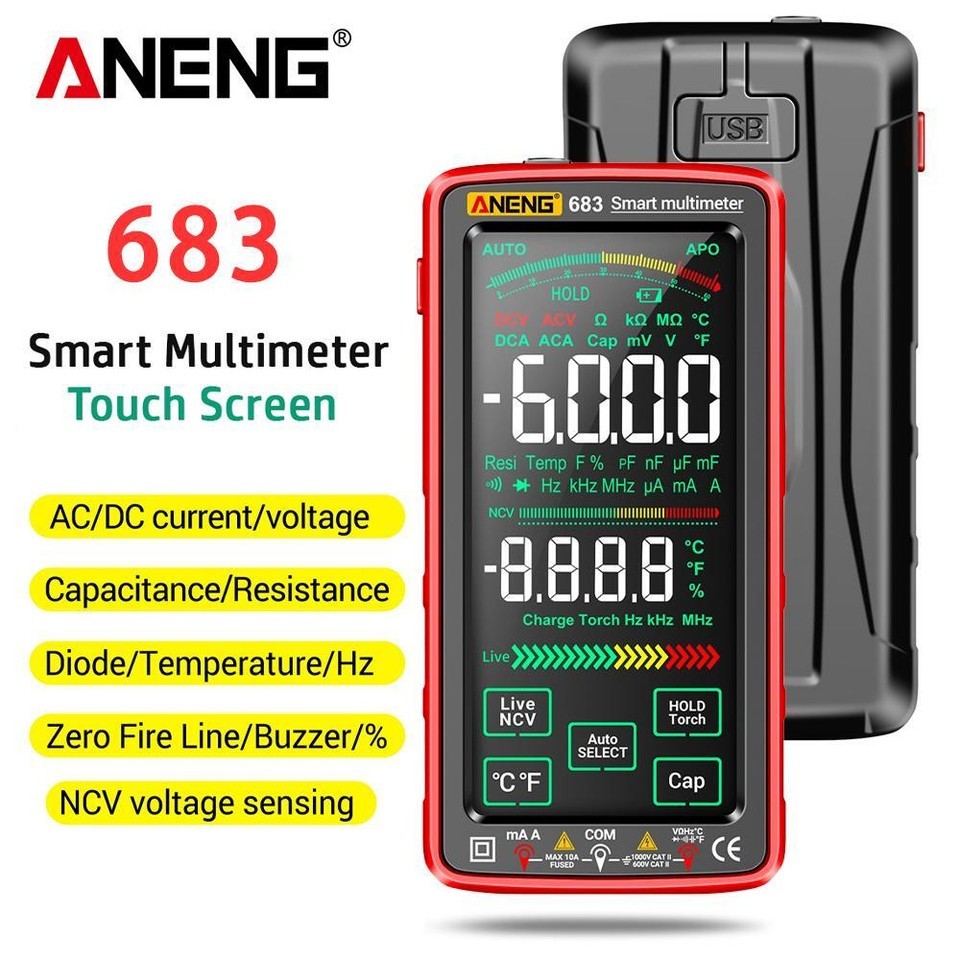

Aneng 683 Smart Multimeter High-end Touch 6000 Counts Multimetro Test Rechargeable ANENG 683 High-end Touch Smart Multimeter Introduce: This device is a 3 5/6 digital multimeter with stable performance and realiable quality.The meter adopts LCD display screen with analog bar display.Users in the process of use,truly achieve continuous power operation,do not need to turn the dial to select functions.According to the input ac/DC voltage/resistance will be automatically identified and measured. It can be used to measure DC voltage,AC voltage sine RMS,DC Current,AC current sine RMS,resistance,capacitance,live-line indication,duty ratio,diode on/off test,symbol unit ,data hold and automatic power off. The meter is equipped with a high-capacity rechargeable batteries with full function and accurate measurement.The multimeter is an ideal tools for laboratory,factory,radio enthusiasts and household. Summary: Manual Range and Auto Range Full range overloaded protectection The maximum voltage allowed between the measuring terminal and ground:1000V DC or 750V AC Fuse Protection:uA/mA Display:6000 Counts LCD monitor with analog bar Battery Type:3.7V/2800mA rechargeable battery Specification: DC Voltage: Measuring Range Resolution Accuracy 6V/60V 0.001V/0.01V +-(0.5% readings+3digits) 600V/1000V 0.1V/1.0V +-(0.8% readings+10digits) AC Voltage: Measuring Range Resolution Accuracy 6V/60V 0.001V/0.01V +-(0.8% readings+3digits) 600V/750V 0.1V/1.0V +-(1.0% readings+10digits) AC and AC Current Measuring Range Resolution Accuracy 6000mA 1mA +-(1.0% readings+5digits ) 10A 0.01A +-(2.5% readings+10digits ) Resistance Measuring Range Resolution Accuracy 600?/6k?/60k?/600k? 0.1?/0.001k?/0.01k?/0.1k? +-(0.8% readings+3digits) 6M? 0.001M? +-(1.2% readings+3digits) 60M? 0.01M? +-(2.5% readings+5digits) Capacity Measuring Range Resolution Accuracy 60nF/60nF/6uF/60uF/600uF/6mF 0.01nF/0.1nF/0.001uF/0.01uF/0.1uF +-(4.0%Readings+20 digits) 60mF 0.01mF +-(5.0%Readings+5 digits) 100mF 0.1mF for reference Frequency Measuring Range Resolution Accuracy 9.999Hz/99.99Hz/999.9Hz 0.001Hz/0.01Hz/0.1Hz +-(0.8% readings+3digits) 9.999kHz/99.99kHz/999.9kHz 0.001kHz/0.01kHz/0.1kHz +-(0.8% readings+3digits) Temperature Measuring Range Resolution Accuracy -40?-300? +-(1.0%+4d) 1? 301?-1000? +-(1.9%+5d) 1? -40 F -600 F +-(1.2%+6d) 1F 601 F -1832 F +-(1.9%+6d) 1F Diode Test Yes Circuit on/off Test Yes Data Hold Yes Automatic power off Yes Torch Yes NCV Test Yes Buzzer Yes Firing line Test Yes Package Included: As the picture showed Shipping Fast Shipping Worldwide Returns We accept returns 30 days from the package received. Payments All payments are accepted via PayPal. Feedbacks The product came very well packaged. I'm very happy. thank you for everything. Seller strongly recommended. This is great! I recommend! The product looks amazing. Delivery was fast. Excellent seller, great communication. I advise everyone.
