Steel Flush Face Hydraulic Quick-Connect and 4 similar items

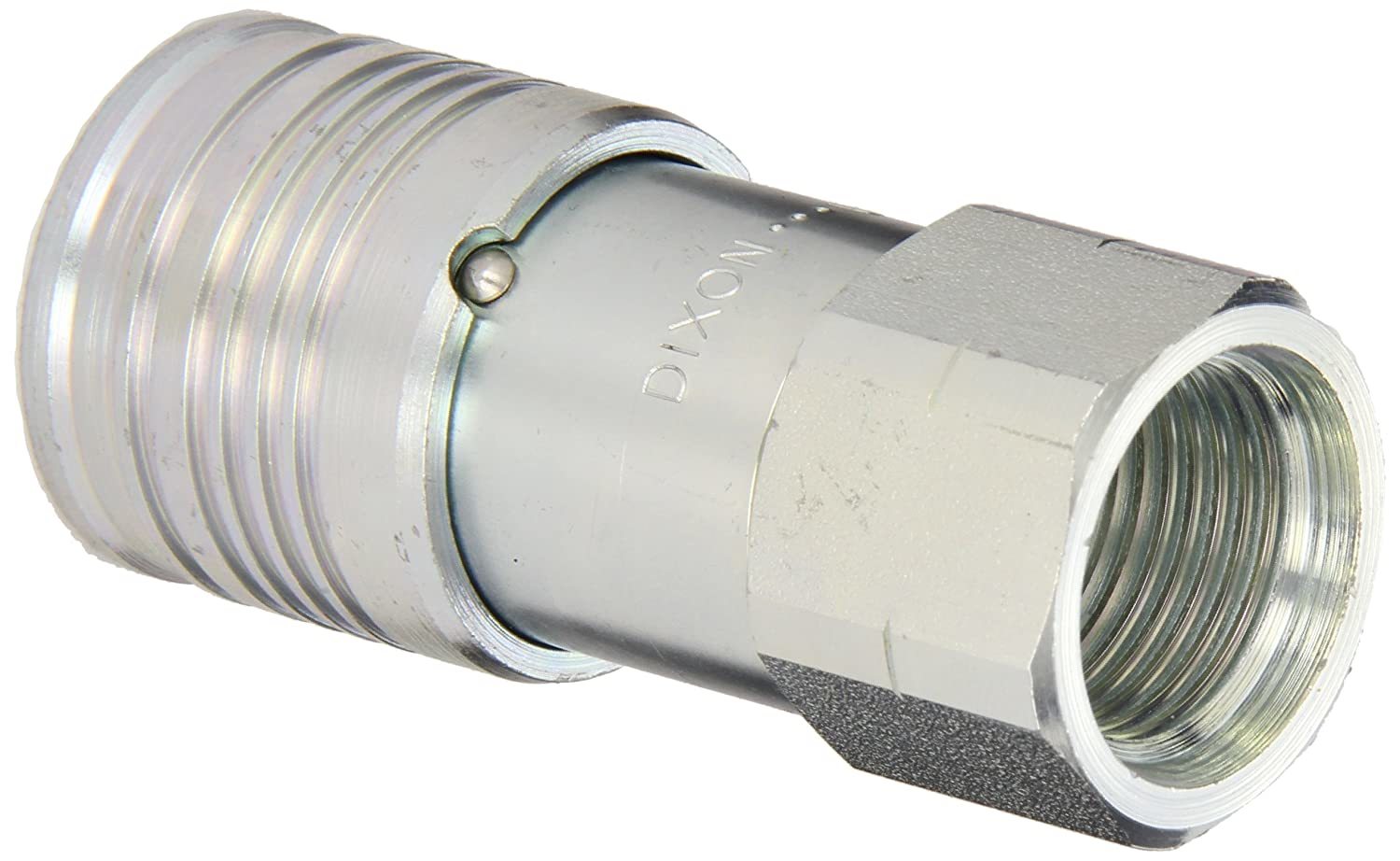

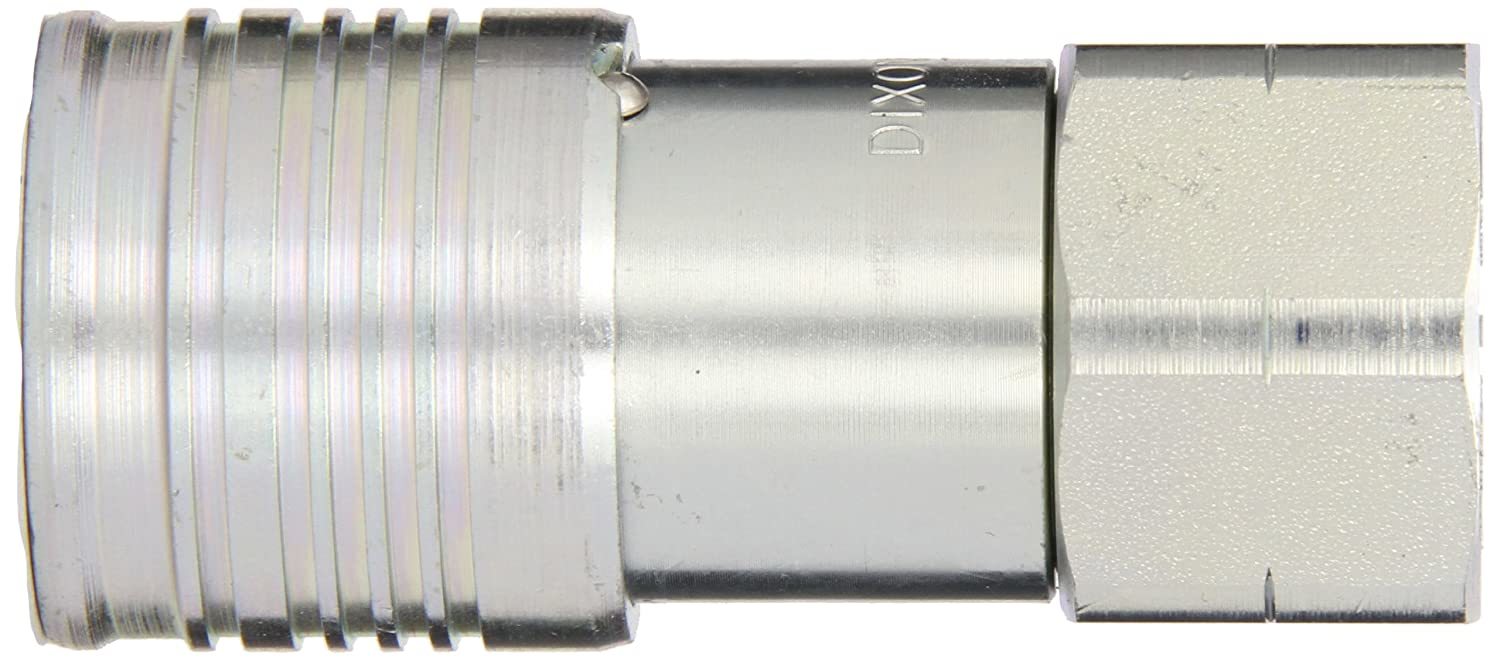

Steel Flush Face Hydraulic Quick-Connect Coupler, 1/2" Coupling X 1-1/16"-12 Sae This Dixon 4HTO series steel flush face push-to-connect hydraulic quick connect coupler has an SAE/ORB connection end, and connects to a flush face hydraulic quick connect plug to minimize fluid loss. The SAE/ORB connection provides lower fluid leakage at high pressure levels. Steel provides better weldability and greater rust resistance than wrought iron. This automatic coupler has a push-to-connect operation, shuts off when disconnected, and has a sleeve lock to guard against accidental disconnection. This fitting's maximum working pressure (MWP) is 4,250 pounds per square inch (psi) (289.12 bar). This coupler conforms to the International Organization for Standardization (ISO) 16028 specifications for hydraulic fluid power, flush-face type, quick-action couplings. It is used for hydraulic applications in industrial operations. Specifications Fitting-end connectionAutomatic couplerHose-end connectionSAE/ORBValveFlush faceMaterialSteelMaximum working pressure4,250 psi (289.12 bar)SpecificationsISO 16028 Hose fittings connect, control, change the direction of, and terminate the flow in piping and hose systems. They are made of brass, stainless steel, galvanized steel, and other materials that resist corrosion, pressure, and wear. Hose fittings have various types of connections, including threaded, barbed, push-to-connect, dry disconnect, and others including those based on internationally-accepted specifications. Hose fittings are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation. Dixon Valve Coupling Company manufactures pipe and hose fittings and accessories. The company, founded in 1916, is based in Chestertown, Maryland. Product Features Flush face quick connect plug for connecting directly to a hose with an SAE/ORB end for lower fluid leakage at high pressure levels Flush face hydraulic quick connect coupler with a SAE/ORB end Flush face valve design minimizes fluid loss Steel for stronger welded joints and greater rust resistance than wrought iron Conforms to ISO 16028 specifications for hydraulic fluid power, flush-face type, quick-action couplings Shipping: Shipping is complimentary within the lower 48 US States. We Do Not Ship to PO/APO Boxes, HI or Alaska We Do Not Ship Outside of the Continental US All items ship within 24-72 hours of Payment For large items that require Freight shipping a valid phone number is required to call and schedule your delivery Terms of Sale and Feedback: Feedback is extremely important to us and If you are satisfied with our transaction, please take a moment to leave Positive Feedback. YOUR Satisfaction is our #1 Priority! If there are any issues, PLEASE contact us BEFORE leaving a neutral or negative rating so that we may resolve any concerns. We PROMISE we can make you happy if you give us a fair chance. Returns / Concerns: All items qualify for returns within 14 - 30 days of receipt. Buyer is responsible for return shipping on any item that is not damaged Please be sure this is an item you want before making your purchase. Customer Satisfaction is our TOP priority! All items are IN STOCK at time of listing. Inventory changes constantly and it is impossible to maintain a perfectly accurate count of all items. Please do not penalize us if we have to issue you a refund! Thank You For Your Business!
