Eaton - BR 125 Amp 8-Space 16-Circuit Indoor and 50 similar items

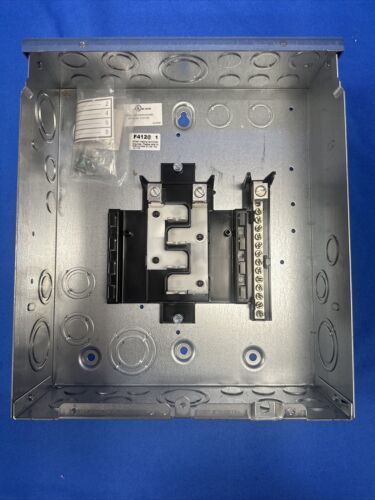

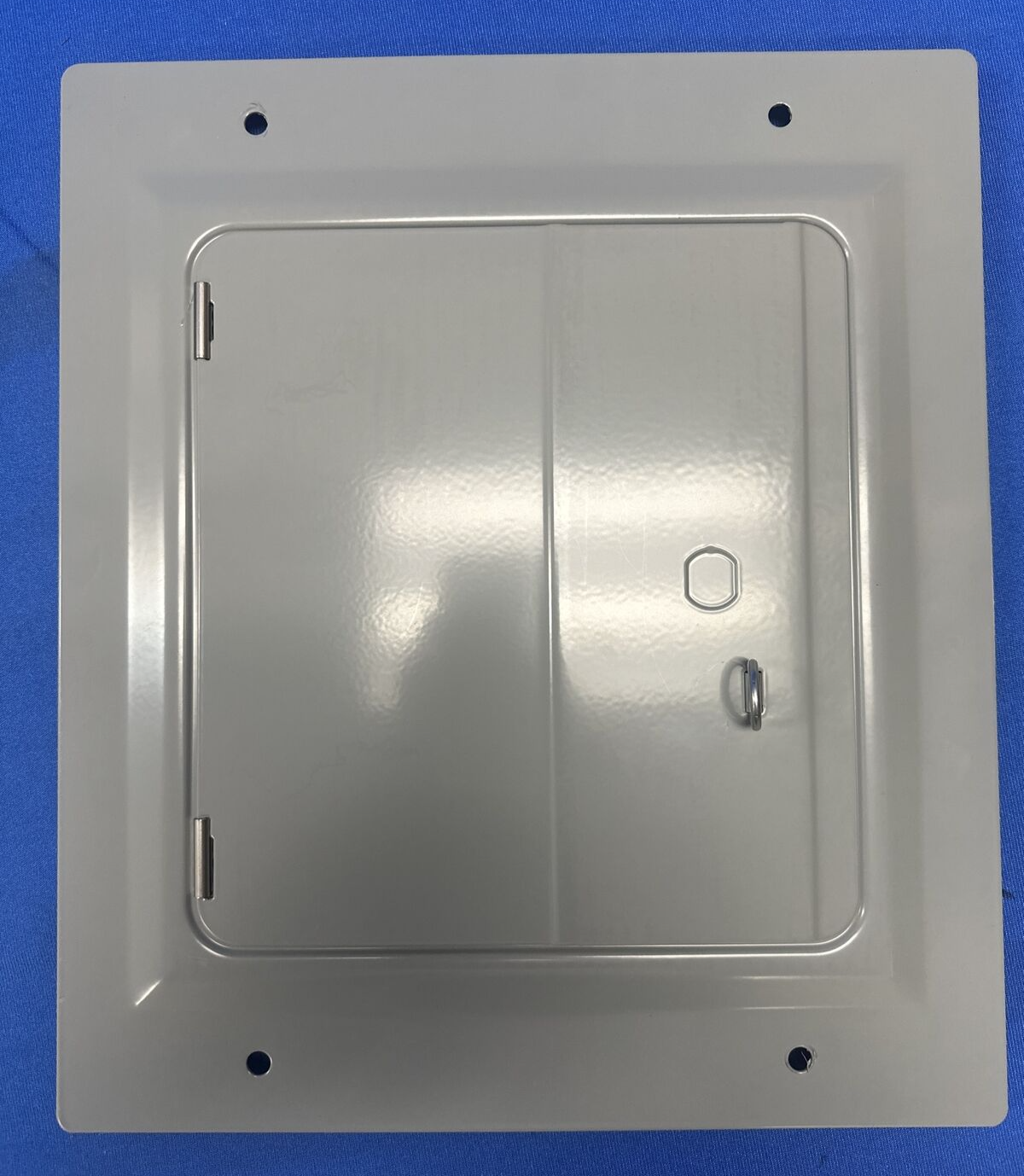

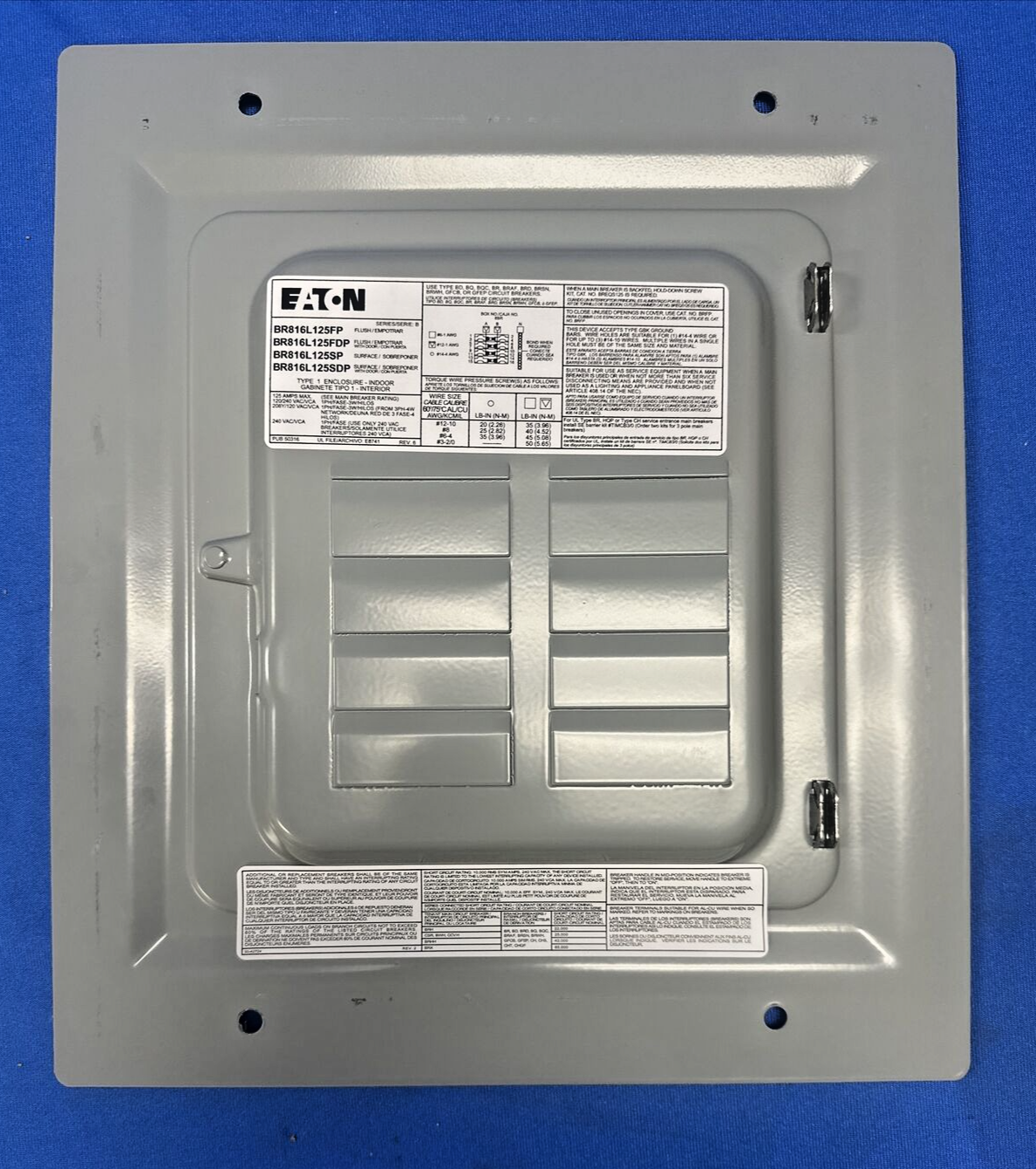

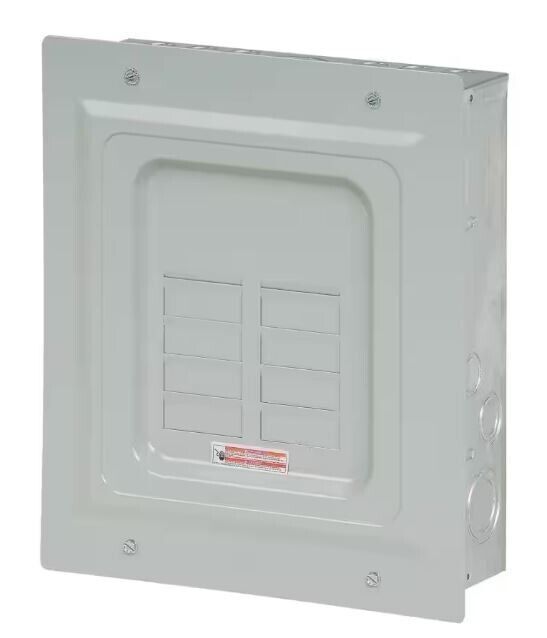

Eaton BR 125 Amp 8-Space 16-Circuit Indoor Main Lug Flush About This Product Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. Eaton has been a trusted name in electrical products for over 100-years. Highlights Use GBK10 ground bar, sold separately Type: main lug Amperage rating: 125 Amp Bus material: aluminum Enclosure: NEMA 1 Interrupt rating: 10 kAIC Number of circuits: 16 Number of wires: 3-wire Phase: single-phase Voltage rating: 120/240-Volt Wire size: #14-1 AWG Cu/Al Used with: Type BR 1 in. breakers Steel back pan provides solid and reliable breaker mountingsingle piece design for stability and durability Drywall marking on enclosure indicates proper mounting depth for flush applications Single keyhole mounting - one keyhole at the top and bottom provides easier mounting and leveling Suitable for use as service equipment when not more than six main disconnecting means are provided and when not used as a lighting and appliance panel board Dimensions Load center width (in.) 12.8 Product Depth (in.) 14 in Product Height (in.) 4.3 in Product Width (in.) 12.8 in Details Breaker Box Type Subpanel Connection Type Neutral Indoor/Outdoor Indoor Load Center Type Main Lug Maximum Amperage (A) 125 A Mounting Type Flush NEMA Configuration NEMA 1 NEMA Configuration Receptacle No Receptacle Number of Circuits 16 Number of Spaces 8 Phase Type 1 Phase Product Weight (lb.) 9.5 lb Returnable 30-Day Series Type BR Voltage (V) 120/240 V
