Meiyo Temperature Sensor Platinum Resistance and 50 similar items

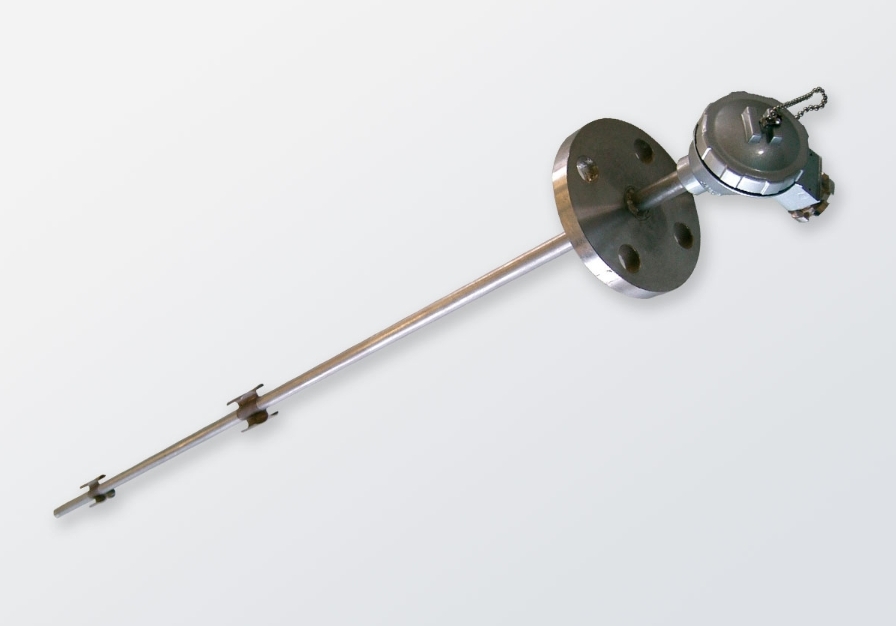

The low temperature platinum thermal resistance bulb is used to the measurement and monitoring for the temperatures of lubricating oil, cooling water, and bearing of various ship-engines as well as the air temperature. Since the delay characteristic (response speed) is most important factor for low temperature use, this thermal resistance bulb is so designed that its resistance element keeps excellent heat conductivity to minimize heat which may otherwise develop in it. The adoption of double protection tube does not affect the characteristics, maintaining the same characteristics as those of single protection tube types. Features For Tank (with Flange, Fin) Specification Nominal Resistance(at 0?) Pt100? Current ?mA) 2 Class Class B Operating Temp. ??) 0~200? Material of Tube?Standard) SUS304 Connecting 3 Terminal Terminal Type Terminal Box Application Tank
