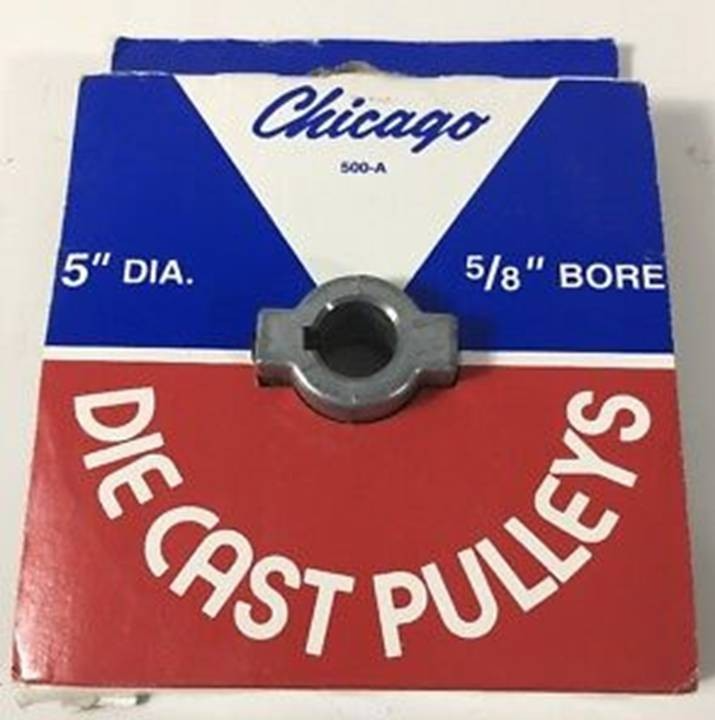

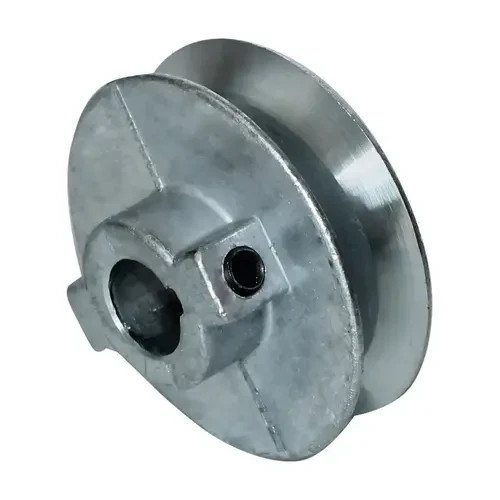

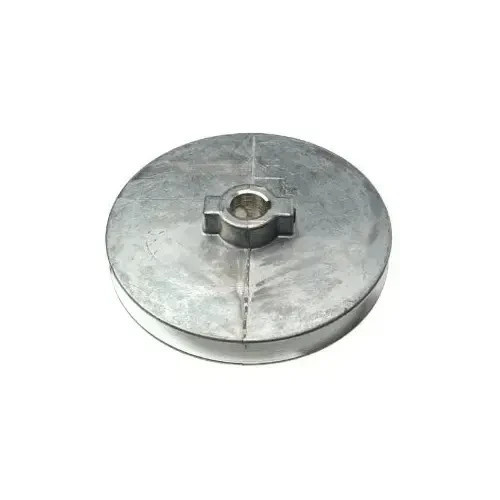

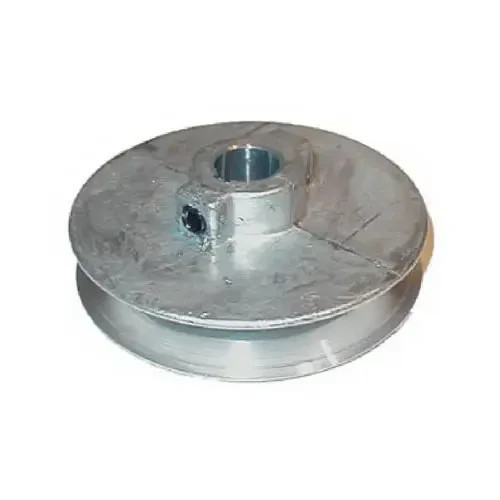

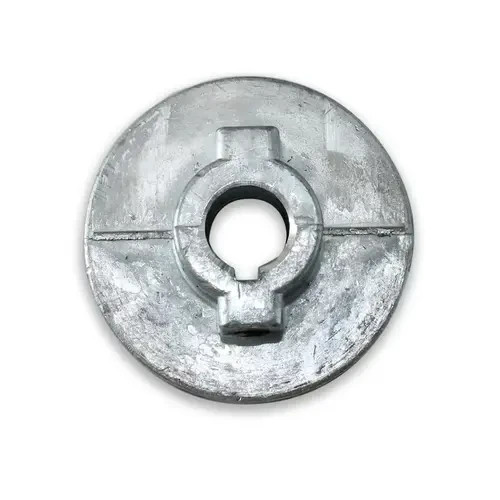

Chicago Die Casting 500A6 V-Groove Die-Cast Pulley 5'' in Dia.x 5/8'' in Bore ? Zinc Ensure smooth and reliable power transmission with the Chicago Die Casting 500A6 V-Groove die-cast pulley, a precision-engineered single groove pulley designed for industrial and mechanical applications. With a 5-inch outside diameter and a 5/8-inch bore, this Type A pulley is built to fit standard shafts and is optimized for use with 4L (1/2 in W x 11/32 in thick) V-belts, making it ideal for a wide range of belt-driven systems including motors, pumps, blowers, and agricultural equipment. Constructed from high-strength zinc via die-casting, the pulley delivers excellent durability, dimensional stability, and resistance to wear and corrosion. Its V-groove design securely guides the belt, minimizing slippage and ensuring efficient power transfer. The pitch diameter of 4-3/4 inches and a face width of 11/16 inch are engineered for optimal belt alignment and performance. The 3/16 x 3/32 inch keyway ensures a secure fit on the shaft, preventing rotation and reducing wear on both the pulley and drive system. Equipped with hollow head set screws (included), the pulley allows for precise mounting and secure attachment without the need for additional hardware. These slotted, headless screws provide a flush finish and reduce the risk of snagging, making them ideal for enclosed or high-safety environments. The pulley is designed for use with A-series belts, and models from 2 to 12 inches in diameter include keyways?except for 3/8 in and 1/2 in bores, and 3/4 in bores on pulleys under 4 inches. Measuring 5.20 inches in length, 1-7/32 inches in width, and 1.30 inches in height, this compact yet robust pulley is lightweight at 0.800 lb, facilitating easy handling and installation. It is packaged in a Sta-Pak carton for protection and retail readiness. Features - 5-inch V-groove die-cast pulley with 5/8-inch bore for A-series belts - Designed for use with 4L or 1/2 in x 11/32 in thick V-belts - Type A pulley with 4-3/4 in pitch diameter and 11/16 in face width - Precision zinc die-cast construction for strength and durability - Resists wear, corrosion, and deformation under load - Includes hollow head set screws for secure, flush mounting - Keyway size: 3/16 x 3/32 in for positive shaft alignment - Outside diameter: 5 in; Bore size: 5/8 in - Ideal for motors, blowers, pumps, and farm equipment - Slotted headless set screws reduce snag hazards - Suitable for industrial, commercial, and DIY mechanical systems - Manufactured to exacting standards for consistent performance - Packaged in Sta-Pak carton for protection and storage Specifications - Brand Name: Chicago Die Casting - Model Name: Chicago Die Casting 500A6 - Part Number: 500A6 - UPC: 096158500608 - Product Type: Single V Grooved Pulley - Outer Diameter: 5 In. - Outside Diameter: 5" - Pitch Diameter: 4-3/4" - Bore Size: 5/8" - Keyway Size: 3/16 x 3/32" - Face Width: 11/16" - Belt Size: 1/2 in W x 11/32 in Thick (4L) - Material: Zinc - Type: A - Installation: Keyed shaft with set screw - Included Components: Hollow head set screws - Each Weight: 0.800 lb - Length: 5.20 in - Width: 1-7/32 in - Height: 1.30 in - ECCN: EAR99 - Country Origin Code: US - Manufacturer: Chicago Die Casting - Country of Origin: United States Product Application The Chicago Die Casting 500A6 V-groove pulley is engineered for dependable performance in belt-driven mechanical systems. Commonly used in HVAC, agricultural machinery, industrial motors, and workshop equipment, it ensures efficient power transfer with minimal slippage. Its durable zinc construction and precision design make it a reliable replacement or upgrade component for technicians, mechanics, and maintenance professionals. Whether used in repair, retrofit, or new assembly projects, this pulley delivers long-lasting, high-performance operation in demanding environments.
