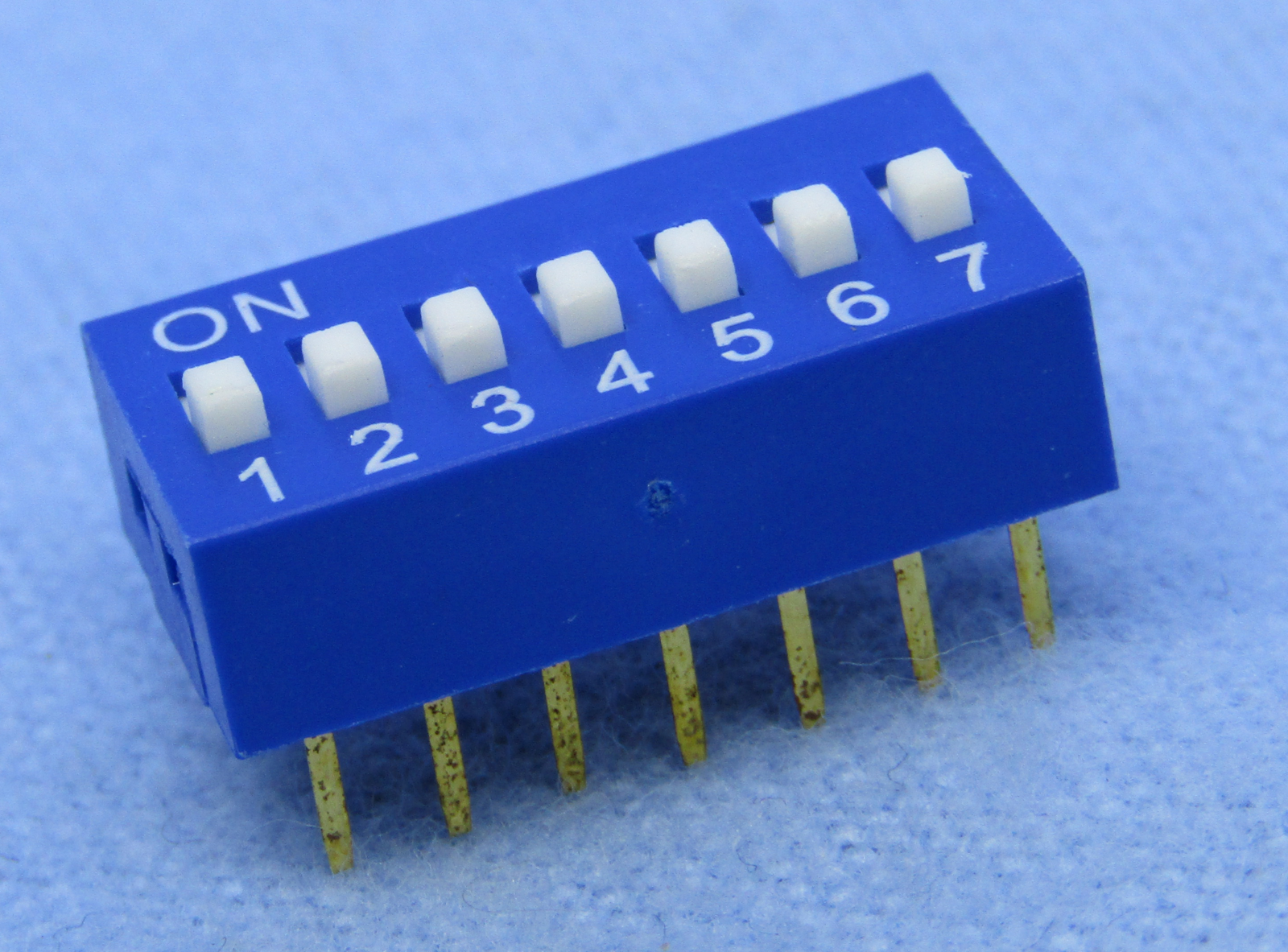

30-1007 philmore, dip switch contact rating: 50v dc 100ma@ steady situation 24v dc 25ma@ make or break initial contact resistance: 100ma, 30 meg contact rating: 50v dc 100ma@ steady situation 24v dc 25ma@ make or break initial contact resistance: 100ma, 30 meg ohm @ initial 100ma, 100 meg ohm after life test insulation resistance: 500v dc 100 meg ohm (min.) between adjacent terminals dielectric strength: 500v ac for 1 minute between adjacent terminals operation life: 5,000 make-break cycles each circuit @ test speed of 72 cycles/min. operation force: 500g max. shock: withstand of 20g 11ms sawtooth waveform w/no contact opening 10 ms (microseconds) vibration: no mechanical damage or intermittent change of setting during or after test case cover material: ul 94v-o polybutylene telephtalate top seal material: polyester film potting material: epoxy contact material: nickel, phosphor bronze w/gold plate terminal material: nickel, phosphor bronze w/gold plate terminal type: solder 038975396071
