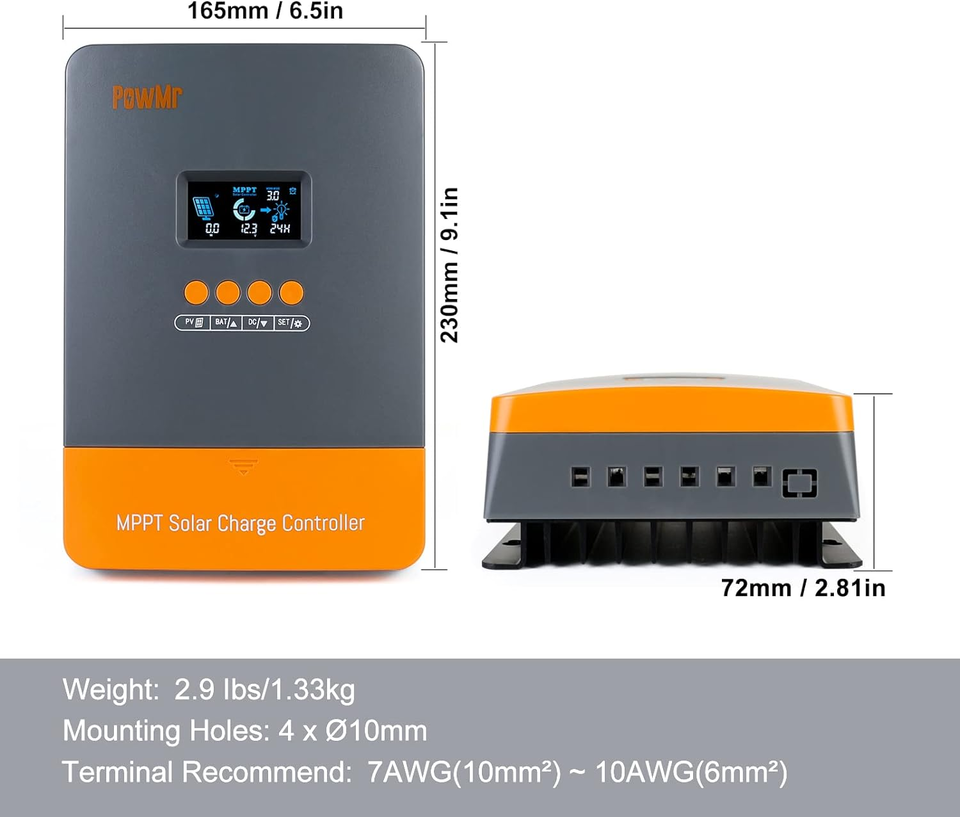

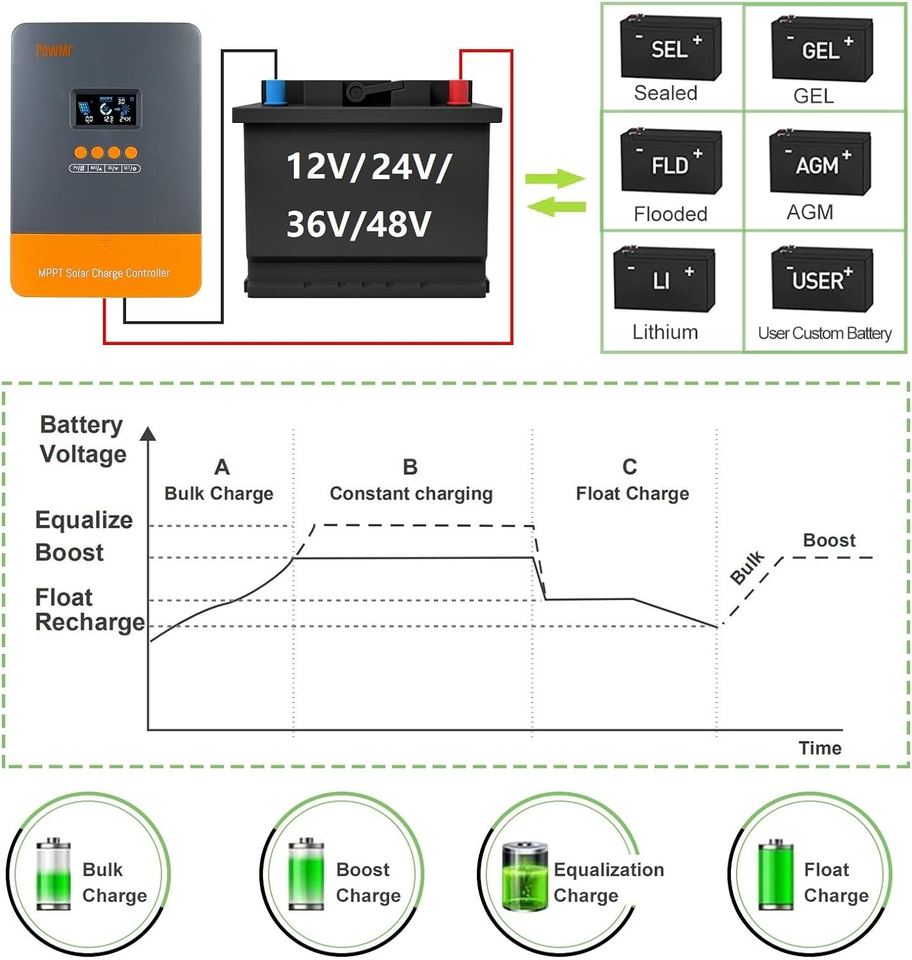

Fast Shipping On All Items 30 Days Money Guarantee Customer Support Excellent Service 100% Satisfaction Satisfaction Guaranteed 60AMP MPPT Charg Controller, Fit for 12V 24V 36V 48V Lead-Acid Lithium Battery, MAX 160V 2880W Input Solar Charge Controller Specification Item model number NEW MPPT 60A Controller Style 60amp/12V24V48V Batteries required No Brand PowMr Package Dimensions 11.02 x 7.95 x 4.49 inches Item Weight 3.74 pounds Voltage 24 Volts Product Dimensions 6.5"L x 9.1"W x 2.81"H Manufacturer PowMr 7.95 inches x 11.02 inches x 4.49 inches. Weight: 3.74 lb Item Description ?60A MPPT CHARGING CONTROLLER? 4-stage battery charging algorithm for a rapid, efficient , safe charging(Bulk Charge, Boost Charge, Float Charge,and Equalization), 60amp Rate Charging current. ?Controller WIDE RANGE SOLAR VOLTAGE/POWER SUPPORT?Controller support High PV Input Power/voltage. Controller can accept Solar voltage up to 190V. When battery is 12V system: Suggest Solar power 720W, suggest range:DC20V~DC80V?1440W 105V when 24V; 2100W 150 when 36V; 2800W 150v when 48V. ?12V/24V/36V/48V BATTERY SUPPORT?Negative grounding design controller more safe, controller Compatible with a variety of batteries(lead-acid and lithium, User customize); Sealed, Gel, Flooded and LI (LFP) battery charging parameter pre-set, other battery can be customize charging parameter according your need. ?0 layer MPPT charge controller?Easy to know Charging process in one glance. ?FULL CHARGING PROTECTIONS?Short Circuit/Overcurrent/Reverse Polarity,etc.protections; Very detail LCD screen and 4 buttons make this solar controller very simple to use. And detail troubleshooting list, Fast service support and Simple and detail wiring instruction avaiable. Product Description PowMr Solar charge controller 60A 12V/24V/36V/48V AUTO Controller able to work with 12V 24V 36V 48V Deep cycle Sealed, Gel, Flooded and Lithium,User battery. (Support Customizable charging voltages) PowMr Solar charge controller 60amp PowMr MPPT Solar Controller 60AMP Controller support High PV Input Power/voltage. Controller can accept Solar voltage up to 160V. When battery is 12V system: Suggest Solar power 720W and voltage range:DC20V~DC80V?1440W 105V when 24V; 2100W 150 when 36V; 2800W 150v when 48V. 12V24V36V48V Battery Suppport Charge Controller Work with 12V/24V/36V/48V lead acid/lithium battery Very clear and simple read display controller, easy to install and use LCD display More detail of PowMr Mppt 60A Charge controller Mppt 60A Solar Charge controller Unique design Controller This controller features a smart tracking algorithm that maximizes the energy from the solar PV module(s) and charge the battery Metal heat sink Perfecting system performance, with maximum conversion efficiency of 98% Controller Wiring PORTS Mounting Holes: 4 x O10mm high quality wiring terminal high quality COPPER COILS High quality components, True MPPT controller, The Three copper coils play a step-down roles to make your system work more stable. MPPT 60A PowMr Solar Controller System voltage: 12V / 24V / 36V / 48V DC Auto, Rated charge current: 60A; Suggestion wiring: when battery 12V, suggest input solar voltage range DC20V~DC80V; Solar power 720W; when battery 24V, suggest input solar voltage range DC37V~DC105; Solar power 1440W; when battery 36V, suggest input solar voltage range DC50V~DC160V; Solar power 2100W; when battery 48V, suggest input solar voltage range DC72V~DC160V;Solar power 2800W; PowMr Solar Charge Controller 60AMP Model POW-M60-PRO MPPT 60amp Solar Charge controller (MPPT charge controller) Controller Nominal system 12V/24V/36V/48V Auto Recognition Controller Battery support 12V/24V/36V/48V lead acid/lithium battery Rated Battery Current 60A Max. Capacitive load capacity 10000µF Max Solar Input Voltage 160 VDC (25C), 145VDC (-25C) Max. Solar Input Power/voltage 2800W/150V Self-Consumption 0.7W - 1.2W Conversion efficiency ? 98% MPPT tracking efficiency 99% Temp. Compensation -3mV/C/2V (default) Package includes 1*60amp MPPT charge controller 1 Controller install 2 Wiring Sample 3 Controller?s package 4 Ture MPPT Controller Return Policy ? We guarantee against any defective or misrepresented products. The original shipping label must be sent back to us to validate the return. A full refund can only be issued during the first 30 days upon receipt of the product. ? Returns will be voided if the product is mishandled or physical damaged by customer. ? Buyer will be responsible for all kind of return shipping/shipment to the seller for resolving the problem. ? Returns made for all non-defective, undamaged products are subject to a 15% restocking fee. Shipping and handling fees are absolutely non-refundable. If an item is returned to us due to an address issue, we do charge a reshipping fee to reship. If you would like a refund, there will be a 15% restocking fee applied. ? All returned products need to be assigned an RMA # (Return Merchandise Authorization #) prior to return. Please contact us through's messaging system to obtain an RMA# for the return. Any returned product without an RMA # on package will not be accepted or processed. ? Please contact us before returning. Feedback ? We appreciate your feedback and our system will automatically leave feedback for you after bid ends. ? Please contact us through message center if you have any problems, we will always try our best for 100% customer satisfaction. Payment Options Shop With Confidence
