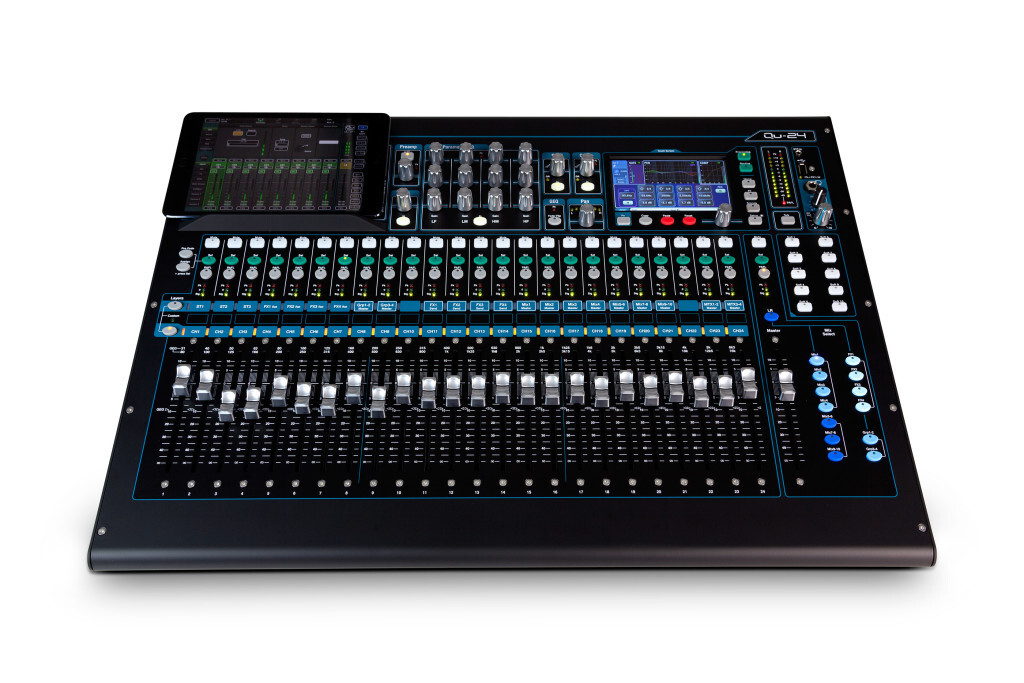

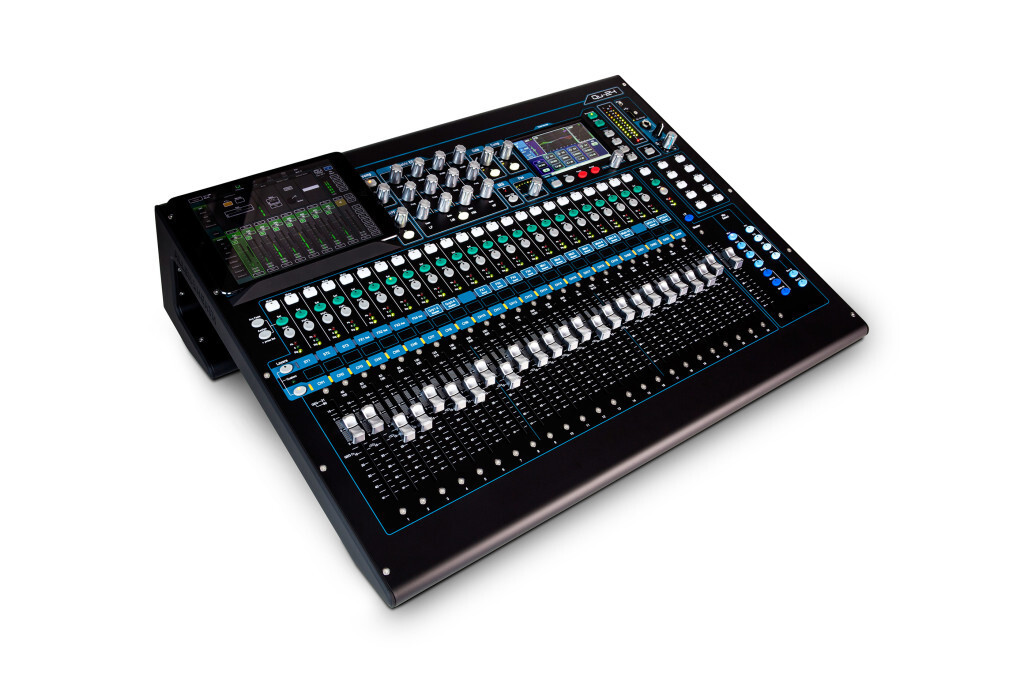

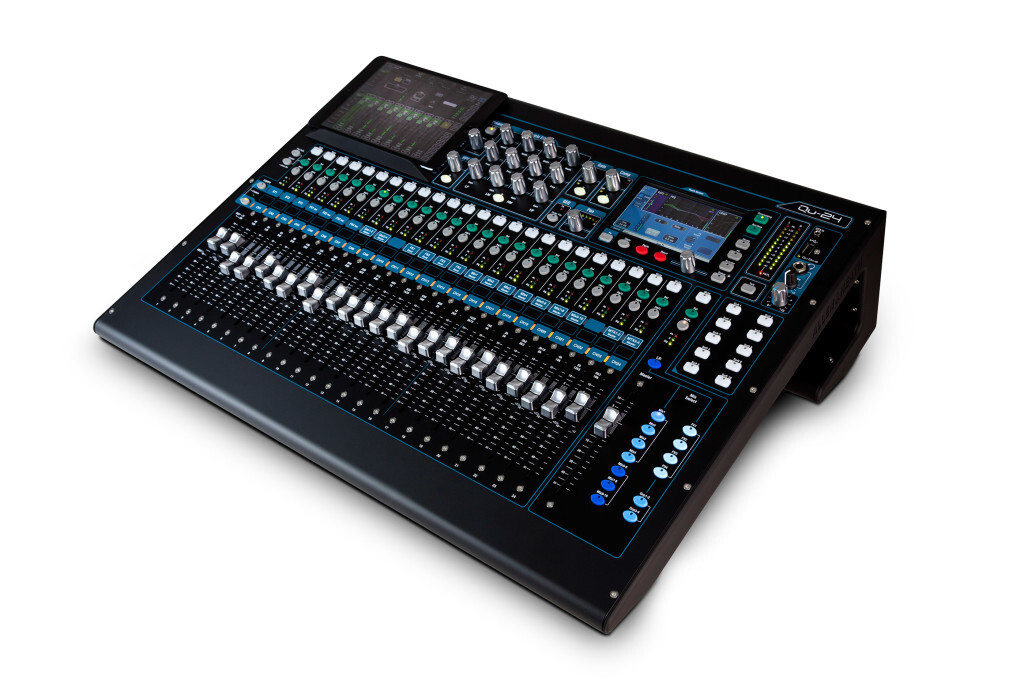

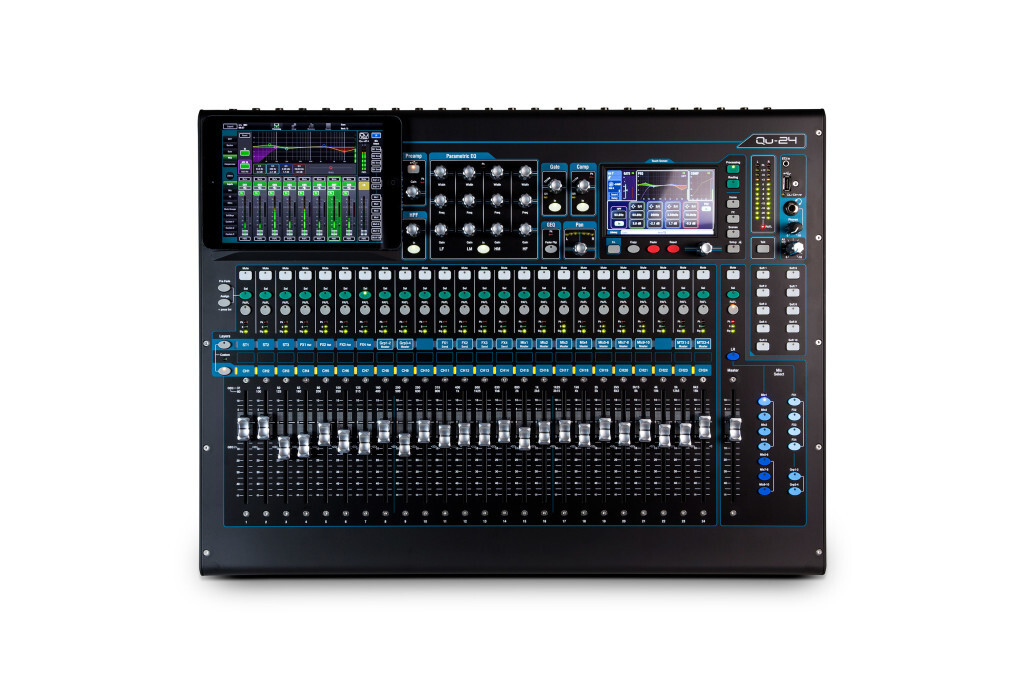

Allen Heath AH-QU-24C 24 Ch USB Stereo Digital Mixer Wireless Control THE MIXER THAT CHANGED THE RULES 30 in / 24 out Digital Mixer with remote wireless control Our best-selling digital mixer combines exceptional functionality with innovative design to deliver a professional mixing experience with class-leading sound quality. Whether you?re making the move from analogue or updating your digital desk, mixing live or in the studio, it?s time to experience Qu. MAKES MIXING FEEL NATURAL Massive processing power and advanced functionality counts for nothing if you can?t access the controls you need in a heartbeat. Qu-24 has a fader per mono input channel and fewer fader layers for simpler, quicker workflow. Because every mic input is presented on its own fader for fast, easy control, this makes Qu-24 the perfect mixer for first-time converts from analogue to digital and those not comfortable working with several layers of faders. The True Colour Touchscreen and its dedicated rotary encoder form the heart of Qu-24?s interface, providing super-fast access to all settings and parameters. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more. Complementing the touchscreen is the SuperStrip ? a set of single-function physical controls for instant access to gain, HPF, 4 band PEQ, gate, compressor, GEQ and pan. Coming from analogue? Qu will make you feel at home. UNRIVALLED SOUND QUALITY CAPTURE EVERY DETAIL Qu has been designed from the ground up to deliver professional sound quality, from input to output. Qu-24 features twenty-four AnalogiQ digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage. The AnalogiQ preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles. The analogue signal is captured by high-class, low latency 24bit analogue to digital converters, which are matched to 24bit digital to analogue converters to deliver the required high quality output. UNRIVALLED SOUND QUALITY CAPTURE EVERY DETAIL Qu has been designed from the ground up to deliver professional sound quality, from input to output. Qu-24 features twenty-four AnalogiQ digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage. The AnalogiQ preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles. The analogue signal is captured by high-class, low latency 24bit analogue to digital converters, which are matched to 24bit digital to analogue converters to deliver the required high quality output. UNRIVALLED SOUND QUALITY CAPTURE EVERY DETAIL Qu has been designed from the ground up to deliver professional sound quality, from input to output. Qu-24 features twenty-four AnalogiQ digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage. The AnalogiQ preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles. The analogue signal is captured by high-class, low latency 24bit analogue to digital converters, which are matched to 24bit digital to analogue converters to deliver the required high quality output. WORLD CLASS PROCESSING FX Qu?s RackFX dynamics and FX algorithms are derived from those used in our pro touring series. Some of the world?s most respected audio engineers have chosen to use RackFX on tour in preference to top-end plug-ins and external FX units. Qu boasts 4 stereo RackFX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more. FX are returned to the mix on dedicated return channels, so you?re not tying up your mono and stereo input channels, and each Stereo FX Return has a dedicated 4 band PEQ. RECORD. STREAM. MIX. Qu-24?s built-in audio interface streams up to 32 selectable tracks to your Mac or PC, and returns from the computer can be easily assigned to the Input channels. The interface is class-compliant on Mac OS X making it truly plug ?n play and will be recognized straight away by any DAW supporting Core Audio, including Logic, Cubase, Reaper, and Pro Tools. An ASIOTM and WDM compatible driver is available for Windows computers. Standard MIDI control is tunnelled over the USB and network connections, this can be mapped to the faders of your favourite DAW using the A H MIDI Control app which provides easy setup and emulation of HUI or Mackie Control protocols on Mac OS X and Windows systems. Want to livestream? Easy. Just send a stereo mix over USB and your streaming software will do the rest. EVERYTHING I/O Qu-24 is a self-contained mixer, so if you?ve already got the analogue cables you?re good to go. But if you?re thinking of trading in the multicore for a Cat5 digital snake, the built-in dSNAKE? port has you future-proofed, allowing connection to a remote AB168, AR2412 or AR84 Stagebox from our Everything I/O range of remote expanders. THE STRONG, SILENT TYPE Made from 18 gauge, cold-rolled Zintec steel, Qu?s distinctive frame is designed for strength and rigidity. We?ve done unspeakable things to that chassis in the lab and it?s taken everything we?ve thrown at it ? even being stomped on by our resident ex-tank commander! Silence is a precious commodity in the live or studio environment, which is why nobody wants those moments of stillness ruined by whirring coming from the mix position. Qu?s sleek profile generates optimal airflow through the mixer, eliminating the need for any fans. GIVE PERFORMERS CONTROL Qu is fully compatible with our ME Personal Mixing System. The ME system expands available monitor mixes and gives each performer control over their own mix, leaving the engineer free to focus on the main mix. Features: 24 Mono Mic/Line Inputs (TRS + XLR) Recallable AnaLOGIQTM Preamps 3 Stereo Inputs (TRS) 20 Mix Outputs (XLR) 2 Stereo Groups (switchable to Mix mode) Up to 9 Monitor Mixes (4 mono + 5 stereo) 2 Stereo Matrix Outs 4 FX Engines 4 dedicated FX Sends / Returns 4 Mute Groups 4 DCA Groups AES Digital Out 3230 USB Audio Interface dSNAKETM Remote Audio Port 25 Motor Faders 800480 Touchscreen 10 Soft Keys Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs Automatic Mic Mixer Channel Ducker on all Inputs ProFactory Mic Presets RackFX Library Built-in Signal Generator RTA with Peak Band indication Spectrogram to aid feedback elimination and room acoustics Qu-Drive Direct Multitrack Recording / Playback on USB drives DAW MIDI Control Qu-Pad iPad App Qu-You iPhone / Android personal monitoring app Qu-Control customisable iOS app for simple wireless control Compatible with ME Personal Mixing System
