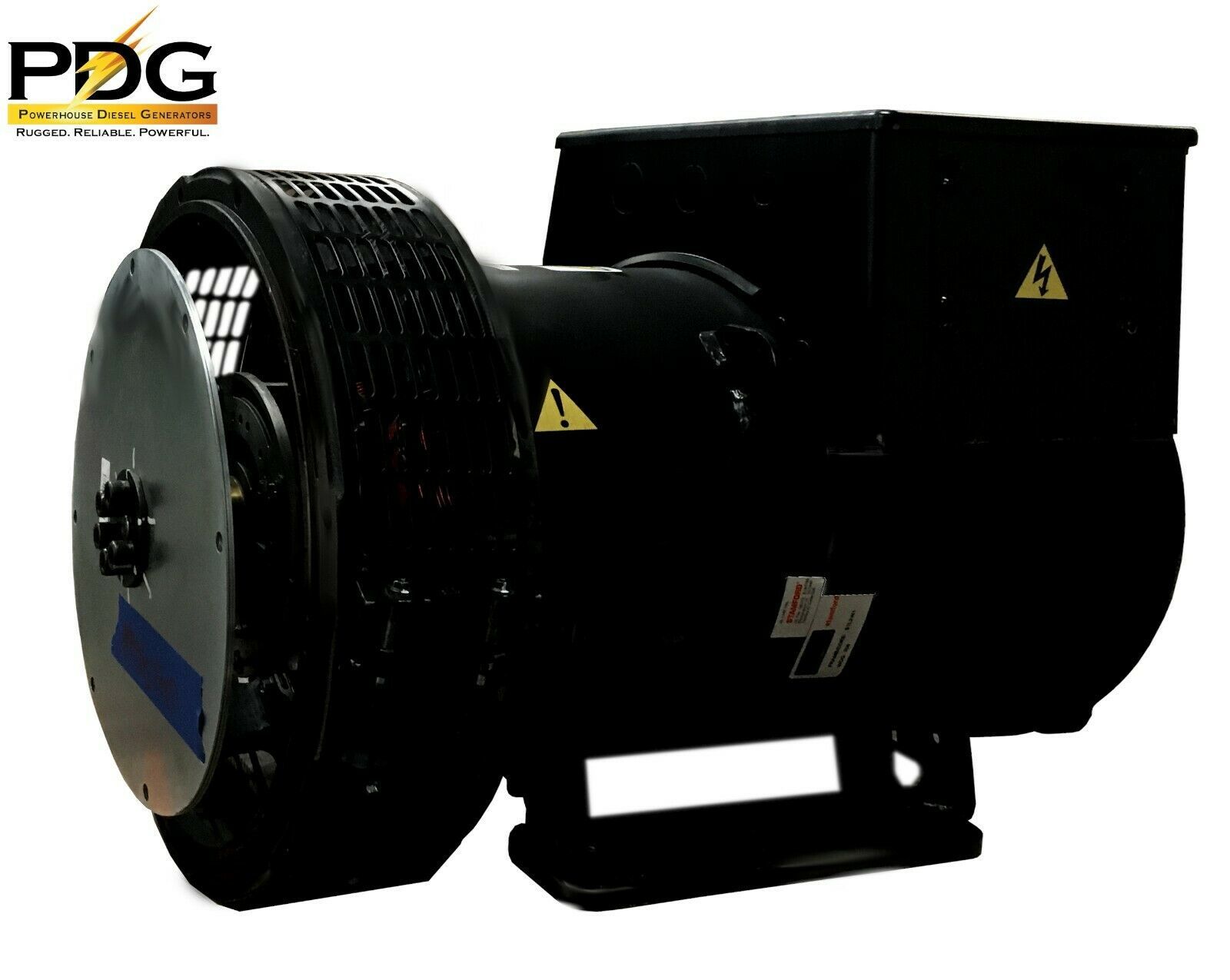

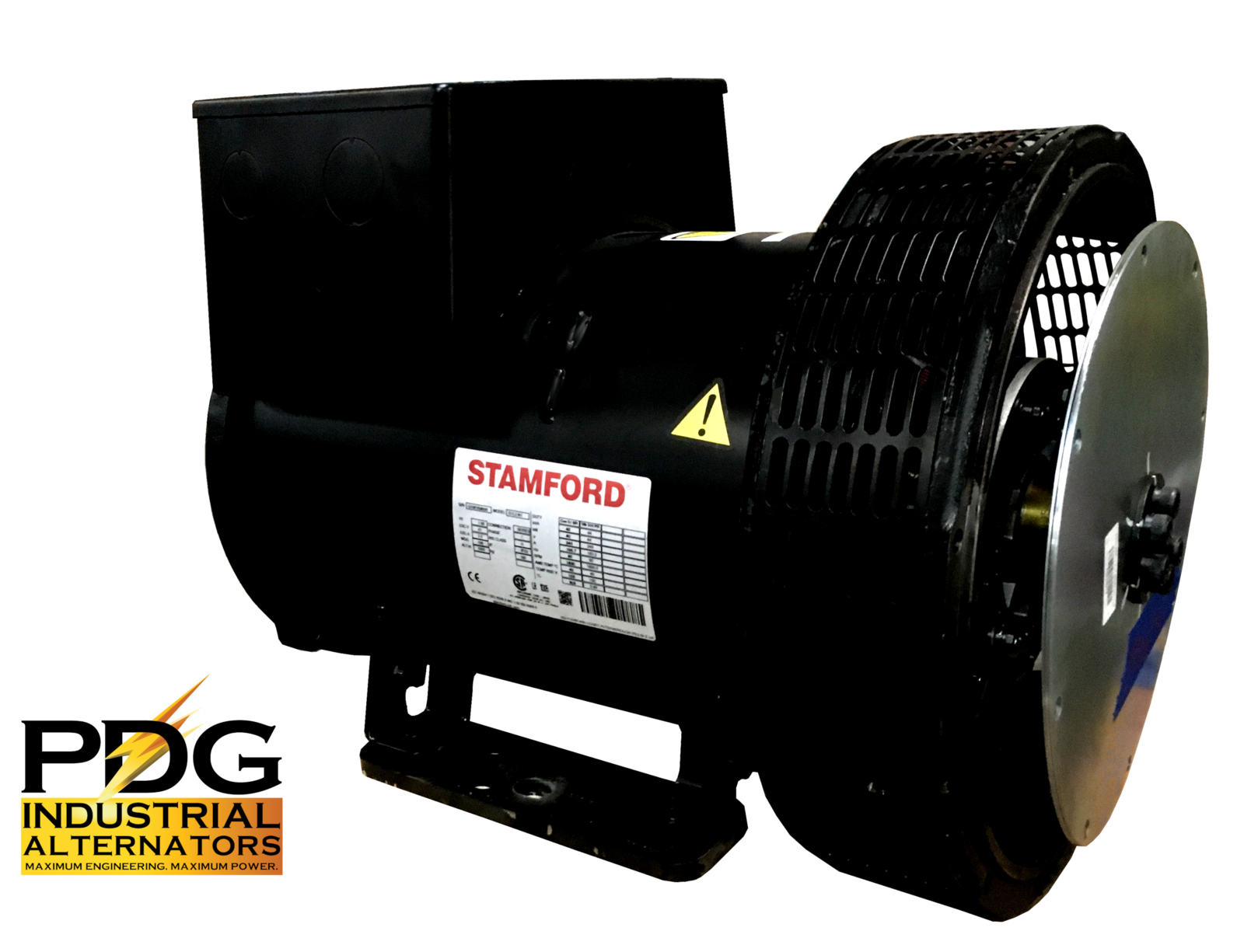

CONTACT US AT (229)-671-9171 TO VERIFY VOLTAGE and SAE GENUINE STAMFORD INDUSTRIAL ALTERNATOR The Stamford Industrial Hologram is affixed Inside Every Alternator To Ensure Authenticity UL Rated and Listed for Maximum Protection and Performance Attention! OEM's, resellers, alternator/generator head repair/replacement shops, marine and irrigation shops. Discounted wholesale pricing is available. Hours of operation: 8AM-5PM Monday-Friday Replaces the following: Mecc-Alte, Marathon, Leroy Somer, Lima Mac Specifications Weight: 350 LBS Generator Alternator Head 184E SOL2-M1 21 KW 1 Phase 120/240 volts 50 or 60 hz 21,000 watts continuous @ 60 hz 87.5 amps @ 120/240 volts wired in series. 175 amps @ 120 volts only wired in parallel. With industrial boost winding to start heavy loads, will produce 150% of rated power for 5 seconds Shipped with AS540 AVR installed Set up instructions included. 30 HP Diesel engine Required for full output, may use less hp engine but will not get full output. 42 HP Gasoline engine for full output, may use less hp engine but will not get full output. These generators are of the synchronous dripproof salient 4 pole rotating field self excitation and constant voltage, with insulation of class H. These generators are very heavy and rugged in construction and easy to maintain and are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. The generators can be coupled directly to diesel or gasoline engine with SAE bell housing to maintain generator at 1800 rpm in These units are used for heavy duty backup power and primary power for small towns, ships and mining operations. Operations manual included. Shipping The Generator is very heavy and will ship by truck line, please read carefully Contact us before purchase to confirm any special shipping requirements such as residential delivery, lift gate requirement etc... (229)-671-9171 About Us With customer service being our top priorities,PowerHouse Diesel Generators has become the largest manufacturer of "custom" industrial grade generators in the Southeast. Our PDG INDUSTRIAL alternators have the best warranty in the power generation industry and feature one hundred percent American Essex copper, double dipped windings, IP23 ingress protection, class H insulation. Industrial boost winding is standard on every alternator. We are available 8am-5pm Eastern Time, Monday-Friday. Thank You POWERHOUSE DIESEL GENERATORS and PDG INDUSTRIAL ALTERNATOR
