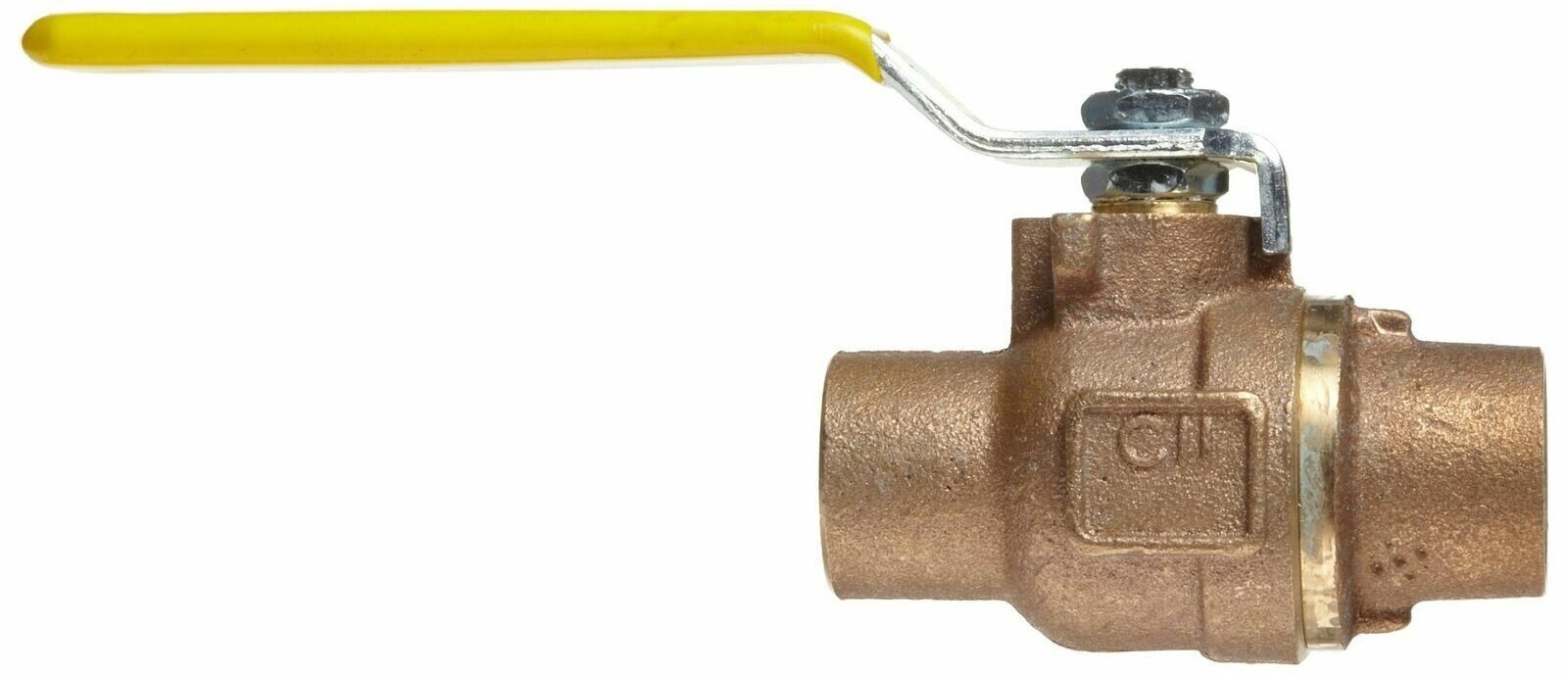

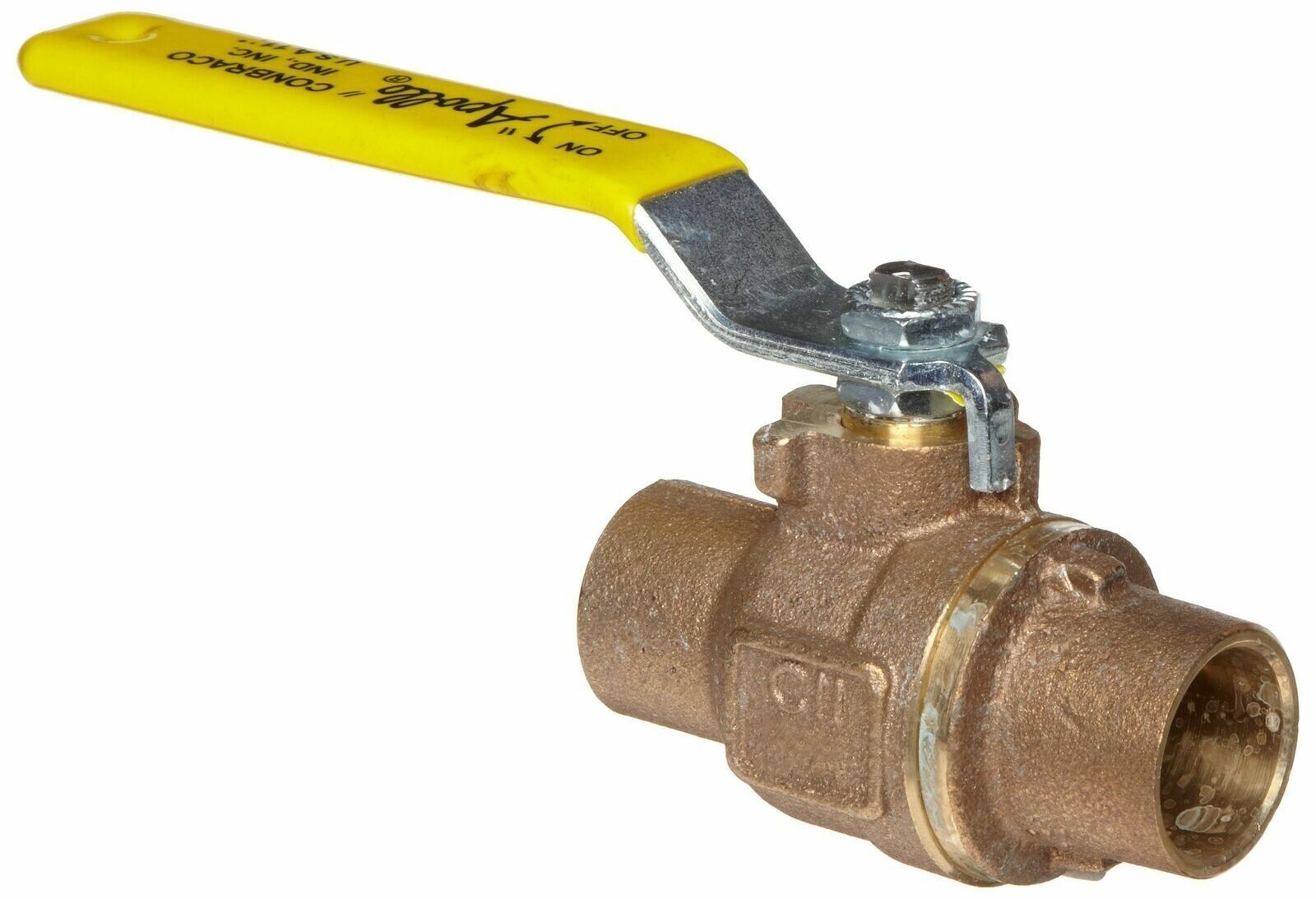

Apollo 77C-240 Series Bronze Ball Valve with Stainless Steel 316 Ball and Stem, Two Piece, Inline, Lever, 2-1/2" Solder End Product Overview Connector Type: Solder End Item Length String: 3.61 Inches Number of Items: 1 Part Number: 77C-245-01 Connector Type:Solder End | Item Length String:3.61 Inches | Number of Items:1 | Part Number:77C-245-01 The Apollo 77C-240 series two-piece inline full port ball valve with stainless steel 316 ball and stem is made of bronze and has a lever handle and solder end connections on both ends. For resistance to corrosion, this valve is made of bronze and its ball and stem are made of stainless steel 316. This valve is a full port for reduced friction; its inner diameter is the same as the inner diameter of the pipe it connects to for maximum operating efficiency. The maximum pressure is 600 pounds per square inch (gauge) (psi) for cold working pressure (CWP) and 150 for steam working pressure (SWP). The valve is inline for connecting two pipes going in the same direction and has solder end connections for semi-permanent yet reversible connection to tubing. It has a zinc-plated steel lever handle with a vinyl sleeve for manual on/off control. Multifill polytetrafluoroethylene (MPTFE) seats and seals reduce the risk of valve leakage. This ball valve has a working temperature range of ?20 to 500 degrees Fahrenheit. This valve is for use in water lines, processing plants, and agricultural applications and meets standard MSS SP-110 for quality assurance. Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball?s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications. Apollo manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices. The company, founded in 1928 and headquartered in Matthews, NC, meets the International Organization for Standardization ISO/IEC 17025:2005 and makes products that meet ISO and American National Standards Institute (ANSI) standards. Features Made of bronze for higher strength and corrosion resistance than brass Stainless steel 316 ball and stem for resistance to corrosion Full port flow for higher operating efficiency than standard port Pounds per square inch (gauge) (psi) rating of 600 for cold working pressure (CWP) and 150 for steam working pressure (SWP) Solder connections on both ends for semi-permanent connections to tubing
