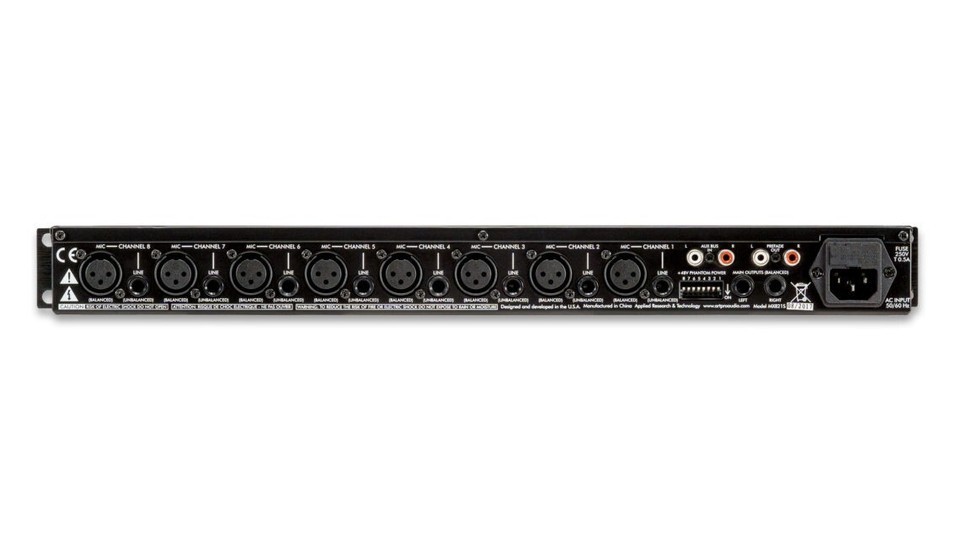

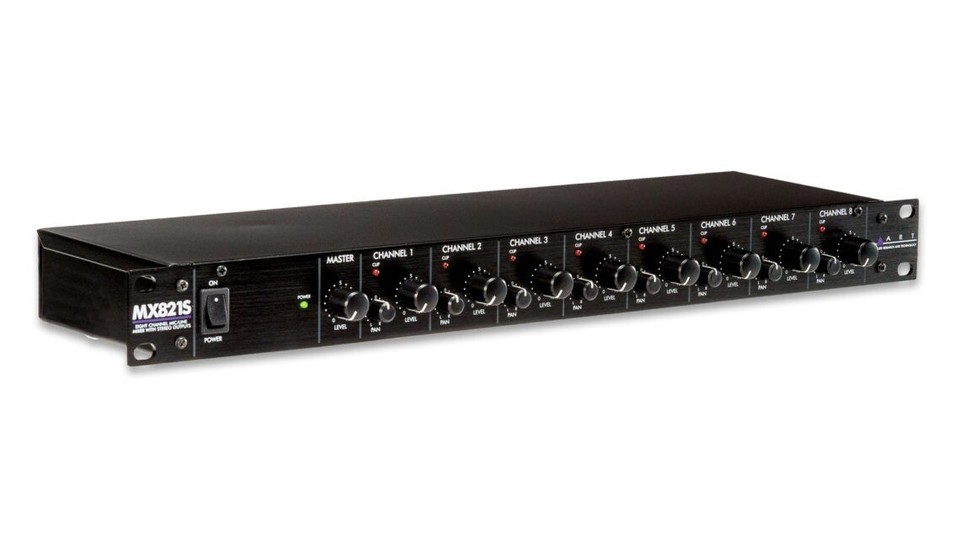

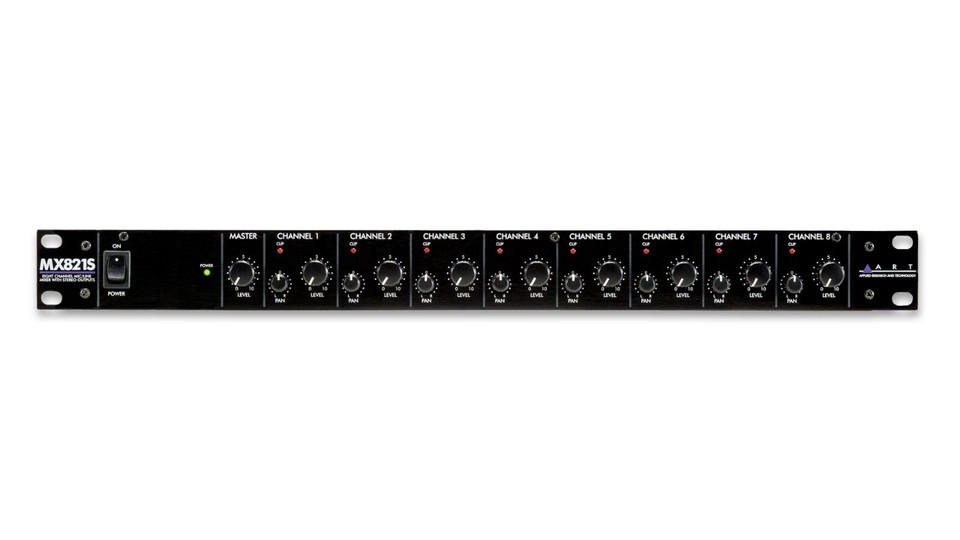

Art MX821S 8 Channel Microphone Line Level Mixer with Stereo Outputs Rack Mount The ART MX821S is a versatile rack mount mixer combining eight independent input channels into a stereo line-level output. Each input channel accepts a balanced XLR microphone input or unbalanced 1/4-inch TS line-level signal and provides independent level and pan controls. +48 Volt phantom power may be independently selected on each microphone input. A master level control adjusts the signal output to the low-impedance balanced 1/4-inch TRS jacks. Prefade output (not affected by the master level control) and Aux Bus input RCA jacks allow patching of multiple units when more channels are needed The ART MX821S may be used on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more. A built-in power supply and single high 19-inch rack mount format allows for easy installation and reliable long-term operation. Features: Eight input channels with individual level and pan controls Pan controls place each input mono signal anywhere in the output stereo image Balanced microphone XLR or unbalanced 1/4-inch TS inputs on each channel Full +48V low noise phantom power switchable for each microphone input Balanced left and right 1/4-inch TRS main output jacks with master level control Prefade Output jacks and Aux Bus Input jacks allow units to be chained to provide extra inputs Each line input jack may be individually converted to a direct line output by means of internal jumpers Rugged 1U rack-mount steel chassis with built-in power supply Perfect for stage, studio and permanent installations Specifications: Input Connections: XLR female balanced (Mic, channels 1-8) 1/4-inch TS unbalanced (Line, channels 1-8) RCA unbalanced (Aux Bus In, Left and Right) Output Connections: 1/4-inch TRS balanced (Main Outputs, Left and Right) RCA unbalanced (Prefade Out, Left and Right) Input Impedance 2k ? (Mic), 20k ? (Line), 51k ? (Aux Bus In) Output Impedance: 200 ? (Main Outputs, balanced), 100 ? (Prefade Out) Frequency Response: 20 Hz ? 20 kHz (+0, -1 dB) (CH 1-8 in, M Total Harmonic Distortion: 0.01% @ 1 kHz, typical Phase Response: All connections are phase coherent Signal to Noise Ratio: 99dB typical (Ref 0dBu) CMRR: 43 dB typical Maximum Input Level: -4 dBu (Mic), +22 dBu (Line) Maximum Output Level: +24 dBu (balanced), +18 dBu (unbalanced) Maximum Gain: 54 dB (Mic), 29 dB (Line) Phantom Power: Switch Selectable, +48V DC (regulated and filtered), 7 mA current limiting per leg Power Requirements: USA: 95-125 VAC, 50-60 Hz, 15W Dimensions: 1.75? x 19? x 6? (4.5cm x 48.3cm x 15.2cm) Weight: 6.3 lbs (2.9 kg) Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping -Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - International Sales Clearance items, Custom Builds, Road Cases, DT12 items, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, turntable cartridges, fog fluid
