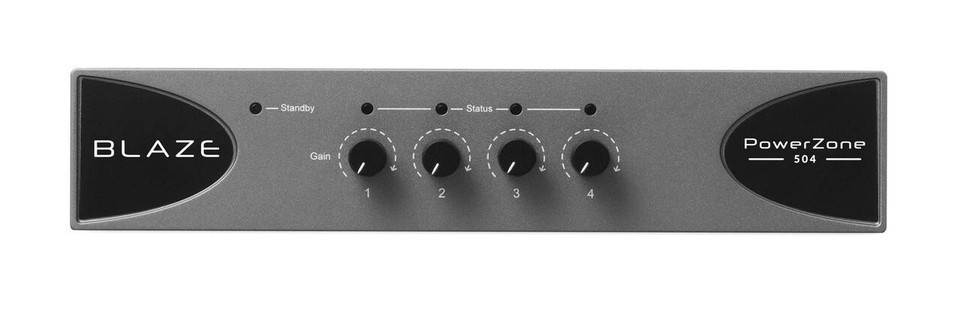

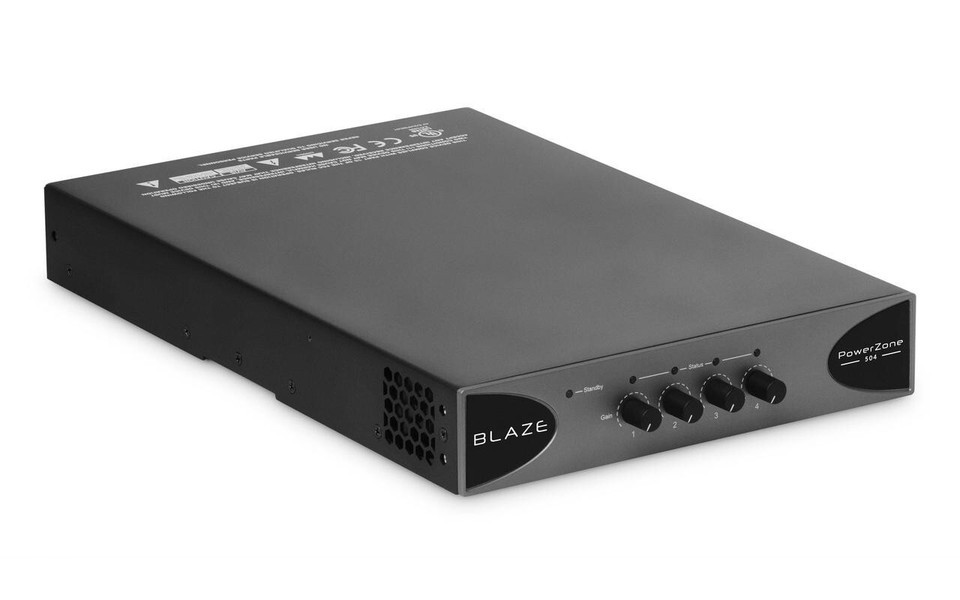

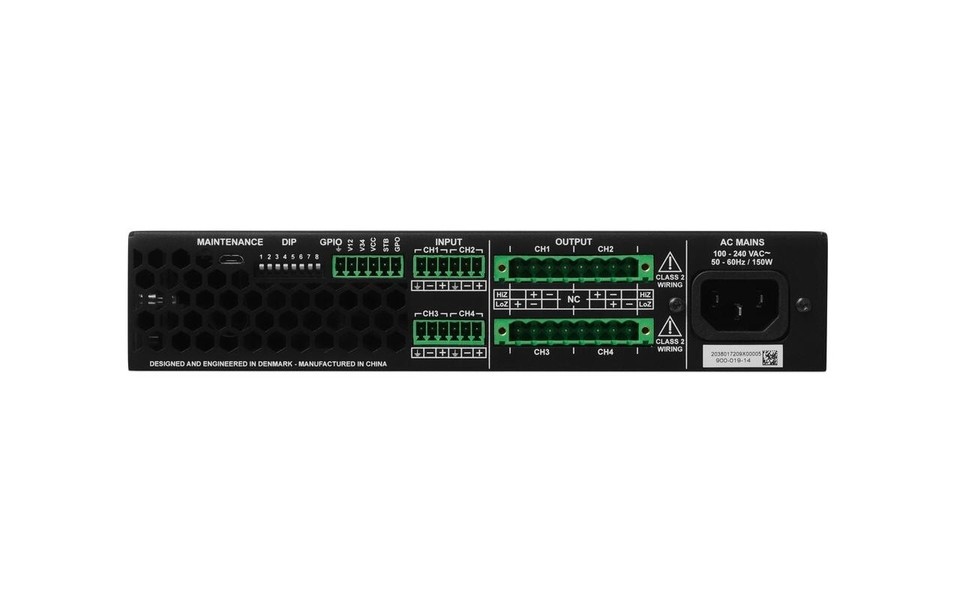

Blaze POWERZONE 504 1U Class D 4 Channel Power Amplifier 500 Watts The PowerZone? Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to make system installers? lives easier, offering unparalleled reliability and efficiency, along with exceptional system configuration. The ultra-compact form factor, makes them an ideal choice for audio/voice installation projects with limited space constraints that demand high-output performance. The 1U family powers both conventional low-impedance (4? to 16?) loudspeakers and constant voltage (70V/ 100V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes. Our intuitive PowerZone? Control web app is built into all our PowerZone? Connect amplifiers for easy system setup. PowerZone? Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multi-zone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more. Features: Ultra-compact oe-rack form factor Full-matrix DSP configuration via PowerZone? Control web app (built-in) Hybrid power distribution in both Lo-Z and Hi-Z Powered by Pascal UMAC? Class-D technology Flexible power sharing across output channels S/PDIF input/output Configurable GPIO ErP and Energy Star compliant / UL listed audio equipment Specifications: Channels: 4 x lo-Z / 2 x Hi-Z Output Power @ 4?: 4 x 125 W Output Power @ 8?: 4 x 125 W Output Power @ 70V: 2 x 250 W Output Power @ 100V: 2 x 250 W Powersharing (up to) across all channels: 2 x 250 W Power Consumption: 150 W Dimensions: 44 x 220 x 319 mm (1.7 x 8.7 x 12.6 in) Weight: 2.8kg (6.2 lbs) Total System Power: 500 W Output Circuitry: UMAC? Class D - full bandwidth PWM modulator with ultra-low distortion Output Voltage: 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded) Signal To Noise-Ratio: 106dB (A-weighted, 20Hz-20kHz, 8? load) THD+N (typical): 0.05% (20Hz-20kHz, 8? load, 3dB below rated power) Frequency Response: 20Hz-20kHz (+0/-0.25dB (8? load, 3dB below rated power) Protection Circuits: Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection Power Supply: UREC? universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter Operating temperature: 0-40C Operating Voltage/ Frequency: Universal Mains, 100V-240V, 50Hz-60Hz Standby Consumption: 0.5W Power Ratings: Output power measured @ 1% THD at 120VAC 60Hz and 230VAC 50Hz Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping -Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- Customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - International Sales Clearance items, Custom Builds, Road Cases, DT12 items, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computer Cards, vacuum tubes, earbuds, harmonicas raw-frame speakers, turntable cartridges, fog fluid
