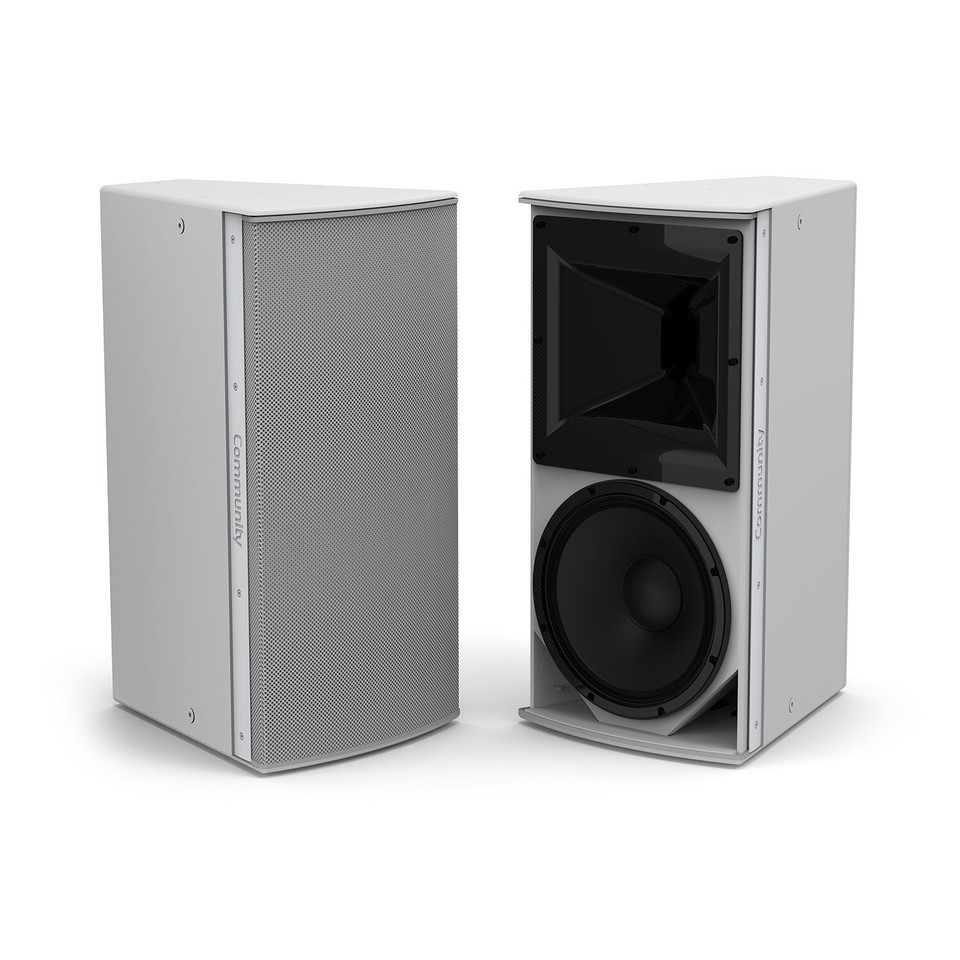

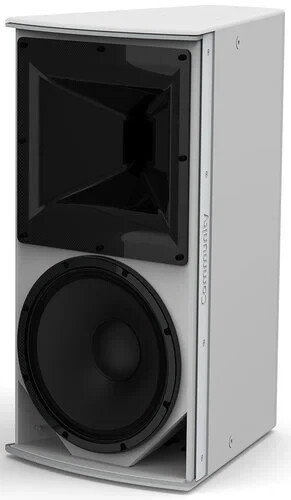

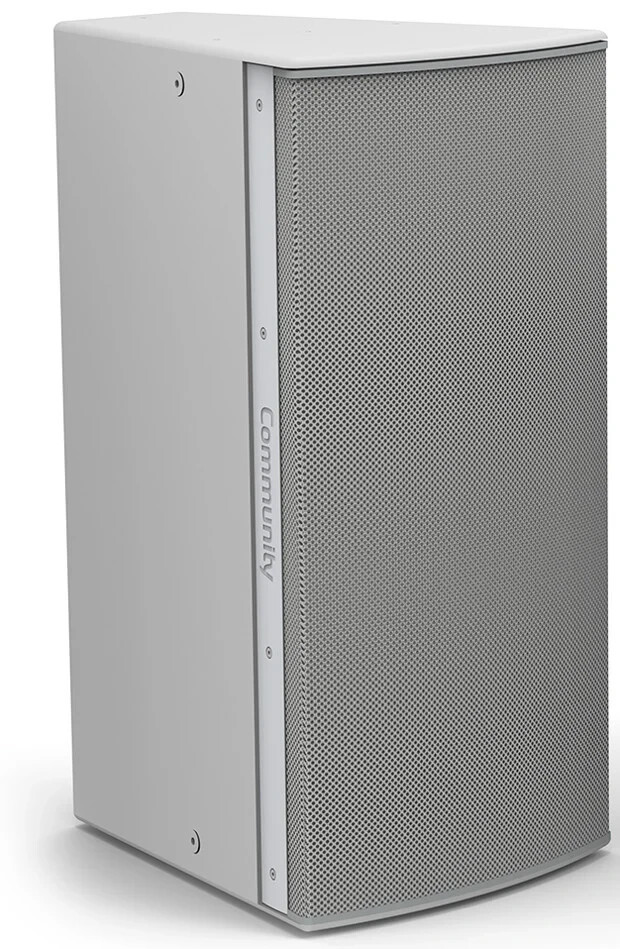

Community Pro IP6-1122/64W 12 Inch Two Way Passive 60 x 40 Loudspeaker 600 Watts I SERIES Point Source 600 loudspeakers provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES includes a wide variety of arrayable, rotatable coverage patterns and a comprehensive selection of modular bracket systems that accelerate system design and system commissioning. FEA-optimized ferrite motors, mechanically mirrored suspension and advanced cooling system combine to provide linear performance with minimal power compression. The custom long-excursion LF driver delivers deep bass response and a detailed midrange at maximum SPL levels. The HF driver delivers excellent sound quality from a hybrid diaphragm of deep drawn titanium and resonance-absorbing polyimide, coupled to a patented low compression, low resonance phase plug for very low distortion performance with abundant headroom. The rotatable 13-inch (330mm) HF waveguide provides well-defined coverage and a smooth off-axis response that enhances arrayability. Individually voiced crossovers produce proper beamwidth matching transitions and identical sonic signatures, permitting horn patterns to be mixed throughout an installation. Additionally, user selectable single-amp or biamp operating modes expand application flexibility Features: Long excursion ferrite LF driver with FEA-optimized motor and symmetric movement suspension 3-inch voice coil, 1.4? exit HF driver; hybrid titanium/polyimide diaphragm on low compression phase plug Lightweight and compact with deep LF extension Large rotatable waveguide with individually voiced crossover, single amp / biamp selectable Innovative low profile modular bracket systems create elegant arrays with simplified installation Applications: MAIN PA (Small to Medium Size Venues) Houses of Worship · Auditoriums · Restaurants Meeting Rooms · Theaters · Corporate A/V Systems DISTRIBUTED OR FILL (Larger Size Venues) Arenas · Stadiums · Night Clubs · Theaters Themed Entertainment · Larger Houses of Worship Specifications: Operating Mode: Passive or Biamp with DSP Operating Environment: Indoor or Weather-Resistant Outdoor Operating Range: 38 Hz to 17.5 kHz Nominal Beamwidth (H x V): 60x 40, rotatable waveguide Transducers: LF 1 x 12" (305mm) ferrite driver, 2.5" (64mm) voice coil HF 1 x 1.4" (36mm) exit, 3" (76mm) voice coil, hybrid titanium/polyimide diaphragm, ferrite compression driver Continuous Power Handling3 @ Nominal Impedance: Passive* 69V 600W @ 8 ohms (2400W peak) LF 63V 500W @ 8 ohms (2000W peak) HF 24V 75W @ 8 ohms (300W peak) Nominal Sensitivity4 @ 1W @ 2.83V Passive 95 dB 95 dB LF 95 dB 95 dB HF 108 dB 108 dB Nominal Maximum SPL5 (Whole Space) Peak Continuous Passive 129 dB 123 dB LF 128 dB 122 dB HF 133 dB 127 dB Equalized Sensitivity6 System @ 1W @ 2.83V 93 dB 93 dB Equalized Maximum SPL7 System Peak Continuous 127 dB 121 dB Recommended Amplifiers Passive 600W - 1200W @ 8 ohms, (69V - 98V) LF 500W - 1000W @ 8 ohms, (63V - 89V) HF 75W - 150W @ 8 ohms (24V - 35V) PHYSICAL Input Connection: Indoor: (2) Screw terminal blocks (6-position) Outdoor: Sealed Gland Nut with 12ft (3.6m) 14 Ga. SJOW cable Mounting Points: (15) M10 threaded rigging points Environmental Outdoor: IP55W per IEC 60529 , MIL-STD-810G Weight: 65.0 lbs (29.5 kg) loudspeaker only Dimensions: H x W x D 28.00" x 14.50" x 17.70" (711 x 368 x 450 mm) Finish: Refer to the Technical Drawing Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping -Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - Clearance items, Custom Builds, Road Cases, DT12 items, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, turntable cartridges, fog fluid
