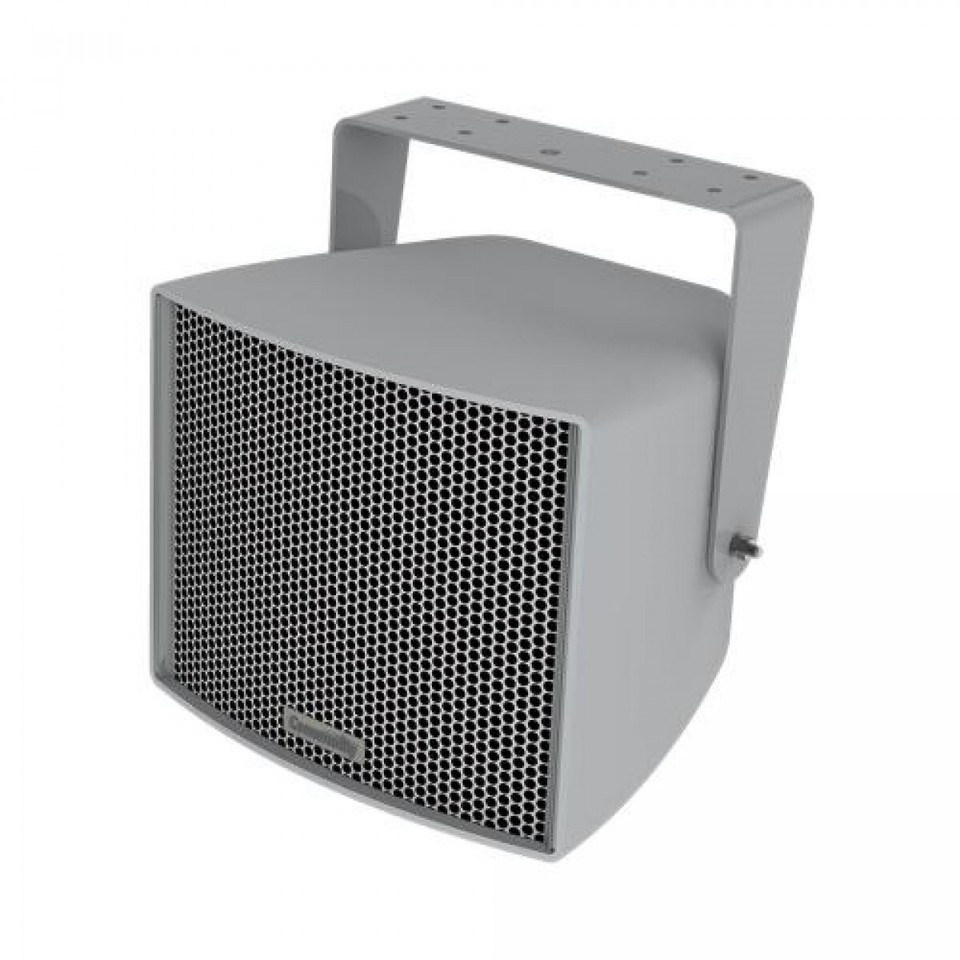

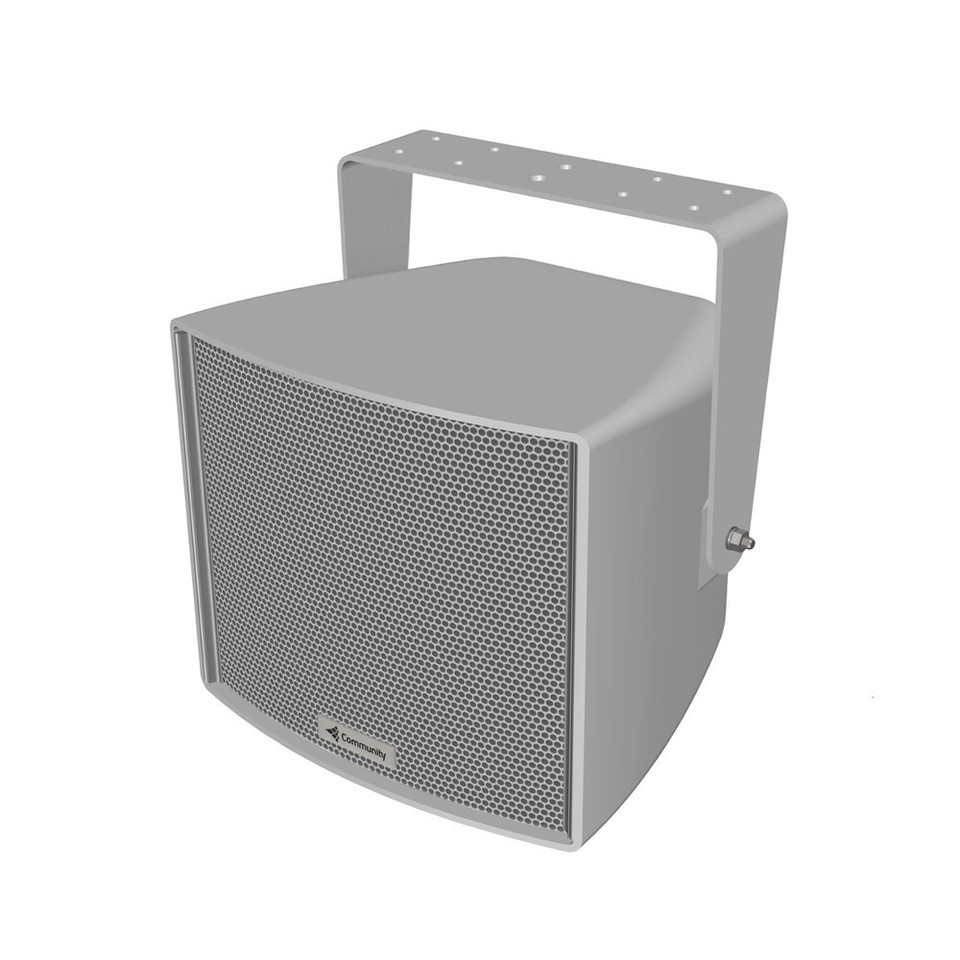

Community Pro R.35COAX 10" Two Way Stadium Amusement Park Outdoor Loudspeaker The R.35COAX is a two-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental conditions and to provide performance normally associated only with indoor loudspeakers. The R.35COAX has a 1.25-inch (32mm) exit HF compression driver and a 10-inch (254mm) cone LF driver with a 2-inch voice coil. The HF assembly is coaxially mounted with the LF driver allowing 90 conical coverage with low distortion. The carbon ring cone design provides a cone area nearly equivalent to a typical 12-inch driver cone. The Music / Voice switch provides an out-ofthe-box selectable flat response or 3dB boost for increased vocal intelligibility allowing for additional application flexibility. The design uses Biamp's proprietary Tru-Phase? high frequency compression driver phase plug to provide wide dispersion, low distortion and increased intelligibility. The LF driver cone is treated with the same hydrophobic protection as the grille cloth to provide full weather-resistance. The enclosure has a reinforced ribbed interior with weather-treated wooden inserts to reduce resonance, increase rigidity and reduce rear and lateral radiation. The R.35COAX carries a 5 year product warranty and a 15 year enclosure warranty. FEATURES: Excellent musicality and intelligibility, and low distortion in an extremely compact enclosure Weather-resistant, compact, matte finish paintable high impact ABS plastic modified-trapezoidal enclosure Hydrophobically-treated grille and LF driver cone, polymer HF diaphragm, and moisture-sealed crossover 200W Autoformer (standard), selectable 8 ohm or 70V/100V operation Corrosion-resistant dual-layer powder-coated low-profile steel yoke and aluminum grille APPLICATIONS: Theme and Amusement Parks Malls Stadiums Fairgrounds Outdoor Entertainment Centers Race Tracks Athletic Fields Swimming Pools Background Music / Voice Paging Systems Convention Centers Factories Multipurpose outdoor and indoor venues SPECIFICATIONS: Operating Mode: Passive, Selectable Low Impedance or 70V/100V Operating Environment: Indoor or Weather-Resistant Outdoor Operating Range:2 70 Hz to 16 kHz Nominal Beamwidth (H x V): 90?x?90 Transducers: LF 1 x 10" (254mm) Carbon ring cone with hydrophobic treatment, 2" (51mm) Voice Coil HF 1 x 1.25" (32mm) exit compression Continuous Power Handling3 @ Nominal Impedance: Passive 40V 200W @ 8 Ohms (800W peak) Autoformer Taps: 70V: 200W,100W, 50W, 25W 100V: 200W,100W, 50W MUSIC VOICE Nominal Sensitivity4: Passive: Music @ 1W 97 dB @ 2.83V 97 dB Voice: @ 1W 99 dB @ 2.83V 99 dB Nominal Maximum SPL5: (Whole Space) Passive: Music Peak 126 dB Continuous 120 dB Voice Peak 128 dB Continuous 122 dB Equalized Sensitivity6: ??? ? System: Music @ 1W 97 dB @ 2.83V 97 dB Equalized Maximum SPL7: System: Music Peak 126 dB Continuous 120 dB Required Accessories: High Pass Filter - 70 Hz, 24 dB /octave, Digital Signal Processor Recommended Amplifiers: Passive 200W - 400W @ 8 Ohms, (40V - 57V) PHYSICAL: Input Connection: NL4 Speakon-type connector (low impedance only), and 7-position terminal strip for low impedance or constant voltage operation Controls: Music / Voice switch, 70V/100V operation jumper Mounting Points: Two (2) M8 rigging points Included Accessories: Zinc-rich epoxy dual-layer powder-coated yoke, included integral safety cable mounting point Environmental: IP55W per IEC 529, designed to MIL-STD-810G Color-matched ABS plastic input panel weather cover with 13.5mm ID gland nut installed in .82" knockout Dimensions H x W x D: 11.00" x 13.00" x 13.50" (279 x 330 x 343 mm) Weight: 26 lbs (11.8 kg) with included yoke Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping -Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - Clearance items, Custom Builds, Road Cases, DT12 items, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, turntable cartridges, fog fluid
