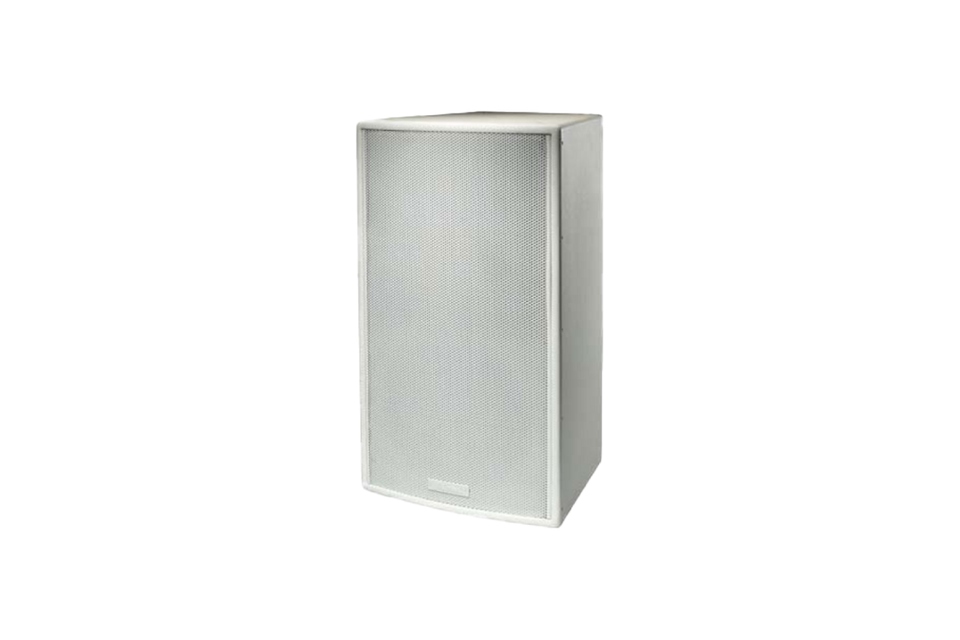

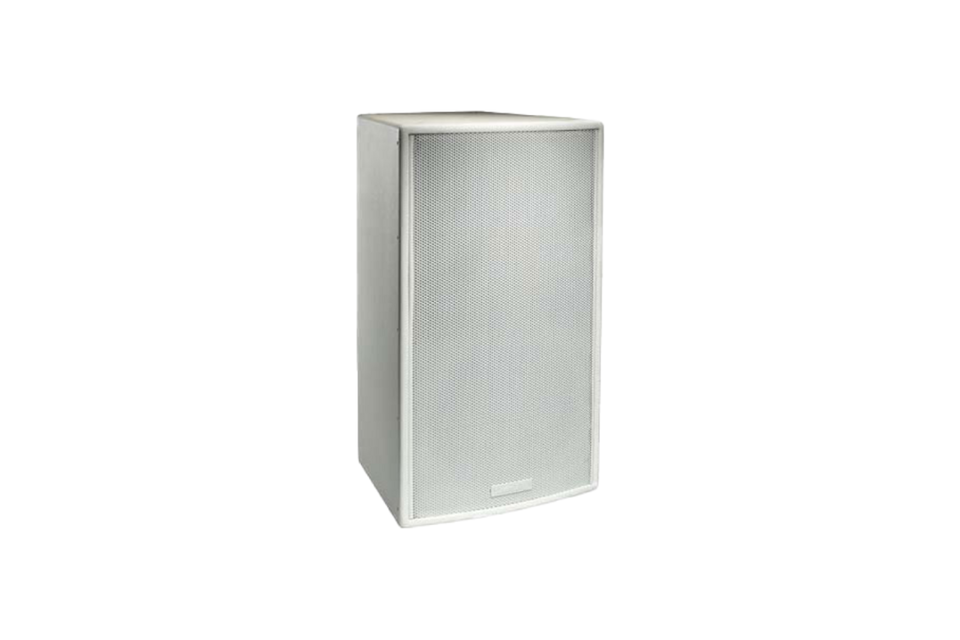

Community Pro V2-3594W Three Way 15" Full Range Loudspeaker The V2-3594 is a three-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. Featuring horn loaded midrange and high-frequency drivers, the V2-3594 provides improved pattern control over two-way designs, making them well suited when intelligibility and musical clarity prove challenging, such as in large, reverberant spaces. The 90 x 40 horn patterns provide tight, controlled coverage, particularly useful in rooms that are wider than they are deep. Extremely powerful with exceptionally low distortion, the V2-3594 is ideal for applications such as contemporary worship services, music and dance clubs, theatrical sound reinforcement, and other demanding work. The trapezoidal design allows it to be clustered with like units, forming powerful arrays. The enclosure may be suspended from its M10 threaded rigging points using a variety of optional hardware available from Community, or it may be installed using a third-party mounting device. Featuring extended high frequency response, low distortion output, a tight, punchy bass response, and precise pattern control, the V2-3594 is a versatile performer for use in music and speech applications that require high quality, high power sound reinforcement at an affordable price. The models include a rotatable horn design that allows optimal dispersion in either vertical or horizontal mounting positions. Features: ? Three-way 15 inch full-range loudspeaker, white finish ? 90 H x 40 V dispersion (in vertical position) ? Discreet and aesthetic trapezoidal enclosure ? Optimized voicing for full-range reproduction ? Dyna-Tech driver protection circuitry ? Ferrofluid-treated HF driver for improved heat dissipation ? Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability in LF driver ? Terminal strip and NL4-compatible connectors ? User rotatable horn ? Multiple bracket options offer affordable arraying solutions ? Available in standard black or white finishes ? 5-year warranty ? Compliant with the US Trade Agreement Act (TAA) Specifications: ? Loudspeaker Type: Three-way, full-range, trapezoidal, vented bass, user rotatable horn ? Operating Range: 55 Hz to 18 kHz (-10 dB) ? Frequency Response: 70 Hz to 16 kHz (-3 dB) ? Max Input Ratings: 200W continuous, 500W program 40 volts RMS, 80 volts momentary peak Sensitivity (1W/1m): 99 dB (100 Hz to 12.5 kHz) free space ? Maximum Output: 122 dB SPL / 128 dB SPL (peak) ? Nominal Impedance: 8 ohms ? Minimum Impedance: 5.6 ohms @ 1400 Hz ? Nominal ?6dB Beamwidth: 90 H x 40 V (in vertical position) ? Crossover Frequencies: 600 Hz / 3 kHz ? Recommended Signal Processing: 60 Hz, 24 dB/octave Butterworth high pass filter ? Drivers: ? LF 1 x 15-inch cone ? MF 1 x 6.5-inch ? HF 1 x 1-inch ? Driver Protection: DYNA-TECH protection circuitry ? Input Connection: NL4-compatible locking connector with terminal strip in parallel ? Controls: None ? Enclosure: Trapezoidal (22.5 included angle) 18mm, 11-ply cross-laminated birch ? Mounting/Rigging Provisions: ? 13 x M10 threaded rigging fittings ? 4 x M8 threaded fittings for third-party suspension products ? Finish: Catalyzed polyester two-part paint, black or white ? Grille: Powder coated steel, black or white finish ? Required Accessories: None ? Supplied Accessories: None ? Optional Accessories: ? VB-Y35 U-shaped yoke bracket ? VB-VY35 vertical yoke bracket ? CMKIT ceiling mount kit ? VB-TILT tilting bracket ? VB-VST versatilt bracket ? VFKIT vertical flying kit ? M10EYBLTKIT 10mm eyebolt kit ? STKIT seat track kit ? Dimensions?Height: Width: Depth: 32.4 inches (823 mm) 18.4 inches (467 mm) 15.9 inches (404 mm) ? Weight: 59.5 lbs (27 kg) ? Model Options: ? V2-3594B (black finish) ? V2-3594W (white finish) Echotone Music LLC has been a professional E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for clubs, concert, and broadcast applications. Shipping -Pro packed shipped USPS, UPS or Freight Service. Contact us pay for air mail upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- Customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned without all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - International Sales Clearance items, Avid products, Custom Builds, Road Cases, DT12 items, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computer Cards, vacuum tubes, earbuds, raw-frame speakers, turntable cartridges, fog fluid.
