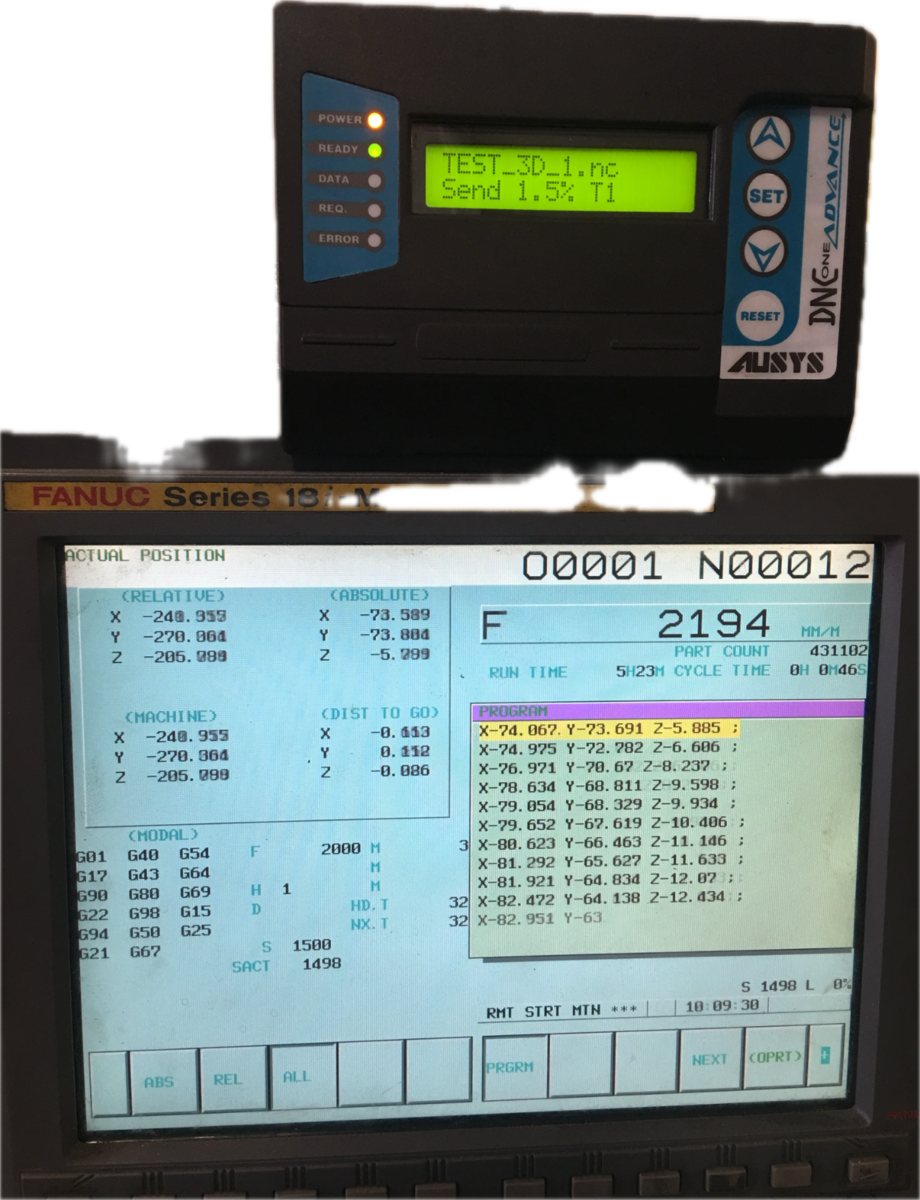

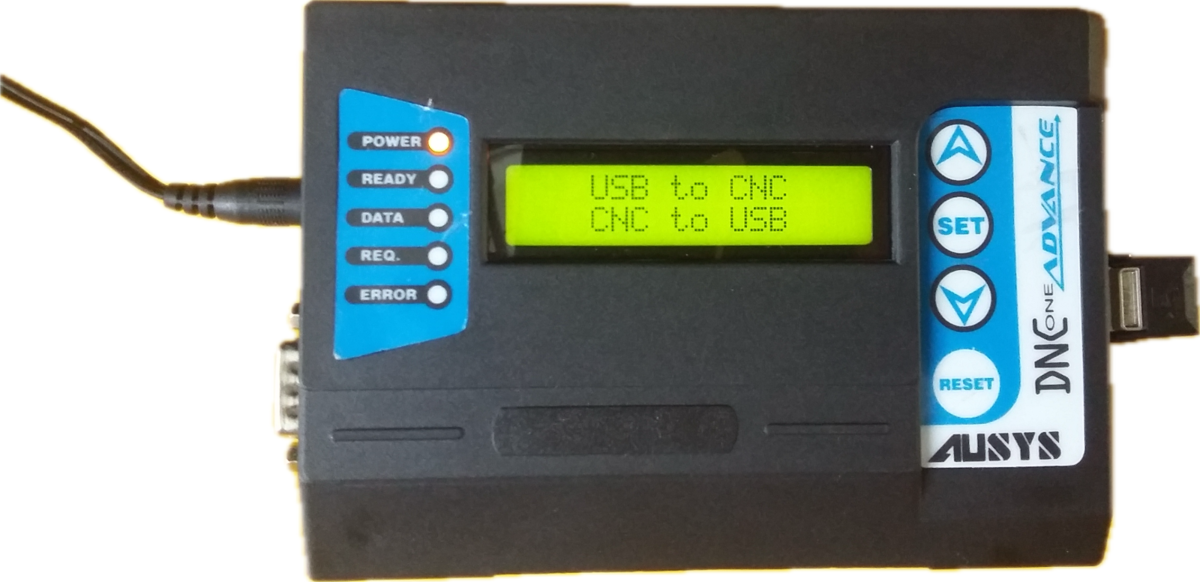

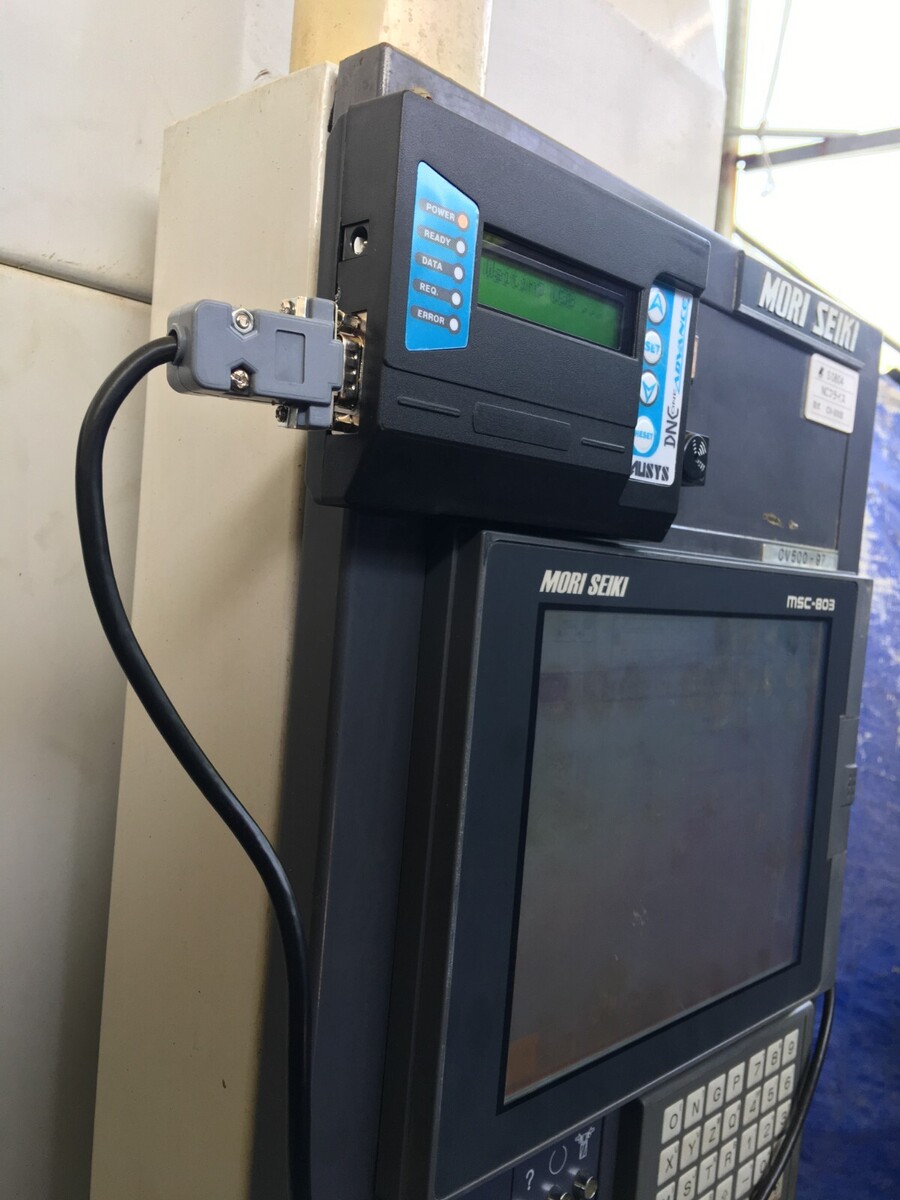

This is a Portable Program Transfer Device that transfers CNC machine programs from a standard USB flash drive (Thumb Drive, Pen Drive, memory stick?) to or from the CNC control through the RS232 communications port, also referred to as Drip feed DNC or Up-Loading Down-Loading. Features: · Support USB 2.0, all brands and various capacities of USB flash drive. · Large file size support, upto 4GB. · Long file names support, upto 50 characters · Extension of file name supports: *.?NC, *.TXT,*.NC, *.TAP · User Communications Settings · Select the files you want to transfer in a list displayed on the LCD screen easily and simply. · Support Fanuc tape parallel and serial rs232 communications · Support view CNC program file before transfer. · Transfer/Receive CNC program to/from CNC machine. · Drip Feed - if supported by CNC · Backup parameters from CNC machine to USB flash drive. · Repeat last file sent to CNC "t" times · ASCII, ISO and EIA codesets are fully supported. · AutoCut program - Usefully when you are running a large job and your tool breaks then you would have to start from where you left off. · Integrated timer - Allow you to set the time to stop CNC machine periodically for change the tool when the tool is over lifespan Specifications: · Dimension(W/H/D): Approx 150mm/30mm/100mm · Weight: 300g (10.5 oz) · Display: Text LCD 16x2 - display list of program file, status, parameter setting, error,... · Diagnostics LED: Power, Ready, Send, Request, Error · User Button: Up, Select, Down, Reset · Input: 2 USB ports, 1 DC power port. · Output: Fanuc Tape parallel, serial rs232 · Power supply: 12V DC ? 1A power supply adapter, or draw power from the rs232 port or parallel port. RS232 parameters: · BaudRate: 1200~115200 · Data Bit: 7~8 Bit · Stop Bit: 1~2 Bit · Parity: None/Even/Odd · Hand Shake: Hardware/Software Applications: · Compatible with CNC machines currently uses operating systems such as Fanuc, Mitsubishi, Yasnac, Okuma, Mazak,Haas ... · Replace computer running DNC software. Benifits: · Cost cheap: Using this device will save a significant cost · Simple: Just Plug Play no other installation requires · Do not waste space: Due to compact so will not waste space in the production area. · Stable, Simple operation and does not take much time, can work continuously for long time · Reliable/Time saving: The USB flash drive is enough to store many program so time will be save when running multiple product Package includes: · 1 x RS232 cable adapter 12VDC · 1 x USB reader - DNC transfer device · The manual (electric copy) - Download from website. link to download the user manual of the DNC ONE device link 1-ONEdriver : MANUAL DNCdevice
