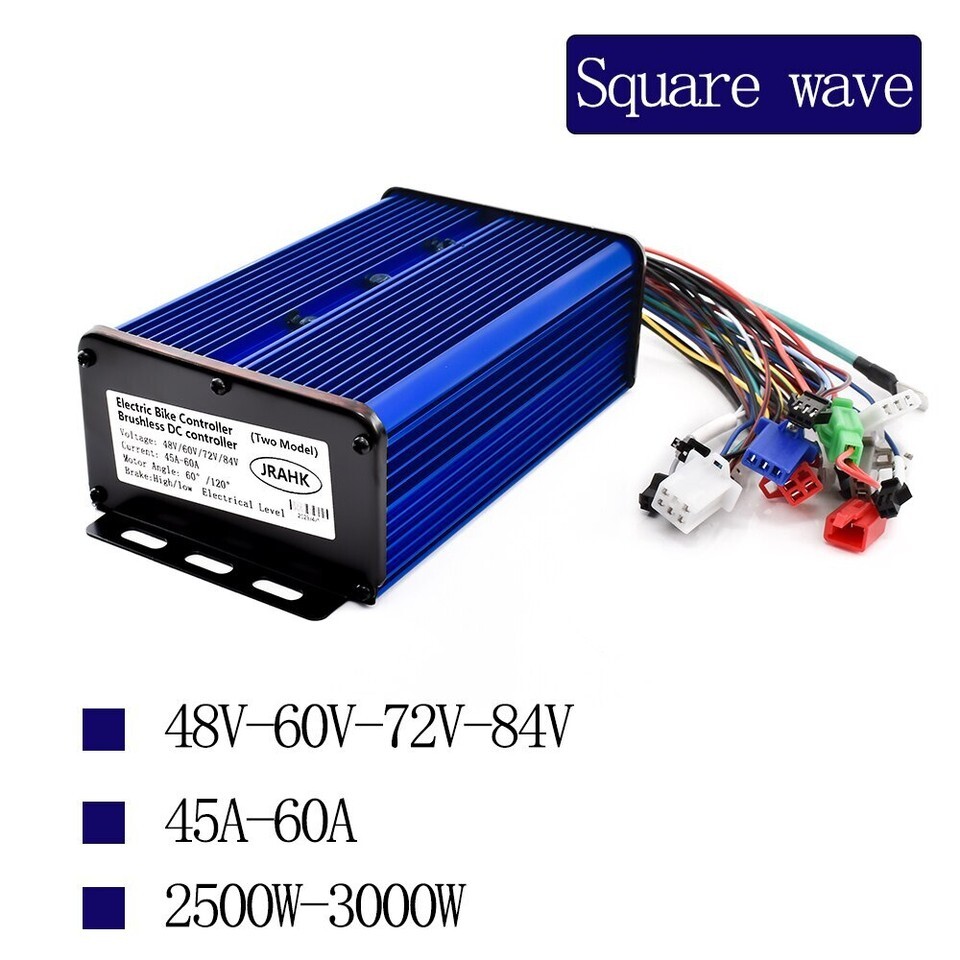

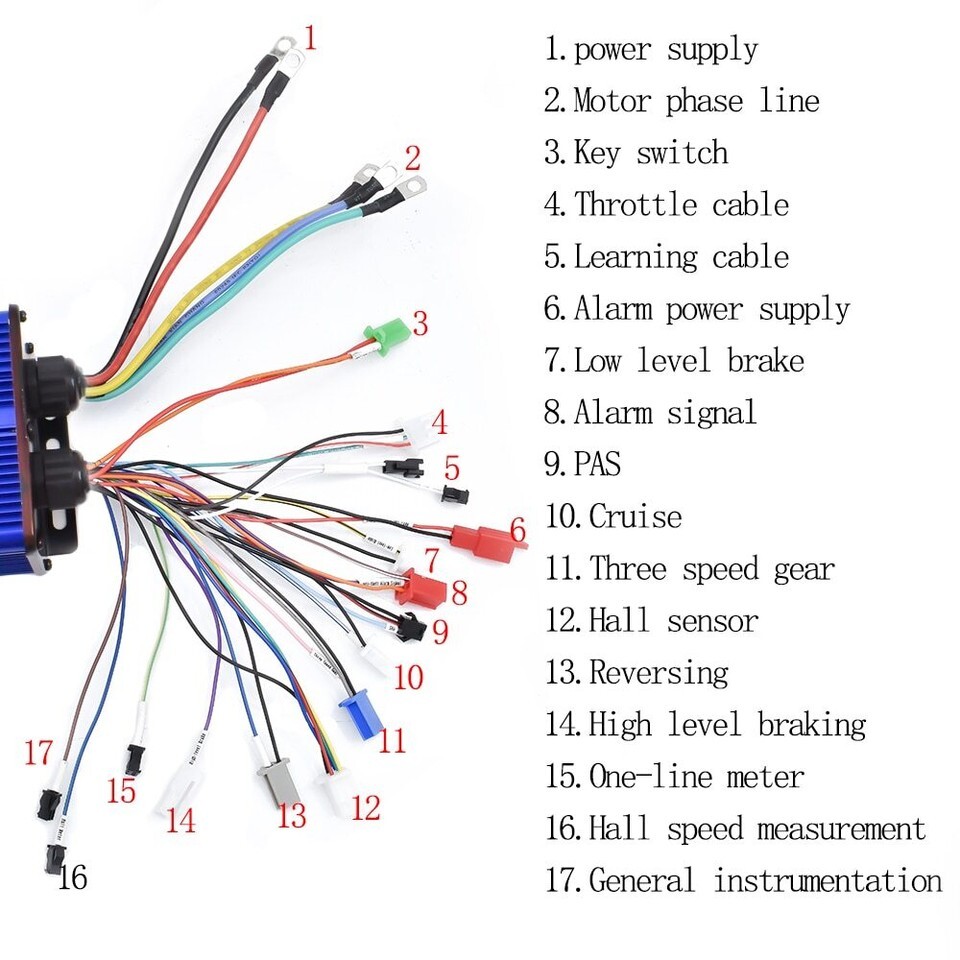

Product parameters: Color:Blue Condition: 100% brand newItem type: Motor Controller Material: Aluminium alloy Voltage: 48V-60V-64V-72V-84V Weight: .1044g Power: 2500W-3000W Current limit:45A-60A Tips This color is the color under strong light/sunlight, it will change during the light period, if you mind, you don't need to buy it. Thank you so much. Function 1. Increased withstand voltage and increased adaptable voltage:48V, 60V, 64V,72V, 84V,universal 2. One-line instrumentation adds more adaptability, about 80%. 3. In terms of hardware: thicker aluminum shell, better heat dissipation. The motherboard ,solution is better. Power tubes, capacitors, copper bars, etc. are better. 4.Suitable Motor Phrase Angle: Auto recognition. 5.Suitable for: Electric motorcycles,Small tricycle,Two-wheeler etc 6.Package List: 1 x Brushless Controller Line Description 1. Power supply 2.Motor phase line 3.Key switch 4.Throttle 5.Intelligent learning 6.Anti-theft power supply 7.Low level brake 8.Anti-theft signal 9.PAS 10.Fixed speed cruise control 11.Dial gear three speed 12.Hall sensor 13.Reversing 14.High level brake 15.One line pass 16.Hall speed measurement 17.Phase line speed measurement Installation Instructions Step 1. Connect wires 1, 2, 3, 4, 5, 12 Step 2. Connect the No. 5 wire with the motor suspended. (Note: the motor needs to be in the overhang position for docking wire #5) Step 3. The motor will perform a forward/reverse state. (If there is a reversal you will need to disconnect the 5 wire and reconnect it) Wait 10 seconds in the forward state to complete learning. Step 4. Make the wiring connections according to the vehicle.
