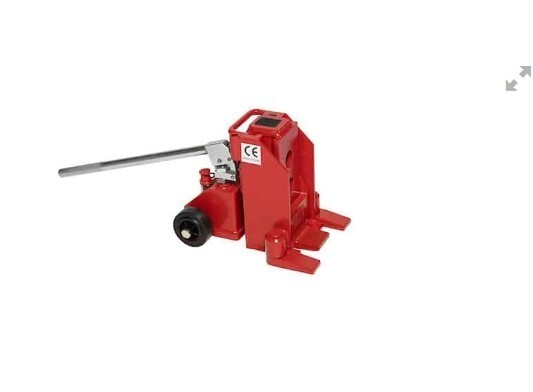

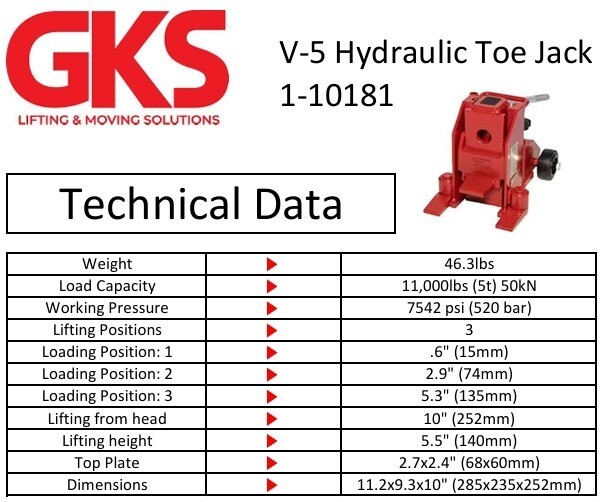

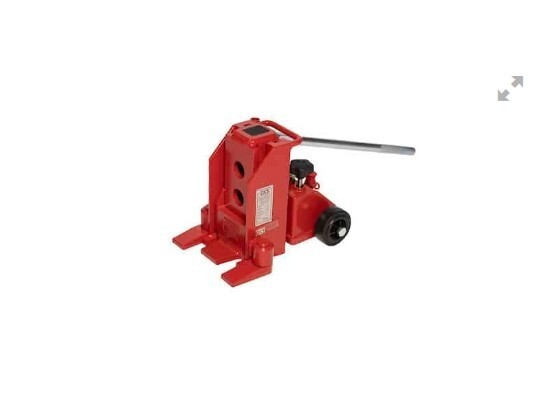

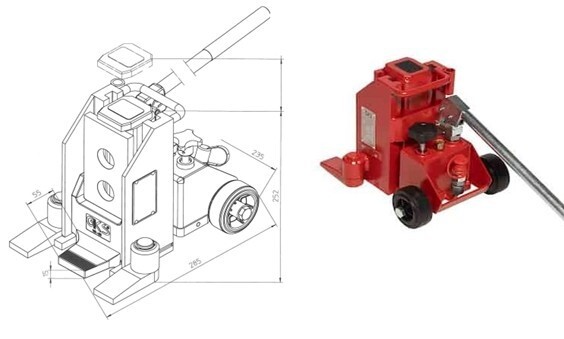

Toe Jacks are Designed for the Vertical Lifting of Machinery and Equipment. These jacks are specifically engineered with the highest level of safety and stability to lift heavy machinery for repair or in preparation for transportation. The height adjustable low-profile toe hook and larger surface area top saddle allow for greater flexibility. Industrial rated hand activated hydraulic pump with 7,542 psi working pressure has an integral bypass valve for safety. Cast iron toe ensures years of service and anti-slip pads on the top plate and tow hook offer the highest possible load friction for safe lifting. Coupling adapter is included for remote operation of two or more jacks with a pump. Lowering screw offers precise lowering of the load. Handle rotates 180 to allow operation in tight corners. Machinery jacks meet ANSI/ASME standards and include wheels for easy portability. Inspection certificate included with each jack. Weights Dimensions Length 10-1/2 in Width 8-1/2 in Height 10 in Weight Capacity 11000 lbs Weight 46 lbs Min Toe Loading Height 0.6 in Handle Length 17 in Top Plate Dimension 2.7 x 2.4 in Top Plate Loading Height 10 in Lifting Toe Height Positions 3 Max Toe Loading Height 5.7 in Lifting Range 5.5 in Product Details Assembly Required No Type Hydraulic Toe Saddle Jack Color Red Capacity 5 Tons Material Steel with Cast Iron Toe Operation Hydraulic Manufacturers Part Number 1-10181 Brand GKS Perfekt
