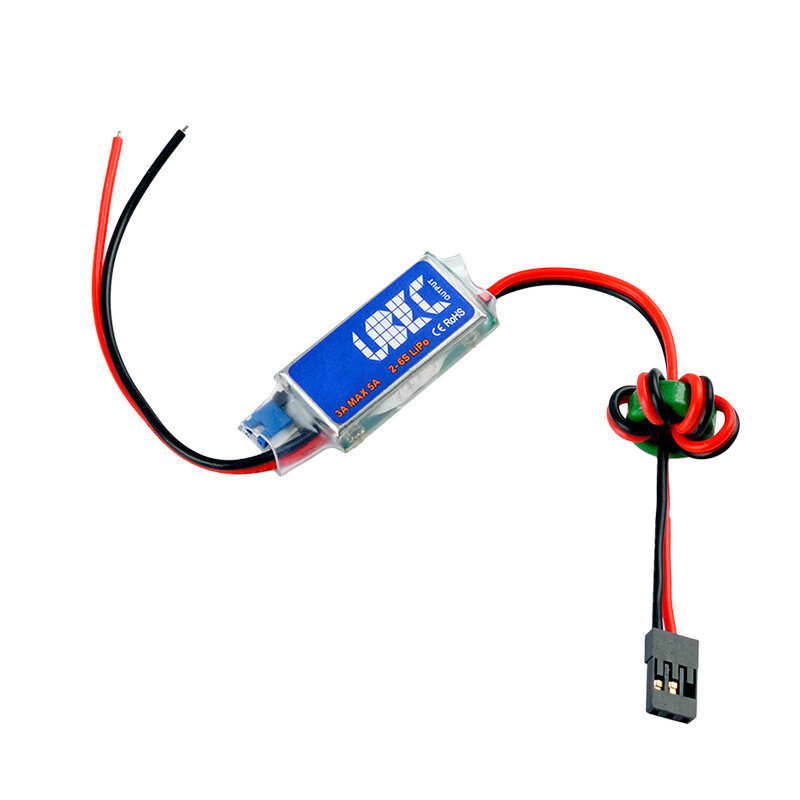

HobbyWing 3A UBEC 5A Max 5-9v w/ RF Noise Reduction RC Output BEC Product Description Great For RC Sailplanes, Using to power Servo Testers, For RC Airplanes, and RC Setup. Lots of uses for this Easy to Use UBEC Features Technical Parameters: 1 Product specifications 1.1 Output capacity: 5V/3A or 6V/3A (can be switched by jumper cap); 1.2 Power input: 5.5-23V (2-5 series lithium battery pack or 5-15 Ni-MH/Ni-Cd battery pack) 1.3 Size: 43mm*17mm*7mm (length*width*height) 1.4 Weight: 11g 1.5 Ripple: less than 50mVp-p (@2A/12V) HW3A 3A UBEC HW3A ESC SWITCH MODE 5V 3A Max 5A TOY SPORTS Features: Brand new and high quality Designed with an advanced switch mode DC-DC regulator IC The output is powerful even working with 4 to 6 cells Lipo battery Battery polarity reversal protection A metal shield covers almost all the electronic components, and a specially made filter is attached with the output wires to significantly reduce the electromagnetic interference The working status is shown by an indicator (LED), lights when the output is in normal range Item: 3A-UBEC Output Voltage: 5V or 6V (Changeable with an output-voltage select switch) Continuous output current: 3 Amps Input: 5.5V-26V (2-6 cells lithium battery pack or 5-18 cells NiMh /NiCd battery) Size: 42mm (L) * 24mm (W) * 11mm (H) Advantages: The 3A-UBEC is a switch-mode DC-DC regulator supplied with a 2-6 cells lithium battery pack (or 5-18 cells NiMh /NiCd battery) and it outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for RC helicopter. Compared with the linear mode UBEC, the overall efficiency of the switch-mode UBEC is higher.
