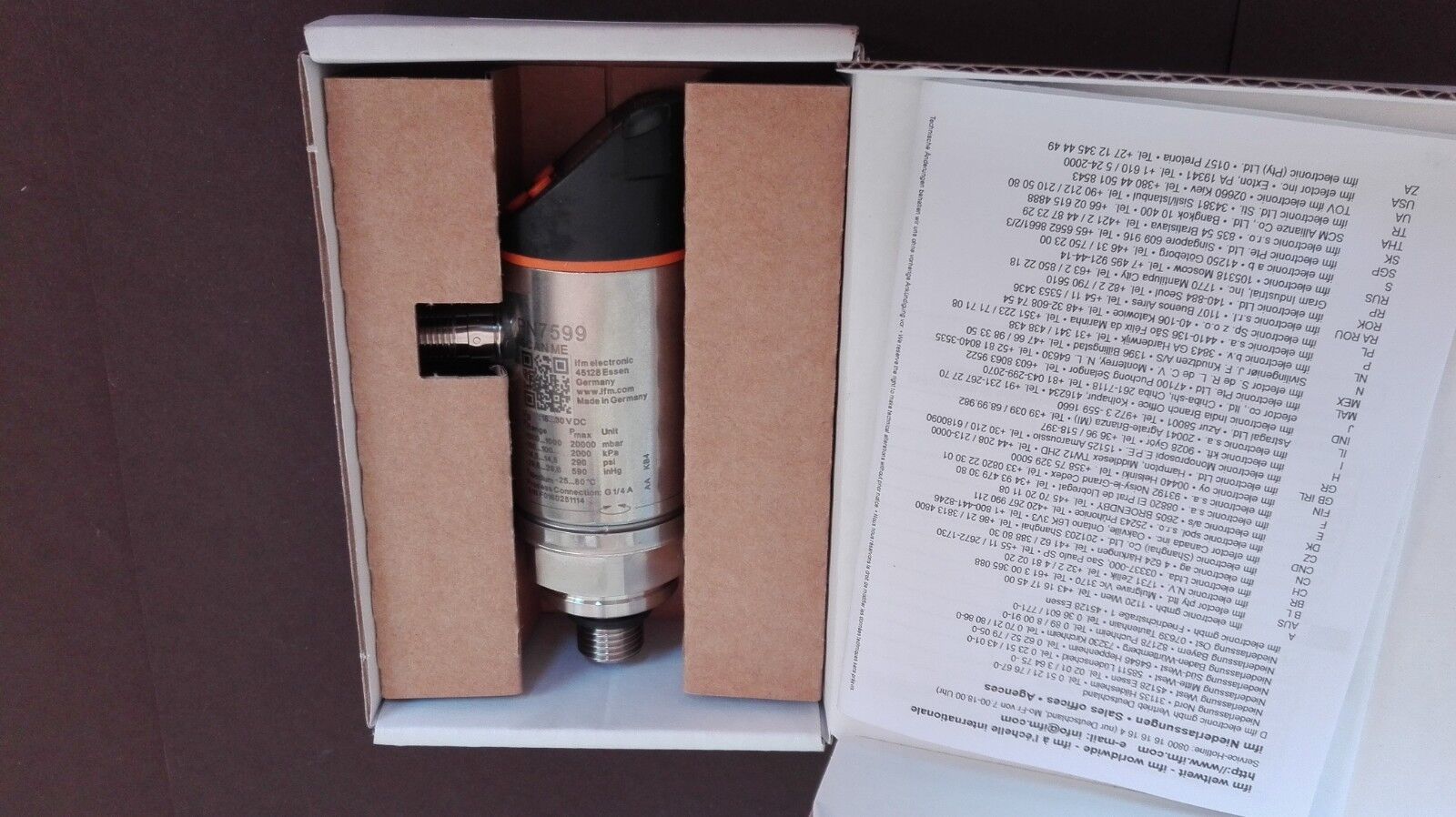

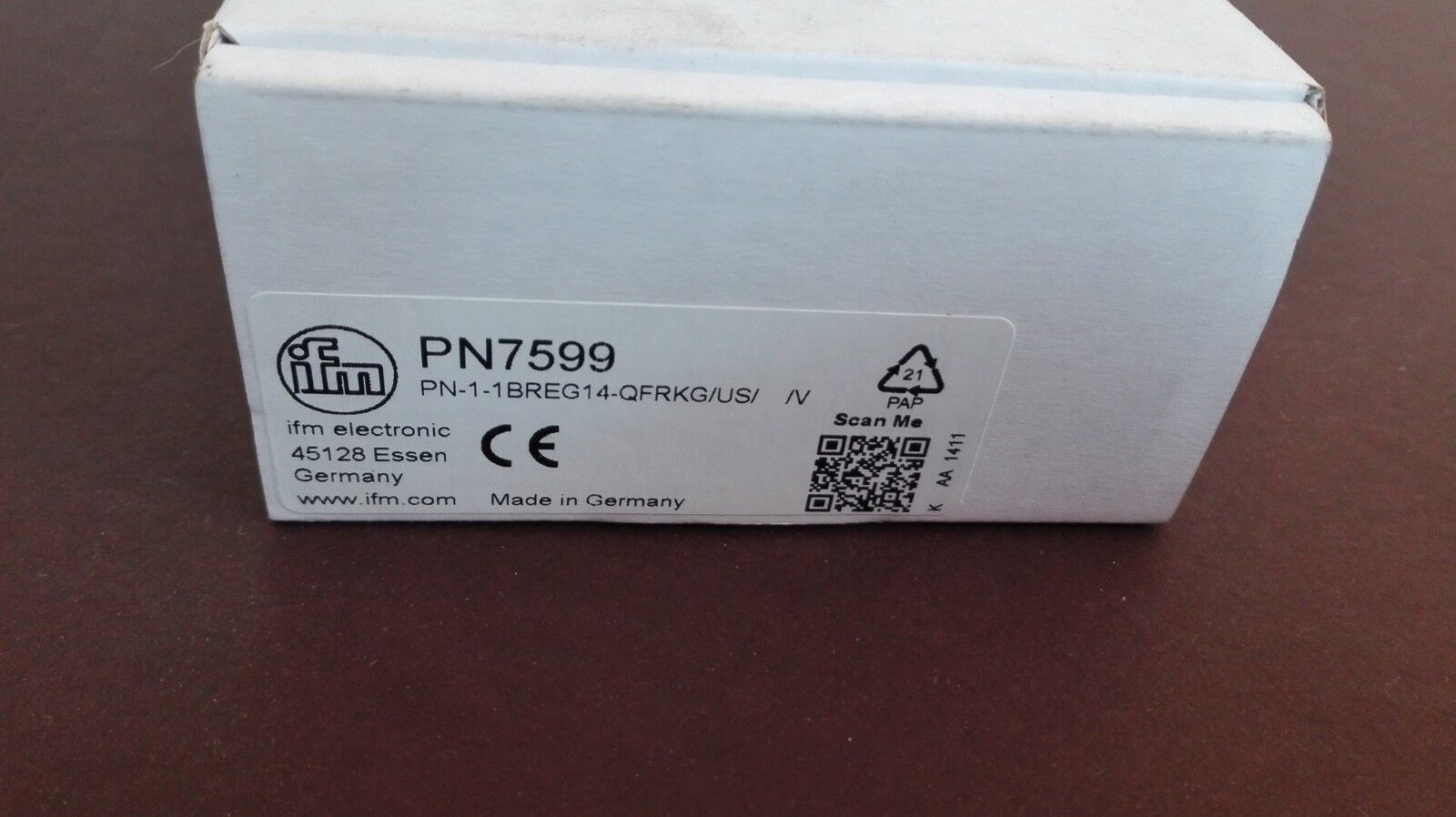

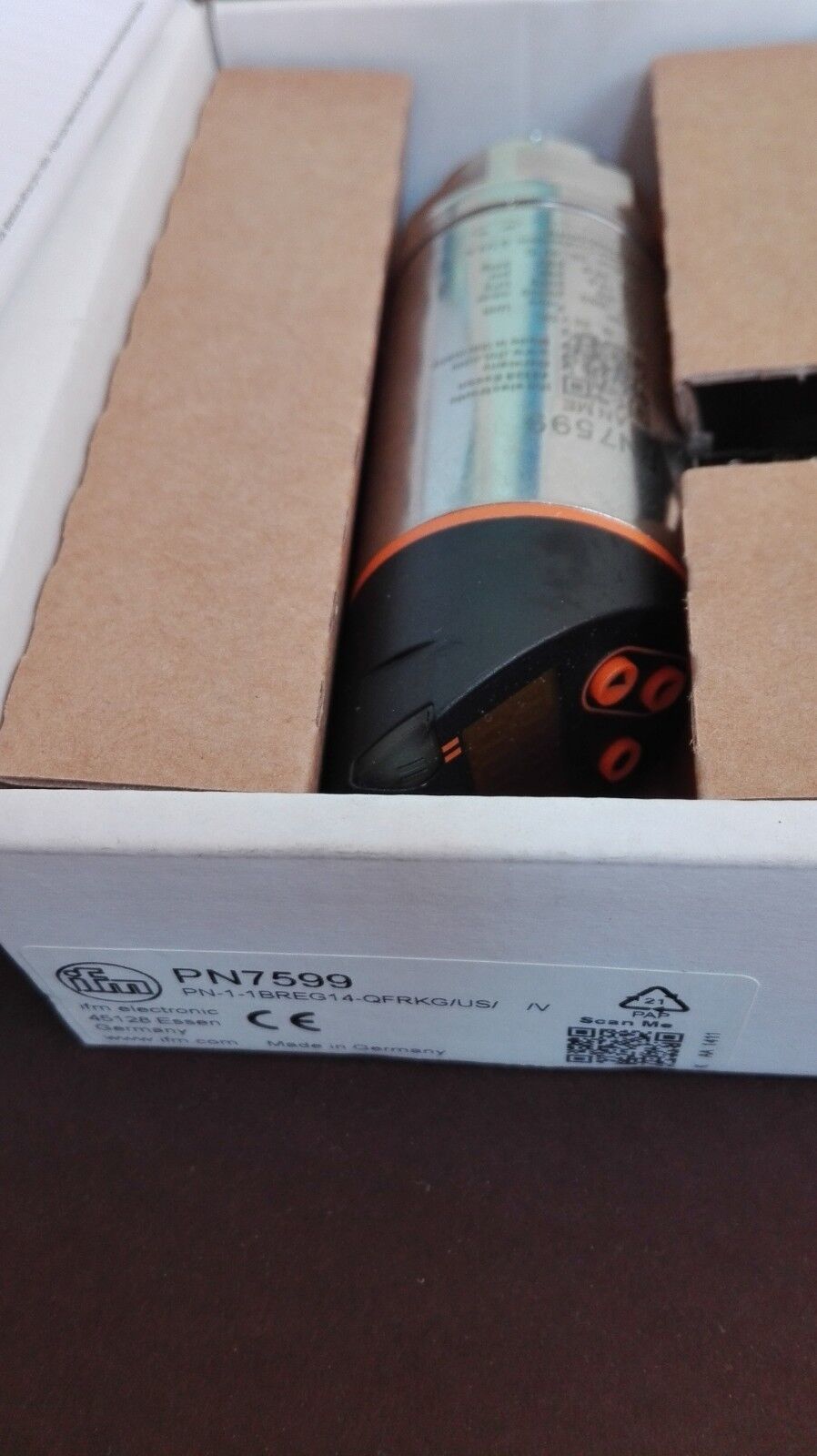

IFM PN7599 Electronic pressure sensor. Shipping via DHL For DHL shipping costs, please contact me. After we agree on the shipping costs, I will send the invoice. Application Measuring element ceramic-capacitive pressure measuring cell Application for industrial applications Media liquids and gases Medium temperature [C] -25...80 Pressure rating 10000 mbar 145 psi 1000 kPa 290 inHg Min. bursting pressure 30000 mbar 450 psi 3000 kPa 880 inHg Type of pressure relative pressure Electrical data Operating voltage [V] 18...30 DC; (according to EN 50178 SELV/PELV) Current consumption [mA] 35 Min. insulation resistance [M?] 100; (500 V DC) Protection class III Reverse polarity protection yes Power-on delay time [s] 0.3 Integrated watchdog yes Inputs / outputs Number of inputs and outputs Number of digital outputs: 2 Outputs Total number of outputs 2 Output signal switching signal; IO-Link; (configurable) Electrical design PNP/NPN Number of digital outputs 2 Output function normally open / normally closed; (parameterisable) Max. voltage drop switching output DC [V] 2.5 Permanent current rating of switching output DC [mA] 150; (200 (...60 C) 250 (...40 C)) Switching frequency DC [Hz] 170 Short-circuit protection yes Type of short-circuit protection pulsed Overload protection yes Measuring/setting range Measuring range -1000...1000 mbar -14.5...14.5 psi -100...100 kPa -29.4...29.4 inHg Set point SP -980...1000 mbar -14.3...14.5 psi -98...100 kPa -29...29.6 inHg Reset point rP -990...990 mbar -14.4...14.4 psi -99...99 kPa -29.2...29.4 inHg In steps of 10 mbar 0.1 psi 1 kPa 0.2 inHg Accuracy / deviations Switch point accuracy [% of the span] 0,5 Repeatability [% of the span] 0,1; (with temperature fluctuations 10 K) Characteristics deviation [% of the span] 0,25 (BFSL) / 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) Hysteresis deviation [% of the span] 0,25 Long-term stability [% of the span] 0,05; (per 6 months) Temperature coefficient zero point [% of the span / 10 K] 0,2; (-25...80 C) Temperature coefficient span [% of the span / 10 K] 0,2; (-25...80 C) Response times Response time [ms] 3 Delay time programmable dS, dr [s] 0...50 Software / programming Parameter setting options hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit Interfaces Communication interface IO-Link Transmission type COM2 (38,4 kBaud) IO-Link revision 1.1 SDCI standard IEC 61131-9 IO-Link device ID 406 d / 00 01 96 h Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis SIO mode yes Required master port type A Process data analogue 1 Process data binary 2 Min. process cycle time [ms] (description exceeds maximum (description exceeds maximum possible length)
