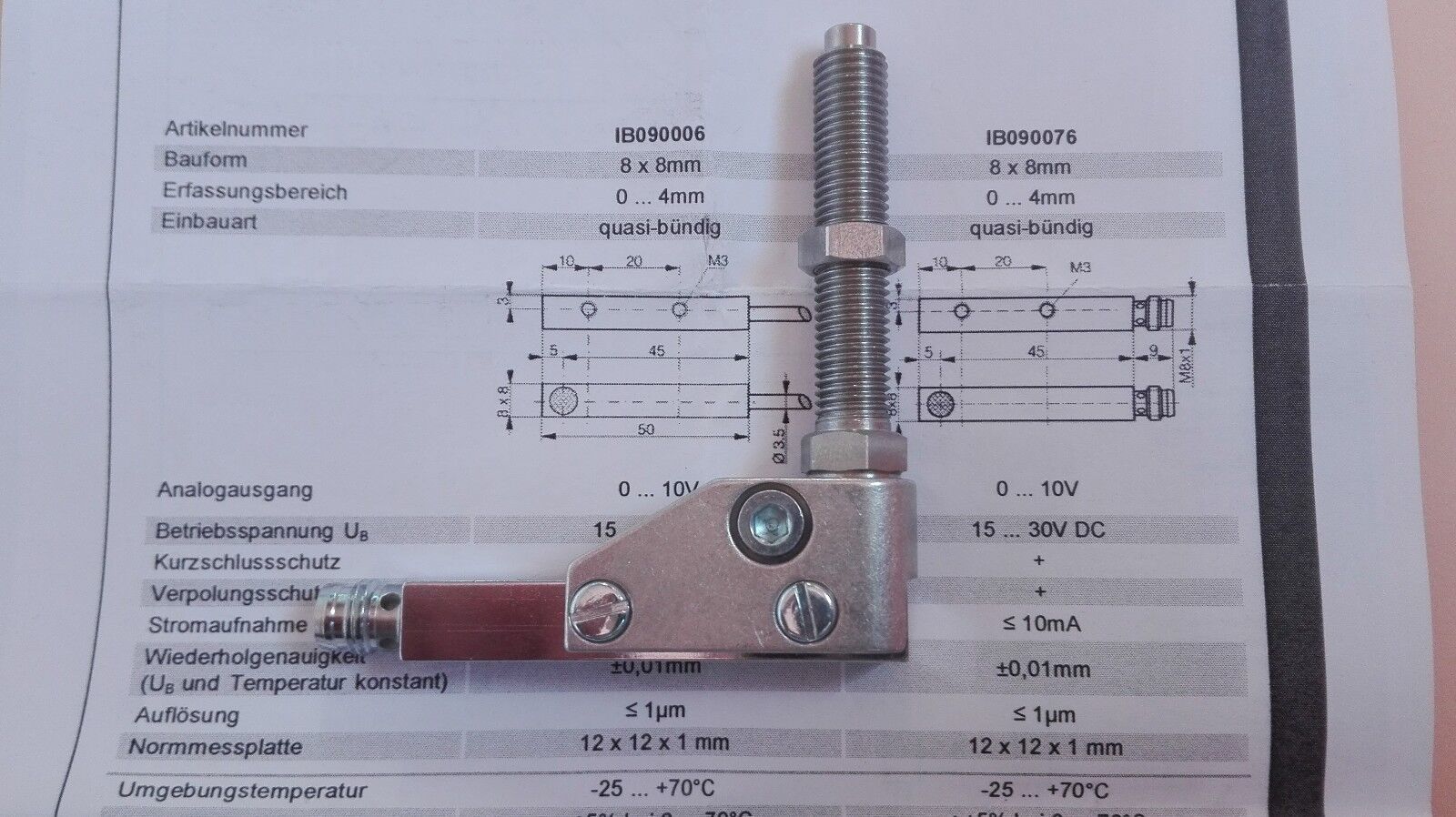

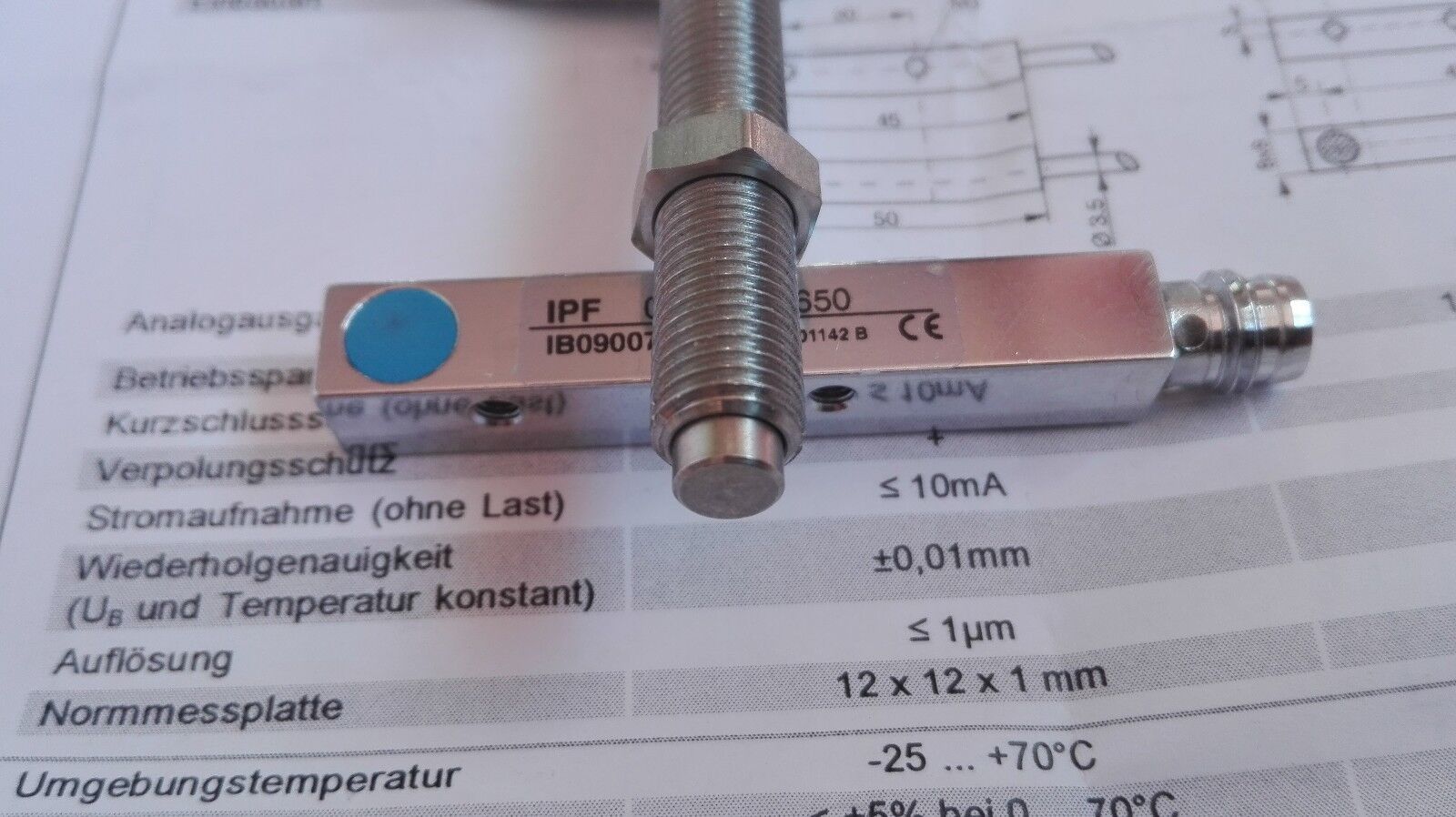

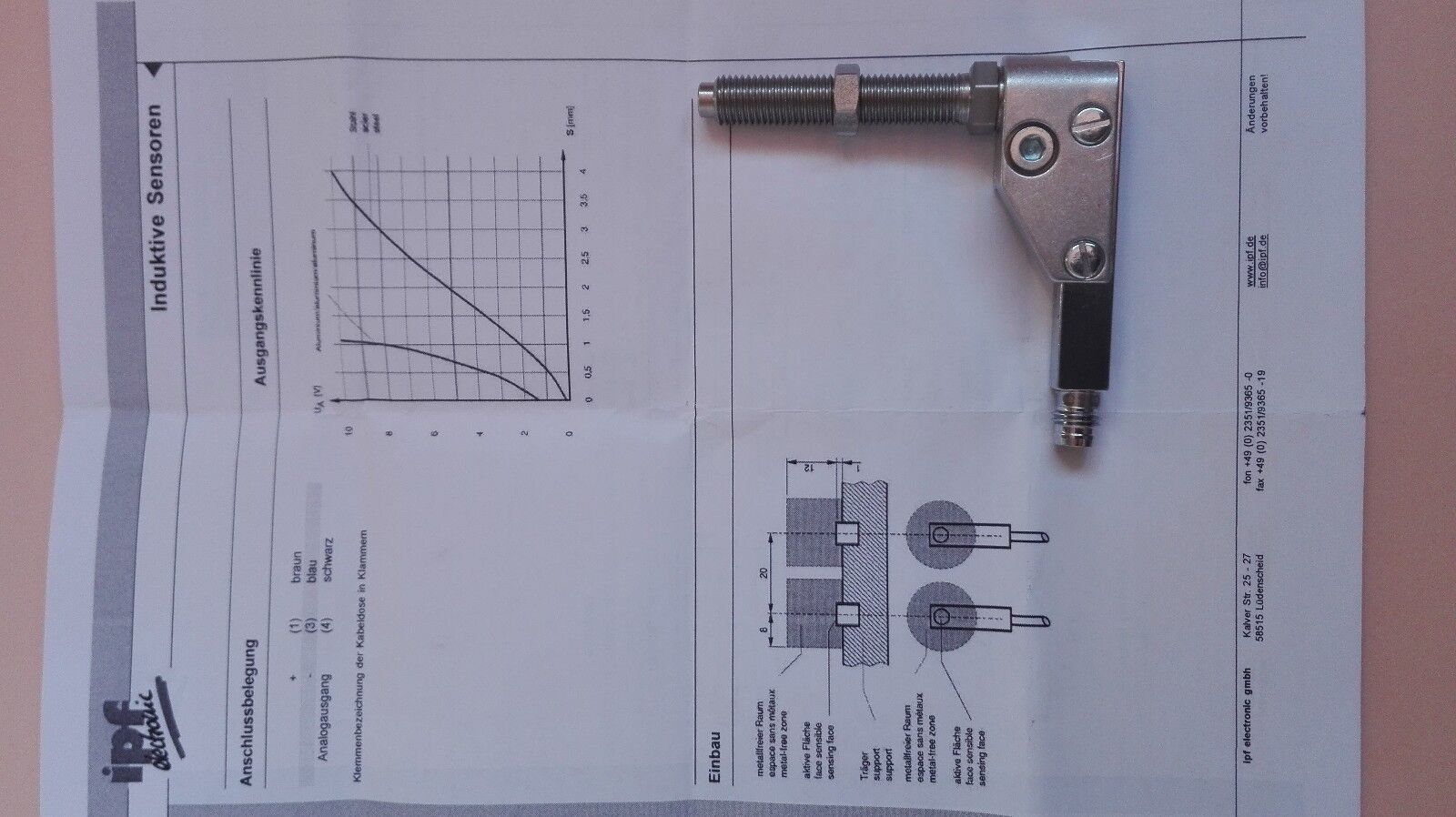

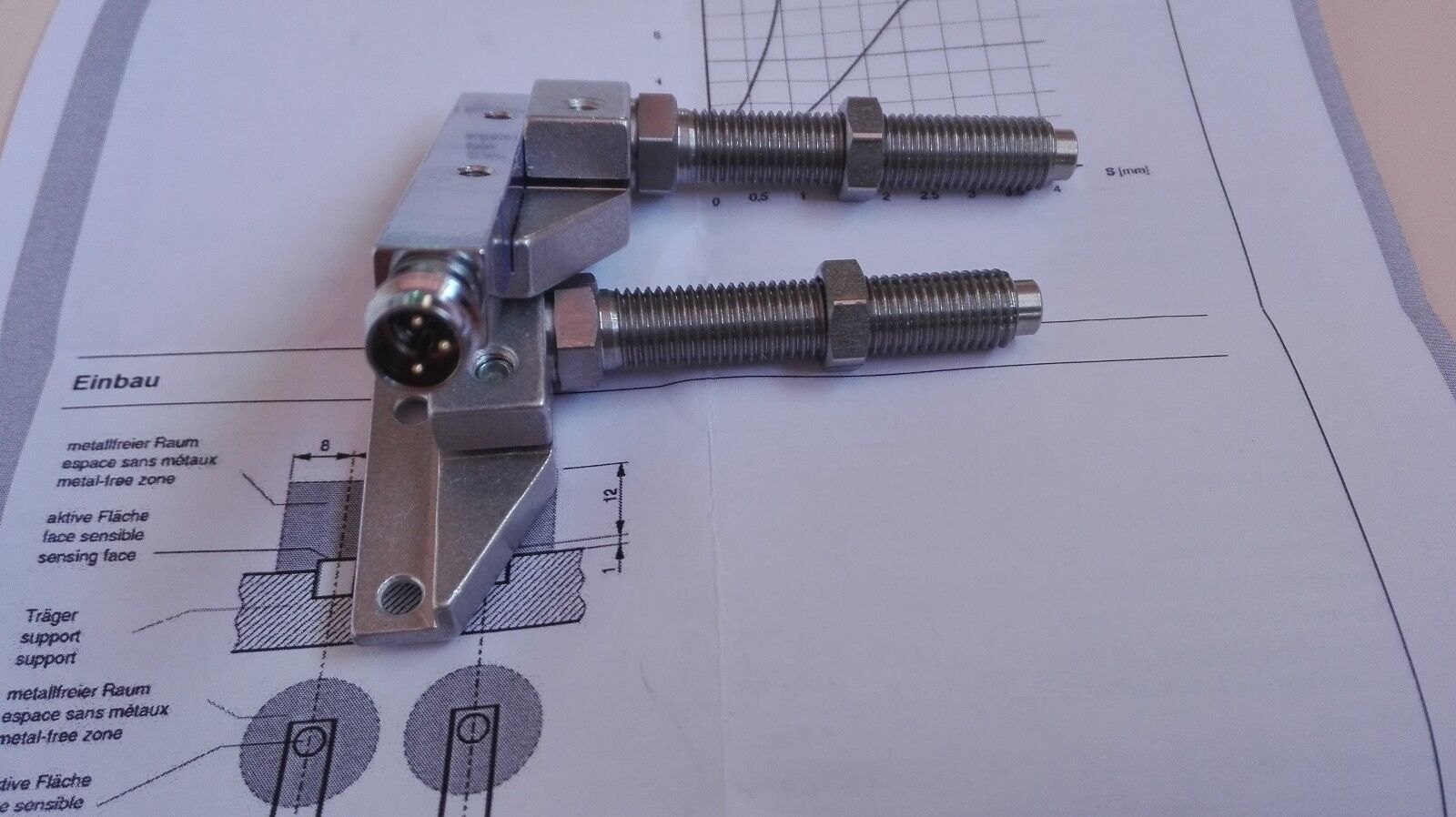

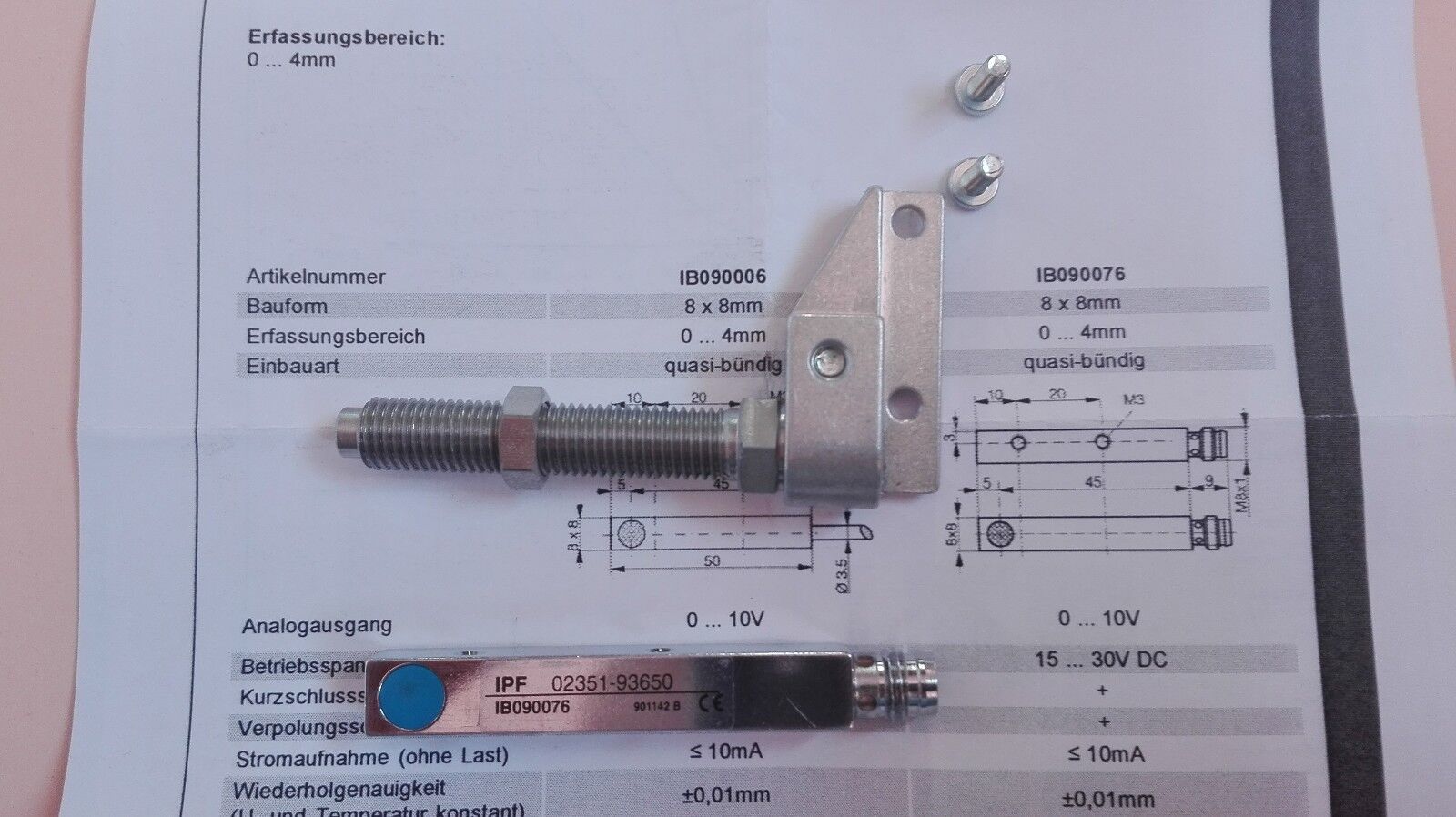

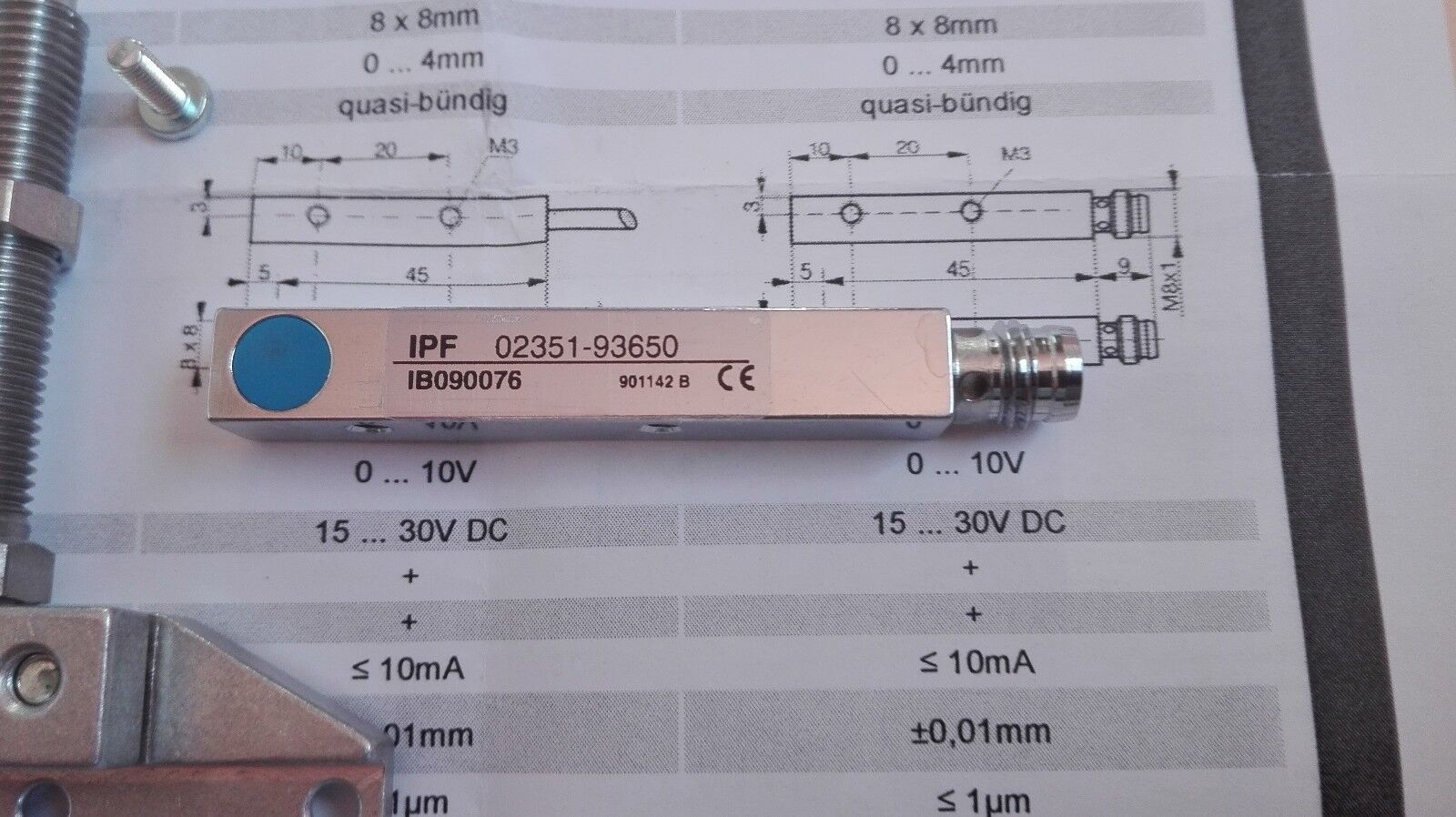

IPF IB090076 INDUCTIVE SENSORS WITH MOUNTING HOLDERS Shipping via DHL For DHL shipping costs, please contact me. After we agree on the shipping costs, I will send the invoice. inductive sensors IB090076 Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects. INDUCTIVE, 8X8MM DIA, 59MM LONG, 0-4MM SR, SHIELDED, 10-30V DC, NO, PNP, M8-3PIN QD Housing material Brass Housing design Cuboid Material of cable sheath PUR (Polyurethane) Sensor width 8mm Sensor length 8mm Housing coating Chromium-plated Active area material of sensor PBTP Type of analog output 0 V ... 10 V Operating voltage 15 - 30V Measuring range length 0 - 4mm No-load current 12mA Short-circuit-proof yes Correction factor (steel) 1.0 Correction factor (aluminum) 0.28 Correction factor (copper) 0.2 Resolution 1µm Ambient temperature -25 - 70C Mechanical mounting condition for sensor Quasi-flat Degree of protection (IP) IP67 Sensor height 59mm Cable length 2m Number of wires 4 Max. tightening torque 1Nm Type of electrical connection Cable Supply voltage 15 - 30V Voltage type DC Absolute repeat accuracy 0.3mm Reverse polarity protection yes Correction factor (stainless steel) 0.47 Correction factor (brass) 0.35 Readiness delay 50ms
