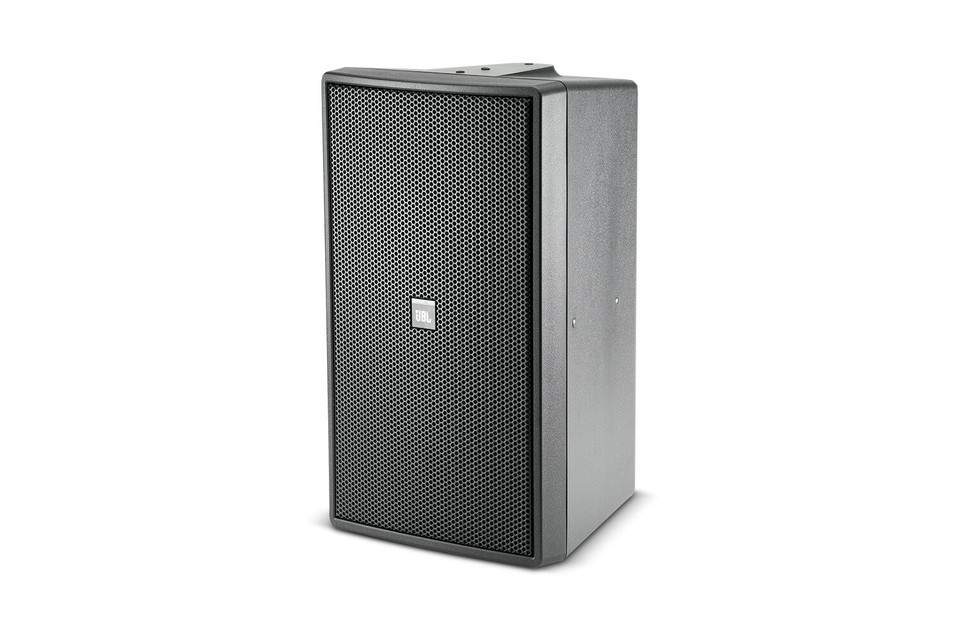

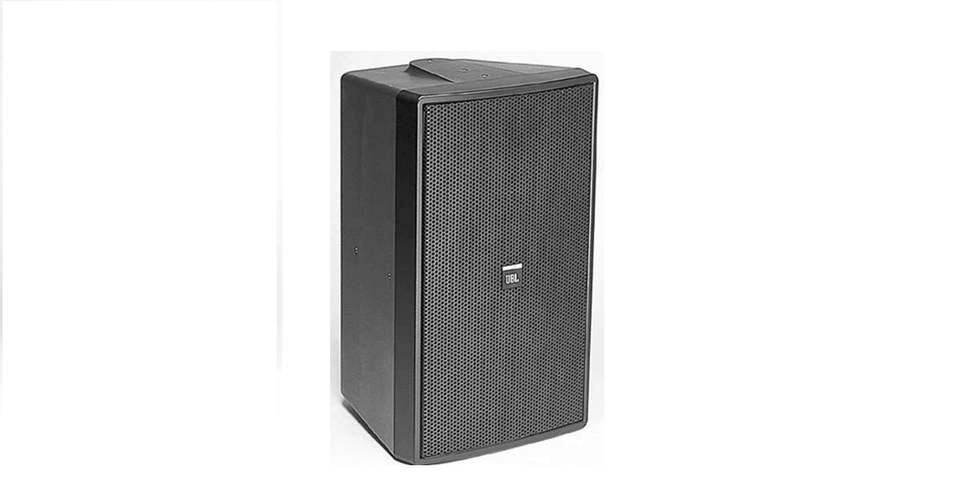

JBL C29AV-1 Indoor Outdoor Sport Facilities Monitor Surface Mount Loudspeaker The Control 29AV-1 provides improved voicing for extremely fl at, high fi delity performance, extended bandwidth and well-controlled defined coverage from a compact loudspeaker. The rotatable high-frequency horn allows use of the speaker in either vertical or horizontal orientation. Consistent coverage ensures excellent sound character throughout the listening area. Moderate magnetic shielding allows use of the speaker as close as 230 mm to video monitor. The top-quality line distribution transformer, designed for minimal insertion loss and reduced saturation, allows use of either 70V or 100V distributed speaker lines. In bypass position, the 8? impedance allows use of multiple speakers on a loudspeaker line. Weather resistance has been maximized. The woofer?s cone is made of kevlar, surround is pure butyl rubber, and the driver basket is rear loaded to minimize direct exposure. The compression driver?s diaphragm is pure titanium. The grille is thermoset composite coated and comes with foam to minimize incursion of water. Nickel/zinc rust-resistant terminals ensure a secure input connection. When providing sound reinforcement for sporting events, the screaming fans are just one of many challenges faced by the design and installation teams. This design will address the most important factors to deliver optimal audio coverage and high intelligibility to every seat in the house. JBL?s exclusive SonicGuard overload protection is virtually inaudible to the listener, ensuring reliability while providing full fi delity sound. Features: Extended bandwidth, extremely smooth frequency response. 110 x 85 HF coverage, rotatable horn. 110 W transformer for 70 V or 100 V lines, with 8 ohm thru. SonicGuard? overload protection. 200 mm (8 in) Kevlar cone woofer, 25 mm (1 in) titanium diaphragm compression driver. Includes InvisiBall? mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket. Sealed input panel cover and screwdown input terminals. Specifications: Frequency Range: 37 Hz ?18 kHz (-10 dB) Power Capacity: 300 W Continuous Program Power; 150 W Continuous Pink Noise Transformer Taps: 70 V: 110 W, 55 W, 28 W 14 W 100 V: 110 W, 55 W, 28 W, Thru Position: 8 ohms nominal Frequency Response: 45 Hz ? 18 kHz ( 3 dB) Maximum SPL (1m): Short-Term: 120 dB; Long-Term: 114 dB Nominal Sensitivity: 90 dB (2.83V / 1m) Coverage Angle: 110 H x 85 V, rotatable Directivity Factor (Q): 7.2 dB, averaged 500 Hz to 16 kHz Directivity Index (DI): 8.6 dB, averaged 500 Hz to 16 kHz Impedance: 8 ohms Minimum Impedance: 6.3 ohms @ 230 Hz Crossover Network: 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency Drivers: LF: 200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former HF: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround Enclosure: High impact polystyrene Grille Thermoset composite coated steel, WeatherMax multi-layer foam Overload Protection: Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions. Outdoor Capability: IEC 529 IP-X4 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature UV. Passes Mil-Std-202F for salt spray. Input Connectors: Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2). Safety Agency: Transformer is listed per UL1876 Colors: Black or white (-WH) Dimensions (H x W x D): 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.) Net Weight (each): 12.2 kg (26.8 lb.) Shipping Weight (ea): 14.0 kg (30.8 lb.) Included Accessories: 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench. Optional Accessories: MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket Mounting Hardware: InvisiBall? aimable wall-mounting system included. Optional U-bracket. Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping --Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
