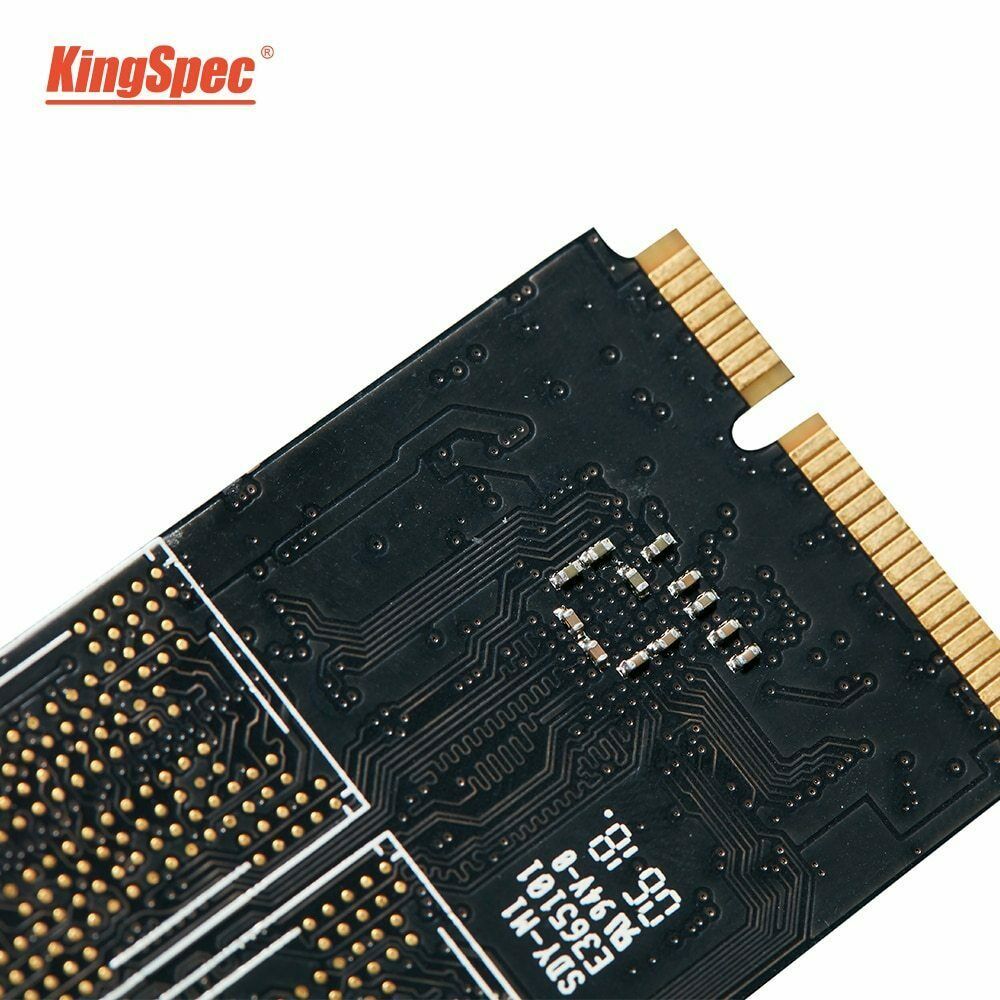

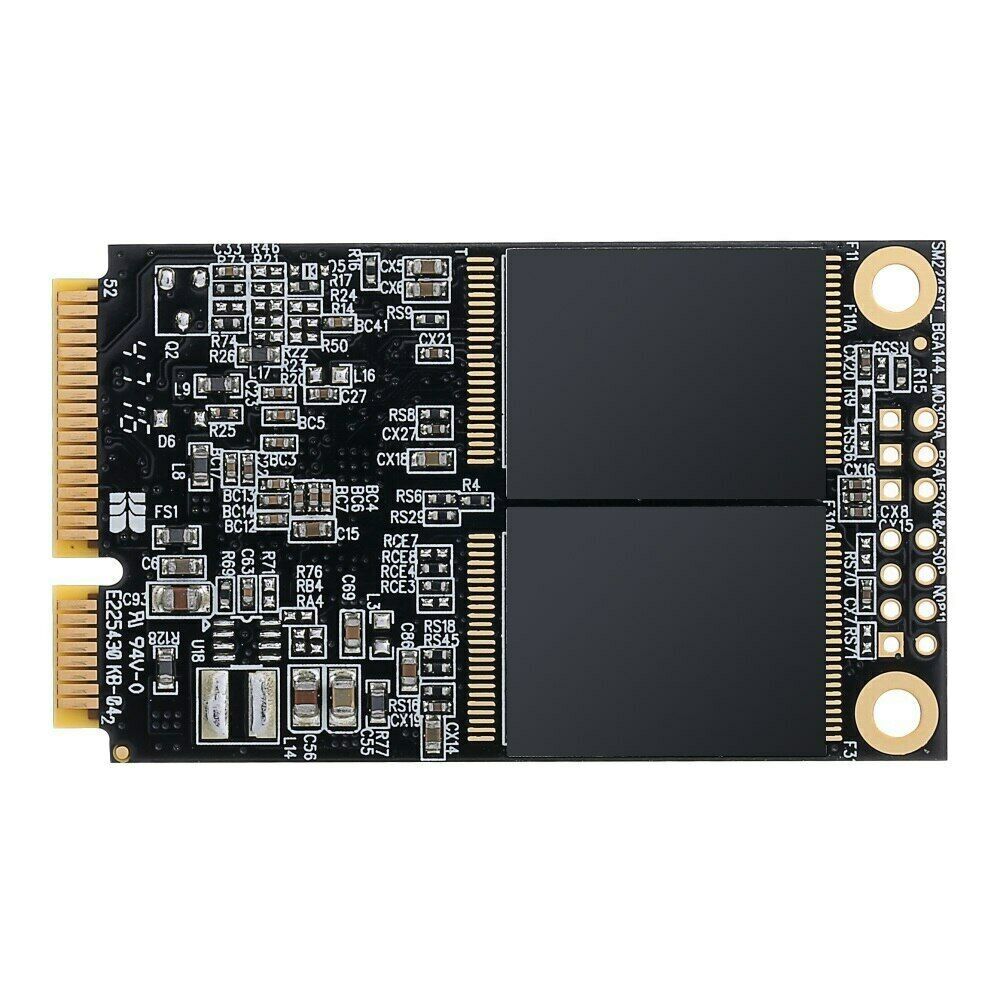

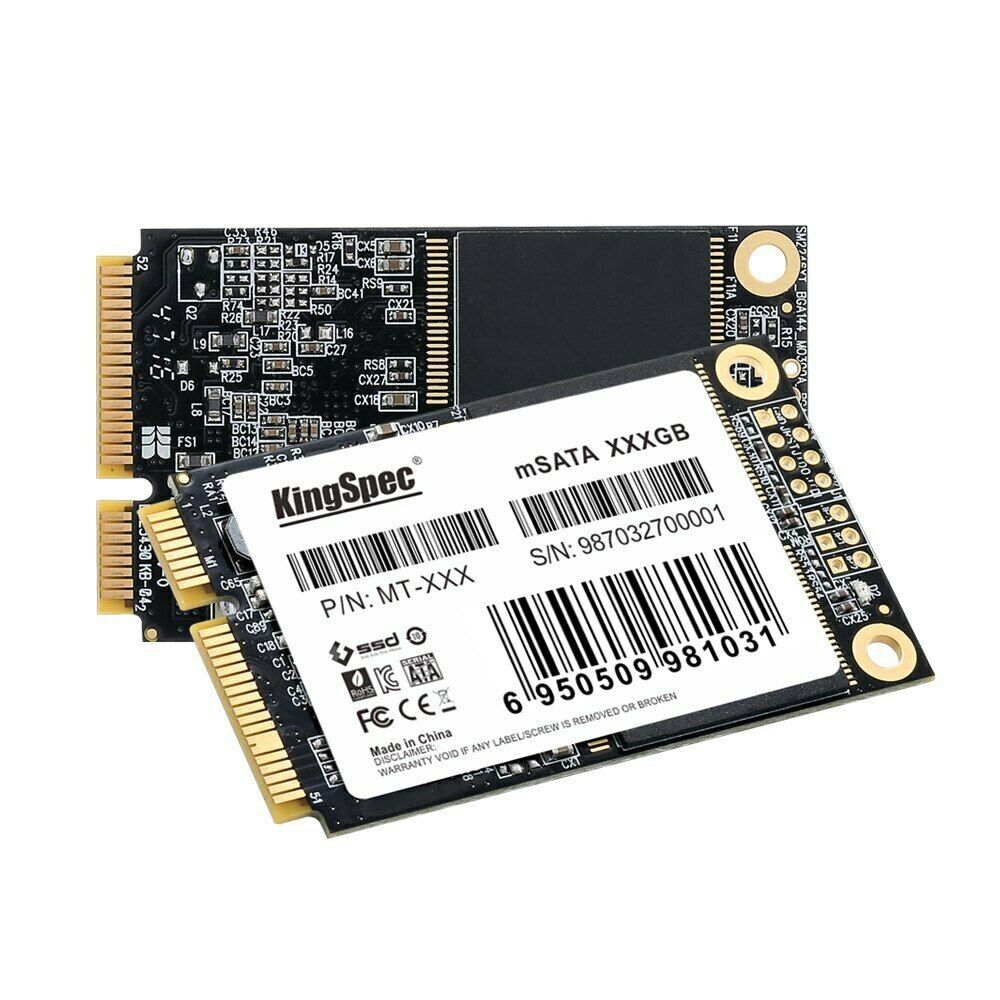

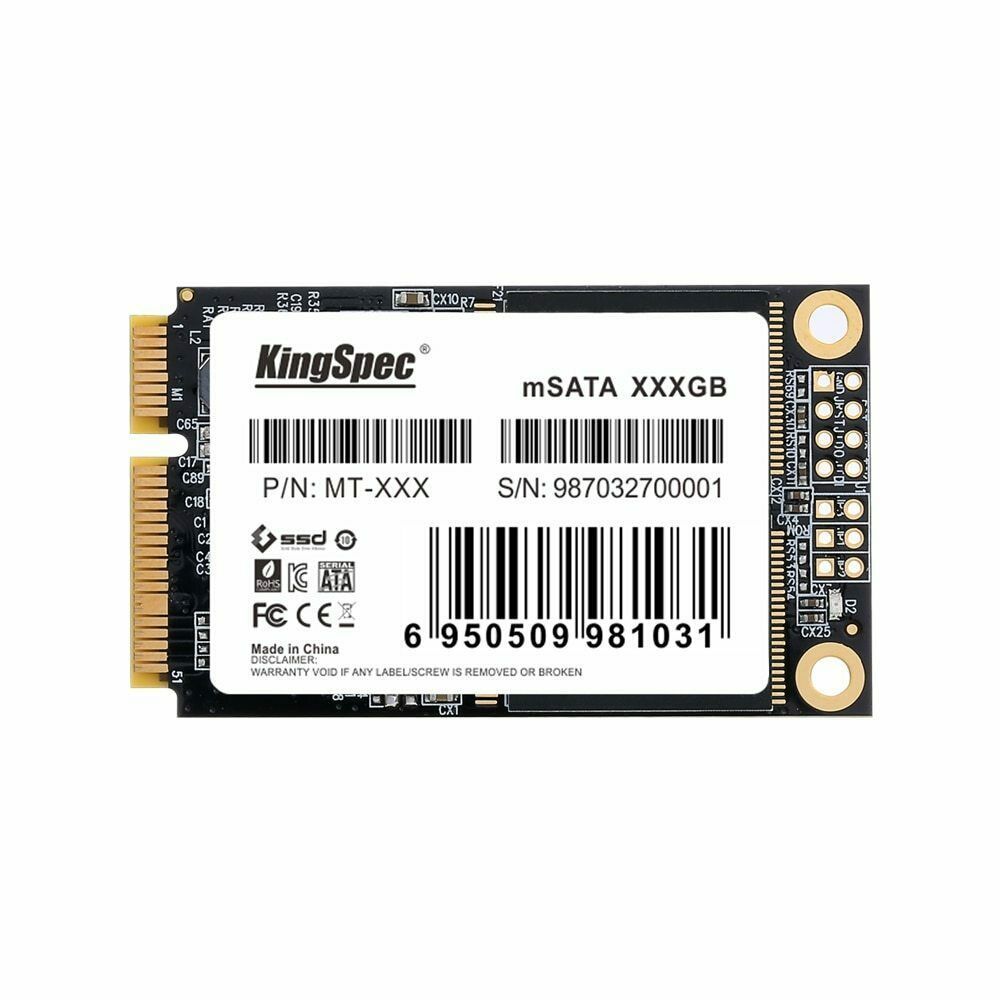

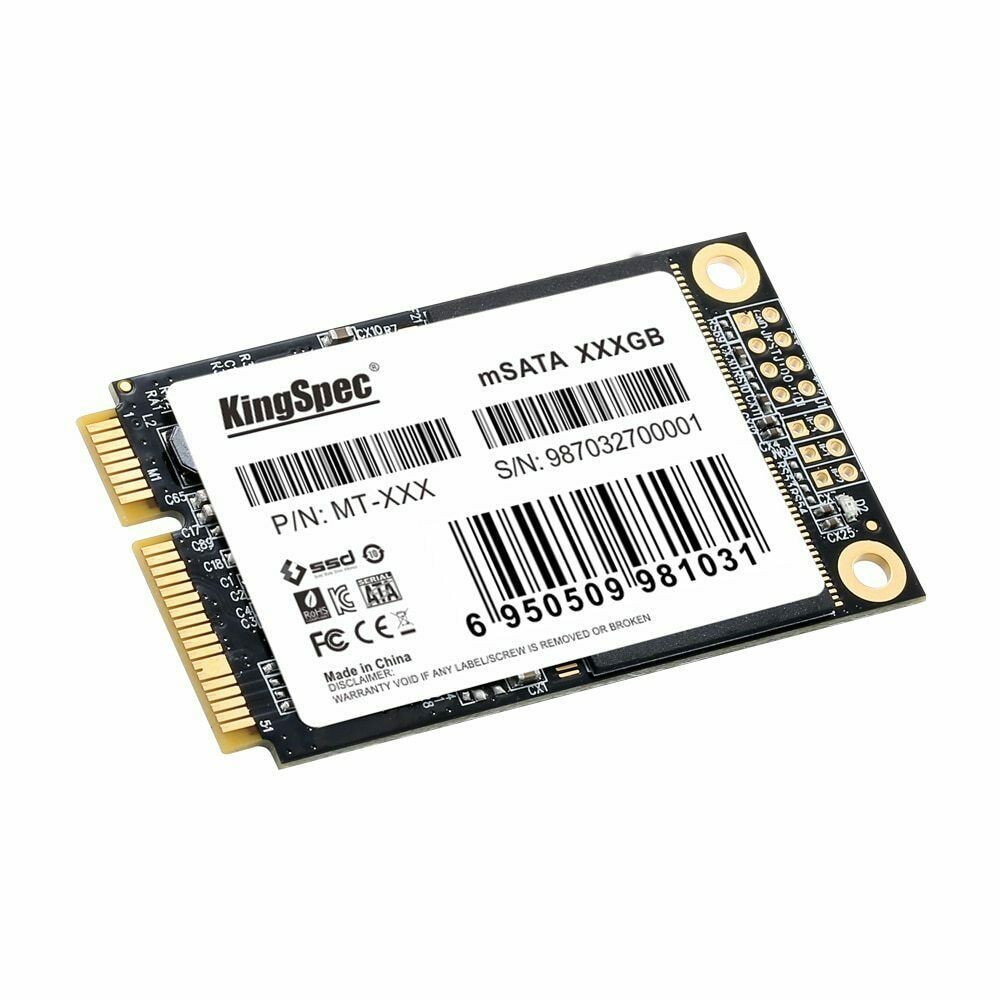

KingSpec 128 gb 256GB 240GB SATA3 mSATA Internal SSD Hard Drive Solid State Disk Mini SATA for Laptop PC Desktop Free Hello, We Do Sell Mobiles, Computers Tablets Network Accessories! Features KingSpec 240GB 256GB SATA3 mSATA Internal SSD Hard Drive Solid State Disk Mini SATA for Laptop PC Desktop Model No: MT-256 Factor: 3*5cm Interface: SATA Capacity: 240GB Average Access time: 0.2ms 4KB Sepuential Read IOPS: 5, 217 4KB Sepuential Write IOPS: 5, 142 MTBF: 1, 000, 000hours Operating Temperature: 0~70º C Warranty: 3 years Packing: standard gift box Our products’Competitive Advantage: 1) Original brand NAND Flash 2) Fast read/write speed ,faster application load times 3) High reliability, data stability 4) Low energy consumption 5) Anti-shock, anti-dust, Noiseless, superior security 6) Shockproof, rugged design safe and high stability and reliability 1. Datasheet for KingSpec SATAIII mSATA mini-pcie module ssd for Mid/Server/ Umpc/ Motherboard/PC Model MT-256 General Form factor mSATA Module Interface mSATA Performance Capacity 60GB | 120GB | 240GB Sustained Read (for reference only) 461MB/s | 470MB/S |350~470MB/S Sustained Write(for reference only) 95MB/s | 200MB/S |160~210MB/S Random IOPS 4KB Random Read IOPS 24000 4KB Random Write IOPS 350 Average Access time 0.1ms Power Consumption input Voltage 3.3V5% Idle 0.5W Active 2.0W Reliability Endurance Write endurance 8 years @100GBytes write and erase per day at 32GB Read endurance unlimited Wear-Leveling Algorithm Dynamic and static wear-leveling Data Retention 10 years at 25ºC MTBF 1,000,000hours ECC support NCQ,TRIM 16bits or 24bits in 1024 bytes Bad Block Management Auto Bad Block Management in system Environment Operating Temperature 0~70C Non-operating Temperature -40~85C Shock Vibration Ambient Humidity 5-95% Warranty Available unit Available NO EOL Testing Platform CPU: Intel Core(TM) i5-2400 CPU @ 3.10GHz Chipset: Intel Z68 Express Chipset Memory: Kingston KHX1600C9D3C1K2/4GX OS: Microsoft Windows 7 Professional 64-bit AHCI Driver: Intel Chipset SATA AHCI Controller 10.5.1.1001 BIOS Settings: AHCI Mode Testing Software ATTO Disk Benchmark,CrystalDiskMark v3.0 ,HD Tach RW 3.0.1.0,HD Tune PRO 3.50 Physical Dimensions Weight Height(mm) 3.5+/_0.25 Width(mm) 30+/_0.25 Length(mm) 50.0+/_0.25 Weight(g) 3.5+/_0.5 The read and write speed is limited to this test platform. Application for below Laptops if your laptop with mSATA interface: Fujitsu LH532 Acer Aspire: M3-xxx, M5-xxx, R7, S7 (S7-391), Timeline, V5-572G-6679 Acer Iconia Tab W500, W700 Acer EC 470G Dell Alienware m14x R2/R3, M17x R4/R5, M18X R2 Asus Eee Slate EP121 Asus VivoBook: S400CA, S551LB Asus Zenbook: UX21, UX Hasee Bluesky P150SM, P151SM1, P157SM, W350STQ, W650SR, W230ST, W350SKQ,W355STQ, W650SH, W651SH, W651SR, W655SH, W655SR, W740SU Dell Inspiron: 14z (5423), 15 (7537), 15z (5523), 15R SE, 17R, 17R 5720,17R SE Dell Latitude: 6430u, ST-LST01, XT2, XT3 Dell Precision: M4500, M4600, M4800, M6400, M6500, M6600, M6700, M6800 Dell XPS: 12 (12-9Q33), 13 (L321X), 14 (L421X), 15 (L521X), 18, One 2710 Dell Vostro: 3360, 3460, 3560 Dell E7440, E6440 Fusion Futro: S700, S900 Fusion Garage JOOJOO GIGABYTE Q1742N, U2142, U2440M, U2440N, U2442 Google CR-48 Chrome HP ENVY: 14 Series*, 15 Series (15-3xxx), 17 Series (17-3xxx) HP ENVY Sleekbook: 14*, 15.6"* HP ENVY Spectre XT 13 HP ENVY TouchSmart: 15 Series (15-J003xx, 15-J154ca, 15t-j100,15-j113ea), 20-d010 HP Folio: 13-1000 HP Pavilion: dm4t Series (DM4T-3xxx), dv6 Series HP ZBook 15 Mobile Workstation Lenovo K26, K27, K29, K47A, K47G, K49, M490s Lenovo Essential: B590 Lenovo IdeaPad: S210, S400, U300, U310, V570, Y460, Y460P, Y470, Y470P,Y480, Y500, Y500N, Y510, Y560, Y560P, Y570, Y580, Y471A Lenovo IdeaPad Yoga 13 Lenovo ThinkPad: L420, L430, L520, L530, T420, T420s, T430, T430i, T430s,T430si, T520, T530, T530i, W520, W530, X220, X220T, X230, X230i, X230 Tablet,X230i Tablet Lenovo ThinkPad Edge: E220s, E320, E330, E420, E420s, E430, E430s, E520,E530 (530C not ok ), S430 Lenovo Yoga 2 Pro LG Xnote: P330 MSI GE60, GE70: 2OE-014NE, 2OE-017US MSI: Windpad 110W Samsung: Series 7 Slate, Series 9; Samsung Chromebook Series 5 Sony VAIO: E Series, Tap 21 Toshiba Qosmio: X70, X75-A7298 Toshiba Portege: Z830, Z835, Z930; Toshiba Satellite: P70, P770 Application for below Desktop Motherboard if it is with mSATA interface: Intel NUC Board: DC33217GKE, D34010WYB, D53427RKE, D54250WYB Intel NUC Kit: DC3217IYE, D34010WYK, DC53427HYE, D54250WYK ASRock Z87 11/ac ASRock Z87M MSI Z87 MPOWER MSI Z87 MPOWER MAX MSI Z87 XPOWER ASRock Z77E-ITX GIGABYTE GA-B75-D3V MSI Z77IA-E53 Product picture (for reference only): mSATA 3, Mini SATA, SATA (6Gbps), SATA3(6Gbps) CN(Origin) New MK8115/SM2246XT 200~430/150~300MB/s (for reference only) mSATA laptop, server, desktop and Ultrabooks TLC KC Yes mSATA SSD Hard Drive SSD 3X5CM 3 years Stock 240GB256GB SSD hard drive Blister packaging Auto Bad Block Management in system Laptop/Desktop/Notebook/Computers that use mSATA HDD width: 0 x height: 0 x length: 0 x weight: 0 KingSpec 128 gb 256GB 240GB SATA3 mSATA Internal SSD Hard Drive Solid State Disk Mini SATA for Laptop PC Desktop Free mSATA 3, Mini SATA, SATA (6Gbps), SATA3(6Gbps)CN(Origin)NewMK8115/SM2246XT200~430/150~300MB/s (for reference only)mSATAlaptop, server, desktop and UltrabooksTLCKCYesmSATA SSD Hard DriveSSD3X5CM3 yearsStock240GB256GB SSD hard driveBlister packagingAuto Bad Block Management in systemLaptop/Desktop/Notebook/Computers that use mSATA HDD KingSpec 240GB 256GB SATA3 mSATA Internal SSD Hard Drive Solid State Disk Mini SATA for Laptop PC Desktop Model No: MT-256 Factor: 3*5cm Int Payment We accept payments through PayPal, contact us to check the availability of other payment methods Shipping Items located in our US warehouse will be Shipped FREE to all addresses other than APO/PO boxes in the lower 48 states via USPS or UPS (depending on location and package weight) Unless stated otherwise, all orders will ship within 24 hours of your payment being processed. Items located in our China warehouse will be shipped out by Air Mail to your PayPal Address within 1-3 business days after receiving your cleared payment (estimated delivery time 10-25 business days, this all depends on how busy the postal system is by varying countries inbound customs delays). We offer free shipping worldwide (some countries are excluded). Please note that delivery time for some countries might take longer than 30 business days. Tracking number will be provided once available from our shipping partner. Please contact us if you don't receive your item by 30 business days, we will check the status and try our best to resolve any problems for you. Please note that import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Check with your country's customs office to determine what these additional costs will be prior to bidding/buying, Thank you. Delivery Return Policy Return shipping is the buyer's responsibility unless the return is a result of our mistake. We will pay for shipping replacement back to you if an exchange is requested
