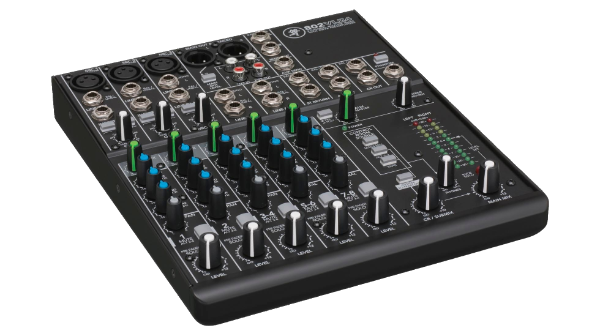

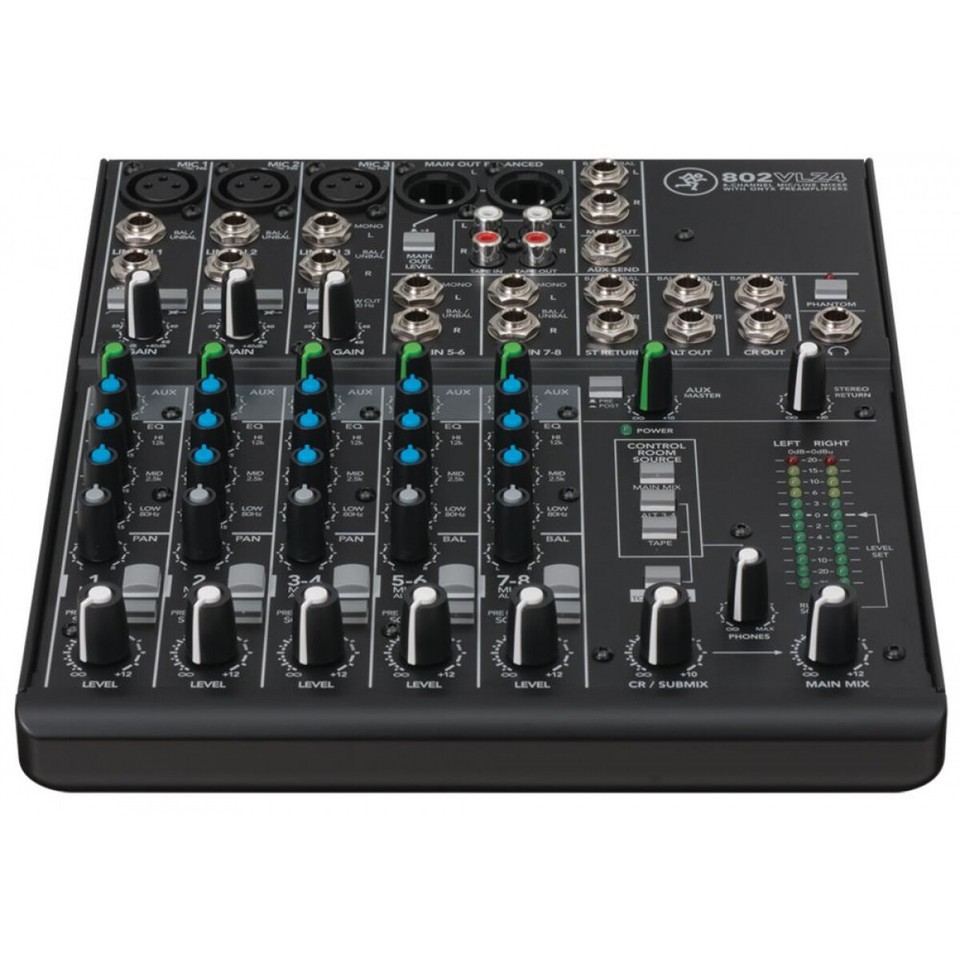

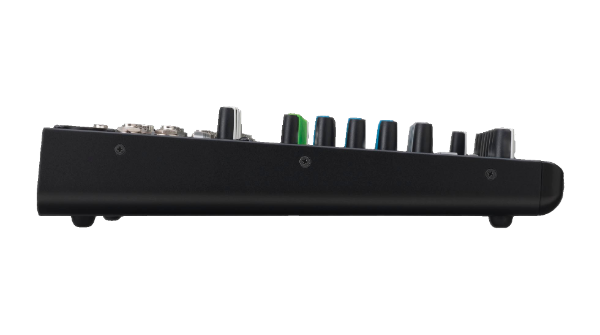

Mackie 802VLZ4 8 Channel Ultra Compact Mixer for Live Sound Mixing Applications The 8-channel 802VLZ4 features the proven performance of our flagship Onyx mic preamps in a desk-friendly, ultra-compact design, perfect for professional applications with a lower input need. From every input to every output, the 802VLZ4 is designed to provide the highest headroom and lowest noise possible for maximum signal integrity. Plus, it truly is ?Built-Like-A-Tank? with a ridiculously rugged solid steel chassis and high-contrast controls for ultimate tactile control. And with features like instrument level inputs, phantom power and level metering, the 802VLZ4 offers a true step-up performance and durability that?s ideal for your professional application. Features 8-channel mixer featuring our signature high-headroom, low-noise design 3 boutique-quality Onyx mic preamps Ultra-wide 60 dB gain range 128.5 dB dynamic range +22 dBu line input handling Extended frequency response Distortion under 0.0007% [20 Hz ? 50 kHz] Improved RF rejection, perfect for broadcast applications Phantom power for condenser mics Eight high-headroom line inputs Selectable instrument inputs on first two channels ? no DI box needed 3-band EQ (80 Hz, 2.5 kHz, 12 kHz) 18 dB/oct 100 Hz low-cut filter on mic input channels Aux send, level, pan and PFL solo on each channel Stereo return for connecting FX processor or other stereo source ALT 3/4 stereo bus for added routing flexibility Control room / phones source matrix High-resolution 12-segment stereo meters Sealed rotary controls resist dust and grime ?Built-Like-A-Tank? rugged steel chassis with powder-coat finish High-visibility, high-contrast controls deliver convenient ?at-a-glance? visual feedback Specifications Main Mix Noise (20 Hz?20 kHz bandwidth, channels 1-3 gain @ unity, channel EQs flat, all channels assigned to main mix, channel 1 panned left, 2 panned right, 3-8 centered.) Main mix knob down, channel level knobs down: XLR: ?95 dBu TRS: ?101 dBu Main mix knob @ unity, channel level knobs down: XLR: ?90 dBu TRS: ?96 dBu Main mix knob @ unity, channel level knobs @ unity: XLR: ?84 dBu TRS: ?90 dBu Total Harmonic Distortion (THD) (1 kHz @ 30 dB gain, 20 Hz?20 kHz bandwidth) Mic pre @ insert: 0.001% Attenuation / Crosstalk (1 kHz relative to 0 dBu, 20 Hz?20 kHz bandwidth, line in, 1/4" main out, gain @ unity) Main mix knob down: ?75 dBu Channel Alt / Mute switch engaged: ?100 dBu Channel level knob down: ?100 dBu Frequency Response Mic input to main output (gain @ unity) +0, ?1 dB, 20 Hz to 50 kHz +0, ?3 dB, 10 Hz to 100 kHz Equivalent Input Noise (EIN) (Mic input to insert send out, max gain) 150? termination: ?128.5 dBu 20 Hz?20 kHz Common Mode Rejection Ratio (CMRR) 1 kHz: better than ?70 dB Maximum Levels Mic in: +21 dBu Tape in: +22 dBu All other inputs: +22 dBu Main mix XLR out: +28 dBu All other outputs: +22 dBu Impedances Mic in: 2.55 Channel insert return: 5k? All other inputs: 17k? or greater Tape out: 1.0k? Phones out: 60 ? All other outputs: 120 ? EQ High Shelving 15 dB @ 12 kHz Mid Peaking 15 dB @ 2.5 kHz Low Shelving 15 dB @ 80 Hz ---------------------------------------------------------------------------------------------------------------- Echotone Music LLC is an experienced E-commerce Audio Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications. Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped. Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs. Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches, scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees accessories or your return may be subject to a return handling charge. Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos. Happy customers, that's music to our ears!
