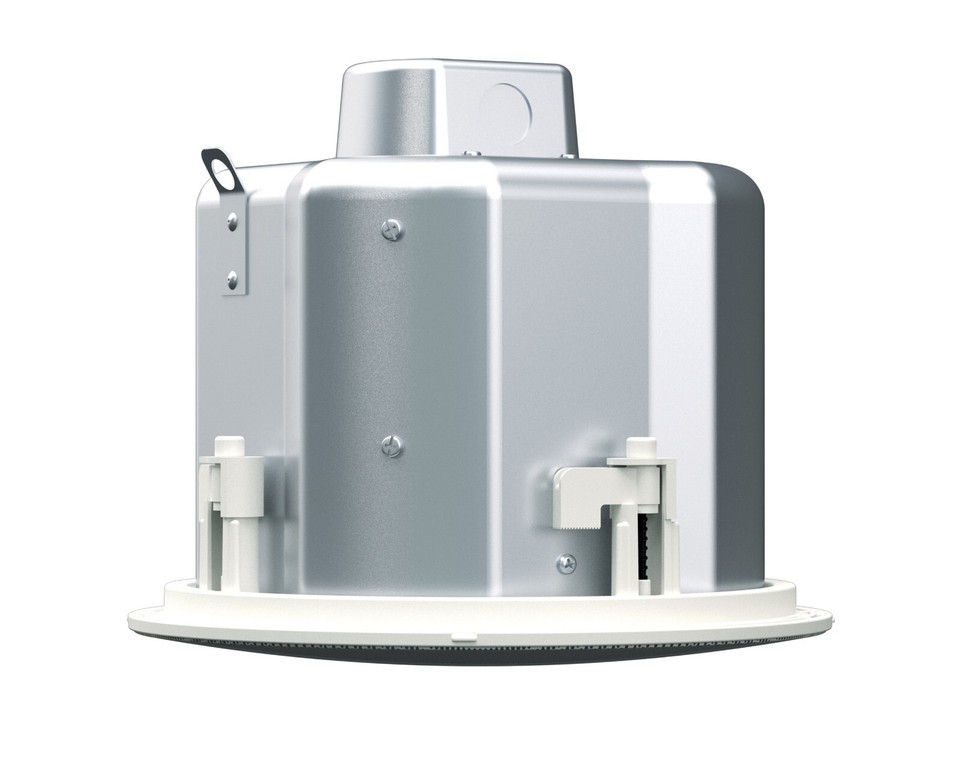

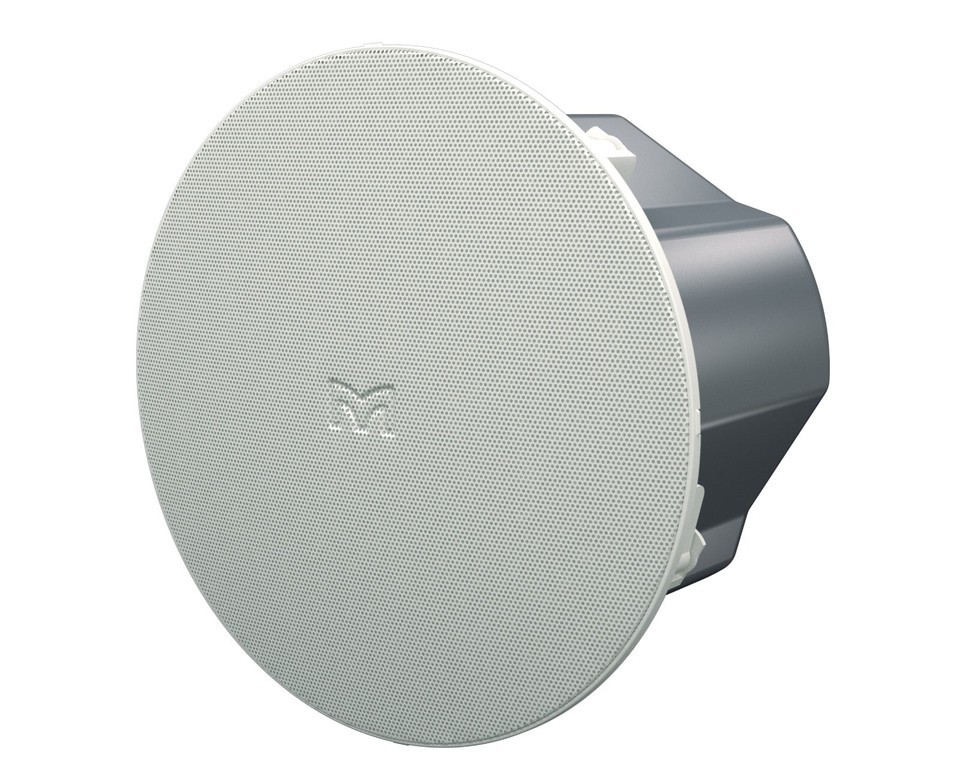

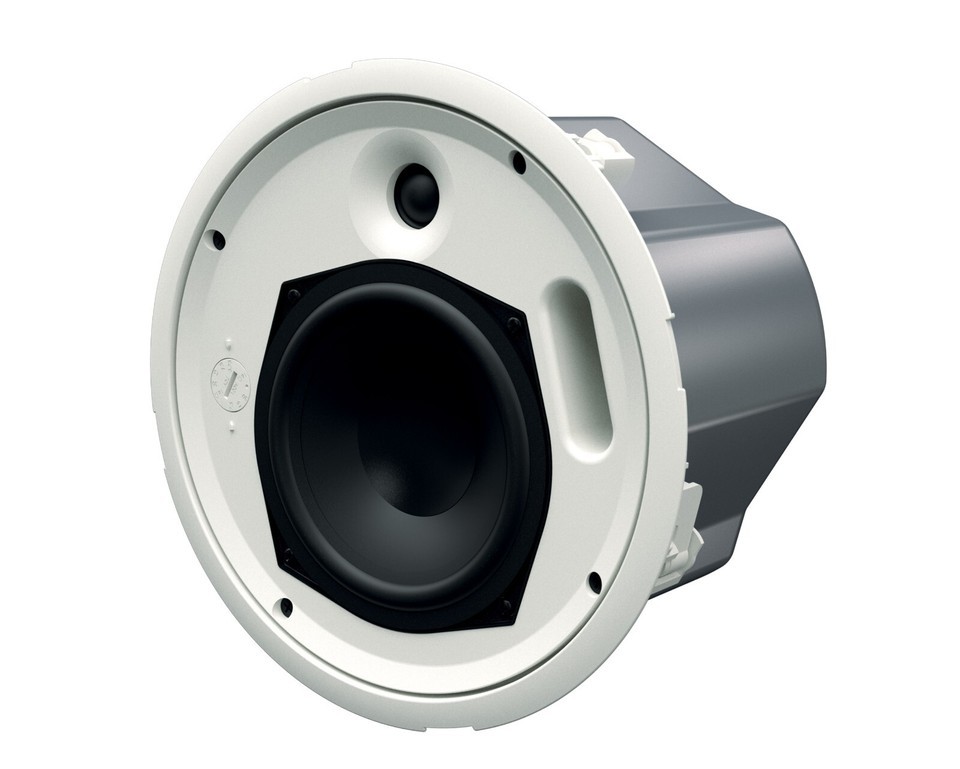

Martin Audio ACS-55T-W 5" Passive Two Way Ceiling Mount Speaker 200 Watts The ACS-55T brings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments ? from hotels and concourses to retail outlets, bars and restaurants. Comprising a 5.25? (135mm) LF driver and a 0.75? (19mm) silk-dome tweeter, the ACS-55T produces 113dB peak output at 1 meter and has a high-fidelity sonic character ideal for both music and speech reproduction. Its ported bass reflex design and back can with generous internal volume maximizes low frequency output and delivers strong bass that extends down to 62Hz. The wide 150 conical coverage of the ACS-55T reduces the number of speakers required for even coverage ? leading to a reduction in installation cost. It incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch accessible behind the powder-coated, perforated steel grille. The switch also provides for 16-ohm low impedance operation ? enabling four or more speakers to be driven in parallel from a single amplifier channel. For full-bandwidth protection, the low and high-frequency sections are individually protected against overload by auto-resetting thermal fuses. The grille is bezel-less for a clean look, its bayonet fitting is easy to remove without the use of tools and finished in white (RAL9016) to match ADORN on-wall loudspeakers and may also be painted to blend with any decor. Features: High performance two-way ceiling speaker 5.25? (135mm) LF driver and 0.75? (19mm) HF dome tweeter Wide 150 conical coverage pattern reduces speaker count required for even coverage 70V/100V multitap line transformer or 16 ohm low-impedance operation Low and high-frequency overload protection UL94V-0 rated baffle with zinc-plated steel back can Quick release, bezel-less grille Tile rails and C-ring included 5-year warranty Applications: Retail outlets Cafes, bars and restaurants Museums and Houses of Worship Hotels, casinos and concourses Transportation facilities Boardrooms and reception areas Specifications: TYPE: Compact, passive two-way ceiling speaker, ported bass reflex FREQUENCY RESPONSE (1): 98Hz-20kHz 3dB -10dB @ 62Hz DRIVERS : LF: 5.25? /1? high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis HF: 0.75? silk dome, neodymium motor RATED POWER (2): 50W AES, 200W peak RECOMMENDED AMPLIFIER: VIA2004 (for low-impedance operation) SENSITIVITY(4): 90dB / 1W(4V) / 1m MAXIMUM SPL (9): 113dB peak NOMINAL IMPEDANCE: 16? DISPERSION (-6DB): 150 conical up to 7kHz CROSSOVER: 3kHz passive (LF and HF auto-resetting fuses) TRANSFORMER TAPS: 70V: 30w / 15w / 7.5w / 3.75w 100V: 30w / 15w / 7.5w RECOMMENDED HIGH-PASS FILTER: 65Hz 24dB/oct ENCLOSURE: UL 94V-0 rated ABS baffle with steel back can FINISH: Baffle and grille: RAL9016 white Back can: zinc plated GRILLE: Perforated steel, powder-coated, bayonet fitting CONNECTORS: Ceramic connector (in and link) located behind fire-retardant steel cover ACCESSORIES (INCLUDED) : 2 tile rails C-ring backing plate Cut-out template DIMENSIONS: (OD) 245mm x (D) Back Can 192mm, (D) Inc. Grille 209mm (OD) 9.7in x (D) Back Can 7.55in, (D) Inc. Grille 8.23in HOLE CUT-OUT DIMENSION: 222mm (8.74?) diameter WEIGHT: 3kg (6.6lbs) Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping -Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- Customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - International Sales Clearance items, Custom Builds, Road Cases, DT12 items, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computer Cards, vacuum tubes, earbuds, harmonicas raw-frame speakers, turntable cartridges, fog fluid
