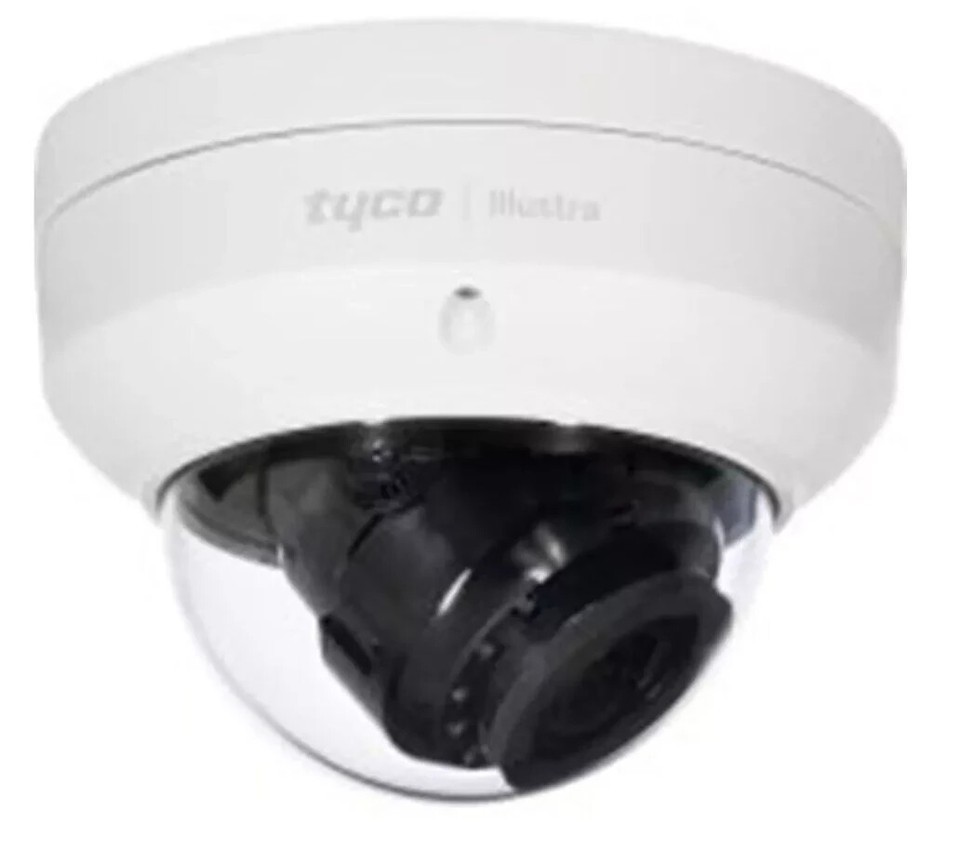

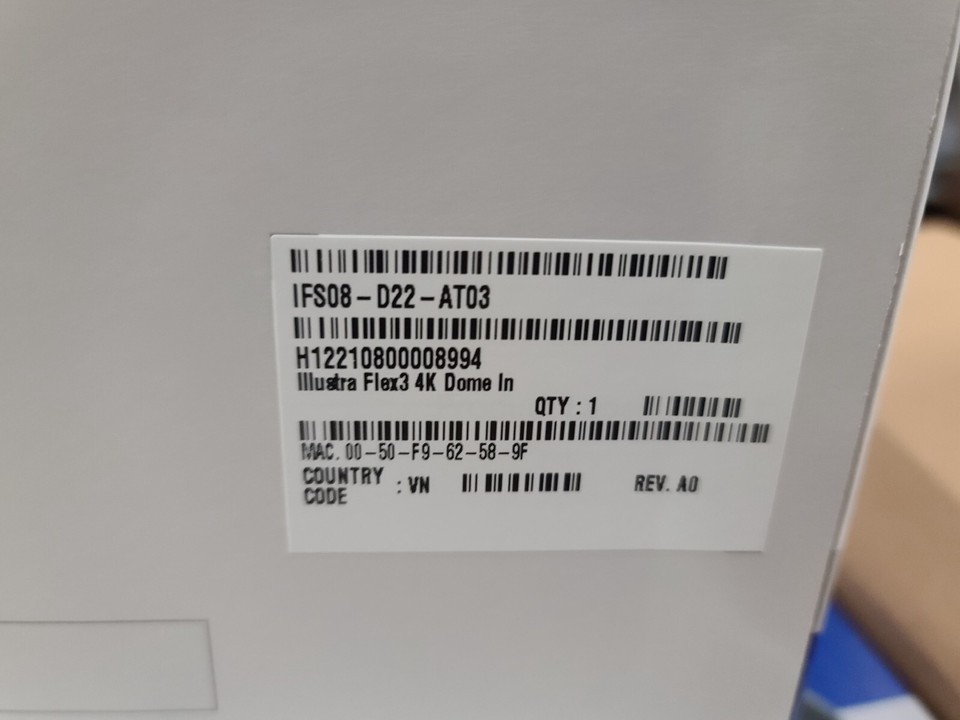

NEW Illustra IFS08-D22-AT03 8MP 4K Indoor Mini Dome Security Camera This listing is for one unit. Product Details The powerful Illustra Flex Mini-Domes are designed to offer a high-image quality, feature rich surveillance option for a wide range of applications. The increased amount of pixels per foot on the 8MP(4K) model improves image detail in wide areas such as loading docks and airport terminals. Deployments that strive for a combination of high-resolution and high-performance at a competitive price point, all while simplifying installation and configuration stand to benefit the most from the these Illustra Mini-Domes Specifications Operational - 8MP(4K) Video Compression - MJPEG, H.264, H.264 IntelliZip, H.265 and H.265 IntelliZip Resolution - 3840x2160/ 3264x1840/ 2688x1520/ 1920x1080/ 1664x936/ 1280x720/ 1024x576/ 960x544/ 816x464/ 640x360/ 480x272 Max. Framerate - H.265/H.264: Max. 60fps; MJPEG: Max. 20fps Smart Codec - IntelliZip Imaging Device - 1/1.8? 8.42MP CMOS Effective Pixels - 3840(H) 2160(V) Min. Illumination - Color: min 0.27 lux (1/30sec, 30IRE), BW: 0.027Lux Focal Length - 4.17 ~ 9.48mm Max. Aperture Ratio - F1.9(W) ~F2.8(T) Angular Field of View - H: 111.66(W)~ 46.69(T), V: 62.53(W)~26.36(T), D: 131.91(W)~53.21(T) Focus Control - Simple focus, (software controls: one-touch AF and manual control) Lens Type - Motorized varifocal, P-Iris Day Night - Auto Low/ Auto Mid(Default)/ Auto High/ Manual/ Forced Color/ Force B W Backlight Compensation - Exposure Weighting: Top, Bottom, Left, Right, Full, Centre, Spot Wide Dynamic Range - True WDR 120db Technologies Digital Noise Reduction - 2D 3DNR Signal to Noise Ratio (SNR) - 50db Digital Image Stabilization - No Motion Detection - 3ea, polygonal zones Privacy Masking - 9ea, rectangular zones Gain Control - Automatic Manual (3dB increments) White Balance - Automatic Wide, Automatic Normal (Default), Manual Lens Distortion Correction - Support Electronic Shutter Speed - Minimum 1/4s, Maximum 1/10,000s Video Rotation - Corridoor Mode, Mirror Flip Alarm I/O - Input 1ea (digit) / Output 1ea, IO Cable (IA-CBL-IO-F30 ) required Alarm Triggers - Motion detection, Tampering detection, Alarm input, Defocus detection Alarm Events - Alarm output, Onboard recording, Snapshot, Notification via e-mail, FTP upload, CIFS upload Audio In (w/ IO Cable) - Line in, IO Cable (IA-CBL-IO-F30 ) required Audio Out (w/ IO Cable) - Line out, IO Cable (IA-CBL-IO-F30 ) required Micro USB - WiFi Installation Support via Illustra Mobile Toolkit Pan / Tilt / Rotate Pan / Tilt / Rotate Range - 0 ?~350 ? / 0 ?~67 ? / 0 ?~355 ? Video Intelligence Analytics Standard - Tampering, Defocus / Motion Detection Advanced1 - Linger, Exit, Direction, Abandoned/Removed Objects, Dwell, Enter, Object Detection, Perimeter, Queue, Crowd Face Detection1 - Yes Tamper Detection - Scene Change Blur Detection - Yes Network Ethernet - RJ-45(10/100/1000BASE-T) Bitrate Control - H.264/H.265: CBR or VBR or CVBR Streaming - Multiple streaming (Up to 3 profiles) Audio Compression - G.711 alaw and ulaw selectable G.711 8KHz Protocol - TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP Security - TLS - RFC5246 v1.2, HTTPS (HTTP over TLS) - RFC2818, WS-Security, Certificate Management, Multi-Level Password Protection, IP Address/ Filtering, HTTPS Encryption, One-Click Security Hardening, User Access Log, Validate Complex Credentials, Disabling Unused Protocols, IEEE / 802.1x Including: PEAP, EAP-TLS, EAPoL Edge Storage - Micro SD/SDHC/SDXC 1slot 512GB Application Programming Interface - iAPI-3 ONVIF-Compliant - Profile S Memory - 1GB RAM, 512MB Flash Environmental Operating Temperature / Humidity - -20C to +50C (-4F ~ +122F)/ Less than 90% RH Storage Temperature / Humidity - -20C to +55C (-4F ~ +131F)/ Less than 90% RH Vandal Resistant - IK08 Electrical Input Voltage - 24 VAC (-20% ~ +30%, 47 ~ 63 Hz), PoE 802.3af (802.3at Type 1) Power Consumption - 24 VAC: Max 8.8W, PoE: Max 8.6W Mechanical Color / Material - White / Aluminum RAL Code - RAL9003 Product dimensions / weight - (O) 132 x (H) 98 mm (5.20 x 3.86 in) / 0.71kg (1.57 lbs) Regulatory Safety - UL62368-1; CAN/CSA-C22.2 No. 62368-1, BIS IS13252 Part 1:2010 Emissions - FCC Part 15 Class A; EN55032 Class A; AS/NZS CISPR 32 Class A; ICES-003/NMB-003 Class A Immunity - EN50130-4 Environment - RoHS/WEEE Item is NEW *Box Opened For Picture* Item comes exactly as pictured. If it is not in the picture, it does not come with the item unless stated in the description. You may not receive the exact unit pictured, but one in similar condition. Check compatibility with your system. We are not responsible for incompatibility or improper installation. 20% RESTOCKING FEES AND SHIPPING WILL BE CHARGED. IF ITEM IS FUNTIONAL OR INCOMPLETE. An Important Message Regarding USPS Tracking Numbers Due to high volume of shipments sent through USPS, Tracking numbers get recycled on occasion. This means, when you receive the notificaiton that your package has been shipped via USPS, and you try to track the status of the package, it may show your package was Delivered even though the label was just generated. Please don't panic, the solution to this issue is to wait until the Post Office scans the label, then the tracking information will update accordingly. Please let us know if you have any questions. Your feedback is extremely important to us! If you are satisfied with our service please take the time to give us positive feedback. We tremendously appreciate it! We strive for your complete satisfaction. Likewise, if you have any issues, please contact us first, and we promise we will do our best to satisfy your needs and solve the problem. If we resolve your problem, we kindly ask you to still leave us positive feedback. Your kindness will be extremely appreciated!
