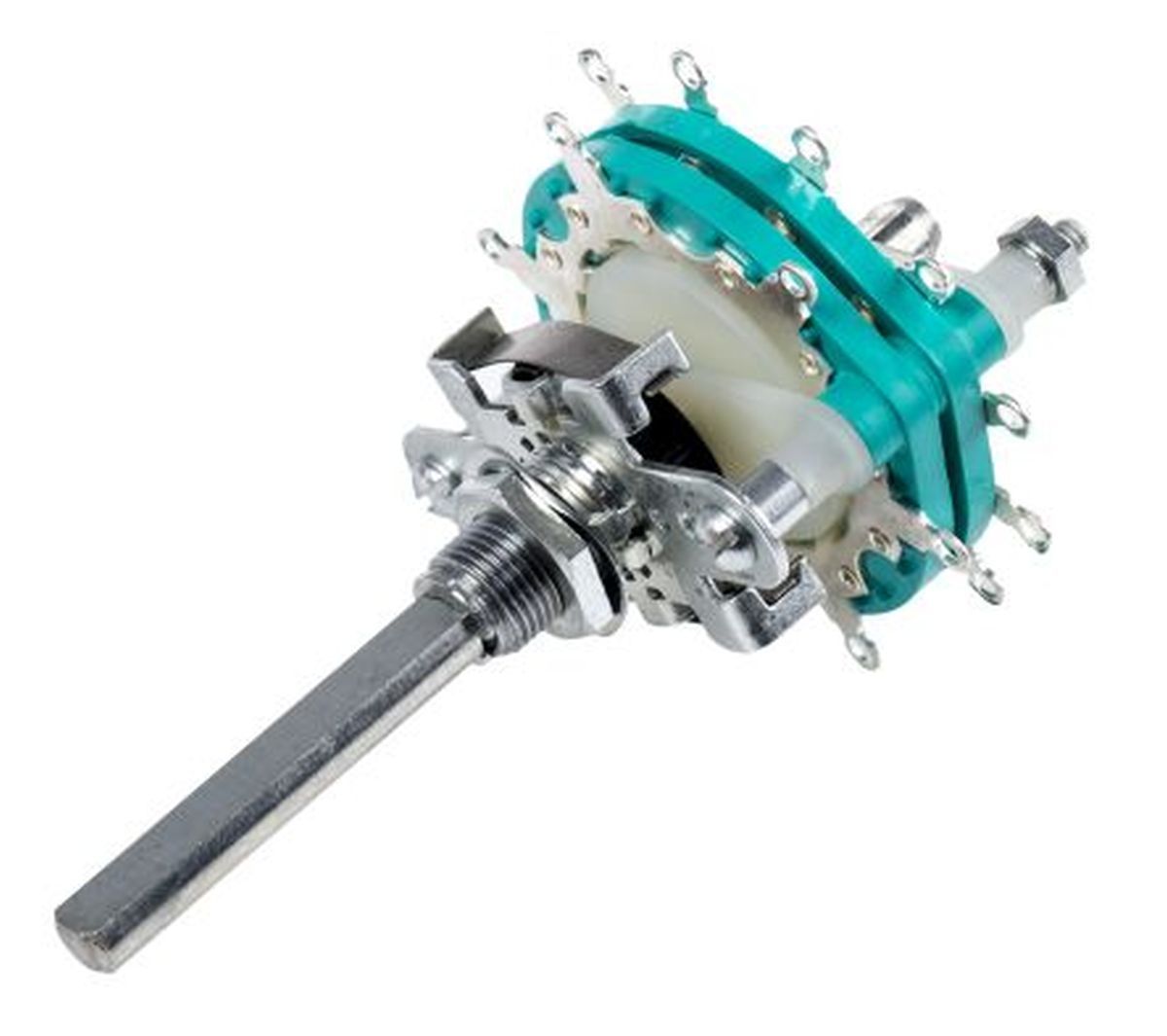

NSF Rotary Switch MU452273MSD1 12 Ways, 250 V AC, 30 V DC The description of this item has been automatically translated. If you have any questions, please feel free to contact us. GENERAL SPECIFICATIONS OF THE ROTATING SWITCH MSD: ? Maximum operation voltage: 250 VCA ? Contact classification with resistive / non -inductive load: 6 amps at 250 VCA (RMS) 10 amps at 30 V CC ? Test voltage: 2000 V CC for 1 minute ? Insulation resistance: greater than 105 megaohms (between adjacent contact or contact and frame) ? Contact resistance) ? Contact resistance) Less than 5 thousandiohms at 2.5 VCC 1 amperio ? Contact life: a minimum of 5000 cycles to current and nominal voltage The MSD is essentially heavy rotating switch of service that has a nominal power of 6 amps at 250 Vca, designed to handle major currents than those that are possible with the normal types of wafer switches with leaf clip. It is eminently suitable for use in a wide variety of electronic and domestic equipment. Developed by the NSF technical service to incorporate modern and technical materials that give the switch a very prolonged life with its full current classification. 1 Post 2 to 12 forms 2 post 2 to 6 forms 3 post 2 to 4 forms 4 post 2 or 3 Maximum switching forms by WAFER index mechanism: The type 'U' mechanism is used when one or two wafers, the type 'HD' for switches with two or three are required. For more than three wafers, see our technical service. The low friction mold and followers in the "U" type assembly ensure a soft and positive indexation action. The balanced pressure springs provide consistent and easily reproducible torque values that can be approached: light: no greater than 0.18 Nm (25 oz ins) Medium: greater than 0.14 Nm (20 oz ins) but less than 0.32 Nm (45 oz ins) heavy - contacts greater than 0.28 Nm (40 oz ins): copper, silver contacts of the rotor: Break -Beofore -Make Only Terminals: Lug Welding Insulation: Statter - Dialil Fiber Dialized Fthalate (DAP) - Nylon Fill Finish Finish: Ferrous Standard Hins, Non -ferrous pieces Clean Assembly Details: Imperial (Standard) Metric (alternative) Bush 3/8 "x 32 Tpi (Pifalo) 0.25 "Diameter 6 mm Diameter Nut 0.525" A / F 14 mm A / F The alternative is optional in each case. Unless otherwise specified, each switch is supplied with a Wavey safety washer. Panel and spindle stam Two stators interconnected by a rotor. One to six multiple position contacts are installed in one stator, while the other has up to 12 individual contacts. The rotor is equipped with up to 4 contacts to give the amount of poles and forms required. . . Due to Recent Problems with Mailing to the UK. All UK Buyers Should Contact Us Before Buying. Thank you. We are sorry for this problem not coming from us. GENERAL SPECIFICATIONS OF THE ROTATING SWITCH MSD: ? Maximum operation voltage: 250 VCA ? Contact classification with resistive / non -inductive load: 6 amps at 250 VCA (RMS) 10 amps at 30 V CC ? Test voltage: 2000 V CC for 1 minute ? Insulation resistance: greater than 105 megaohms (between adjacent contact or contact and frame) ? Contact resistance) ? Contact resistance) Less than 5 thousandiohms at 2.5 VCC 1 amperio ? Contact life: a minimum of 5000 cycles to current and nominal voltage The MSD is essentially heavy rotating switch of service that has a nominal power of 6 amps at 250 Vca, designed to handle major currents than those that are possible with the normal types of wafer switches with leaf clip. It is eminently suitable for use in a wide variety of electronic and domestic equip Recommended products Provided by Military Specifications Grayhill Multi Deck Rotary Switch 10 Positions View product Philips 6800UF 30 DC Screw Terminal Electrolytic Capacitor View product Icel Polyester Capacitor 12 uF 400 V View product 2Pc X TEA5170 Switch Mode Power Supply 12-64Khz Dip8 Intervideo View product Polyester Capacitor 104 - 100N - 0.1 - 250 VOLT X 30 Pcs View product Micro Switch 250VAC-15A Lot A View product Mepco 300Uf 200 Dc Screw Terminal Electrolytic Capacitor View product Tea2164N - TEA2164 Switch Mode Power Supply Ic Intervideo View product
