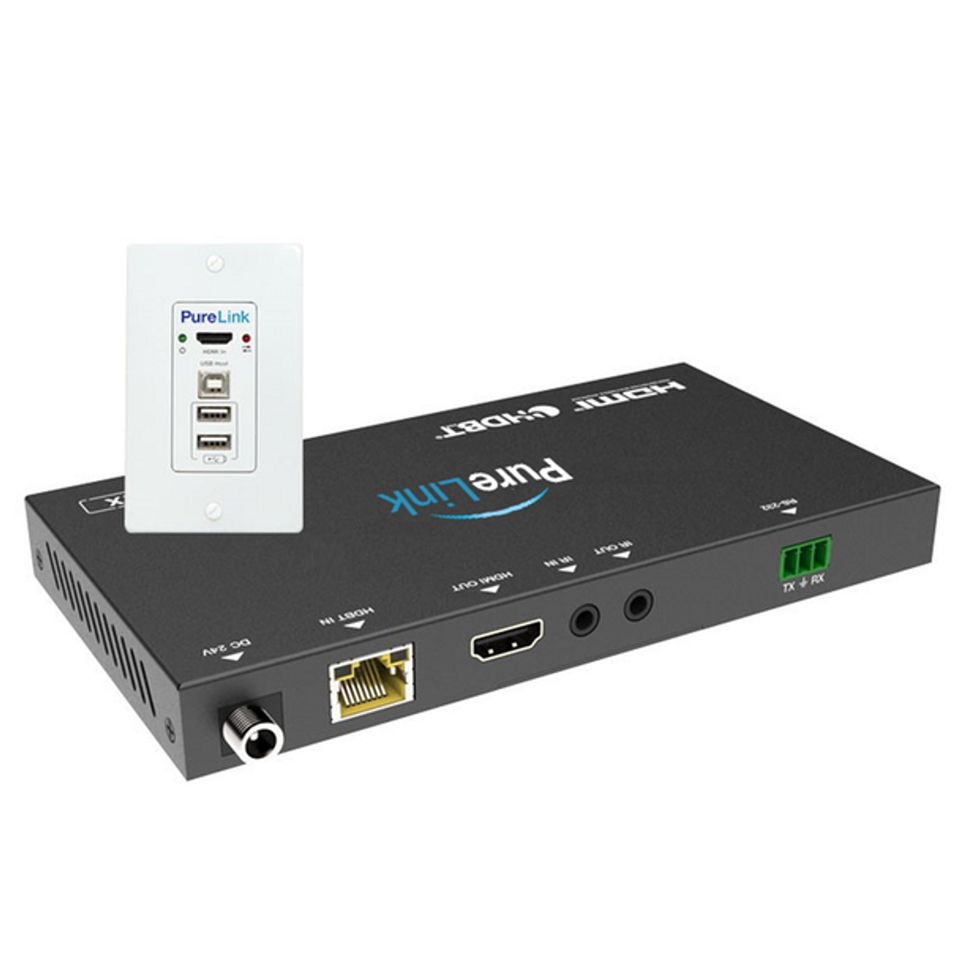

PureLink HW-100 TX/RX 4K USB 2.0 Wall Plate Extender Switching System This PureLink HW-100 TX/RX 4K USB 2.0 Wall Plate Extender Switching System provides up to 130 feet of 4K60 (4:2:0) or 4K30 4:4:4 and USB 1.1/2.0. The HW-100 can also extend 1080P60 4:4:4 up to 230 feet (70 meters). There are two USB-A ports on the transmitter that provide charging only functionality. The wall plate transmitter is powered by the receiver (PoC). Features: Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a. Support 18Gbps video bandwidth. Video resolution up to 4K@60Hz 4:4:4. HDBaseT output can extend video transmission distance up to 328ft @ 4K60 (100 meters) / via a single CAT6/6a/7 cable. Support HDR10 and HDR10+. Audio formats support Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High. Resolution Audio, 5.1; PCM 2-8Ch. Support HDMI and USB-C input. US one-gang enclosure for Decora-style wall plate openings. Input signal selection supports automatic mode and manual mode. USB2.0 extension with Receiver. Support POE function (only from Receiver to Transmitter). Local HDMI priority input on RX. Specifications: Supported Distance: up to 131ft @ 4K, up to 230ft @ 1080p Supported Resolutions: up to 4K@60Hz (4:4:4) HDCP Compliance: 2.2 Compliance: HDMI 2.0b, DisplayPort 1.2 Video Bandwidth: 18 Gbps HDR Support: HDR, HDR10+ Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 Color Depth: 8-bit 10-bit 12-bit Supported HDMI Audio Formats: Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch ESD Protection: 8kV (Air-gap discharge) 4kV (Contact discharge) Main Power: DC 24V Power Consumption: Wall plate: 9W (Max), Receiver: 11W (Max) Power Supply: TX Powered by RX PoC Operating Temperature: 32 ~ 104 F (0 to 40 C) Storage Temperature: - 4 ~ -76 F (-20 to -60 C) Relative Humidity: 20% ~ 90% RH non-condensing
