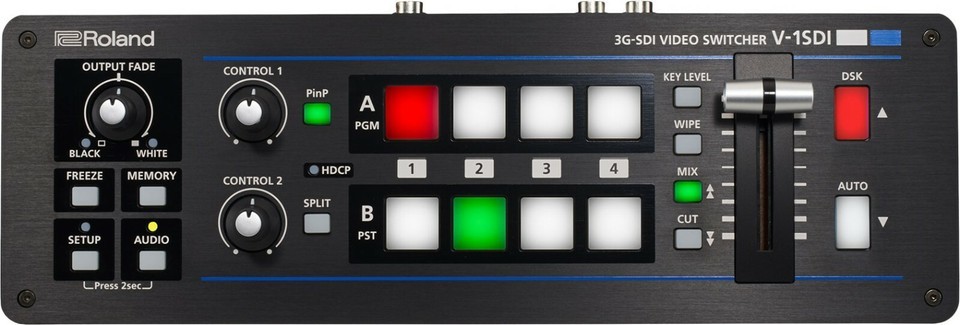

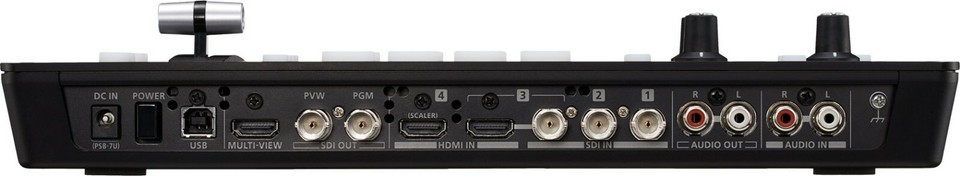

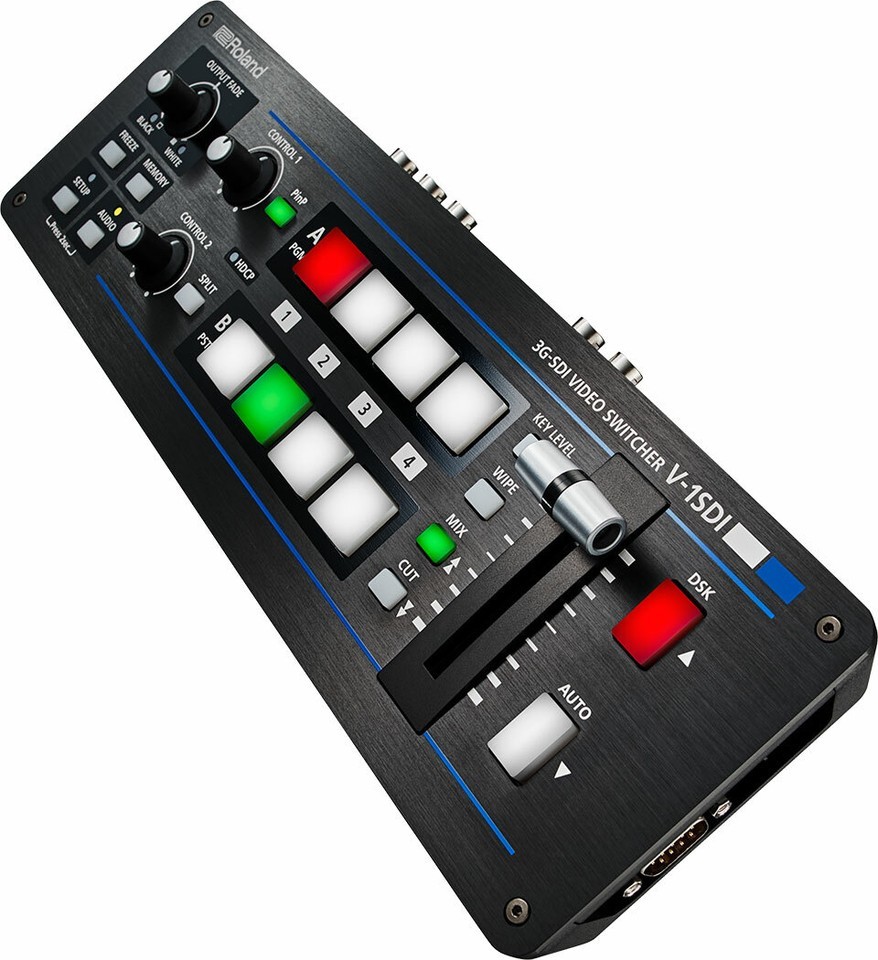

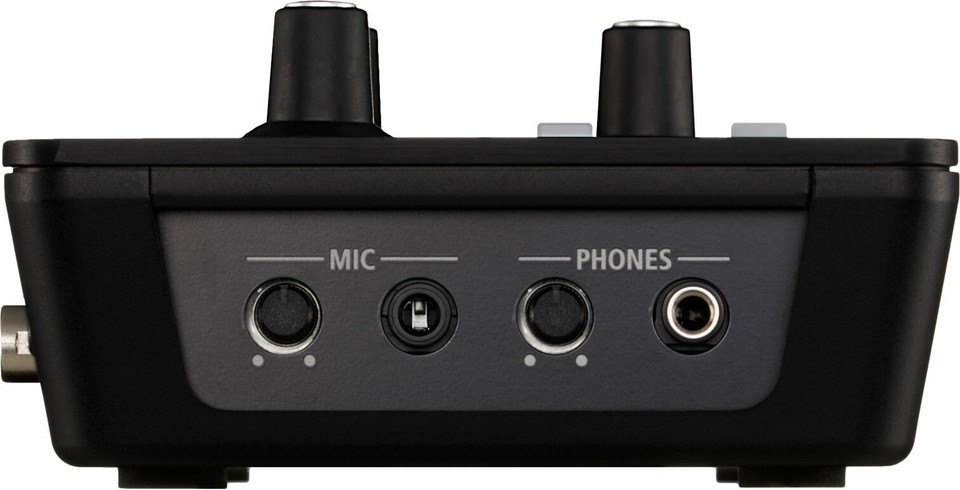

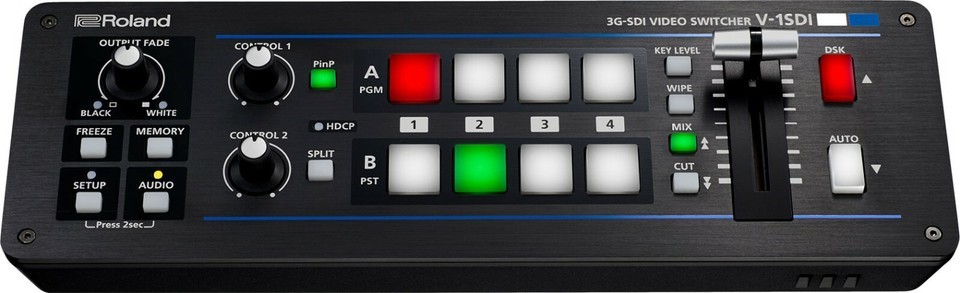

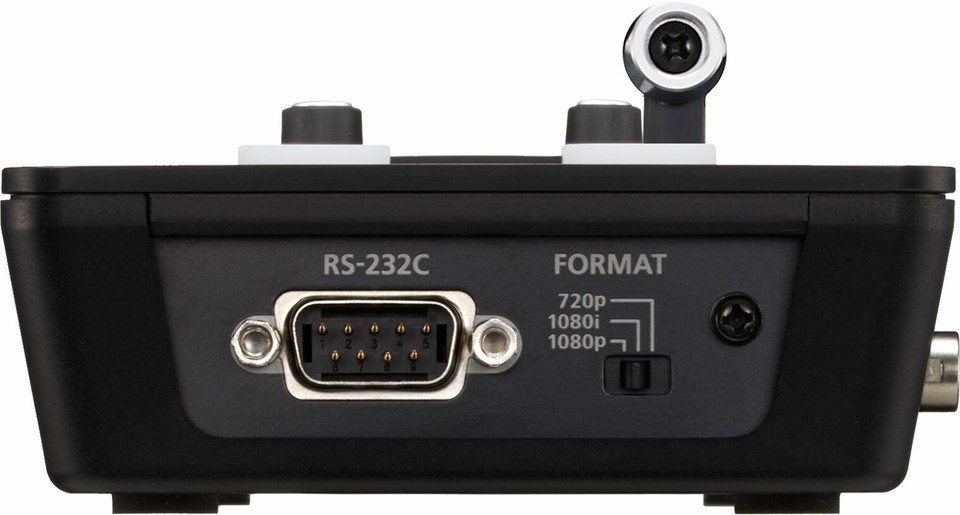

Roland V-1SDI 3G SDI Video Camera Switcher Mixer for HDMI Cameras phones PCs Ships Free! V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players. Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons. With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources. Applications WEBCASTING / VIDEOGRAPHY Webcasters and videographers with SDI cameras can create professional quality content simply and effectively with the V-1SDI. INSTALLATION The V-1SDI?s support of SDI for long-distance camera connections as well as RS-232 for control from system controllers make it ideal for fixed installations. LIVE EVENTS The V-1SDI?s compact and portable size makes it easy to support live event switching no matter the size or location of the venue. INPUTS AND OUTPUTS INPUTS The V-1SDI has two dedicated 3G SDI inputs, a third channel input that supports 3G SDI or HDMI and a fourth channel HDMI input that also includes scaling. This makes the V-1SDI ideal in a variety of configurations for both an all camera applications and applications that mix cameras, video sources and computer data sources. Inputs 1 to 3 of the V-1SDI support 1080p/1080i/720p video resolutions with Input 4?s scaler supporting a wider range of video and VESA resolutions. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. HDCP is supported* for input of copy protected content from devices such as Blu-ray disc players. * Video is only output from HDMI when HDCP is enabled. SDI outputs are disabled when HDCP is enabled. OUTPUTS The V-1SDI has two 3G SDI Outputs and one HDMI output. SDI PVW and MULTI-VIEW outputs are assignable from Program, Multi-view Preview or Full Frame Preview for flexibility in different applications where output display devices support either SDI or HDMI inputs. QUAD INPUT MULTI-VIEWER The four-way multi-view preview screen shows all four input sources on a single display for confident monitoring. A red border shows the video currently being output and a green one indicates the video to be output next. It also includes audio metering for all input sources and the main output. COMPOSITION EFFECTS The V-1SDI includes DSK (Downstream Keying), Picture-in-Picture (PinP), Split and Quad composting effects ideal for creating news style broadcasts and corporate presentation content. The DSK function is great for overlaying titles, song lyrics or logos onto incoming video sources that can be switched in the background while text or images remain displayed. The DSK supports both Luminance Keying (Black / White) and Chroma Keying (Blue / Green). AUDIO MIXING Included is a 14 channel digital audio mixer. The V-1SDI can mix 5 stereo audio inputs from the SDI or HDMI ports, the stereo line level input and a mic level input. Every audio input is equipped with a DELAY function* to synchronize the video and the audio as well as EQ for adjustment of sound quality. Audio output is equipped with a MASTERING function to improve the sound of the final audio mix. Audio follow function enables the audio to transition along with the video. The final audio mix is both embedded in the SDI and HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device. * The maximum delay time is 500ms. REMOTE CONTROL Remote control is possible with the V-1SDI RCS dedicated computer software for Mac and PC connected via a USB cable. The application offers a detailed view of the connected V-1SDI and can be used to switch video, mix audio or change settings. V-1SDI RCS Ver.1.5 supports sending a Still Image to the V-1SDI.* The STILL IMAGE EDITOR allows both images and text to be edited making it ideal for easy, on-demand creation of subtitles and graphics. For integration with A/V control systems, the V-1SDI is equipped with a serial connection for control by industry standard RS-232 serial controls. * The Still-image data is deleted, once the power is turned off. Features Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc. Easy to operate with hardware controls Compact size PSB-7U, provided AC adaptor or Battery operation Battery information Supports up to Full HD 1080p 3 x 3G-SDI and 2 x HDMI*1 inputs 2 x 3G-SDI and 1 x HDMI*1 output Input 4?s scaler now supports a wider range of video and VESA resolutions.*1 *2 Quad input multi-viewer with source labelling and audio metering Composition effects including DSK (Downstream Keyer), picture-in-picture etc. Capturing a still Image from Input Video on channel 4*3 [Ver.1.5] Full 14 channel audio mixer included Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection Sending a still image to the V-1SDI by V-1SDI RCS*3 [Ver.1.5] Specifications VIDEO Video Processing 4:2:2 (Y/Pb/Pr), 8-bit Input Connectors SDI INPUT 1--3: BNC x 3 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M HDMI INPUT 3--4: Type A (19 pins) x 2 * HDCP Supported * INPUT 3: SDI or HDMI selected. Output Connectors SDI OUT PGM: BNC x 1 SDI OUT PVW: BNC x 1 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M HDMI OUT MULTI-VIEW: Type A (19 pins) x 1 * HDCP Supported Input Formats SDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M HDMI INPUT 3 720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p) 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p) * The input interlaced video signal is converted to progressive video signal by internal processing. * The video signal frame rate can be selected at the SETUP menu (59.94 or 50). HDMI INPUT 4 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz) WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz) FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz) UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz) * The refresh rate is the maximum value of each resolution. * Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60 Hz: Reduced blanking. * The input interlaced video signal is converted to progressive video signal by internal processing. * The video signal frame rate can be selected at the SETUP menu (59.94 or 50). Output formats SDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M HDMI OUT MULTI-VIEW 720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p) 1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i) 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p) * The video signal frame rate can be selected at the SETUP menu (59.94 or 50). Video Effects Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types) Composition: PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key) AUDIO Audio Processing Sampling rate: 24 bits/48 kHz Audio Formats SDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M HDMI: Linear PCM, 24 bits/48 kHz, 2ch Input Connectors Digital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2 Analog: AUDIO IN (RCA phono type) MIC (Stereo mini type, plug-in power supported) Output Connectors Digital: SDI OUT PGM: BNC x 1 SMPTE 299M SDI OUT PVW: BNC x 1 SMPTE 299M HDMI OUT MULTI-VIEW: Type A (19 pins) x 1 Analog: AUDIO OUT (RCA phono type) PHONES (Stereo mini type) Input Level AUDIO IN: -10 dBu (Maximum: +8 dBu) MIC: -41-- -13 dBu (Maximum: -1 dBu) Input Impedance AUDIO IN: 15 k ohms MIC: 10 k ohms Output Level AUDIO OUT: -10 dBu (Maximum: +8 dBu) PHONES: 92 mW + 92 mW (32 ohms) Output Impedance AUDIO OUT: 1 k ohm PHONES: 10 ohms Audio Effects EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect OTHERS Other Connectors USB: B Type (for remote control from PC) RS-232: DB-9 type Other Functions MEMORY (8 types) FREEZE (input video captured) OUTPUT FADE (Audio, Video: WHITE or BLACK) Power Supply AC Adaptor Current Draw 2.1 A Power Consumption 25 W Operation Temperature +0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit Dimensions 313 (W) x 108 (D) x 59 (H) mm 12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches Weight (excluding AC adaptor) 1.2 kg 2 lbs 10-2/5 oz Accessories Owner's manual AC adaptor Power cord Cord hook Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping --Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
