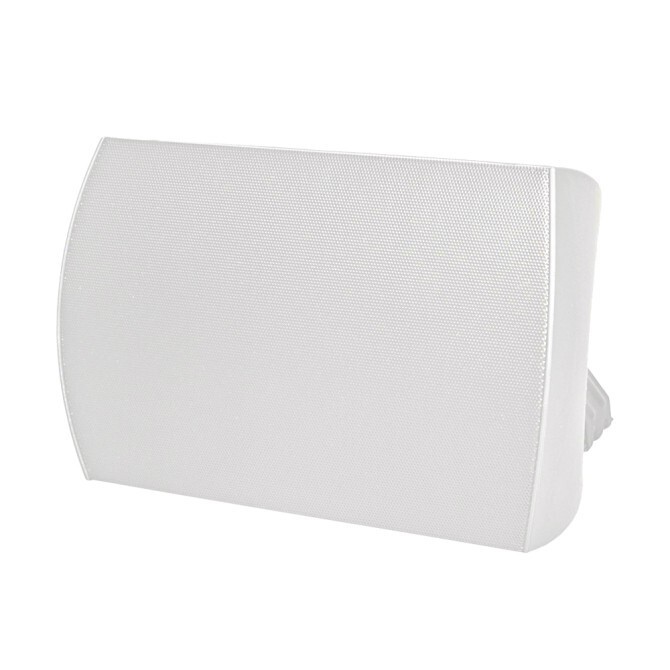

SoundTube SM82-EZ-II-WH Two Way 8" Surface Mount Speaker for Music Paging The SM82-EZ-II is an economical solution for integrators who need a surface-mount indoor or outdoor speaker option for music and paging applications. SM82-EZ-II incorporates a dedicated 8-inch polypropylene woofer and an offset 1-inch soft dome tweeter with waveguide to deliver superb intelligibility for background to foreground music and messaging (up to 106.0 dB max. SPL). SoundTube's proprietary BroadBeam Ring? technology in all models ensures high intelligibility, even well off-axis. The SM82-EZ-II uses a 64-watt low-insertion loss transformer and a six-position tap switch with a transformer bypass position. Enclosures for the SM52-EZ are ported, with port plugs included for outdoor use; grilles and mounting hardware are powder coated aluminum. Mounting for the SM82-EZ-II includes a proprietary, tool-free, low-profile Stealth? bracket with a direct drive cam-wedge for stable and precise aiming up to 90 in one direction. Inputs are made via ceramic terminal strips, making these speakers suitable for European voice evacuation systems. A safety cable, wall mount bracket, conduit connector and port hole plug are all included. Specifications: Color: White UPC: 748252172075 Manufacturer: SoundTube Manufacturer's Category: SM-EZ Economical Surface Mount Height: 18 in / 457.2 mm Width/Diameter: 11.5 in / 292.1 mm Shipping Weight: 17.65 lbs / 8 kg Carton Height: 15 in / 381 mm Carton Length: 21 in / 533.4 mm Carton Width: 16.75 in / 425.45 mm Certifications: CE, IP65, RoHS, UL1480A Enclosure Properties: Polystyrene, Ported Included Accessories: Back Cover, Mounting Hardware, Port Plug, Safety Cable, Wire Gland Optional Accessories: White Grille (GRL-SM82-WH)|White Weatherboot (WEATHERBOOT-S-WH)|Port Plug (AC-SM8-PP) Source Inputs: 4 Pin Ceramic Terminal TAA Compliant (Trade America): No BAA Compliant (Made in USA): No Coverage Angle (6dB @ 2kHz): 110 Crossover Frequency: 2.5 kHz Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz): 5.2 and 12.0 Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz): 6.2dB and 10.8dB Frequency Response ( 10 dB): 38 Hz - 22 kHz Frequency Response ( 3 dB): 50 Hz - 20 kHz Grille Properties: Aluminum, Powder-Coated Low Pass Crossover: 12 dB per octave 2nd order Max. Continuous Power RMS: 75W Max. Program Power: 150 W Minimum Impedance (? Ohms): 8 ? Mounting Depth: 9.88 in / 251 mm Network Type: High Pass: 12 dB per octave 2nd order Nominal Impedance (? Ohms): 8 ? Tweeter Driver: 1" Soft Dome Woofer Driver: 8" Polypropylene Sensitivity dB @ 1W/1M: 87 dB Sensitivity dB @ 2.83V/1M: 87 dB Tap Selector: Rotary Switch Transformer Options: 25 / 70.7 / 100 V, 8 Ohm direct Transformer Taps Max. Setting (25V/70.7V/100V): 8W/64W/64W Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping -Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- Customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - International Sales Clearance items, Custom Builds, Road Cases, DT12 items, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computer Cards, vacuum tubes, earbuds, harmonicas raw-frame speakers, turntable cartridges, fog fluid
