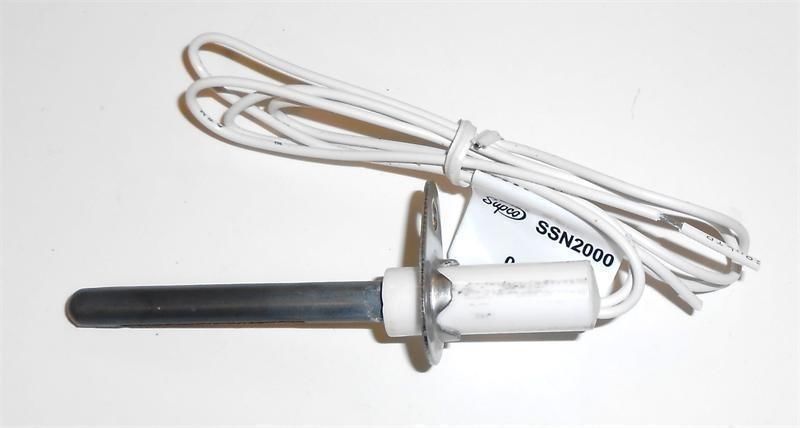

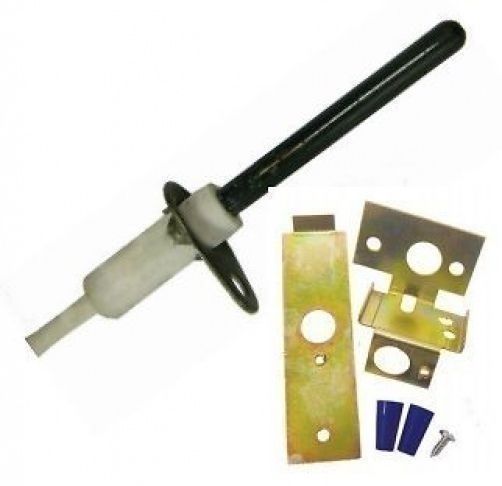

SSN2000 UNIVERSAL IGNITER Economic design CSA approved Replaces over 100 igniters Life rated to 50,000 cycles Silicon Nitride technology for strong, durable operation and performance Easy installation: kits include igniter, mounting brackets, hardware, instructions cross reference Universal replacements, reduces SKU?s Replaces hundreds of OEM competitors igniters Longer igniter life (non-porous construction) Low energy consumption uses half the power of Silicon Carbide igniters Superior gas lighting ability, faster time to temperature response than Silicon Carbide igniters No need for power supply module 1 year warranty Applications (Various types of gas fired equipment) Furnaces Boilers Unit Heaters Water Heaters Pool Heaters Note: Silicon Nitride HSI igniters cannot be used in direct sense applications Specifications Operating Voltage 120 VAC (+/-10-15%) Time to 2102F (1150C) 17 seconds @ 120 VAC Steady Temperature 2156F-2426F (1180C-1330C) @ 120 VAC Cold Resistance 15-30 Ohms @ 77F (25C) Steady Current 1.3 Amps (+/-0.3 Amps @ 120 VAC) High Temperature Wire Leads 20 AWG UL10362 482F Life Cycles 50,000 SSN2000 Cross References OEM OEM P/N American Appliance 217B American Road Equip. 201W Arcoaire 1380680 1096048 Armstrong 38322B001 Carlin 871975 Carrier LH33ZS001A LH33ZS002 Claire Brothers C238 C242 Coleman/Evcon 1474-0511 1474-051 Comfortmaker 1096048 DMO/Olsen ECR Ind 20834 Dornback 271W Ducane 20015201 Enerco Tech 10399 Goodman/Janitrol 10401009 b14010185 HB Smith 50018 Heil 1096048 Hupp Ind. 9050 ICP 1009604 1096048 Integra 6905332 3260618 Igniters Direct HSIURK120V LB White Co 120-07549 Majestic 75-92-104 75-92-105 Mars 67930 67931 67932 Metzger 201N 201W Mor Flo 3200618 3200618 Nordyne 903110 105141000 632-0880 902661 902694 632-0770 Norton 201 201D 201J 201K 201L 201M 201N 201R 201W 201Y 271 271D 271M 271N 271NM 271P 271W 271Y Perfection Swank 108803-G1 Raypack 600915 Rheem 62-22441-01 62-22668-93 62-22868-82 Roberts Gordon 90436600 90434300 Robertshaw/Uniline 41-402 41-403 41-404 41-405 41-406 41-407 41-408 41-409 41-410 41-411 41-412 41-413 41-414 Snyder General 1380654 1380672 1380680 Superior Fireplace 94851 Tempstar 1096048 1148245 Trane 3400339P01 B340039P01 B144676P01 B144676P02 IGN21 IGN26 IGN30 IGN34 IGN23 Viessmann 9302-094 Wayne Home Equipment 62821-001 62821-002 Weil McLain 511-330-139 511-330-193 511-330-190 White LB Co 120-07549 White Rodgers 21D64-2 767A-301 767A-303 767A-306 767A-310 767A-311 767A-350 767A-353 767A-354 767A-357 767A-361 767A-364 767A-365 767A-366 767A-370 767A-371 767A-372 767A-373 767A-374 767A-375 767A-376 767A-377 767A-382 767A-383 767A-384 F767-A357 F767-A361 F767-A365 F767-A366 Williamson 9050 York 025-27766-000 025-27774-000 025-29043-000 025-29050-000 025-32625-000 025-32626-000 025-33241-000 373-05342-700 473-12509-001
