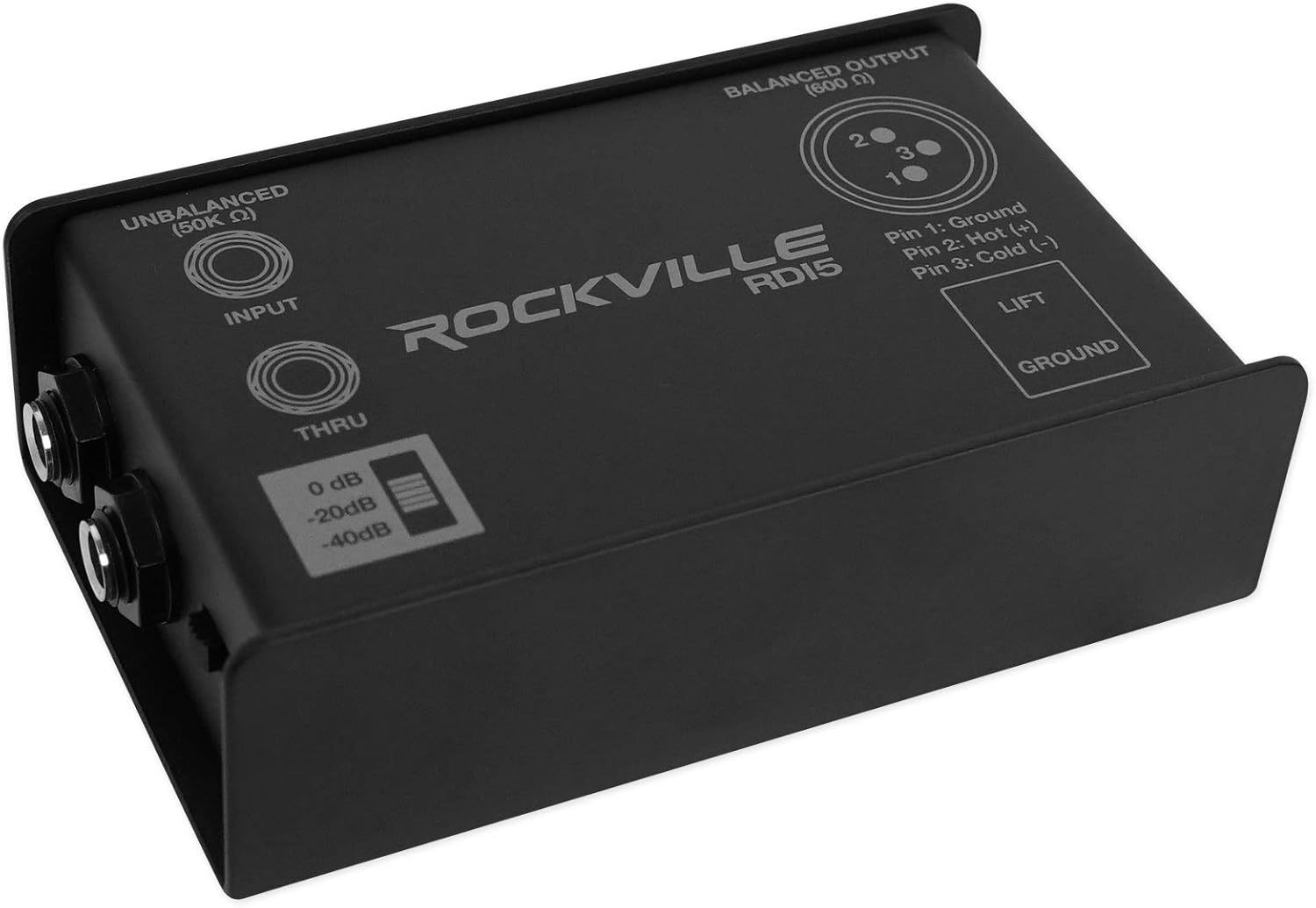

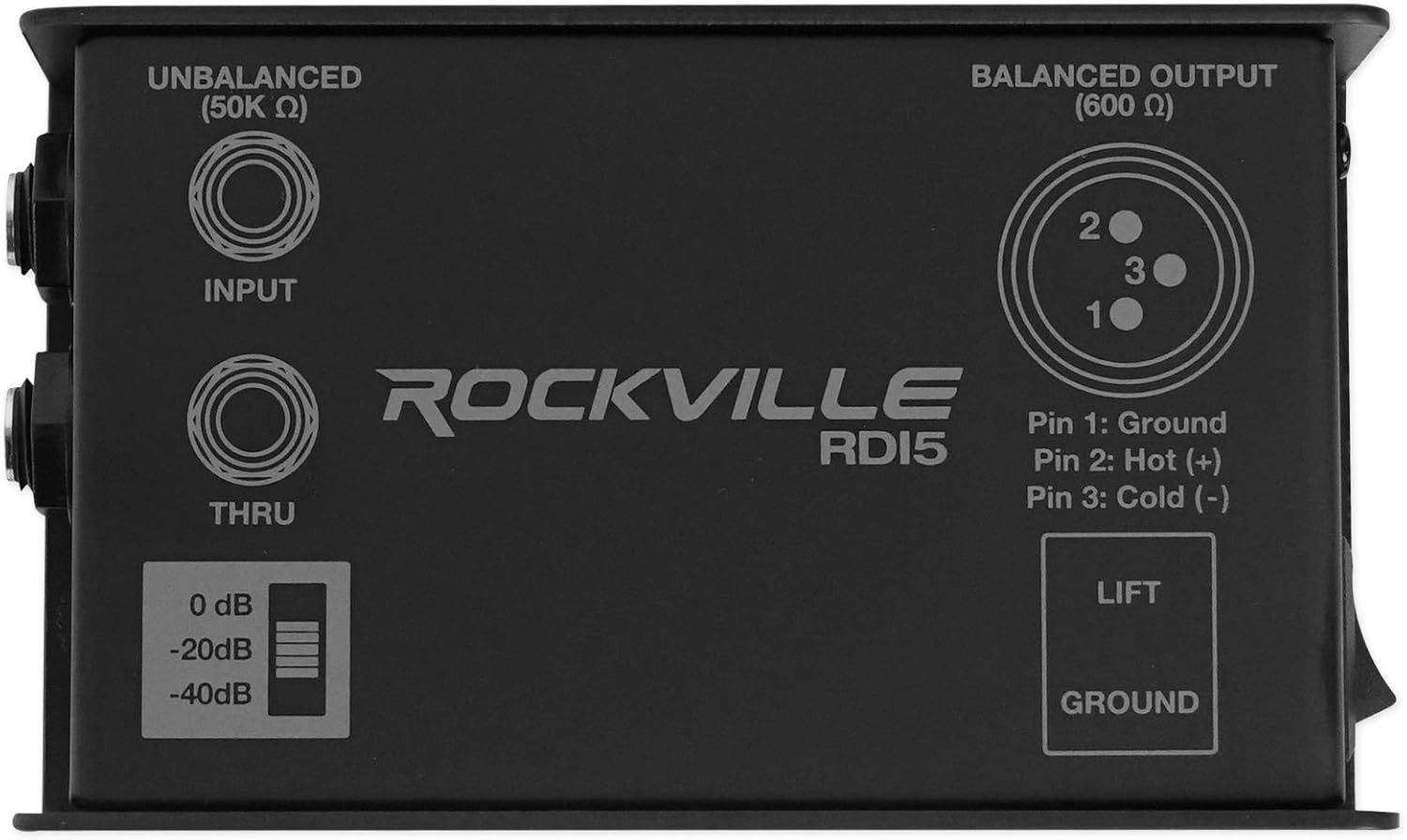

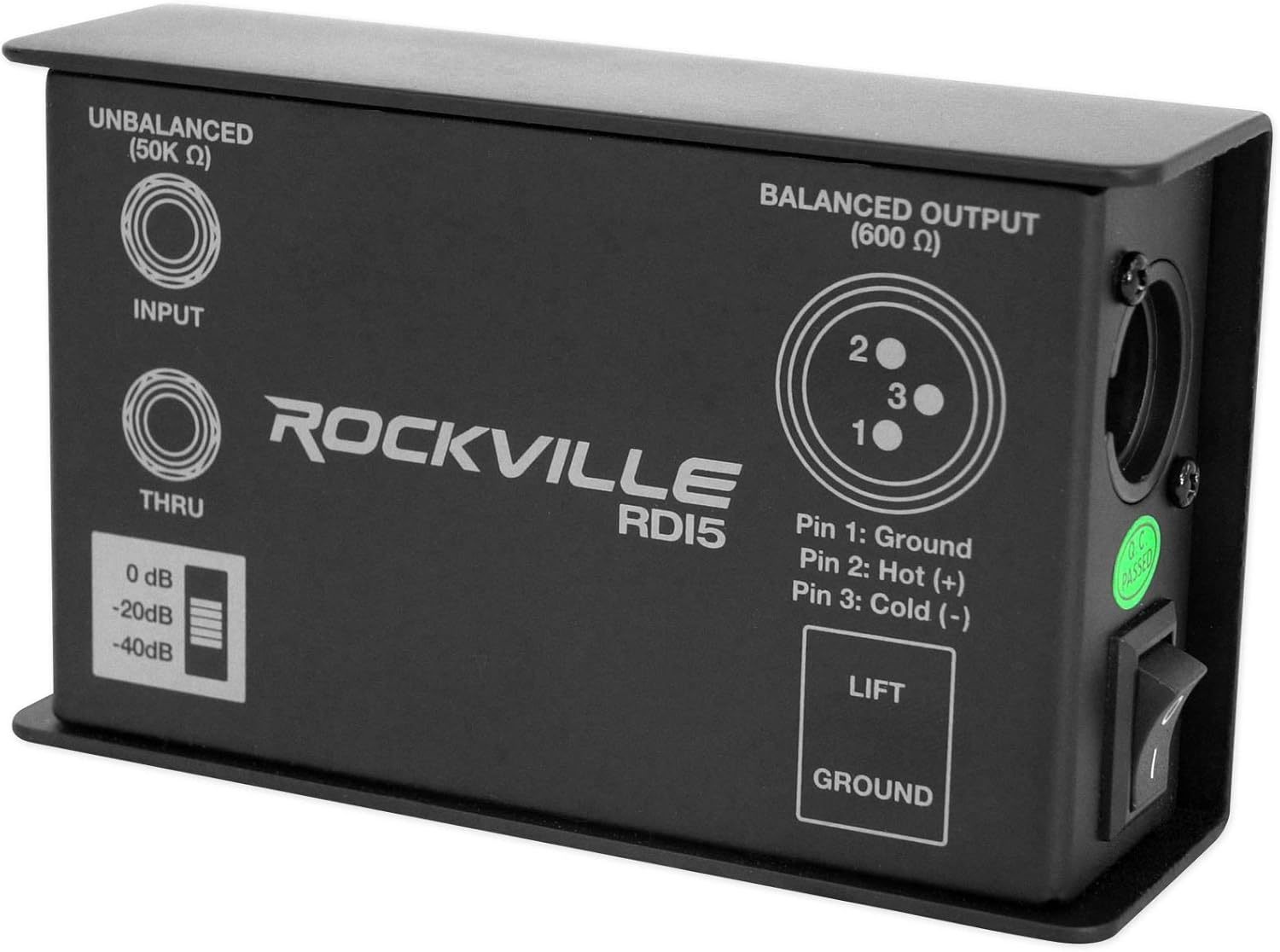

The Rockville Rdi5 Di Box Converts Guitar Or Instrument Signal To Balanced Line Product Details What makes ours better: Larger transformer deliver true 600 ohm output Thick steel chassis for reliable performance 50K ohm parallel link jack enables you to connect the output from the RDI5 directly to power amplifiers without a separate pre-amplifier Matches the signal level and impedance with unity gain, with no adverse effects on the source signal Some Common Applications: Connect your electric guitar or bass to a mixer or recording interface Connect your keyboards directly to a mixer or recording interface Convert a DJ mixer that is unbalanced to a balanced signal Allows you to feed effects directly to your mixer. The RDI5 has the capability to accept speaker level inputs from a power amplifier?s output. This allows eq and effects signals to be fed directly to the console. Features: Rockville RDI5 Passive DI Box - Converts Guitar/Instrument or other Signal to Balanced Line Level. Switchable input attenuation. 0dB for electric guitar and bass pickups. -20dB for line level signals, such as keyboards and cd players. -40dB for speaker feeds. Input Connectors: 1/4" TRS Jack connectors. Output Connector: XLR Connector. 50K ohm instrument input. 50K ohm parallel link jack. Matches the signal level and impedance with unity gain, with no adverse effects on the source signal. 600 Ohm XLR output jack - enables you to send a balanced signal to a mixer. We use a transformer that is 2-3 times larger than most other ones on the market to give you true 600 ohm output. The 50K ohm parallel link jack output enables you to connect the output from the RDI5 directly to power amplifiers without a separate pre-amplifier. Switchable ground lift to help eliminate hum caused by ground loops. Thick steel Chassis is sturdy and strong. Frequency Response: 10 Hz ? 50KHz@ +4dB. Dimensions: 5.04? x 2.95? x 1.57?. Weight: 1.33 Lbs What makes ours better: Larger transformer deliver true 600 ohm output. Thick steel chassis for reliable performance. 50K ohm parallel link jack enables you to connect the output from the RDI5 directly to power amplifiers without a separate pre-amplifier. Matches the signal level and impedance with unity gain, with no adverse effects on the source signal. Some Common Applications:. Connect your electric guitar or bass to a mixer or recording interface. Connect your keyboards directly to a mixer or recording interface. Convert a DJ mixer that is unbalanced to a balanced signal. Allows you to feed effects directly to your mixer. The RDI5 has the capability to accept speaker level inputs from a power amplifier?s output. This allows eq and effects signals to be fed directly to the console. Payment We accept PayPal and credit cards via PayPal. Taxes - US We collect sales tax, as required by law. Shipping We make every effort of shipping within 3 business day of payment clearing. The estimated delivery time is 2 - 5 business days from the shipping date. Policies If you do need to return your item, please contact us via email (you will receive an email when your product ships with additional details - Subject: Important information about your purchase). You will then be provided with a return shipping label and packing slip. Pack the item carefully. Include the packing slip, apply the shipping label, and return the item within 30 business days of the date you request a return, or your return will be canceled. Once we receive your order we will inspect the return. Please allow up to 5 business days of receiving the returned item for your refund.
